Paint codes

Moto Guzzi V700, V7 Special, Ambassador, 850 GT, 850 GT California, Eldorado, and 850 California Police models

Created:

Updated:

// //

These paint codes were derived from numerous sources.

Picture Color Paint code

Photo courtesy of Gregory Bender.

Photo courtesy of Gregory Bender.

Direct link to image

V700 Silver

From Charlie Mullendore of Antietam Classic Cycle -
PPG Astra Silver Poly, Tinting Guide: DBC33108
(base coat Urethane system, no OEM)

or

PPG Astra Silver Poly, Tinting Guide: DAR 33108
(Acrylic Enamel, OEM Mercedes DB735)

The paint tech did say that the tint was slightly off on the Acrylic Enamel and recommended the base coat Urethane.


From Moe at Cycle Garden (submitted by Tom Short) -
I use PPG DP epoxy primer on bare metal and PPG DBC 2 stage as a top coat.


From Frank Casssese -
Harley V Rod silver is pretty close.


From Hans Rosenstein -
BMW bike color: Titan Silver Metallic (Glasurit 354)

Photo courtesy of Gregory Bender.

Photo courtesy of Gregory Bender.

Direct link to image

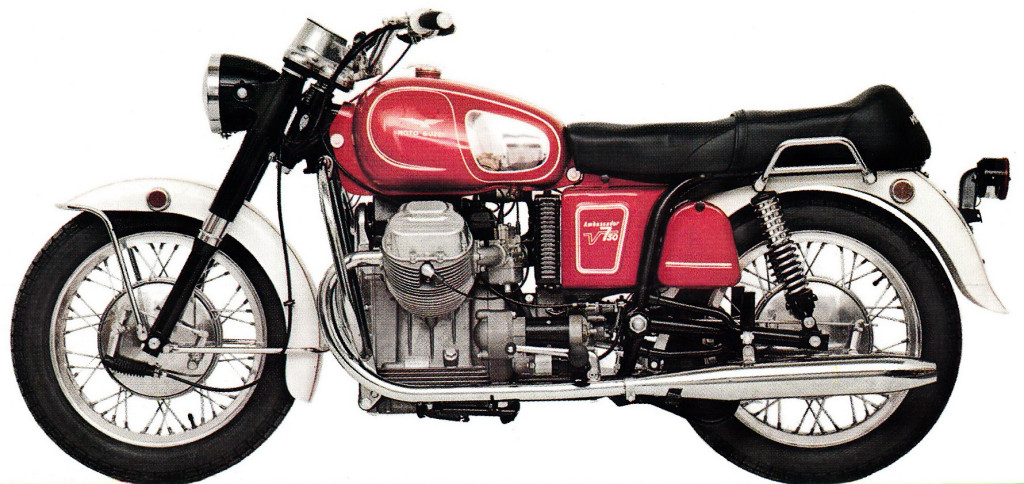

V700 / Early Ambassador Red

From John Chicoine -
RM's UNO-HD CMS 8342B was an incredible match with the original red on my tank.


From Hans Rosenstein -
BMW bike color: Piedmont Red Metallic (Glasurit 912)

Photo courtesy of Gregory Bender.

Photo courtesy of Gregory Bender.

Direct link to image

Later Ambassador / Eldorado Burgundy

From Mark Etheridge of Moto Guzzi Classics & Kevin O'Brien -
PPG DBU 4240


From Greg Field -
Might be the same as V7 Sport burgundy


From Steve Hill -

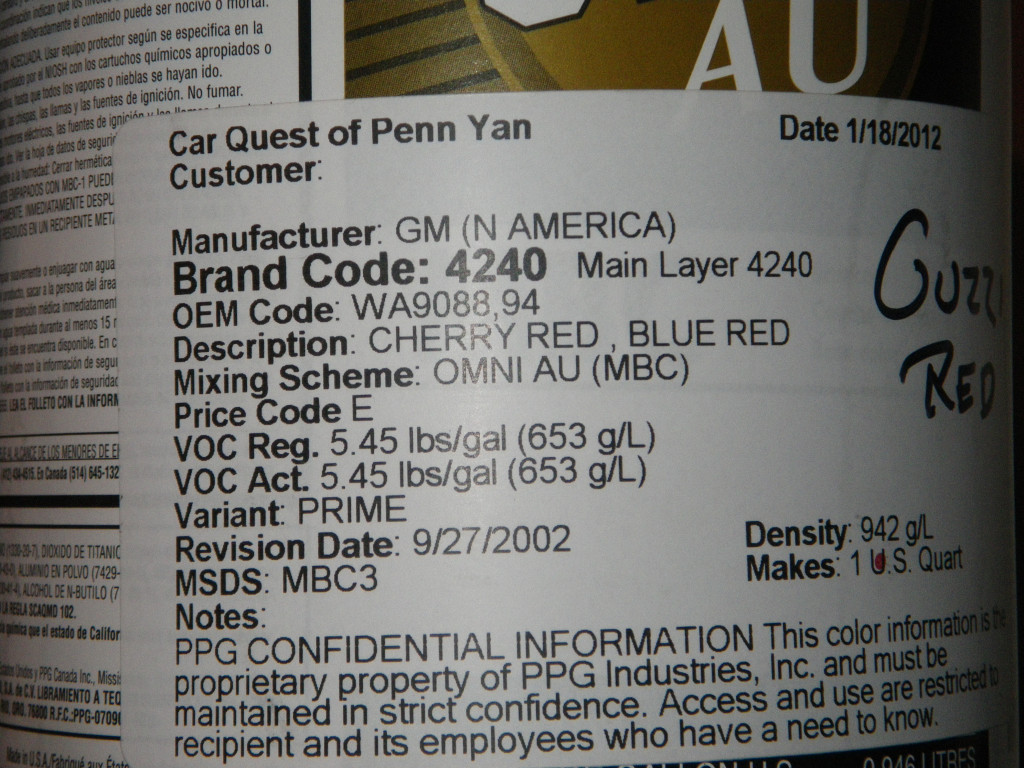

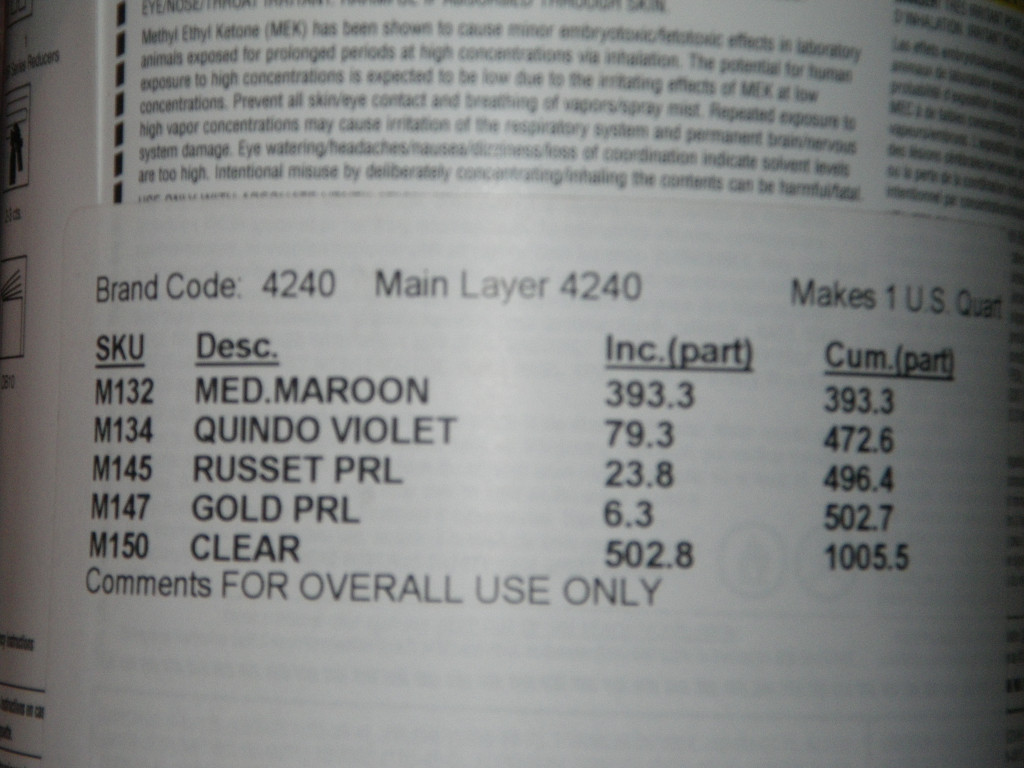

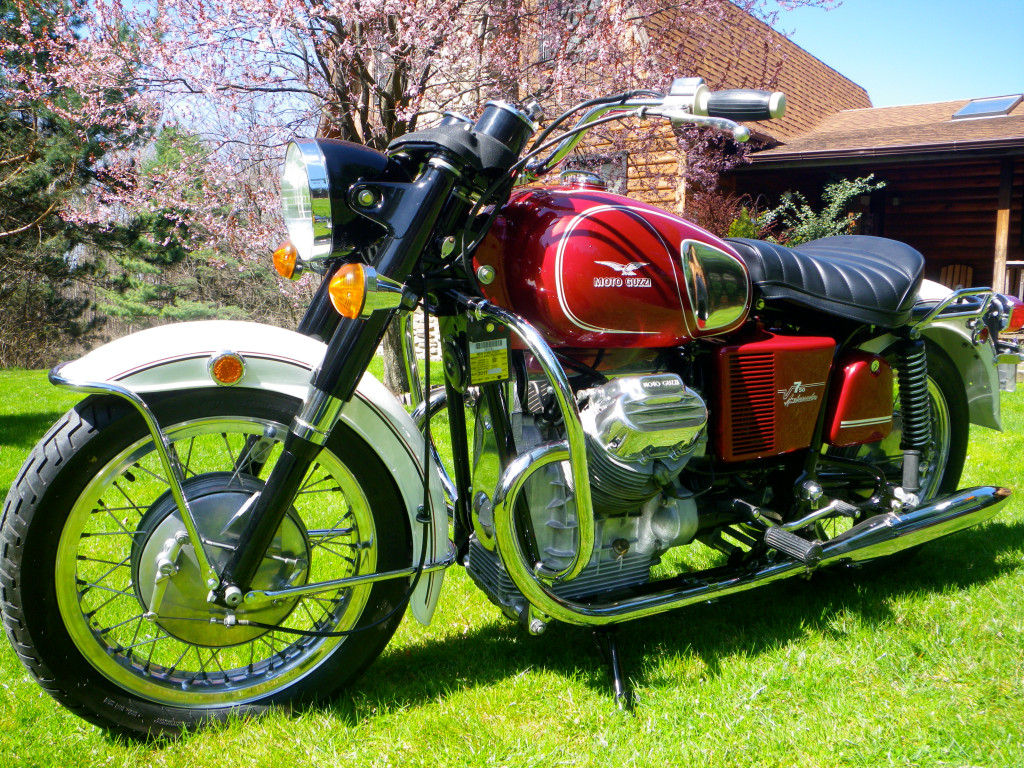

I have attached pictures of the paint formula as shown on the can. Before painting the red base coat I sprayed all the tin with a gold base coat...it really made a difference...gives it a deep slightly metallic sparkle.

Photo courtesy of Steve Hill.

Photo courtesy of Steve Hill.

Direct link to image

Photo courtesy of Steve Hill.

Photo courtesy of Steve Hill.

Direct link to image

Photo courtesy of Steve Hill.

Photo courtesy of Steve Hill.

Direct link to image

Photo courtesy of Steve Hill.

Photo courtesy of Steve Hill.

Direct link to image

Photo courtesy of Steve Hill.

Photo courtesy of Steve Hill.

Direct link to image

Photo courtesy of Steve Hill.

Photo courtesy of Steve Hill.

Direct link to image

Photo courtesy of Gregory Bender.

Photo courtesy of Gregory Bender.

Direct link to image

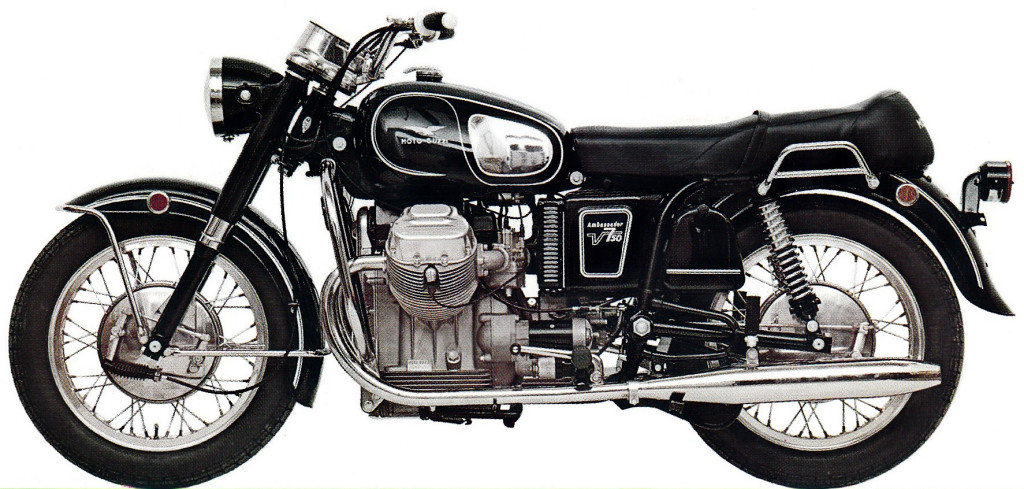

Ambassador / Eldorado Black

From Charlie Mullendore of Antietam Classic Cycle -
PPG Black, Tinting Guide: DBC9667
(base coat Urethane, OEM General Motors 19U)

Photo courtesy of Gregory Bender.

Photo courtesy of Gregory Bender.

Direct link to image

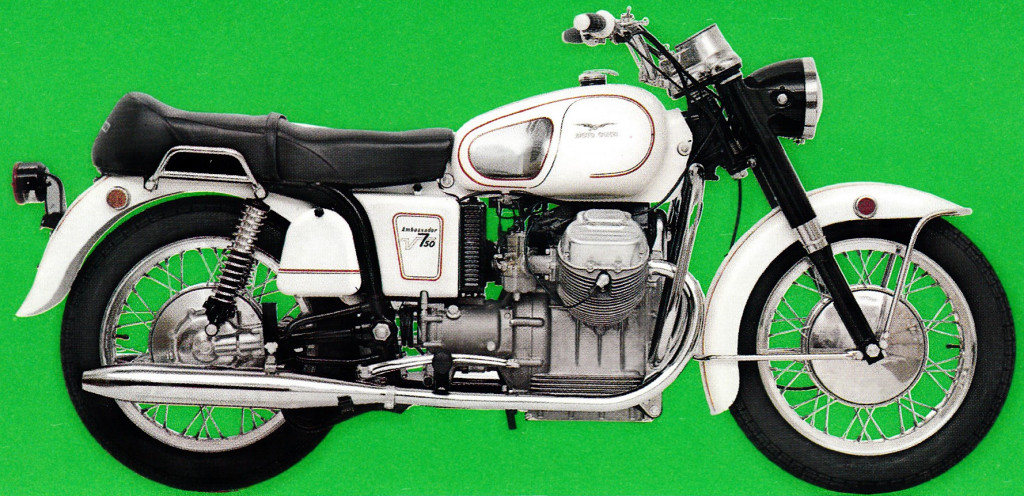

Ambassador / Eldorado White

From Charlie Mullendore of Antietam Classic Cycle -
PPG Cameo White, Tinting Guide: DBC90256
(base coat Urethane, no OEM)


From Mark Loesch -

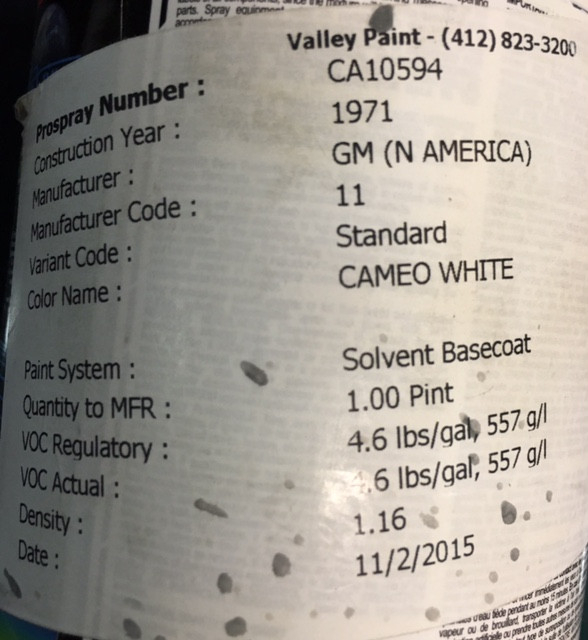

Prospray number CA10594 (1971 GM/North America 11, Standard, Cameo White)

Photo courtesy of Mark Loesch.

Photo courtesy of Mark Loesch.

Direct link to image

Photo courtesy of Mark Loesch.

Photo courtesy of Mark Loesch.

Direct link to image

Photo courtesy of Michael Walker.

Photo courtesy of Michael Walker.

Direct link to image

850 GT Green

?

Photo courtesy of Gregory Bender.

Photo courtesy of Gregory Bender.

Direct link to image

850 GT Burgundy

?
May be the same as the Ambassador / Eldorado burgundy?
