Gregory Bender

Side stand: fitting a police side stand with foot pegs

Moto Guzzi V700, V7 Special, Ambassador, 850 GT, 850 GT California, Eldorado, and 850 California Police models

Created:

Updated:

// //

The police side stand requires a different left side crash bar and, of course, the police side stand itself. Both bolt on easily.

However, the police side stand was only ever intended to be fit along with police footboards. Without the footboard rail, the side stand will bang against other parts when retracted. Not Good. Thanks to Charlie Mullendore of Antietam Classic Cycle for sharing his solution. In Charlie's own words:

I think I've figured out a pretty simple stop for the police side stand on Charlie B's Eldo. I machined a rod that will weld onto the stand out at the foot and a stock Guzzi deployment rubber will fit onto. It will bump up against the underside of the footpeg. I got the idea when I was using a socket to hold the stand out away from the new headpipe.

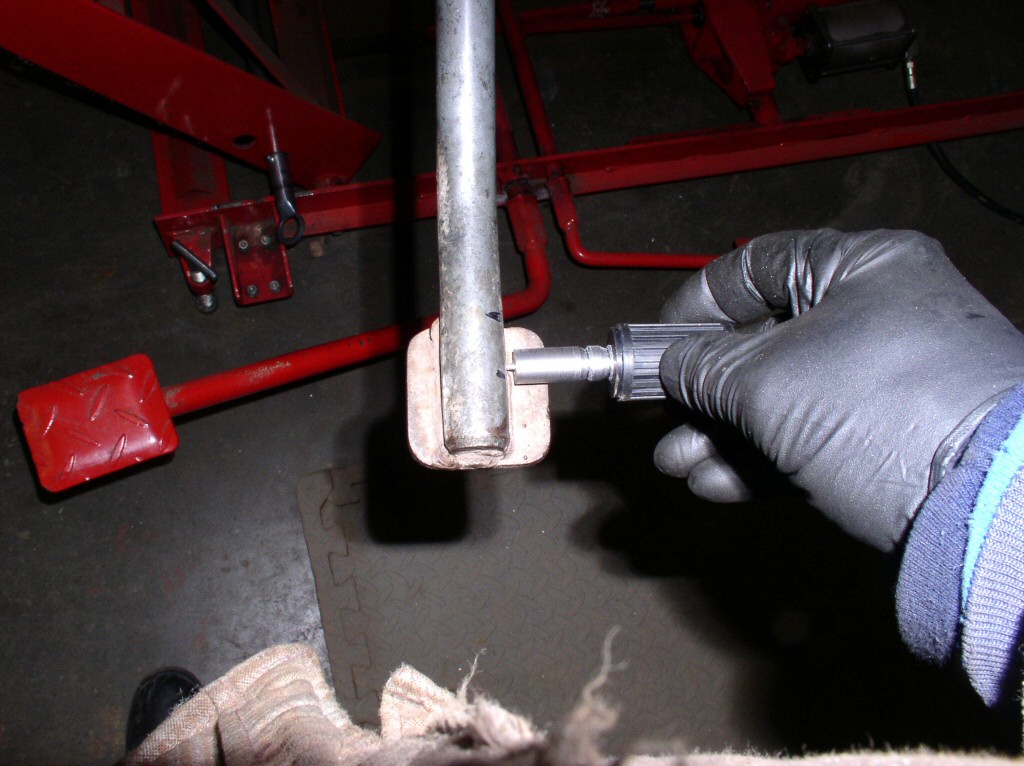

Using a socket to space the police side stand away from the foot peg bracket.
Using a socket to space the police side stand away from the foot peg bracket.

Photo courtesy of Charlie Mullendore of Antietam Classic Cycle.

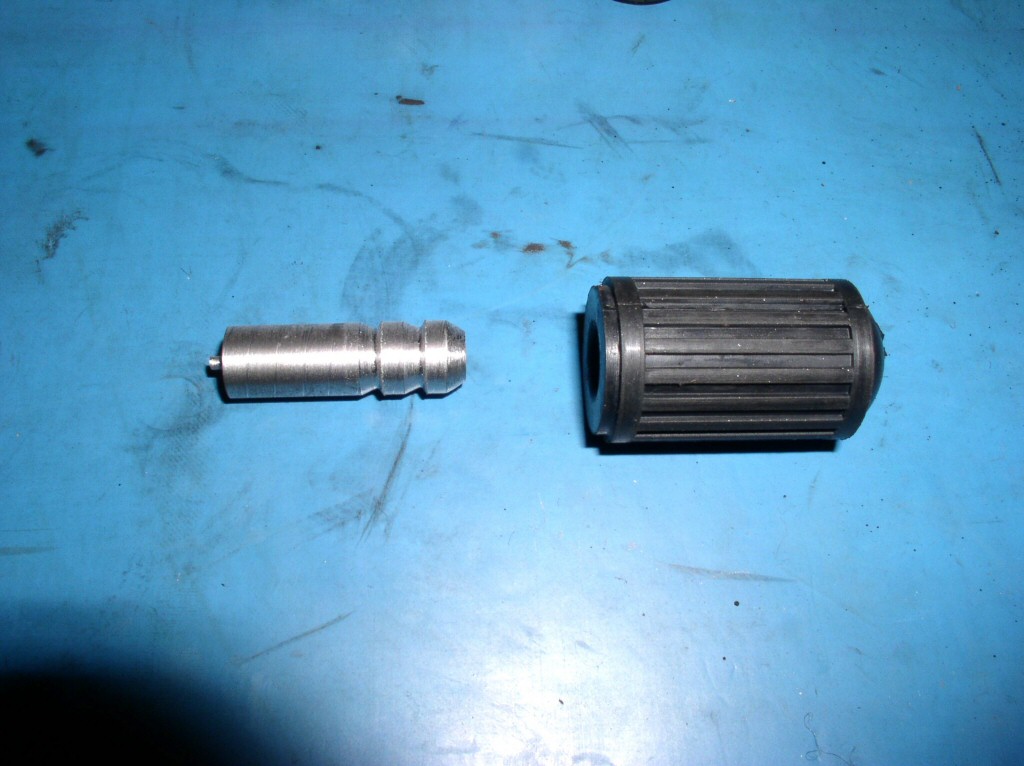

The spacer Charlie machined and rubber bumper.
The spacer Charlie machined and rubber bumper.

Photo courtesy of Charlie Mullendore of Antietam Classic Cycle.

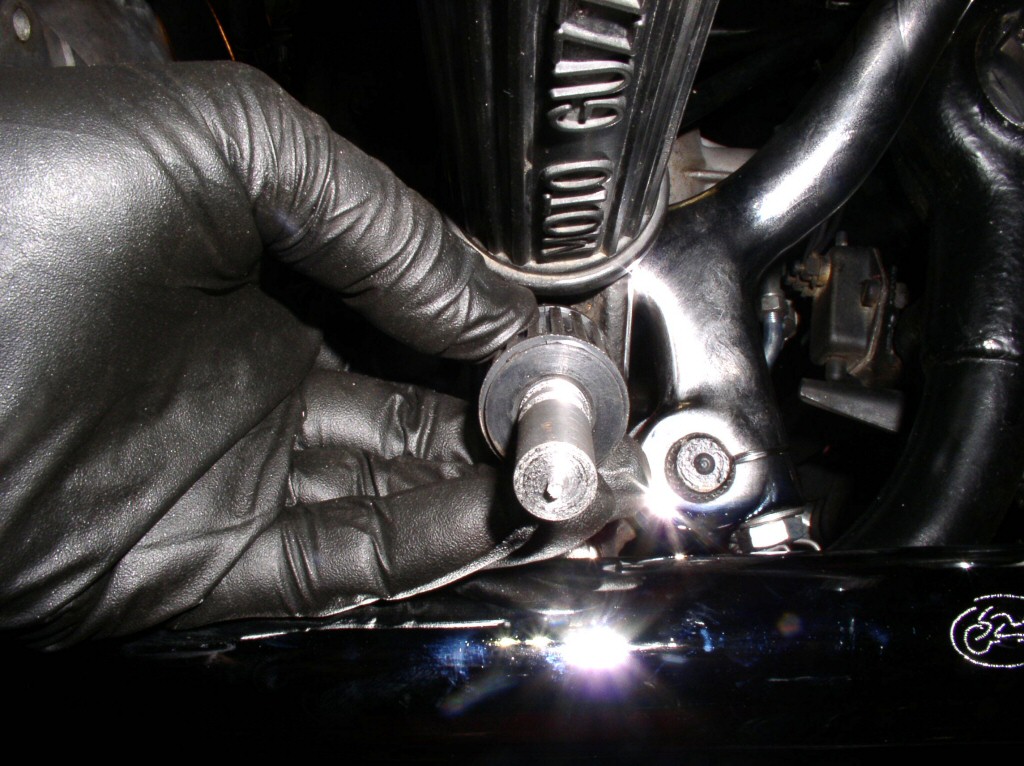

Here is were the spacer will be welded.
Here is were the spacer will be welded.

Photo courtesy of Charlie Mullendore of Antietam Classic Cycle.

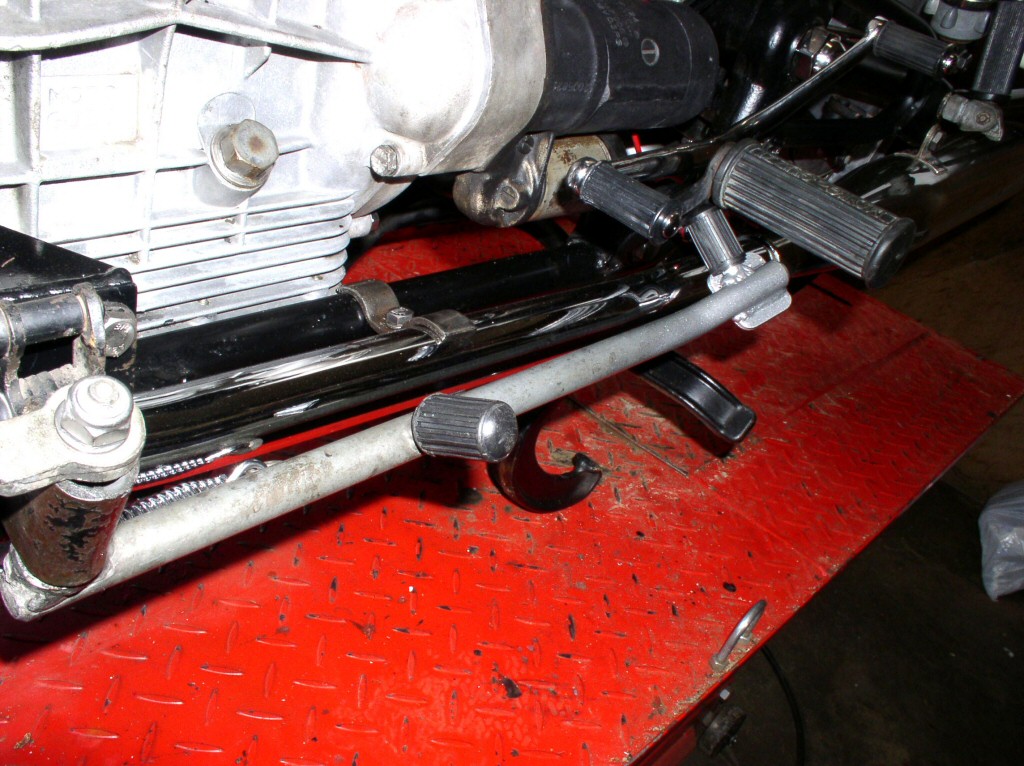

And how it fits against the foot peg bracket.
And how it fits against the foot peg bracket.

Photo courtesy of Charlie Mullendore of Antietam Classic Cycle.

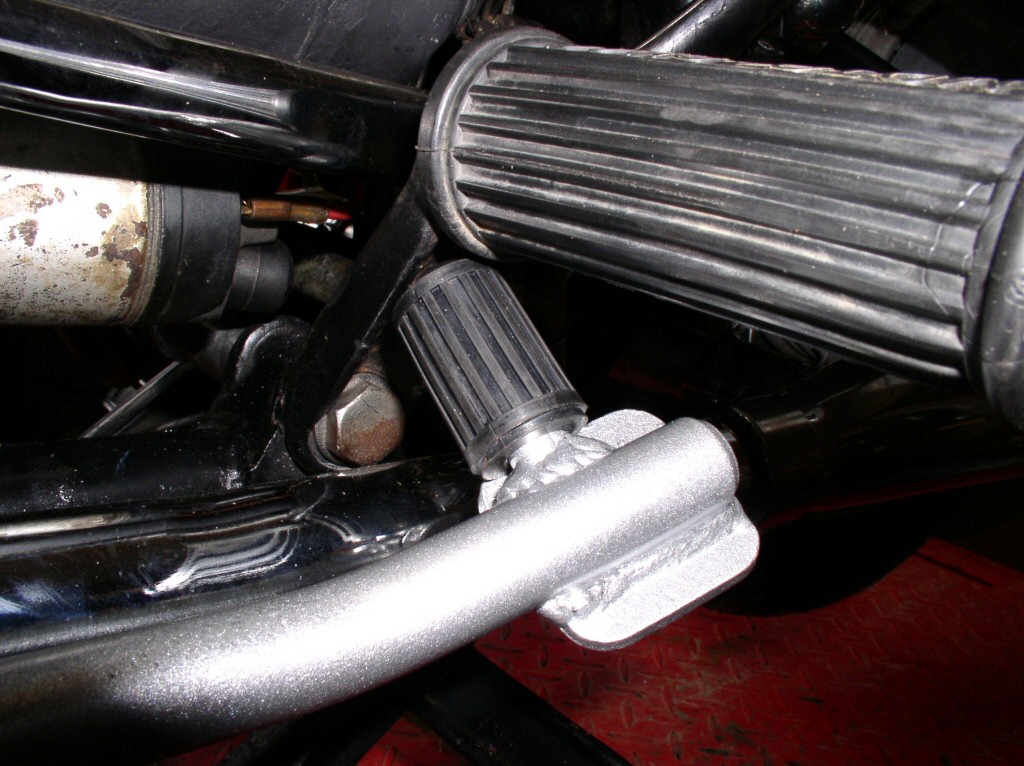

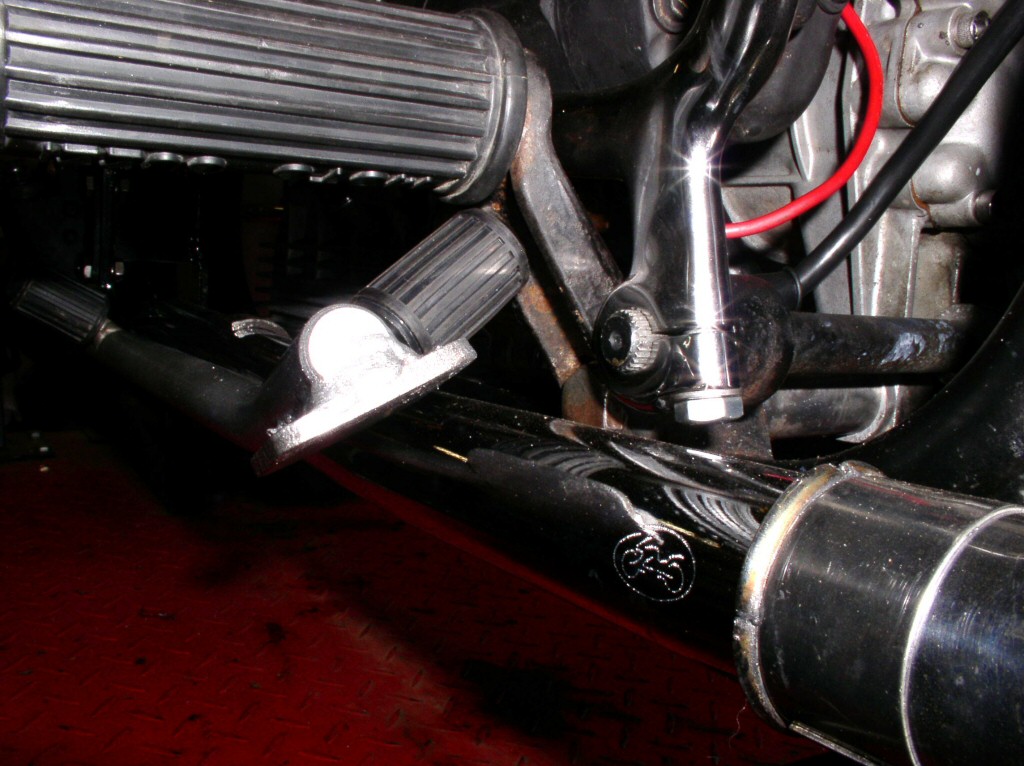

The finished bumper for the police side stand.
The finished bumper for the police side stand.

Photo courtesy of Charlie Mullendore of Antietam Classic Cycle.

The finished bumper for the police side stand.
The finished bumper for the police side stand.

Photo courtesy of Charlie Mullendore of Antietam Classic Cycle.

The finished bumper for the police side stand.
The finished bumper for the police side stand.

Photo courtesy of Charlie Mullendore of Antietam Classic Cycle.
