Gregory Bender

Transmission layshaft / output shaft nut tool

Moto Guzzi V700, V7 Special, Ambassador, 850 GT, 850 GT California, Eldorado, and 850 California Police models

Created:

Updated:

// //

Stephen Brenton is kind enough to manufacture this tool. Contact him directly for price and availability. View all of the tools that Stephen Brenton makes.

Hole through center of socket allows use with u-joint yoke. This tool is applicable to 5 speed transmissions only. 4 speed transmissions utilize a ring nut / spanner nut. See Guzzi Manual, Fig 79/1, tool 26. MG# 14905400

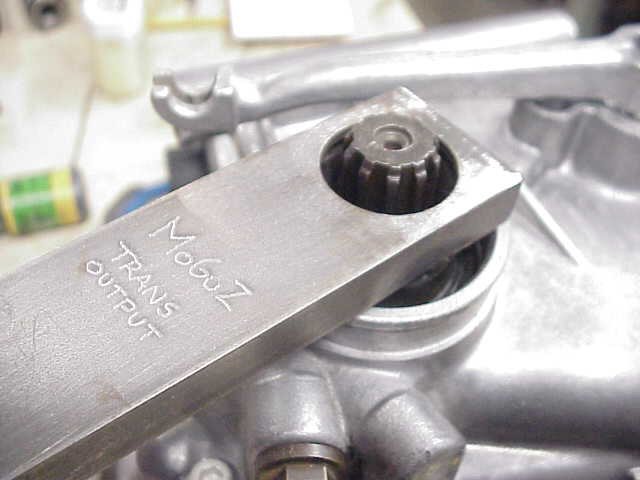

Moto Guzzi special tool for the nut securing the layshaft / output shaft on 5 speed transmissions.
Moto Guzzi special tool for the nut securing the layshaft / output shaft on 5 speed transmissions.

Photo courtesy of Stephen Brenton.

Moto Guzzi special tool for the nut securing the layshaft / output shaft on 5 speed transmissions.
Moto Guzzi special tool for the nut securing the layshaft / output shaft on 5 speed transmissions.

Photo courtesy of Stephen Brenton.
