Headlights for the Quota 1100

Moto Guzzi Quota 1000 and Quota 1100 ES models

Created:

Updated:

// //

Original headlight

Here is the original manufacturer of the headlight: tri.o.m. part number 798.00.10. It is the same headlight that is used on the MZ Skorpion

Alternative headlight 1 - European Moto Guzzi V11 Sport

The European Moto Guzzi V11 Sport models came with an identically shaped headlight that puts out a reported much better light pattern.

Alternative headlight 2 - 1991 to 1992 Yamaha FZR 600 and 1991 to 1993 Yamaha FZR 1000 headlight

Thanks to Sake and George for providing this information on the old Yahoo! Guzzi_Quota news group. Sake got this idea from Andy's website and George did some additional research. This headlight is a direct replacement for the Quota 1100 and requires no modification to fit.

Left-hand dipping, for UK applications

Thanks to Alan Greenslade for sending me this information via e-mail. In Alan's own words:

The Yamaha light for UK application (left hand dipping) has the following part numbers on it:

  • Lens (front number) = 110-31696
  • Body (number on the back of the light) = 110-31694

These numbers are obviously different to the US application (right hand dipping).

This headlight was originally fitted to the following models:

Yamaha spare parts catalog showing headlight assembly. Part number 3HH-84320-00-00.
Yamaha spare parts catalog showing headlight assembly. Part number 3HH-84320-00-00.

Photo courtesy of Yamaha.

Headlight originally fitted to a 1991 - 1992 Yamaha FZR 600 or 1991 - 1993 Yamaha FZR 1000, fits the Moto Guzzi Quota 1100 ES fairing perfectly.
Headlight originally fitted to a 1991 - 1992 Yamaha FZR 600 or 1991 - 1993 Yamaha FZR 1000, fits the Moto Guzzi Quota 1100 ES fairing perfectly.

Photo courtesy of Andy.

Alternative headlight 3 - Coenie Wesselink custom bracket to fit LED lights

Thanks to Coenie Wesselink for sending this information to me. In his words and photos.

Thanks for hosting this fantastic website. I have owned my Quota since 2003 and have traveled extensively in Europe and now in South Africa.

The original headlights were awful so I set out to change them.

I bought two 5.75 inch LED lights from Wisamic in the USA for USD $79.00 for both and fitted them as per the photos using 6 mm aluminium plate. I used Silkoflex to stick them in to the plate. What a difference! I can now see the apexes at night. The yellow spot lights are just for making me more visible whilst lane splitting in the traffic to work.

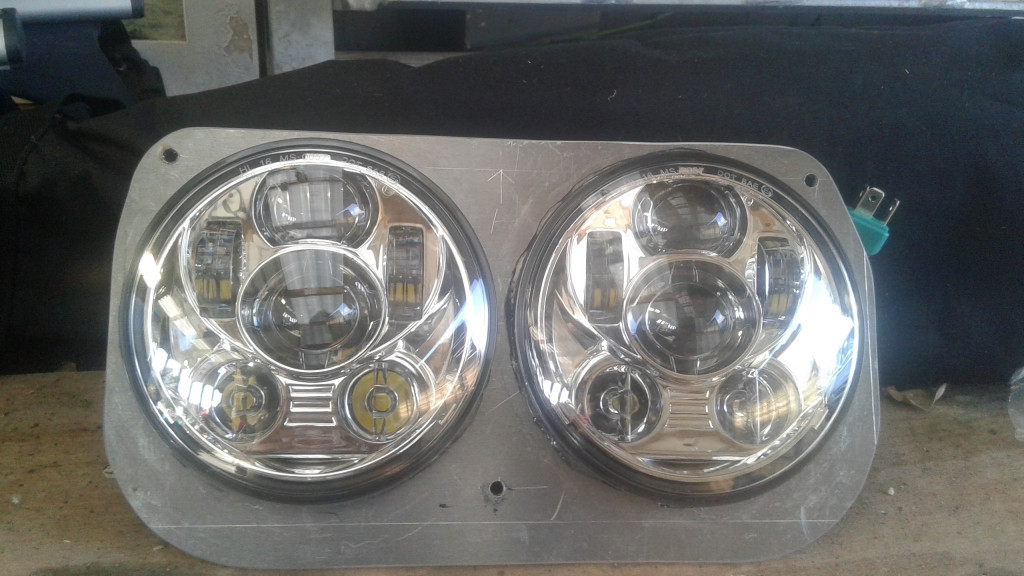

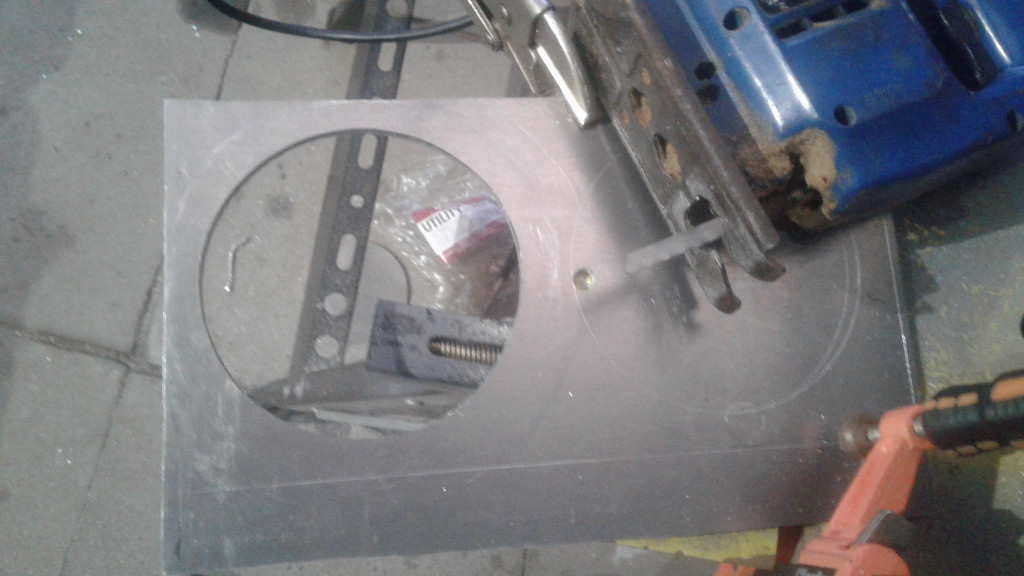

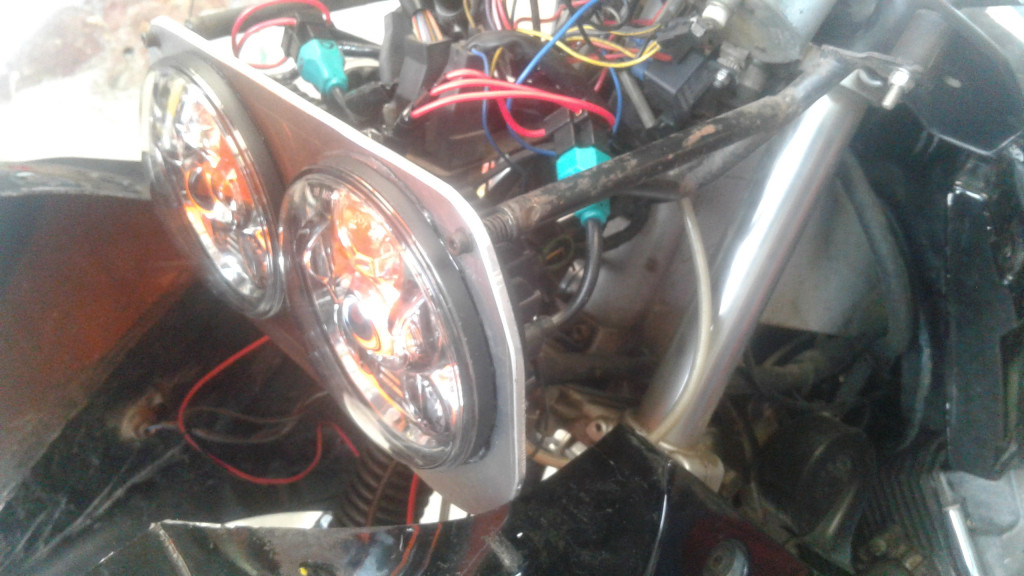

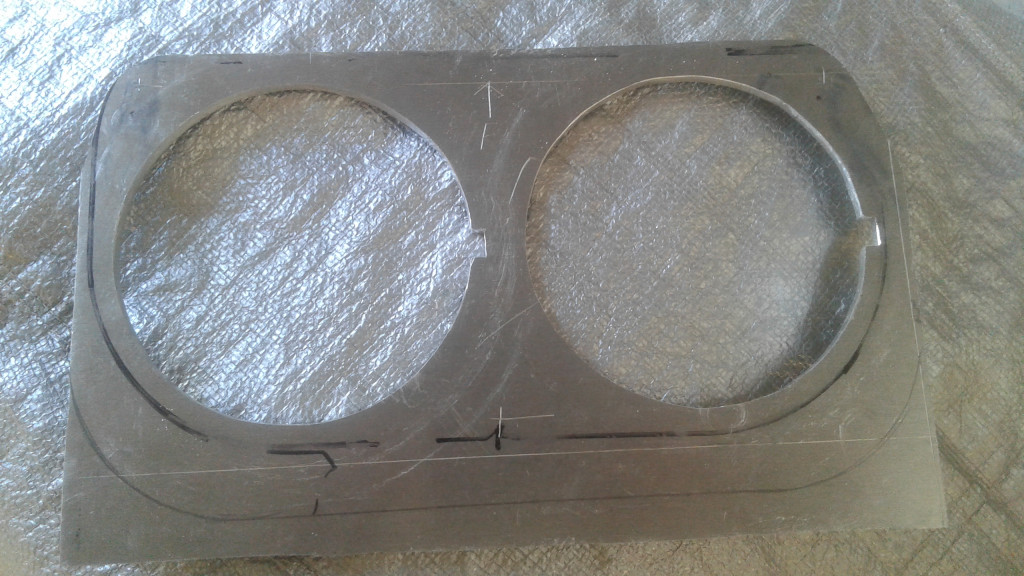

Custom bracket to fit LED lights on a Moto Guzzi Quota 1000 (or Quota 1100 fit with a Quota 1000 fairing)
Custom bracket to fit LED lights on a Moto Guzzi Quota 1000 (or Quota 1100 fit with a Quota 1000 fairing)

Photo courtesy of Coenie Wesselink.

Custom bracket to fit LED lights on a Moto Guzzi Quota 1000 (or Quota 1100 fit with a Quota 1000 fairing)
Custom bracket to fit LED lights on a Moto Guzzi Quota 1000 (or Quota 1100 fit with a Quota 1000 fairing)

Photo courtesy of Coenie Wesselink.

Custom bracket to fit LED lights on a Moto Guzzi Quota 1000 (or Quota 1100 fit with a Quota 1000 fairing)
Custom bracket to fit LED lights on a Moto Guzzi Quota 1000 (or Quota 1100 fit with a Quota 1000 fairing)

Photo courtesy of Coenie Wesselink.

Custom bracket to fit LED lights on a Moto Guzzi Quota 1000 (or Quota 1100 fit with a Quota 1000 fairing)
Custom bracket to fit LED lights on a Moto Guzzi Quota 1000 (or Quota 1100 fit with a Quota 1000 fairing)

Photo courtesy of Coenie Wesselink.

Custom bracket to fit LED lights on a Moto Guzzi Quota 1000 (or Quota 1100 fit with a Quota 1000 fairing)
Custom bracket to fit LED lights on a Moto Guzzi Quota 1000 (or Quota 1100 fit with a Quota 1000 fairing)

Photo courtesy of Coenie Wesselink.

Custom bracket to fit LED lights on a Moto Guzzi Quota 1000 (or Quota 1100 fit with a Quota 1000 fairing)
Custom bracket to fit LED lights on a Moto Guzzi Quota 1000 (or Quota 1100 fit with a Quota 1000 fairing)

Photo courtesy of Coenie Wesselink.

Custom bracket to fit LED lights on a Moto Guzzi Quota 1000 (or Quota 1100 fit with a Quota 1000 fairing)
Custom bracket to fit LED lights on a Moto Guzzi Quota 1000 (or Quota 1100 fit with a Quota 1000 fairing)

Photo courtesy of Coenie Wesselink.
