Gregory Bender

Oil pressure gauge

Moto Guzzi V7 Sport, 750 S, 750 S3, 850 T, 850 T3, 850 T3 California, V1000 I-Convert, V1000 G5, 1000 SP, Le Mans, Le Mans II, Le Mans CX 100, Le Mans 1000, 1000 SP III, 1000 S, California II, California III, California 1100, California Jackal, California EV, California EV Touring, California Aluminium, California Titanium, California Special, California Special Sport, California Stone-Metal, California Stone-Touring, California Classic, California Touring, and California Vintage models

Created:

Updated:

// //

Thanks to Jack Huisinga for sending me this information in a private e-mail. In Jack's own words:

Attached is a picture of the oil gauge on my Convert. The gauge is a 1.5 inch liquid filled unit from eBay seller jerzeecustoms. USD $23.00 + USD $6.00 shipping. Great value.

I fab'd the bracket from some aluminum angle. The bracket is a bit funky but it works and I like using the deflector lug on the crash bar to attach it. The other custom component is the hollow bolt MG# 95990037 drilled through with 18 inch NPT fitting brazed on the end.

The custom braided stainless line is from eBay seller Irwjcw aka Lee's Speed Shop who sells a set of Overhead Oil Lines for Shovelhead, Braided Steel for USD $16.00 + USD $5.00. I used only the short hose. They have 18 inch NPT with a swivel on one end. Other fittings are a standard 18 inch NPT elbow and two 45° street ells.

The hose clamp goes around the bracket and a section of vinyl hose that goes over one end of the bronze elbow. If I have it apart sometime I'll braze some ears onto the elbow and fasten it to the bracket through some rubber grommets. But of course, the forks need rebuilding more than the bracket needs fixing.

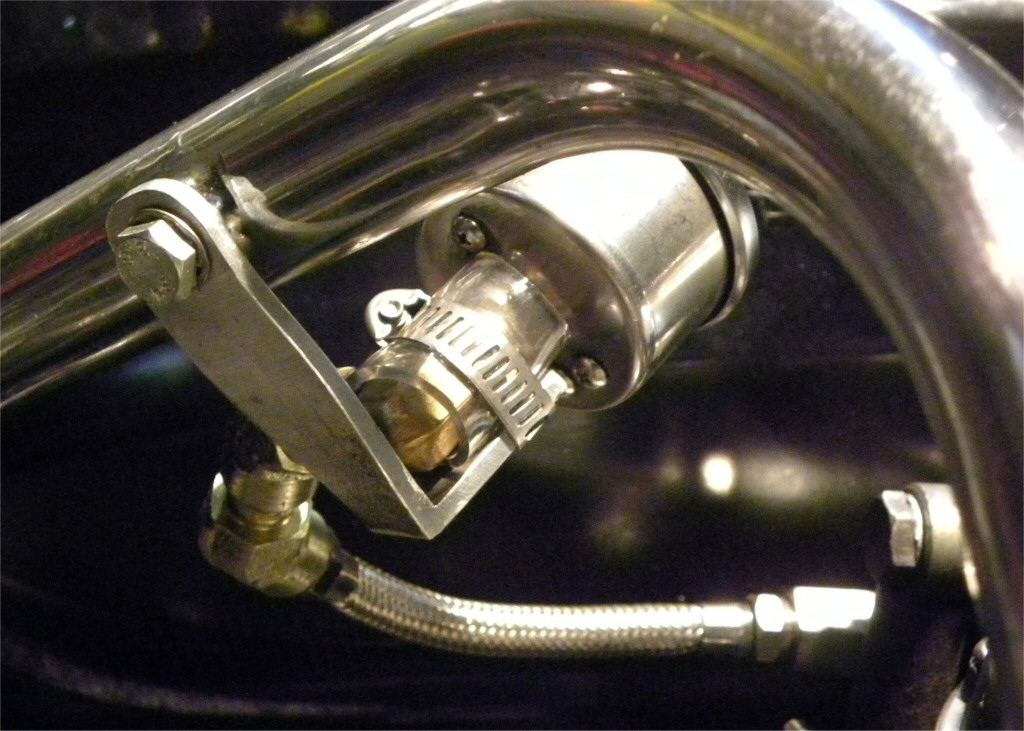

Oil pressure gauge fit to a Moto Guzzi V1000 I-Convert.

Oil pressure gauge fit to a Moto Guzzi V1000 I-Convert.

Photo courtesy of Jack Huisinga.

Oil pressure gauge fit to a Moto Guzzi V1000 I-Convert.

Oil pressure gauge fit to a Moto Guzzi V1000 I-Convert.

Photo courtesy of Jack Huisinga.

Oil pressure gauge fit to a Moto Guzzi V1000 I-Convert.

Oil pressure gauge fit to a Moto Guzzi V1000 I-Convert.

Photo courtesy of Jack Huisinga.

Oil pressure gauge fit to a Moto Guzzi V1000 I-Convert.

Oil pressure gauge fit to a Moto Guzzi V1000 I-Convert.

Photo courtesy of Jack Huisinga.
