Gregory Bender

Relay connections - starter

Created:

Updated:

// //

The starter relay is located inside or near the battery tray area.

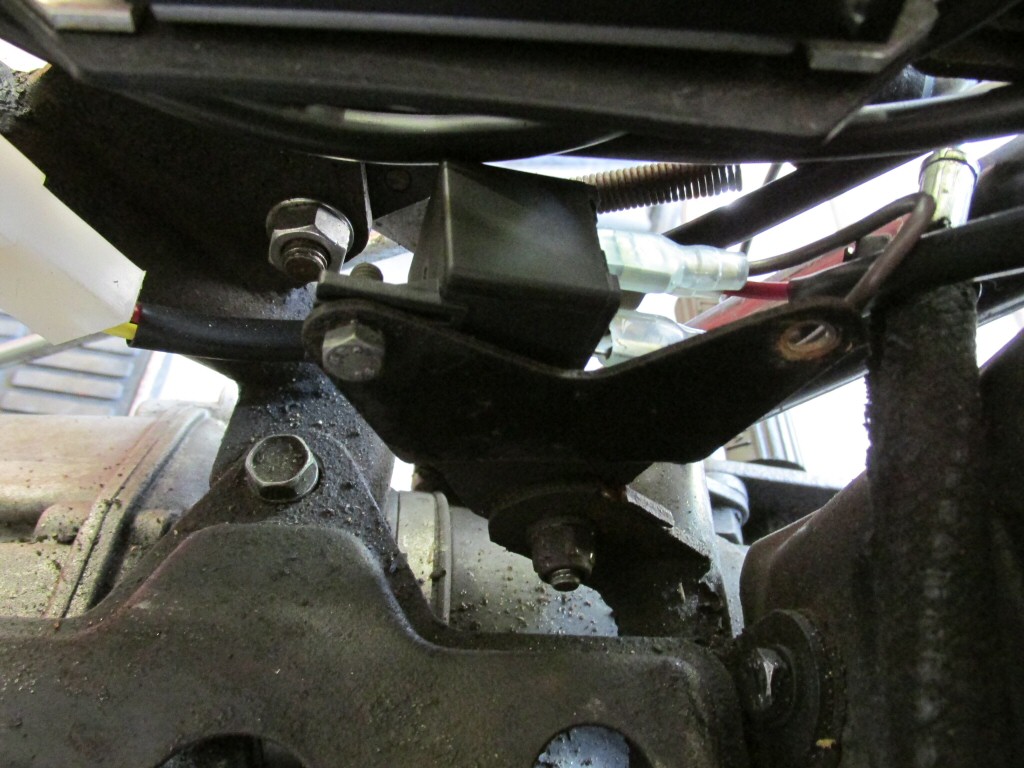

Wiring for the starter relay on a Moto Guzzi V1000 I-Convert.
Wiring for the starter relay on a Moto Guzzi V1000 I-Convert.

Photo courtesy of Gregory Bender.

Wiring for the starter relay on a Moto Guzzi V1000 I-Convert.

Photo courtesy of Gregory Bender.

Direct link to image

Wiring for the starter relay on a Moto Guzzi V1000 I-Convert.
Wiring for the starter relay on a Moto Guzzi V1000 I-Convert.

Photo courtesy of Gregory Bender.

Wiring for the starter relay on a Moto Guzzi V1000 I-Convert.

Photo courtesy of Gregory Bender.

Direct link to image

Wiring for the starter relay on a Moto Guzzi V1000 I-Convert.
Wiring for the starter relay on a Moto Guzzi V1000 I-Convert.

Photo courtesy of Gregory Bender.

Wiring for the starter relay on a Moto Guzzi V1000 I-Convert.

Photo courtesy of Gregory Bender.

Direct link to image

Wiring for the starter relay on a Moto Guzzi V1000 I-Convert.
Wiring for the starter relay on a Moto Guzzi V1000 I-Convert.

Photo courtesy of Gregory Bender.

Wiring for the starter relay on a Moto Guzzi V1000 I-Convert.

Photo courtesy of Gregory Bender.

Direct link to image

V7 Sport starter relay electrical connections

Original starter

  • Black wire to ground (light gauge wire)
  • Brown wire to handlebar mounted starter button (light gauge wire)
  • Black wire to battery positive terminal (heavy gauge wire)
  • Black wire to starter (heavy gauge wire)

Common replacement Bosch starter (as used on Guzzis of the same era)

  • Relay terminal 30 - Red wire from fuse box
  • Relay terminal 85 - Black wire to ground
  • Relay terminal 86 - Brown wire from handlebar mounted starter button
  • Relay terminal 87 - Red wire to starter solenoid

750 S starter relay electrical connections

Original starter

  • Black wire to ground (light gauge wire)
  • Brown wire to handlebar mounted starter button (light gauge wire)
  • Black wire to battery positive terminal (heavy gauge wire)
  • Black wire to starter (heavy gauge wire)

Common replacement Bosch starter (as used on Guzzis of the same era)

  • Relay terminal 30 - Red wire from fuse box
  • Relay terminal 85 - Black wire to ground
  • Relay terminal 86 - Brown wire from handlebar mounted starter button
  • Relay terminal 87 - Red wire to starter solenoid

850 T starter relay electrical connections

750 S3 starter relay electrical connections

850 T3 starter relay electrical connections

850 T3 California starter relay electrical connections

V1000 I-Convert starter relay electrical connections

V1000 G5 starter relay electrical connections

1000 SP starter relay electrical connections

1000 SP II starter relay electrical connections

850 Le Mans starter relay electrical connections

Le Mans II starter relay electrical connections

Le Mans CX 100 starter relay electrical connections

Le Mans III starter relay electrical connections

Le Mans 1000 starter relay electrical connections

The Le Mans 1000 harness uses relay connector plugs, so these connections are ancillary.

California II starter relay electrical connections
