Wiring sub-harness: Le Mans III dash ground interconnect: DASH-GROUND-LEMANSIII

Moto Guzzi V7 Sport, 750 S, 750 S3, 850 T, 850 T3, 850 T3 California, V1000 I-Convert, V1000 G5, 1000 SP, Le Mans, Le Mans II, Le Mans CX 100, Le Mans 1000, 1000 SP III, 1000 S, California II, California III, California 1100, California Jackal, California EV, California EV Touring, California Aluminium, California Titanium, California Special, California Special Sport, California Stone-Metal, California Stone-Touring, California Classic, California Touring, and California Vintage models

Created:

Updated:

// //

Buy a new duplicate of this original wiring harness

Patrick Smith sent me an original wiring sub-harnesses. I took these photos.

Note, the official Moto Guzzi spare parts catalog identifies this sub-harness as MG# 14748155. This is the same part number as used on the early Le Mans II and Le Mans CX 100. However, the Le Mans III dash ground interconnect is different from the one used on the Le Mans II and Le Mans CX 100. At this point in time, I believe that MG# 14748155 correctly identifies the earlier dash ground interconnect as used on the Le Mans II and Le Mans CX 100. I do not know the official part number used for the dash ground interconnect on the Le Mans III (if there ever was one).

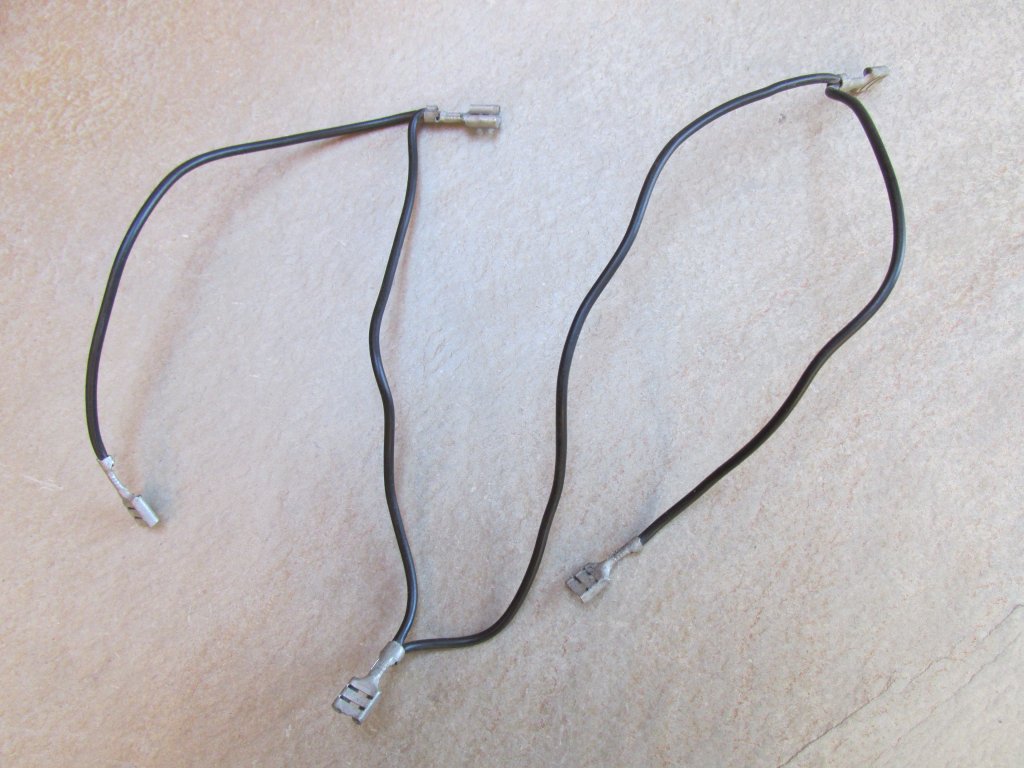

Dash ground interconnect wiring for a Moto Guzzi Le Mans III.
Dash ground interconnect wiring for a Moto Guzzi Le Mans III.

Photo courtesy of Gregory Bender.
