O-ring kit to fit the Suzuki DR650 (all 1996 - 2023 model years)

Part number: OR-KIT-DR650

Price: $17.25

How to order

Testimonials and reviews

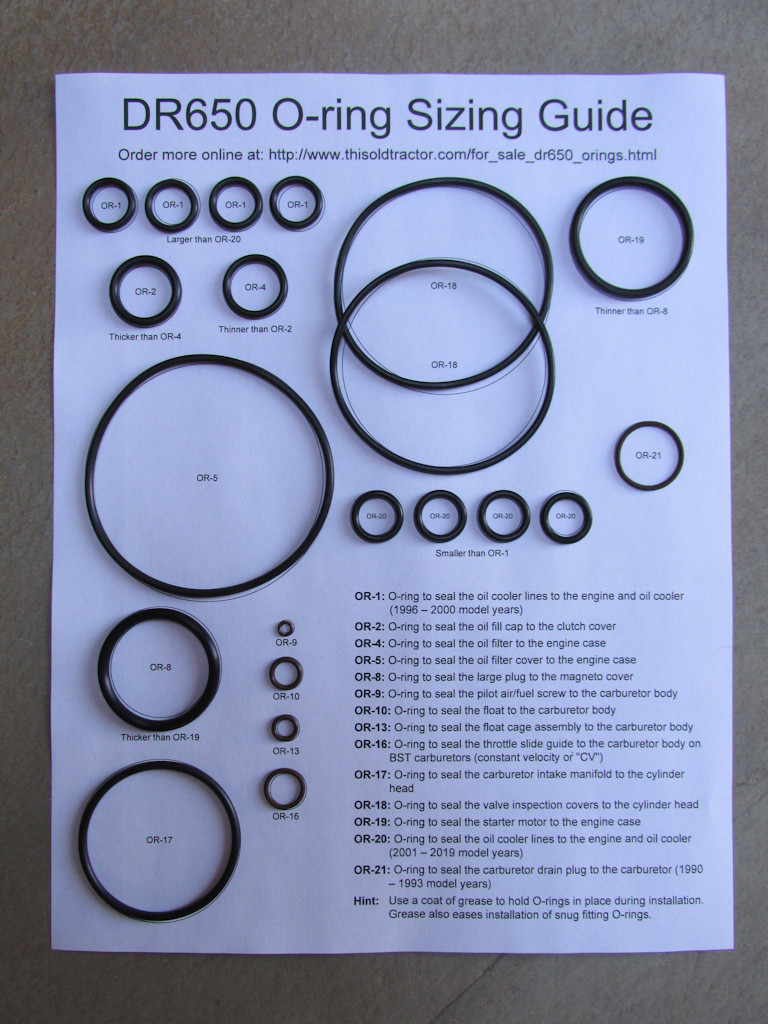

O-ring kit to fit the Suzuki DR650
O-ring kit to fit the Suzuki DR650

Photo courtesy of Gregory Bender.

O-ring kit to fit the Suzuki DR650

Photo courtesy of Gregory Bender.

Direct link to image

O-ring kit to fit the Suzuki DR650 (all 1996 - 2023 model years)

Quick reference code: OR-KIT-DR650

The OR-KIT-DR650 provides standard Buna-N O-rings for all applications that are in contact with oil; Viton O-rings are provided all applications that are in contact with fuel.

O-ring kit contains the following nineteen (21) O-rings:

  • OR-1: Four (4) Buna-N O-rings to seal the oil cooler lines to the engine and oil cooler (SPN# 09280-12008)
  • OR-2: One (1) Buna-N O-ring to seal the oil fill cap to the clutch cover (SPN# 09280-17003)
  • OR-4: One (1) Buna-N O-ring to seal the oil filter to the engine case (SPN# 09280-16005 or SPN# 09280-15007)
  • OR-5: One (1) Buna-N O-ring to seal the oil filter cover to the engine case (SPN# 09280-72001)
  • OR-8: One (1) Buna-N O-ring to seal the large plug to the magneto cover (SPN# 09280-33004)
  • OR-9: One (1) Viton O-ring to seal the pilot air/fuel screw to the carburetor body (SPN# 13295-29900).
    Viton is more resistant to deterioration when in contact with modern fuels.
  • OR-10: One (1) larger Viton O-ring to seal the float to the carburetor body (SPN# 13374-35C00).
    Viton is more resistant to deterioration when in contact with modern fuels.
  • OR-13: One (1) smaller Viton O-ring to seal the float cage assembly to the carburetor body (SPN# 13374-46710).
    Viton is more resistant to deterioration when in contact with modern fuels.
  • OR-16: One (1) Viton O-ring to seal the throttle slide guide to the carburetor body on BST carburetors (constant velocity or CV).
    Viton is more resistant to deterioration when in contact with modern fuels.
  • OR-17: One (1) Buna-N O-ring to seal the carburetor intake manifold to the cylinder head (SPN# 09280-46002)
  • OR-18: Two (2) Buna-N O-rings to seal the valve inspection covers to the cylinder head (SPN# 11177-44B01)
  • OR-19: One (1) Buna-N O-ring to seal the starter motor to the engine case (SPN# 31156-48B00)
  • OR-20: Four (4) Buna-N O-rings to seal the oil cooler lines to the engine and oil cooler (SPN# 09280-12012)
  • OR-21: One (1) Viton O-ring to seal the carburetor drain plug to the carburetor (SPN# 13249-41310).
    Viton is more resistant to deterioration when in contact with modern fuels.
