Single terminal bulb holder

Part number: BULB-HOLDER-SINGLE

Price: $5.00 In stock

How to order

Testimonials and reviews

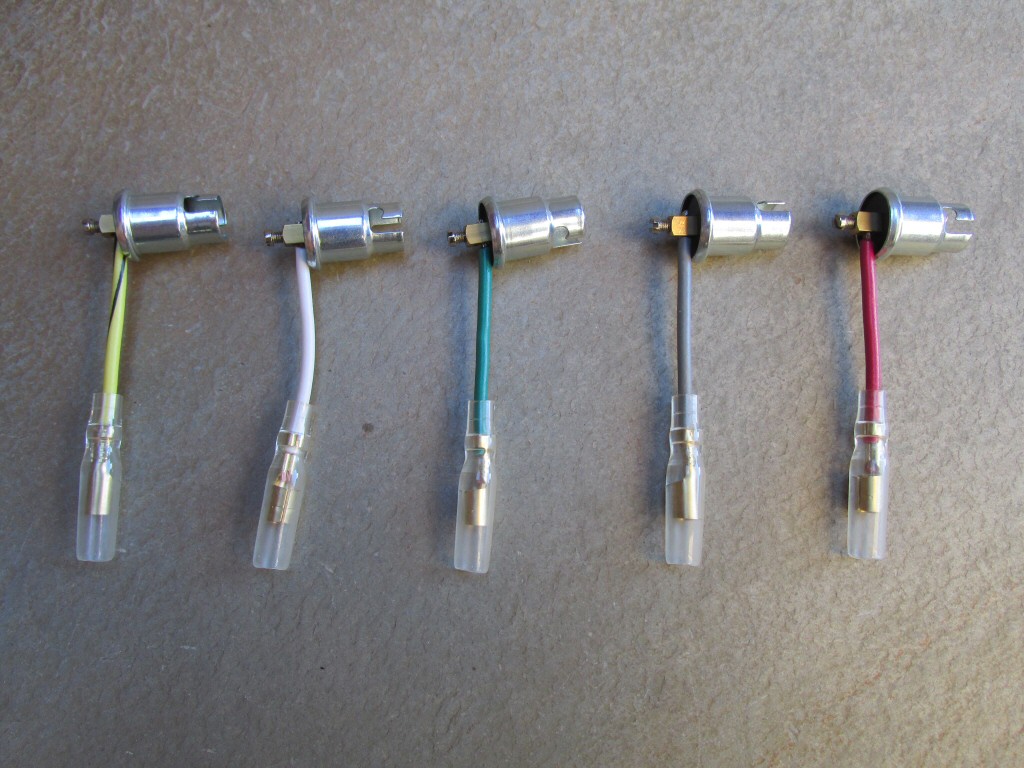

The 5 single terminal bulb holders used on loop frame models with a single gauge civilian dash.
The 5 single terminal bulb holders used on loop frame models with a single gauge civilian dash.
The 5 single terminal bulb holders used on loop frame models with a single gauge civilian dash.

Direct link to image

The 3 single terminal bulb holders used on loop frame models with a dual gauge civilian dash.
The 3 single terminal bulb holders used on loop frame models with a dual gauge civilian dash.
The 3 single terminal bulb holders used on loop frame models with a dual gauge civilian dash.

Direct link to image

The 5 single terminal bulb holders used on loop frame models with a single gauge police dash.
The 5 single terminal bulb holders used on loop frame models with a single gauge police dash.
The 5 single terminal bulb holders used on loop frame models with a single gauge police dash.

Direct link to image

Single terminal bulb holder

A very nice single terminal bulb holder with excellent fitment within the tube that is secured to the dash. Includes color-coded short jumper wire with a 4 mm female bullet terminal or 6.35 mm female spade terminal and quick connector to mate perfectly with the original wiring harness. Accepts standard sized OEM bulbs. ~12 mm OD. Sold each.

When ordering: Please specify wire color and terminal.

  • Loop frame models with a single gauge civilian dash require 5 of these bulb holders; all fit with female bullet terminals.
    • Yellow/black (double spiral) - lights on indicator light
    • White wire - speedometer illumination light
    • Green wire - transmission neutral light
    • Gray wire - engine oil pressure light
    • Red wire - generator charging light
  • Loop frame models with a dual gauge civilian dash require 3 of these bulb holders; 1 fit with a female bullet terminal and 2 fit with male bullet terminals.
    • Yellow/black (double spiral) - high beam indicator light
    • Black wire - tachometer illumination light
    • Black wire - speedometer illumination light
  • Loop frame models with a single gauge police dash require 5 of these bulb holders; 1 fit with a female bullet terminal and 4 fit with male spade terminals.
    • Yellow/black (single spiral) wire - left turn signal indicator light
    • White/black (single spiral) wire - right turn signal indicator light
    • White wire - speedometer illumination light
    • Blue wire - left push pull switch indicator light (typically used to actuate spot lights)
    • Yellow/black (double spiral) - high beam indicator light
Accepts this style of bayonet bulb.
Accepts this style of bayonet bulb.

Photo courtesy of McMaster-Carr.

Accepts this style of bayonet bulb.
Accepts this style of bayonet bulb.

Photo courtesy of McMaster-Carr.
