Replacement wiring for the right handlebar switch

Part number: 17756160

Price: $7.75 In stock

How to order

Testimonials and reviews

Replacement wiring for the right handlebar switch.
17756160: Replacement wiring for the right handlebar switch.
17756160: Replacement wiring for the right handlebar switch.

Direct link to image

Replacement wiring for the right handlebar switch

Ready for your switch.

Wires are 640 mm in length. Upon request, the wires may be left separate from the 4 terminal plug - so that the wires may be more easily routed inside to the handlebar.

  • IMPORTANT NOTE: As with all switches actuating higher amperage components, I consider a relay for the coils a good idea and a relay for the starter a necessity.

Plug information:

  • Position 1: white/black (starter button / ground out to starter relay)
  • Position 2: white (kill switch / power out to coils)
  • Position 3: white (kill switch / power in for coils)
  • Position 4: black (starter button / ground in for starter relay)

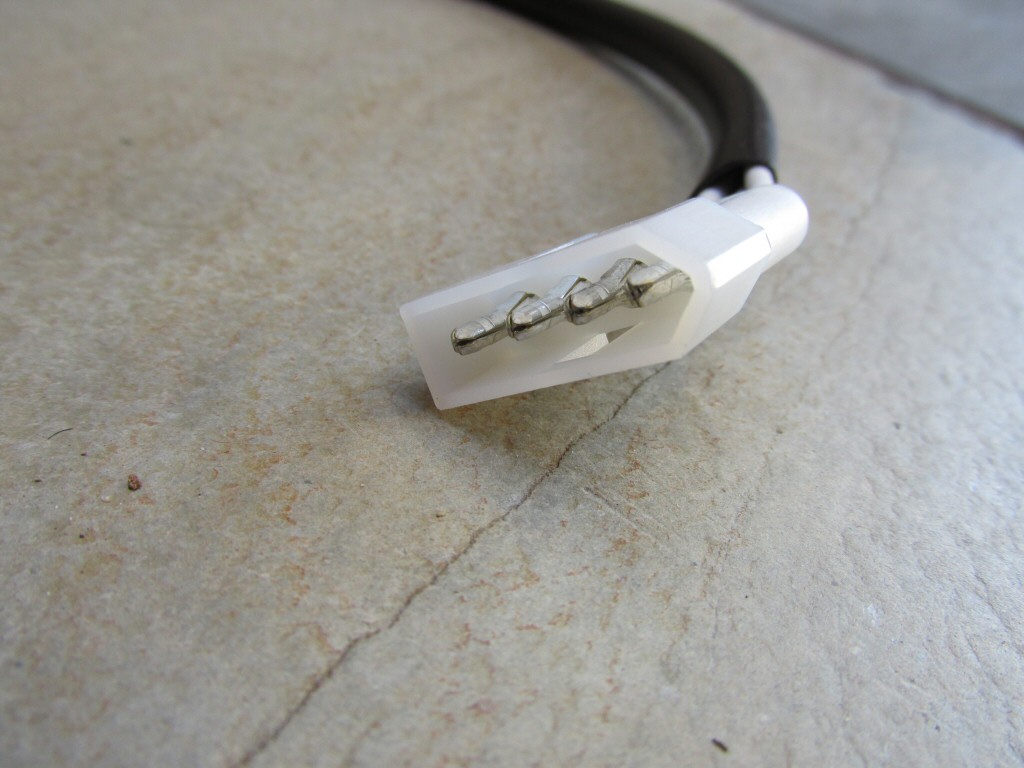

4 terminal connection to the main harness.
4 terminal connection to the main harness.
4 terminal connection to the main harness.
