Dash harness to headlight (NON-PRINTED CIRCUIT INSTRUMENT PANEL)

Part number: 17740560

Price: $8.75 In stock

How to order

Testimonials and reviews

Dash harness to headlight
17740560: Dash harness to headlight
17740560: Dash harness to headlight

Direct link to image

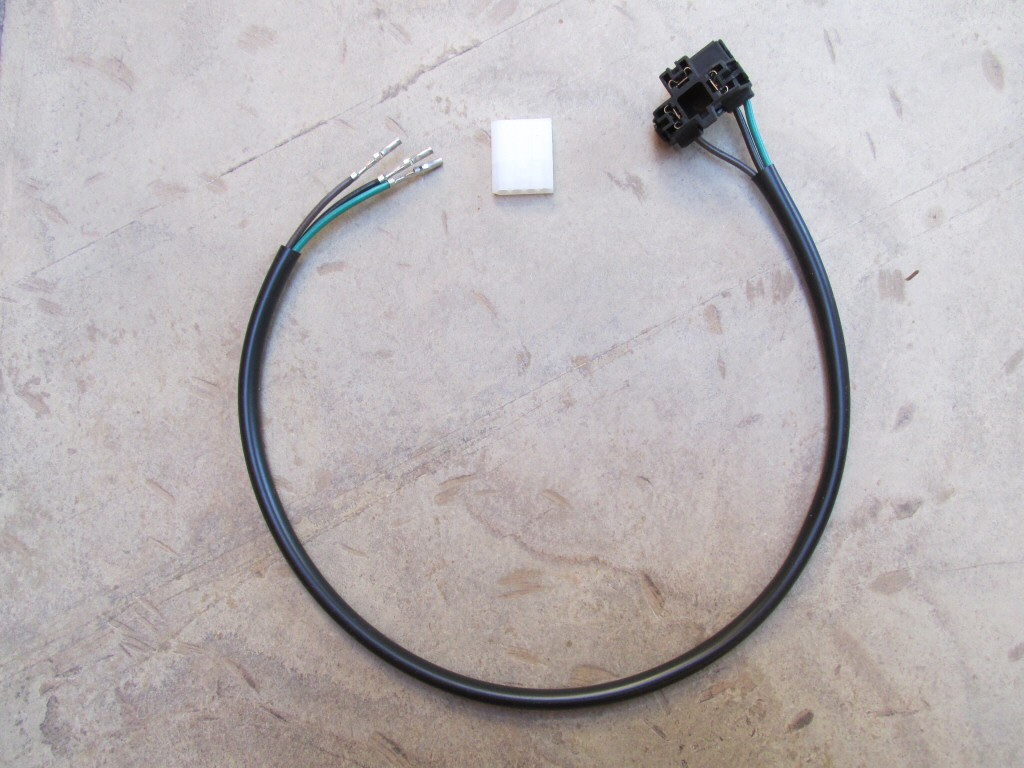

Dash harness to headlight (NON-PRINTED CIRCUIT INSTRUMENT PANEL)

Connects the dash sub-harness to the headlight.

Connects the dash sub-harness to the headlight bulb. 4 terminal plug is left uninstalled so that the wires may be fit through the small opening in the headlight bucket. Once the wires are in place, the plug is installed as follows:

  • Position 1: Yellow (not used on USA models - city light)
  • Position 2: Brown
  • Position 3: Green
  • Position 4: Black
4 terminal connection to the dash sub-harness.
4 terminal connection to the dash sub-harness.
4 terminal connection to the dash sub-harness.
