Main harness for the Le Mans II (NON-PRINTED CIRCUIT INSTRUMENT PANEL)

Part number: 17746160

Price: $180.00 In stock

How to order

Testimonials and reviews

Main harness for the Le Mans II (NON-PRINTED CIRCUIT INSTRUMENT PANEL).
17746160: Main harness for the Le Mans II (NON-PRINTED CIRCUIT INSTRUMENT PANEL).
17746160: Main harness for the Le Mans II (NON-PRINTED CIRCUIT INSTRUMENT PANEL).

Direct link to image

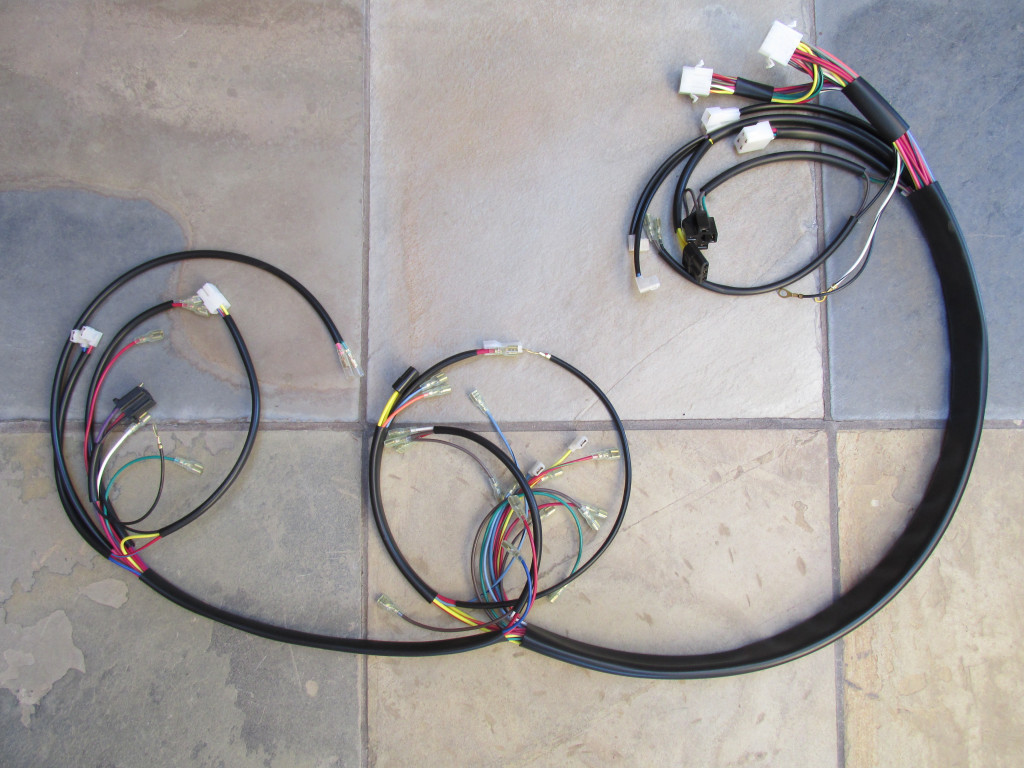

Main harness for the Le Mans II (NON-PRINTED CIRCUIT INSTRUMENT PANEL)

I duplicated an original main harness. In construction, I use the same gauge of wire, the same colors and tracers (stripes), the same length and sheathing, the same terminals, etc. All terminals are of the double crimp, strain relief variety.

The wires routed to the alternator are constructed of heat resistant materials.

  • Note: Main harnesses comprise the main - or primary - wiring harness. Each motorcycle also uses ancillary sub-harnesses. The individual sub-harnesses are sold separately.

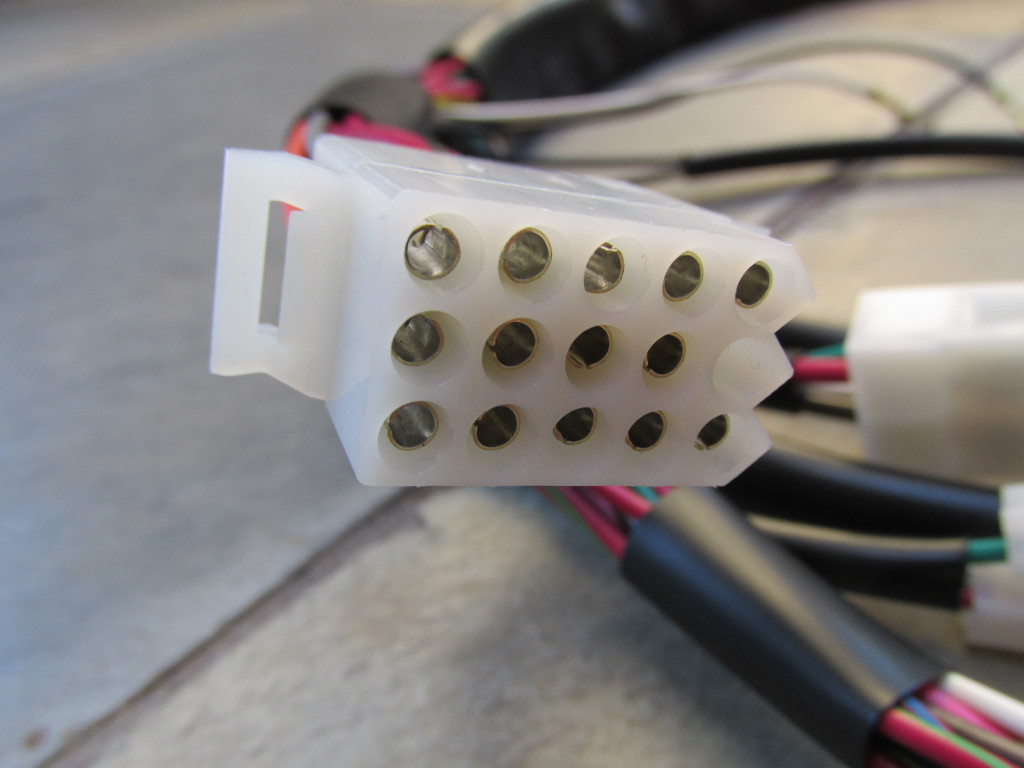

15 terminal connection at the mounting plate beneath the dash.
15 terminal connection at the mounting plate beneath the dash.
15 terminal connection at the mounting plate beneath the dash.

Direct link to image

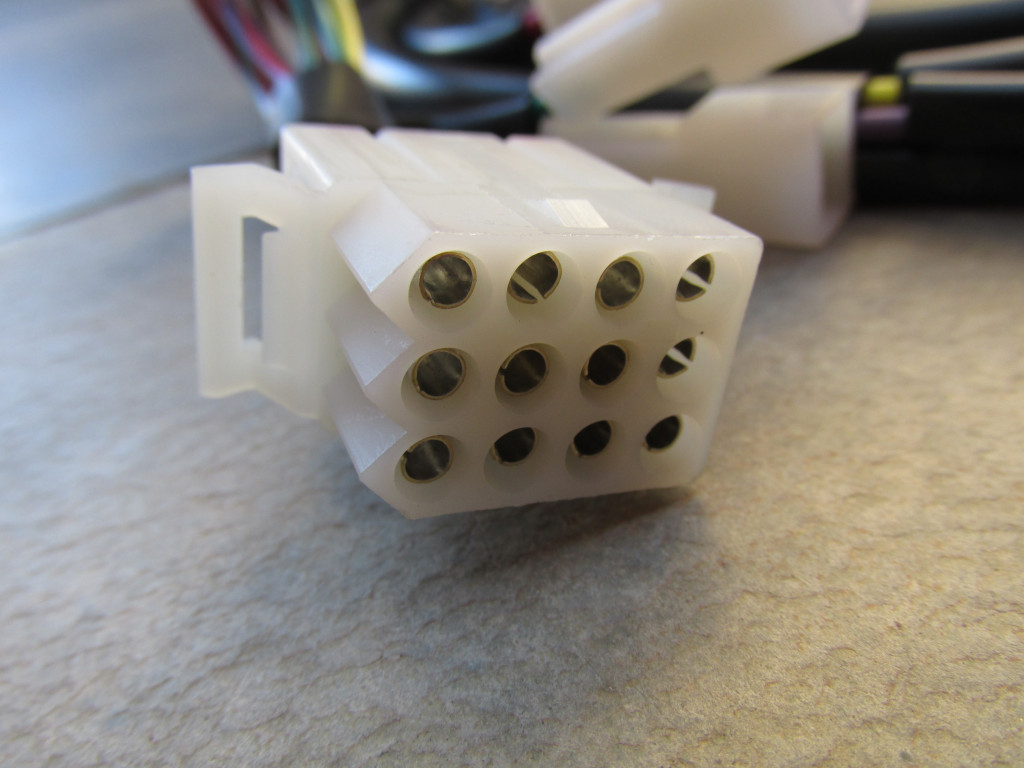

12 terminal connection at the mounting plate beneath the dash.
12 terminal connection at the mounting plate beneath the dash.
12 terminal connection at the mounting plate beneath the dash.

Direct link to image

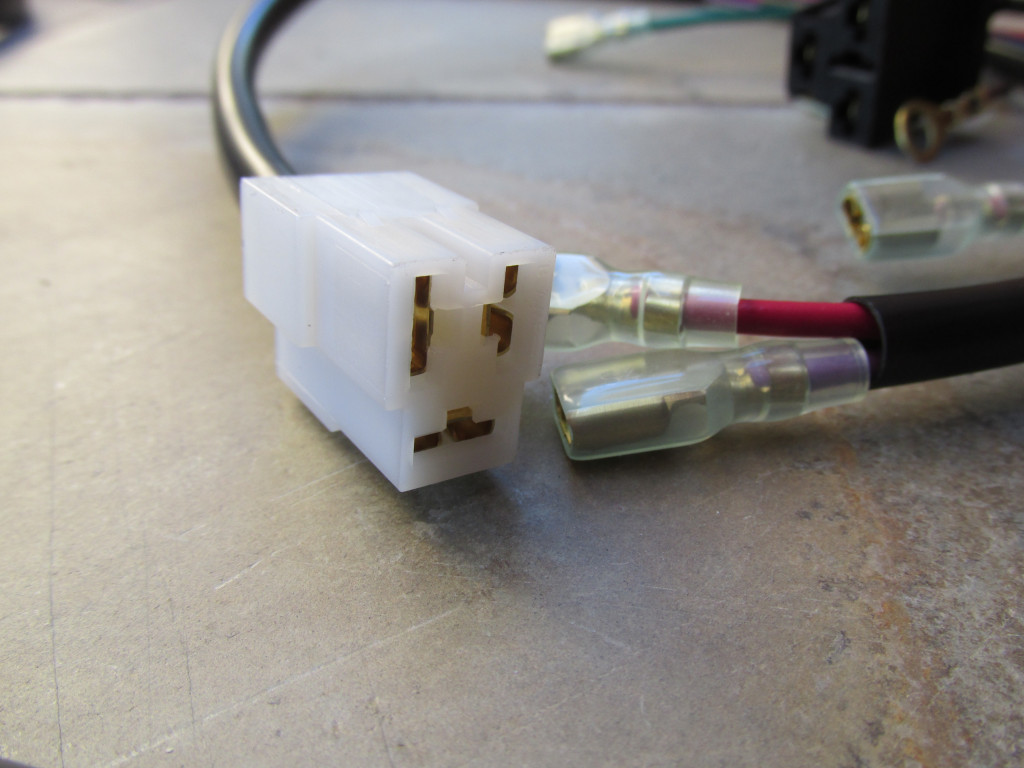

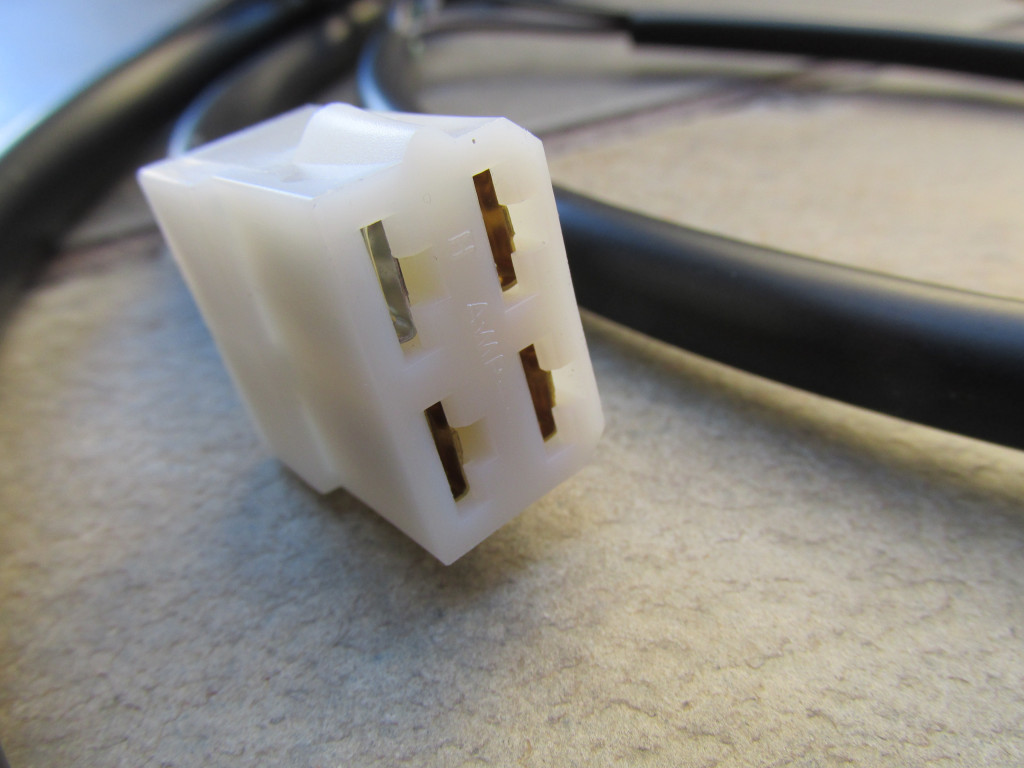

4 terminal connection for the ignition switch, free hanging.
4 terminal connection for the ignition switch, free hanging.
4 terminal connection for the ignition switch, free hanging.

Direct link to image

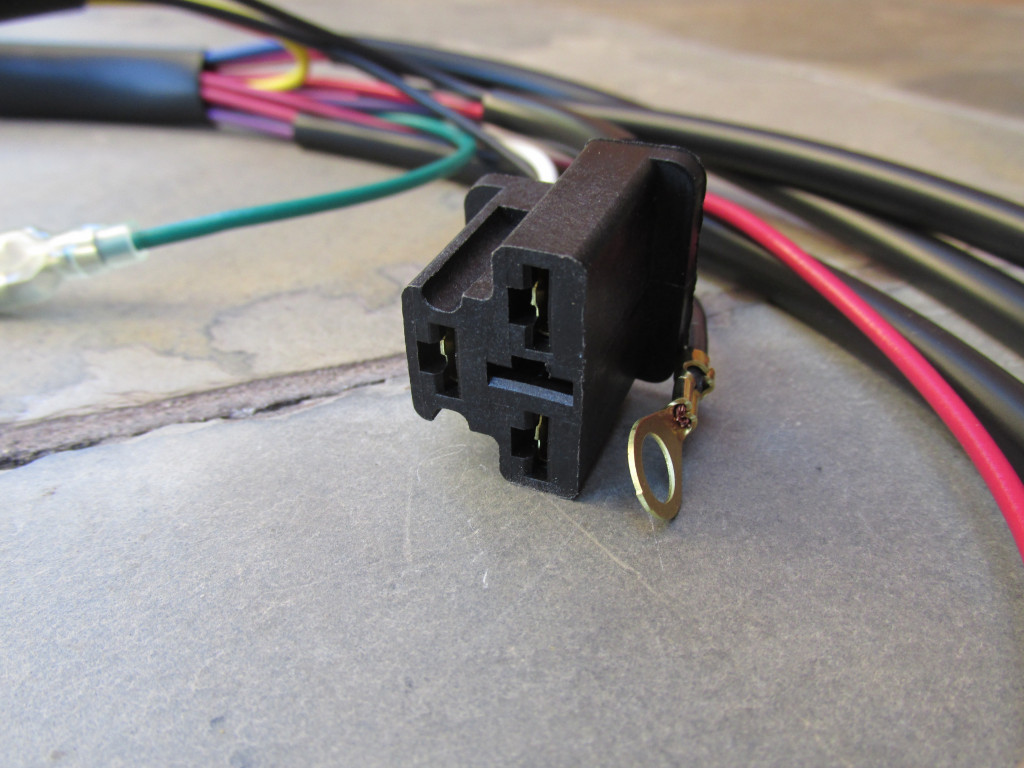

Flashing lights relay connection.
Flashing lights relay connection.
Flashing lights relay connection.

Direct link to image

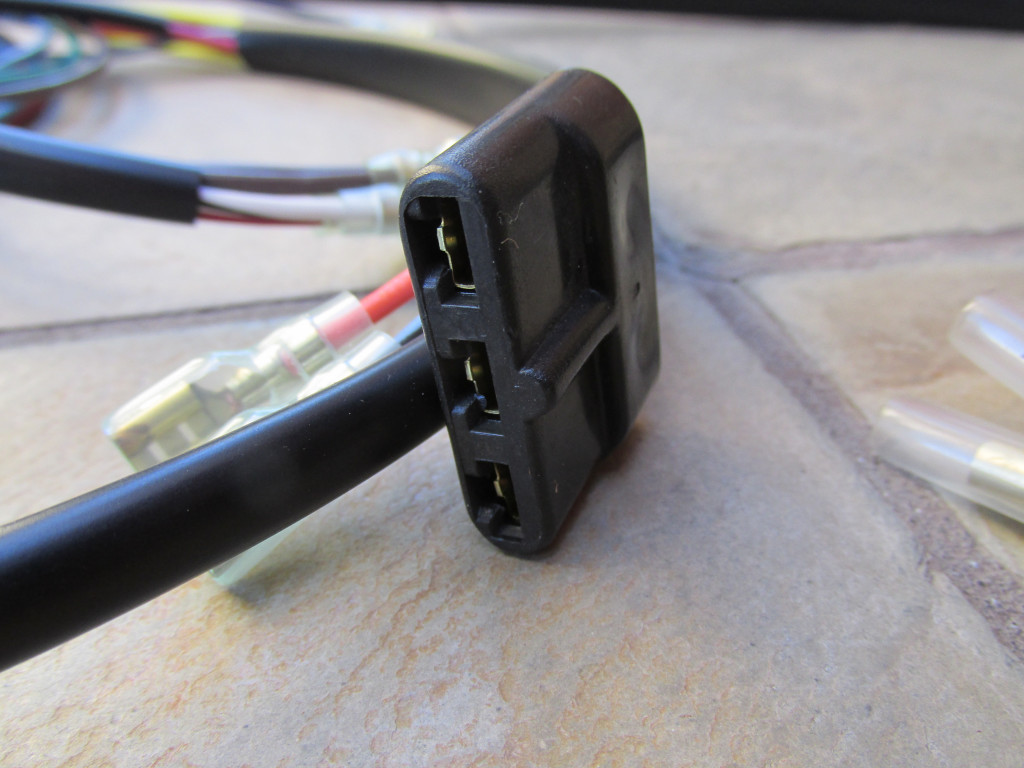

Flat 3 terminal connection for the alternator.
Flat 3 terminal connection for the alternator.
Flat 3 terminal connection for the alternator.

Direct link to image

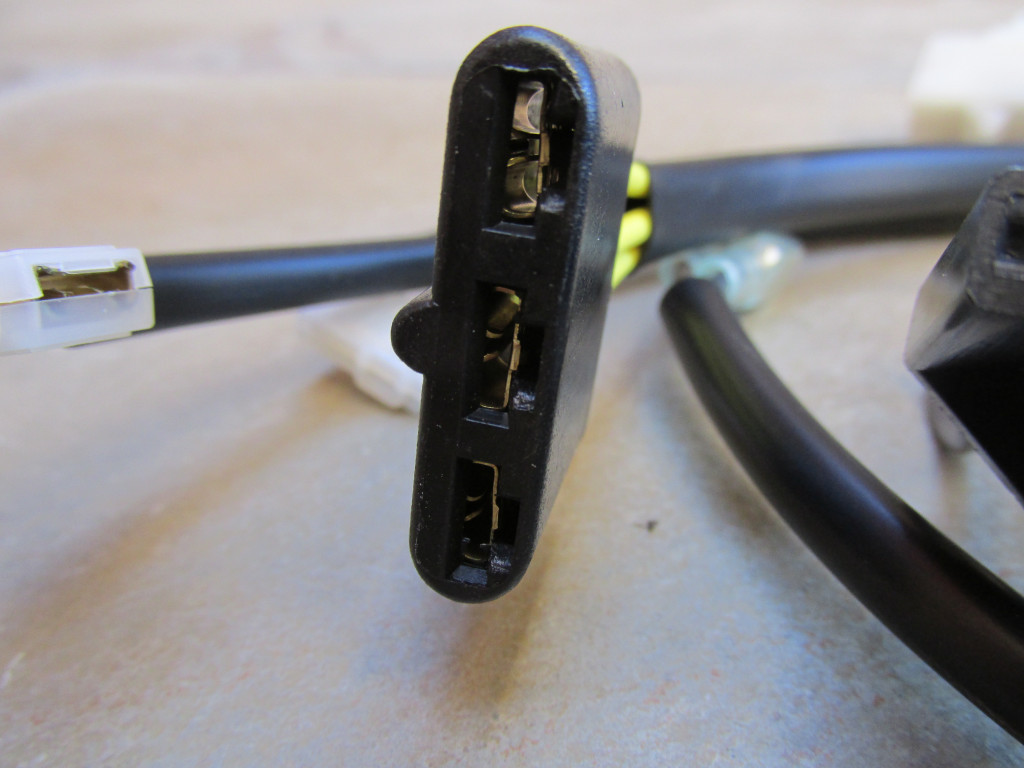

Flat 3 terminal connection for the voltage regulator.
Flat 3 terminal connection for the voltage regulator.
Flat 3 terminal connection for the voltage regulator.

Direct link to image

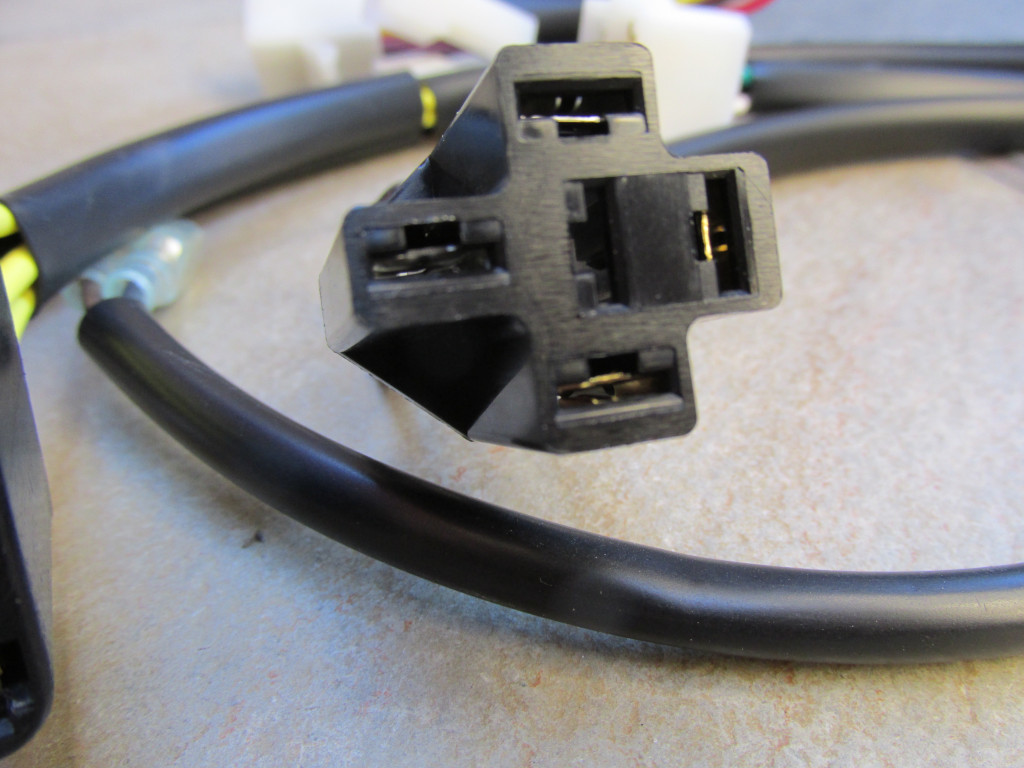

3 terminal connection for the voltage rectifier.
3 terminal connection for the voltage rectifier.
3 terminal connection for the voltage rectifier.

Direct link to image

3 terminal connection for the wires the route to the tail light.
3 terminal connection for the wires the route to the tail light.
3 terminal connection for the wires the route to the tail light.

Direct link to image

At the alternator: Original additional/special sheathing (MG# 14710200) exiting the alternator cover is not included because it does not accept the larger diameter heat resistant wire; regular sheathing is used instead and it fits nicely through the alternator cover.
