Side stand switch

Part number: 18755450 18755451

Price: $10.50 In stock

How to order

Testimonials and reviews

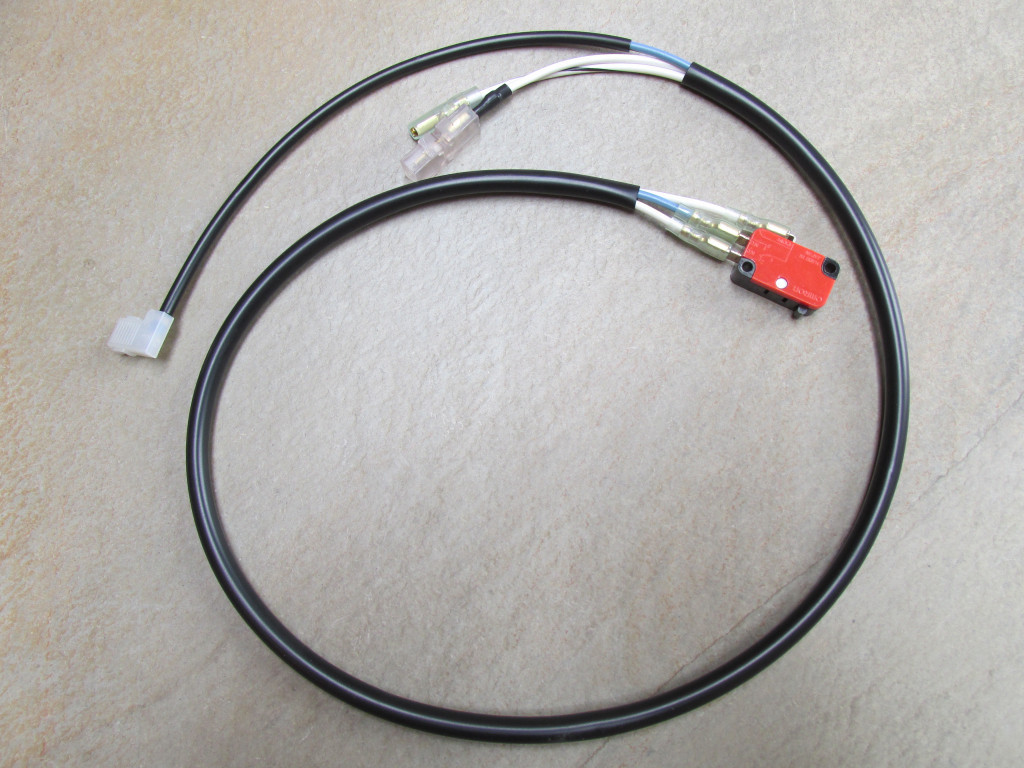

Side stand switch.
18755450: Side stand switch.
18755450: Side stand switch.

Direct link to image

Side stand switch

Connects the side stand switch to the coils and front flasher. Comes complete with a new replacement switch and the needed original 2 connection female spade connector, as shown.

Connections at the side stand switch:

  • The white wire connects to the common terminal on the switch.
  • The white/black wire connects to the normally closed terminal on the switch.
  • The blue/black wire connects to the normally open terminal on the switch.

Connections at the front flasher:

  • The blue/black wire connects to the X or + terminal on the flasher.

Connections at the coil:

  • The white/black wire connects to the positive terminal on one of the coils.

Connections at the coil:

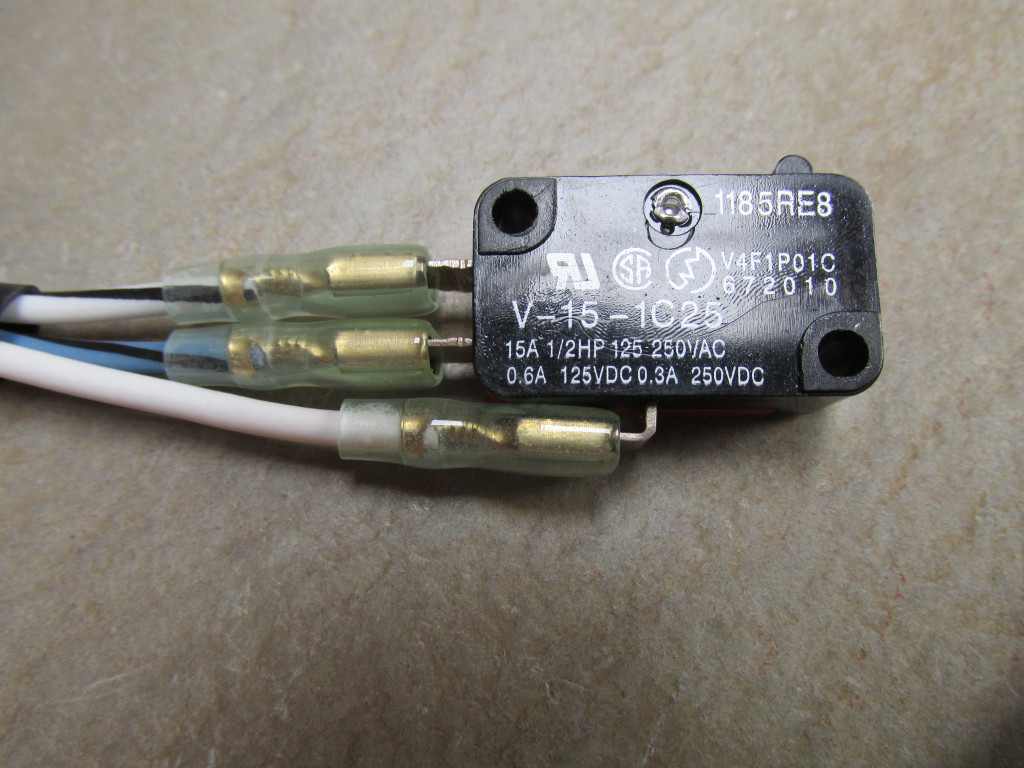

Detail of the switch.
Detail of the switch.
Detail of the switch.

Direct link to image

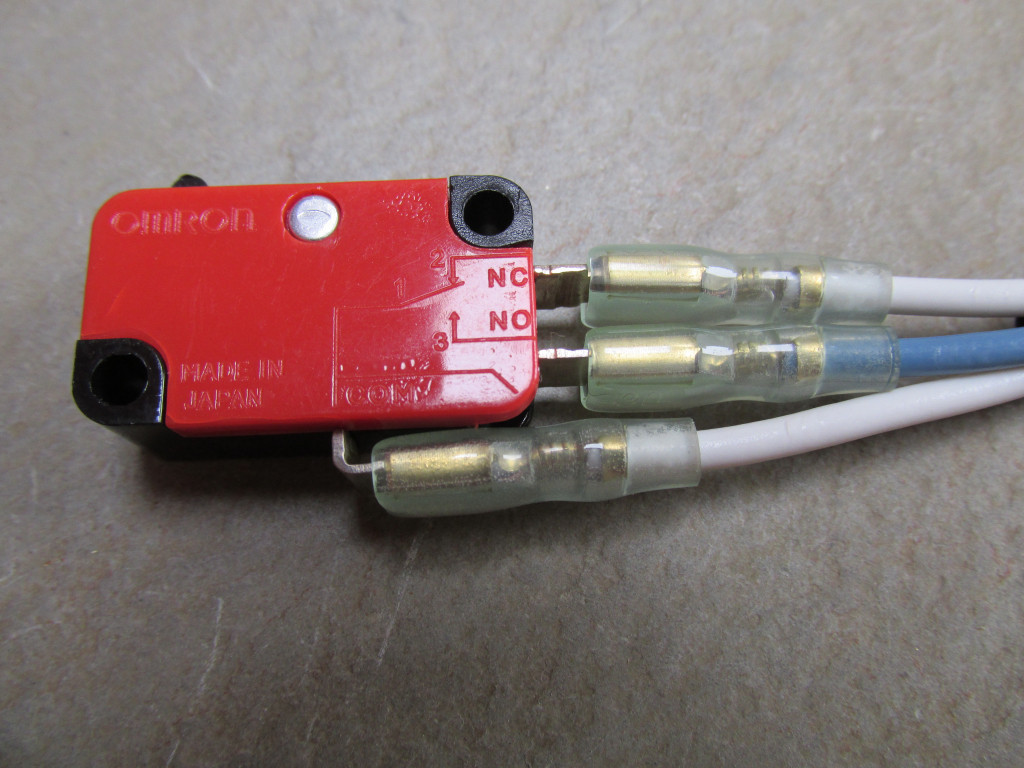

Detail of the switch.
Detail of the switch.
Detail of the switch.

Direct link to image

Applicable to this dash console (not included).
Applicable to this dash console (not included).
Applicable to this dash console (not included).
