Alternator harness

Part number: 14747400-ALT

Price: $30.00 In stock

How to order

Testimonials and reviews

Alternator harness.
14747400: Alternator harness.
14747400: Alternator harness.

Direct link to image

Alternator harness

This alternate version uses normal automotive wire that is less heat resistant (as original). This yields a smaller diameter bundle of wires that may be fit through the original rubber sheathing. Terminals are intentionally left off of one end of the harness so that the wires may be routed through the original rubber sheathing.

SELECT THIS VERSION ONLY IF YOU ARE PLANNING TO RE-USE OR REPLACE YOUR ORIGINAL RUBBER SHEATHING.

Uses all of the original correct original colors. Connections at alternator and rectifier are correct and accurate for the V7 Sport: lacking the flat 3-connection plug that was fit to later models.

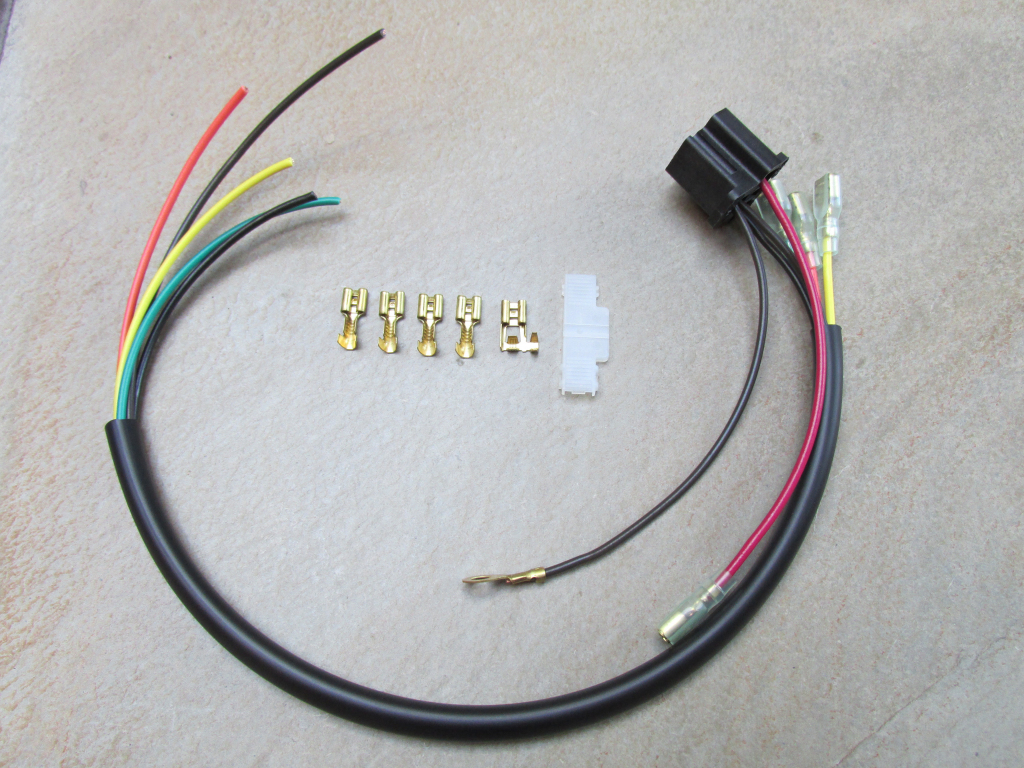

Crimp connections after routing the harness through your original rubber sheathing:

  • Yellow: straight 6.3 mm female spade terminal
  • Orange: straight 6.3 mm female spade terminal
  • Green: straight 6.3 mm female spade terminal
  • Brown: straight 6.3 mm female spade terminal
  • Black: flag 6.3 mm female spade terminal

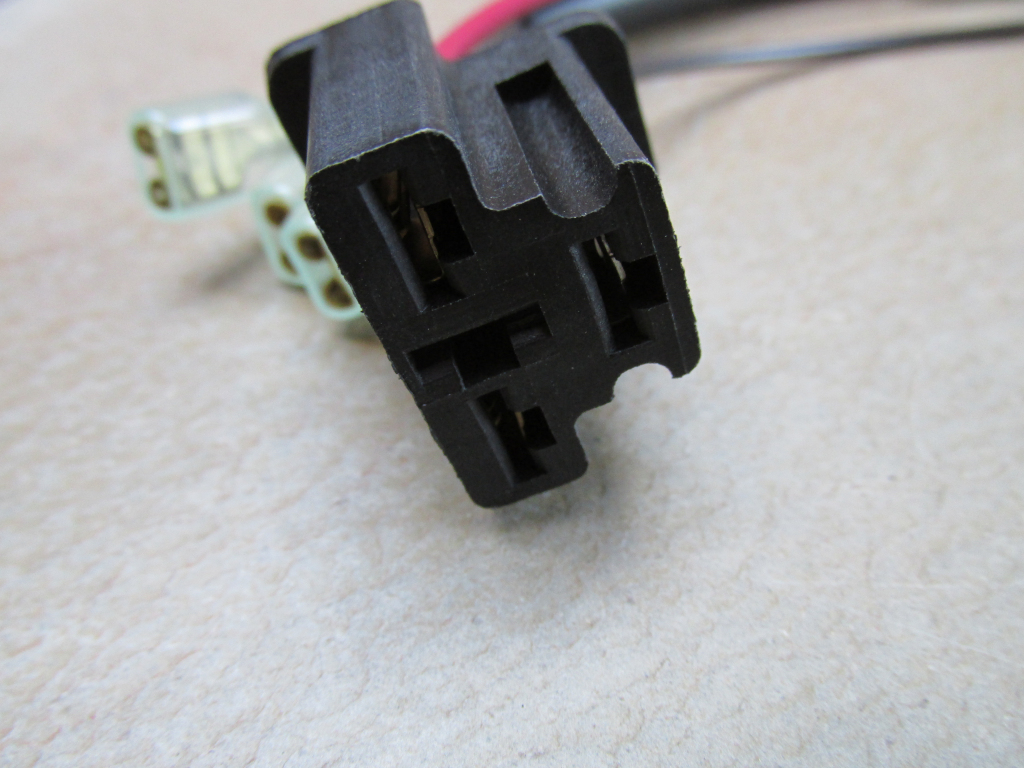

3 terminal connection for the voltage regulator.
