Gregory Bender

Wiring harnesses for the Moto Guzzi V65 Lario

To order, e-mail: greg@thisoldtractor.com

Main harness for the V65 Lario

Part Number Description Photo Price
MG# 27747120

Main harness for the V65 Lario (Series 1 handlebar switches)

Series 1 and 2 handlebar switches look a lot alike. One key difference is that series 1 switches have the turn signal control on the right side switch while series 2 switches have the turn signal control on the left side switch.

WANTED: I very much want to reproduce this harness for the V65 Lario. Should you have this V65 Lario wire main harness suitable for duplication, I would like to speak with you. For more information, e-mail: greg@thisoldtractor.com.

USD $0.00

How to order

Testimonials and reviews

MG# 27747121

Main harness for the V65 Lario (Series 2 handlebar switches)

Series 1 and 2 handlebar switches look a lot alike. One key difference is that series 1 switches have the turn signal control on the right side switch while series 2 switches have the turn signal control on the left side switch.

I duplicated an original main harness. In construction, I use the same gauge of wire, the same colors and tracers (stripes), the same length and sheathing, the same terminals, etc. All terminals are of the double crimp, strain relief variety.

  • Note: Main harnesses comprise the main - or primary - wiring harness. Each motorcycle also uses ancillary sub-harnesses. The individual sub-harnesses are sold separately.

Originally, Moto Guzzi routed the wires to the ignition switch through the Molex connector. I've found this to be troublesome. I prefer to route the wires directly to the ignition switch without going through the dash harness or any connector. Please let me know if you would like this modification.

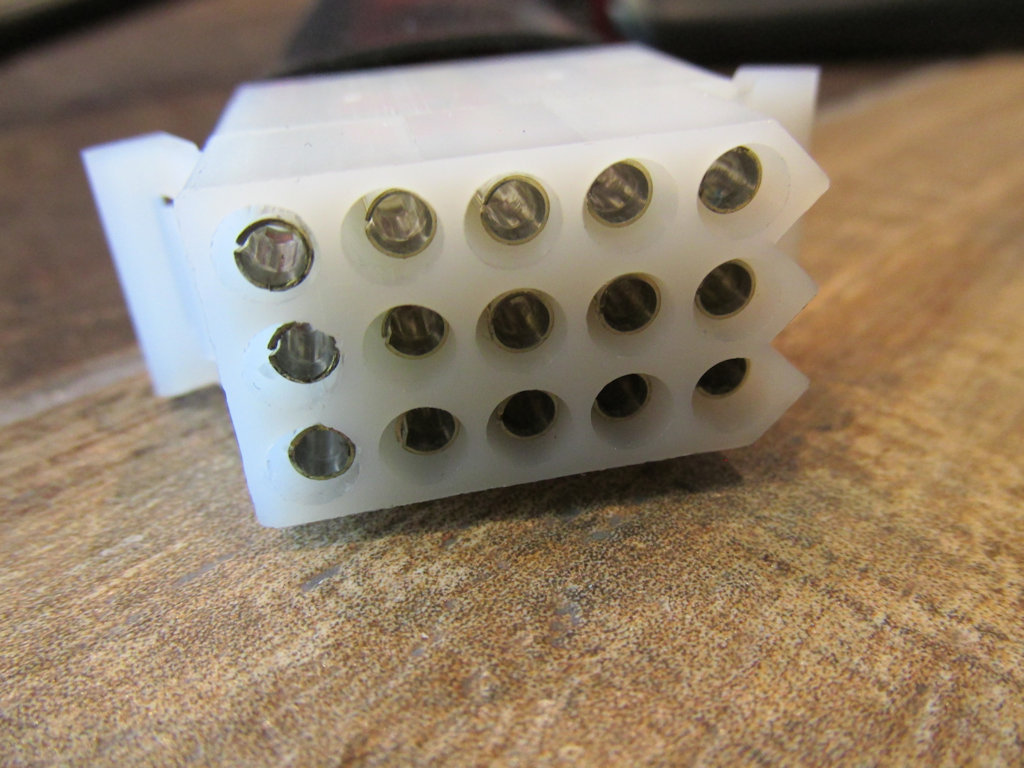

15 terminal connection that connects to the dash and headlight sub-harnesses.
15 terminal connection that connects to the dash and headlight sub-harnesses.
15 terminal connection that connects to the dash and headlight sub-harnesses.

Direct link to image

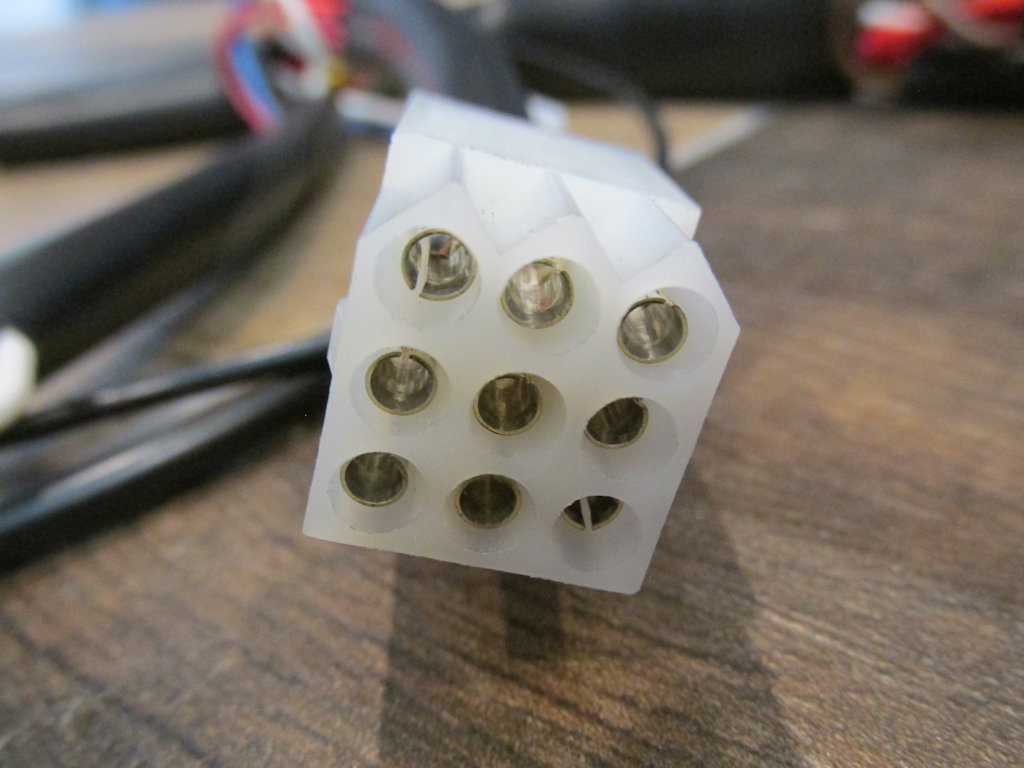

9 terminal connection that connects to the left handlebar switch sub-harness.
9 terminal connection that connects to the left handlebar switch sub-harness.
9 terminal connection that connects to the left handlebar switch sub-harness.

Direct link to image

9 terminal connection that connects to the right handlebar switch sub-harness.
9 terminal connection that connects to the right handlebar switch sub-harness.
9 terminal connection that connects to the right handlebar switch sub-harness.

Direct link to image

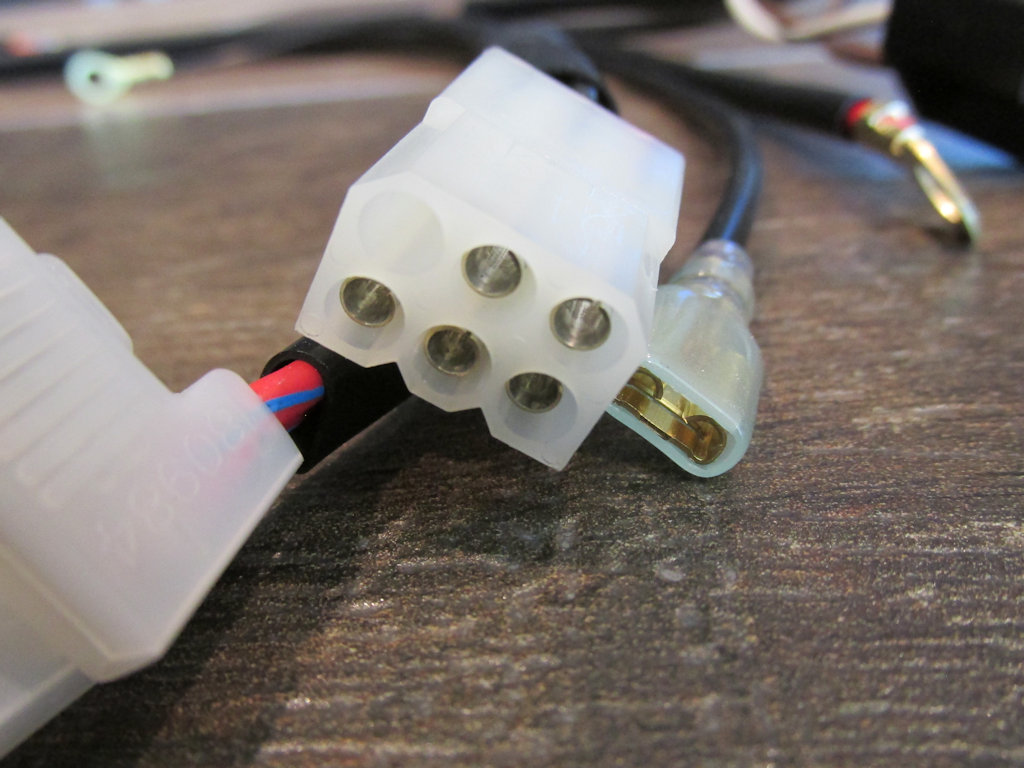

6 terminal connection that connects to the tail light and rear turn signals
6 terminal connection that connects to the tail light and rear turn signals
6 terminal connection that connects to the tail light and rear turn signals

Direct link to image

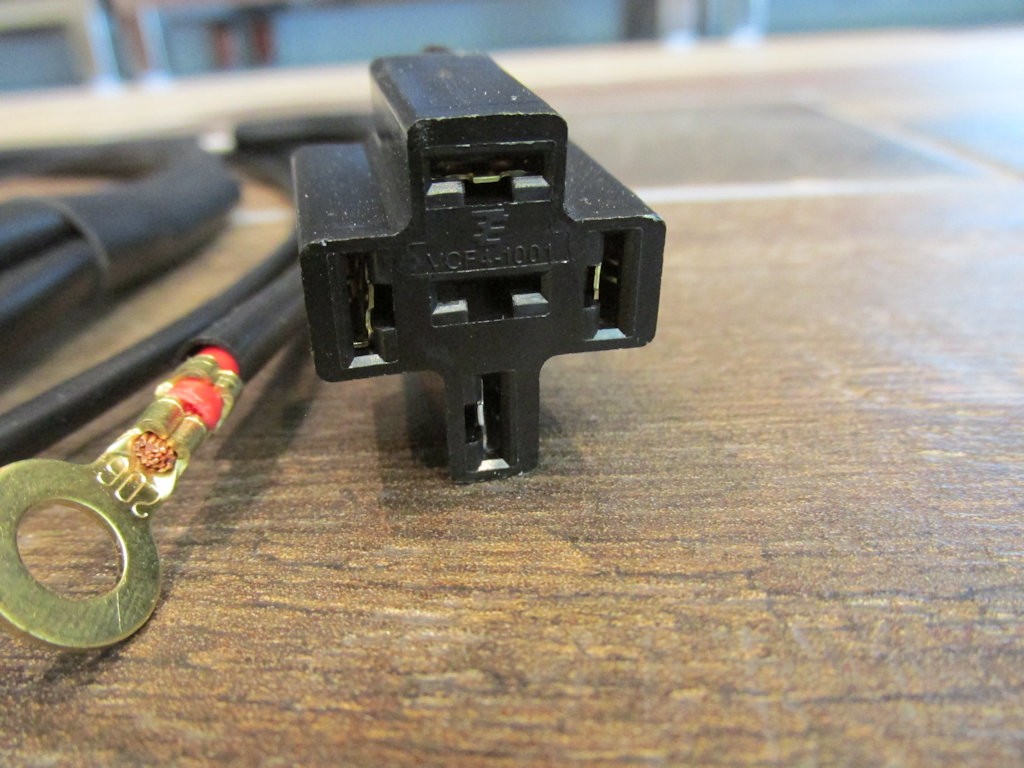

Relay socket for starter relay.
Relay socket for starter relay.
Relay socket for starter relay.

Direct link to image

Series 2 left handlebar switch used on the V65 Lario (not included).
Series 2 left handlebar switch used on the V65 Lario (not included).
Series 2 left handlebar switch used on the V65 Lario (not included).

Direct link to image

Series 2 right handlebar switch used on the V65 Lario (not included).
Series 2 right handlebar switch used on the V65 Lario (not included).
Series 2 right handlebar switch used on the V65 Lario (not included).

Direct link to image

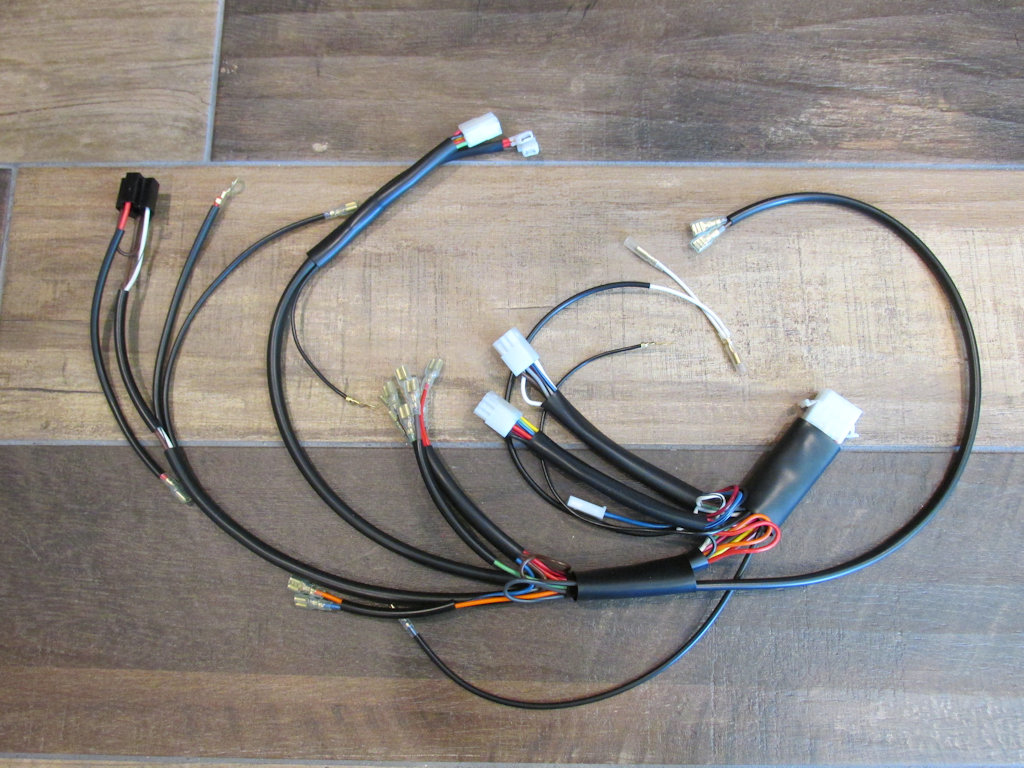

Main harness for the V65 Lario.
27747121: Main harness for the V65 Lario.
27747121: Main harness for the V65 Lario.

Direct link to image

USD $150.00

How to order

Testimonials and reviews

Sub-harnesses for the V65 Lario

Part Number Description Photo Price
MG# 19725820

Alternator to rectifier and voltage regulator (Bosch) - rear section

Connects the alternator to the rectifier and voltage regulator.

6 terminal connection to the alternator.
6 terminal connection to the alternator.
6 terminal connection to the alternator.

Direct link to image

3 terminal connection to the voltge regulator.
3 terminal connection to the voltge regulator.
3 terminal connection to the voltge regulator.

Direct link to image

Flat 3 terminal connection for the voltage rectifier. The flat connector pictured is no longer available. You may reuse your original flat connector, or fit the individual insulators provided.
Flat 3 terminal connection for the voltage rectifier. The flat connector pictured is no longer available. You may reuse your original flat connector, or fit the individual insulators provided.
Flat 3 terminal connection for the voltage rectifier. The flat connector pictured is no longer available. You may reuse your original flat connector, or fit the individual insulators provided.

Direct link to image

Alternator to rectifier and voltage regulator (Bosch)
19725820: Alternator to rectifier and voltage regulator (Bosch)
19725820: Alternator to rectifier and voltage regulator (Bosch)

Direct link to image

USD $67.50

How to order

Testimonials and reviews

MG# 19726380

Main harness to alternator and ignition points - front section

Connects the main harness to the alternator. Also connects the main harness to the ignition points.

5 terminal connection to the main harness.
5 terminal connection to the main harness.
5 terminal connection to the main harness.

Direct link to image

Main harness to alternator and ignition points. Applicable to the Moto Guzzi V65 / V65 SP.
19726380: Main harness to alternator and ignition points. Applicable to the Moto Guzzi V65 / V65 SP.
19726380: Main harness to alternator and ignition points. Applicable to the Moto Guzzi V65 / V65 SP.

Direct link to image

USD $45.00

How to order

Testimonials and reviews

MG# 19747435-EURO

Dash harness to headlight (EURO version with city light)

Connects the dash harness to the headlight. Also provides ground connections for the front turn signals. The EURO version support the city light.

4 terminal connection to the dash harness.
4 terminal connection to the dash harness.
4 terminal connection to the dash harness.

Direct link to image

Dash harness to headlight (EURO version with city light). Applicable to the Moto Guzzi Monza.
19747435: Dash harness to headlight (EURO version with city light). Applicable to the Moto Guzzi Monza.
19747435: Dash harness to headlight (EURO version with city light). Applicable to the Moto Guzzi Monza.

Direct link to image

USD $12.25

How to order

Testimonials and reviews

MG# 19747435-USA

Dash harness to headlight (USA version only)

Connects the dash harness to the headlight. Also provides ground connections for the front turn signals. The USA version does not support a city light.

4 terminal connection to the dash harness.
4 terminal connection to the dash harness.
4 terminal connection to the dash harness.

Direct link to image

Dash harness to headlight. Applicable to the Moto Guzzi Monza.
19747435: Dash harness to headlight. Applicable to the Moto Guzzi Monza.
19747435: Dash harness to headlight. Applicable to the Moto Guzzi Monza.

Direct link to image

USD $10.00

How to order

Testimonials and reviews

MG# 19748000

Battery cable - positive

Connects the positive terminal on the battery to the starter solenoid. Cable is 6 AWG and is 370 mm (~14 12 inch) in total length. The battery lug accepts a 6 mm fastener; the starter solenoid lug accepts an 8 mm fastener. If you require something different, please let me know.

Includes rubber cover for the terminal located at the starter solenoid (MG# 12703000).

Detail of rubber cover for the terminal located at the starter solenoid (MG# 12703000).
Detail of rubber cover for the terminal located at the starter solenoid (MG# 12703000).
Detail of rubber cover for the terminal located at the starter solenoid (MG# 12703000).

Direct link to image

Detail of rubber cover for the terminal located at the starter solenoid (MG# 12703000).
Detail of rubber cover for the terminal located at the starter solenoid (MG# 12703000).
Detail of rubber cover for the terminal located at the starter solenoid (MG# 12703000).

Direct link to image

Battery cable - positive.
19748000: Battery cable - positive.
19748000: Battery cable - positive.

Direct link to image

USD $14.25

How to order

Testimonials and reviews

MG# 19748400

Battery cable - negative

Connects the negative terminal on the battery to the ground point on the frame. Cable is 6 AWG and is 340 mm (~13 14 inch in) in total length. The battery lug accepts a 6 mm fastener; the grounding lug accepts a 6 mm fastener. If you require something different, please let me know.

Battery cable - negative.
19748400: Battery cable - negative.
19748400: Battery cable - negative.

Direct link to image

USD $11.25

How to order

Testimonials and reviews

MG# 27747220

Main harness to dash

Connects the main harness to the dash.

Originally, Moto Guzzi routed the wires to the ignition switch through the Molex connector. I've found this to be troublesome. I prefer to route the wires directly to the ignition switch without going through the dash harness or any connector. Please let me know if you would like this modification.

15 terminal connection to the main harness.
15 terminal connection to the main harness.
15 terminal connection to the main harness.

Direct link to image

4 terminal connection to the headlight harness.
4 terminal connection to the headlight harness.
4 terminal connection to the headlight harness.

Direct link to image

Applicable to this dash console (not included).
Applicable to this dash console (not included).
Applicable to this dash console (not included).

Direct link to image

Main harness to dash
27747220: Main harness to dash
27747220: Main harness to dash

Direct link to image

USD $75.00

How to order

Testimonials and reviews

MG# 27747320

Tail light

Connects the main harness to the tail light and rear turn signals.

6 terminal connection to the main harness.
6 terminal connection to the main harness.
6 terminal connection to the main harness.

Direct link to image

Tail light
27747320: Tail light
27747320: Tail light

Direct link to image

USD $16.50

How to order

Testimonials and reviews

MG# 27750620

Extension cable for right front turn signal

Connects the bulb holder inside the turn signal to the turn signal harness. Fits original CEV turn signals that accept a 2.62 mm wide female spade terminal. Fitment to other turn signals is unknown.

Extension cable for right front turn signal.
27750620: Extension cable for right front turn signal.
27750620: Extension cable for right front turn signal.

Direct link to image

USD $6.00

How to order

Testimonials and reviews

MG# 27750621

Extension cable for left front turn signal

Connects the bulb holder inside the turn signal to the turn signal harness. Fits original CEV turn signals that accept a 2.62 mm wide female spade terminal. Fitment to other turn signals is unknown.

Extension cable for left front turn signal.
27750621: Extension cable for left front turn signal.
27750621: Extension cable for left front turn signal.

Direct link to image

USD $6.00

How to order

Testimonials and reviews

MG# 28751650-RIGHT

Extension cable for rear turn signals

Connects the bulb holder inside the turn signal to the turn signal harness. Fits original CEV turn signals that accept a 2.62 mm wide female spade terminal. Fitment to other turn signals is unknown.

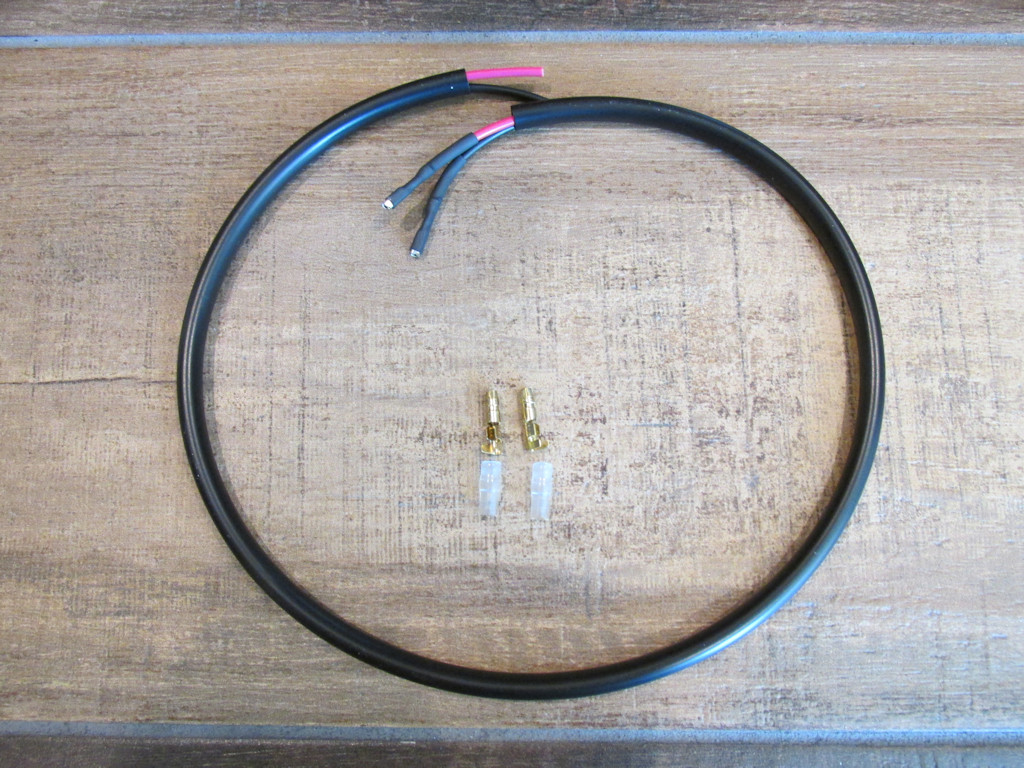

Extension cable for right rear turn signals.
28751650: Extension cable for right rear turn signals.
28751650: Extension cable for right rear turn signals.

Direct link to image

USD $6.75

How to order

Testimonials and reviews

MG# 28751650-LEFT

Extension cable for rear turn signals

Connects the bulb holder inside the turn signal to the turn signal harness. Fits original CEV turn signals that accept a 2.62 mm wide female spade terminal. Fitment to other turn signals is unknown.

Extension cable for left rear turn signals.
28751650: Extension cable for left rear turn signals.
28751650: Extension cable for left rear turn signals.

Direct link to image

USD $6.75

How to order

Testimonials and reviews

LARIO-DASH-GROUND-INTERCONNECT

Dash ground interconnect

Provides dash ground connections for instrument illumination on the dash.

Dash ground interconnect
Dash ground interconnect
Dash ground interconnect

Direct link to image

USD $5.50

How to order

Testimonials and reviews

MG# 28738040

Handlebar switch (Left - Series 2)

Replacement wiring for the left handlebar switch. Connects the left handlebar switch to the main harness.

Series 1 and 2 handlebar switches look a lot alike. One key difference is that series 1 switches have the turn signal control on the right side switch while series 2 switches have the turn signal control on the left side switch.

9 terminal connection to the main harness.
9 terminal connection to the main harness.
9 terminal connection to the main harness.

Direct link to image

Applicable to this switch (not included).
Applicable to this switch (not included).
Applicable to this switch (not included).

Direct link to image

Handlebar switch (Left - Series 2)
28738040: Handlebar switch (Left - Series 2)
28738040: Handlebar switch (Left - Series 2)

Direct link to image

USD $16.75

How to order

Testimonials and reviews

MG# 28750340

Handlebar switch (Right - Series 2)

Replacement wiring for the right handlebar switch. Connects the right handlebar switch to the main harness.

Series 1 and 2 handlebar switches look a lot alike. One key difference is that series 1 switches have the turn signal control on the right side switch while series 2 switches have the turn signal control on the left side switch.

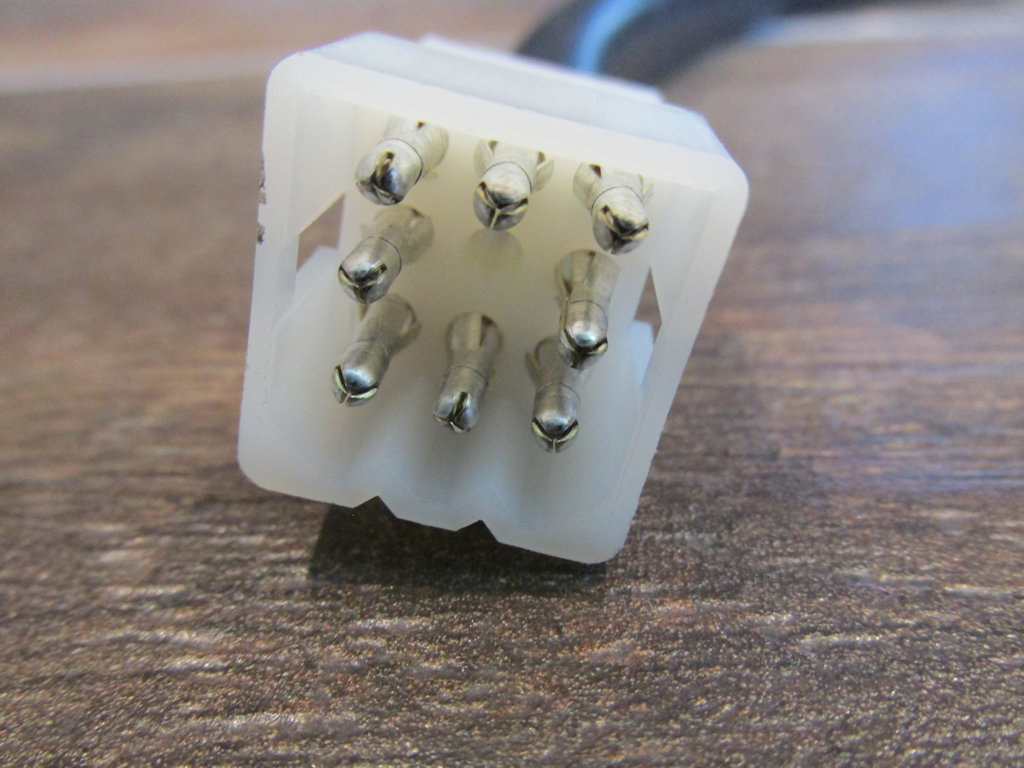

9 terminal connection to the main harness.
9 terminal connection to the main harness.
9 terminal connection to the main harness.

Direct link to image

Applicable to this switch (not included).
Applicable to this switch (not included).
Applicable to this switch (not included).

Direct link to image

Handlebar switch (Right - Series 2)
28750340: Handlebar switch (Right - Series 2)
28750340: Handlebar switch (Right - Series 2)

Direct link to image

USD $15.50

How to order

Testimonials and reviews

Components

Part Number Description Photo Price
MG# 12702900

Rubber boot/cover for small wire terminals.

Intended to cover smaller wires with ring terminals. Sold each.

Rubber boot/cover shown in use with a 12 AWG wire and a 6 mm ring terminal. (MG# 12702900).
Rubber boot/cover shown in use with a 12 AWG wire and a 6 mm ring terminal. (MG# 12702900).
Rubber boot/cover shown in use with a 12 AWG wire and a 6 mm ring terminal. (MG# 12702900).

Direct link to image

Rubber boot/cover shown in use with a 12 AWG wire and a 6 mm ring terminal. (MG# 12702900).
Rubber boot/cover shown in use with a 12 AWG wire and a 6 mm ring terminal. (MG# 12702900).
Rubber boot/cover shown in use with a 12 AWG wire and a 6 mm ring terminal. (MG# 12702900).

Direct link to image

Rubber boot/cover shown in use with a 12 AWG wire and a 6 mm ring terminal. (MG# 12702900).
Rubber boot/cover shown in use with a 12 AWG wire and a 6 mm ring terminal. (MG# 12702900).
Rubber boot/cover shown in use with a 12 AWG wire and a 6 mm ring terminal. (MG# 12702900).

Direct link to image

Rubber boot/cover for small wire terminals (MG# 12702900).
12702900: Rubber boot/cover for small wire terminals (MG# 12702900).
12702900: Rubber boot/cover for small wire terminals (MG# 12702900).

Direct link to image

USD $2.50

How to order

Testimonials and reviews

MG# 12703000

Rubber boot/cover for battery cables.

Intended to cover the terminal located at the starter solenoid. Not suitable for fitment at battery terminals. Sold each.

Rubber boot/cover shown in use with a 6 AWG battery cable (MG# 12703000).
Rubber boot/cover shown in use with a 6 AWG battery cable (MG# 12703000).
Rubber boot/cover shown in use with a 6 AWG battery cable (MG# 12703000).

Direct link to image

Rubber boot/cover shown in use with a 6 AWG battery cable (MG# 12703000).
Rubber boot/cover shown in use with a 6 AWG battery cable (MG# 12703000).
Rubber boot/cover shown in use with a 6 AWG battery cable (MG# 12703000).

Direct link to image

Rubber boot/cover for battery cables (MG# 12703000).
12703000: Rubber boot/cover for battery cables (MG# 12703000).
12703000: Rubber boot/cover for battery cables (MG# 12703000).

Direct link to image

USD $2.50

How to order

Testimonials and reviews

MG# 90706765

O-ring to seal the large, 100 mm speedometer to the dash.

This O-ring seals the speedometer to the dash.

O-ring to seal the large, 100 mm speedometer to the single gauge civilian or police dash.
90706765: O-ring to seal the large, 100 mm speedometer to the single gauge civilian or police dash.
90706765: O-ring to seal the large, 100 mm speedometer to the single gauge civilian or police dash.

Direct link to image

USD $2.00

How to order

Testimonials and reviews

MG# 90706746

Set of two O-rings to seal the smaller, 80 mm speedometer and tachometer to the dash.

These O-rings seal each gauge to the dash.

Set of two O-rings to seal the smaller, 80 mm speedometer and tachometer to the dual gauge civilian dash.
90706746: Set of two O-rings to seal the smaller, 80 mm speedometer and tachometer to the dual gauge civilian dash.
90706746: Set of two O-rings to seal the smaller, 80 mm speedometer and tachometer to the dual gauge civilian dash.

Direct link to image

USD $4.00

How to order

Testimonials and reviews

MG# 93400964

4 connection female spade connector

A great way to connect four wires without the need for male spade terminals (Moto Guzzi typically did not use male spade terminals on wiring harnesses). Accepts 6.3 mm (14 inch) terminals. Sold each.

Best to use a needle-nosed pair of pliers to insert and remove terminals.

4 connection female spade connector.
93400964: 4 connection female spade connector.
93400964: 4 connection female spade connector.

Direct link to image

USD $8.00

How to order

Testimonials and reviews

MG# 93400863 MG# 93400963

3 connection female spade connector

A great way to split power to two devices such as driving lights, front and rear turn signals, etc. (Faston or Mamut number 405). Accepts 6.3 mm (14 inch) terminals. Sold each.

Best to use a needle-nosed pair of pliers to insert and remove terminals.

3 connection female spade connector.
93400863: 3 connection female spade connector.
93400863: 3 connection female spade connector.

Direct link to image

USD $6.00

How to order

Testimonials and reviews

MG# 93400962

2 connection female spade connector

A great way to connect two wires without the need for male spade terminals (Moto Guzzi typically did not use male spade terminals on wiring harnesses). These are used on the Tonti framed models (Faston or FasBlok) and could be used in custom applications on the loop frame models. Accepts 6.3 mm (14 inch) terminals. Sold each.

2 connection female spade connector.
93400962: 2 connection female spade connector.
93400962: 2 connection female spade connector.

Direct link to image

USD $3.00

How to order

Testimonials and reviews

BULLET-CONNECTOR

2 connection bullet connector

A great way to connect two male bullet terminals (double bullet connector). Accepts 4 mm (0.157 inch) terminals. Sold each.

2 connection bullet connector.
2 connection bullet connector.
2 connection bullet connector.

Direct link to image

USD $0.50

How to order

Testimonials and reviews

BULB-HOLDER-SINGLE

Single terminal bulb holder

A very nice single terminal bulb holder with excellent fitment within the tube that is secured to the dash. Includes color-coded short jumper wire with a 4 mm female bullet terminal to mate perfectly with the original wiring harness. Accepts standard sized OEM bulbs. ~12 mm OD. Sold each.

When ordering: Please specify wire color and terminal.

Accepts this style of bayonet bulb.
Accepts this style of bayonet bulb.

Photo courtesy of McMaster-Carr.

Accepts this style of bayonet bulb.
Accepts this style of bayonet bulb.

Photo courtesy of McMaster-Carr.

Single terminal bulb holder.
Single terminal bulb holder.
Single terminal bulb holder.

Direct link to image

USD $7.50

How to order

Testimonials and reviews

BULB-HOLDER-DUAL

Dual terminal bulb holder

A great replacement dual terminal bulb holder and very close to the original in design. Accepts two 6.35 mm female spade terminals, just like the original. Excellent fitment within the tube that is secured to the dash. Accepts standard sized OEM bulbs. ~12 mm OD. Sold each.

Accepts this style of bayonet bulb.
Accepts this style of bayonet bulb.

Photo courtesy of McMaster-Carr.

Accepts this style of bayonet bulb.
Accepts this style of bayonet bulb.

Photo courtesy of McMaster-Carr.

Dual terminal bulb holder.
Dual terminal bulb holder.
Dual terminal bulb holder.

Direct link to image

USD $5.00

How to order

Testimonials and reviews

MG# 17760650 MG# 14768650 MG# 10754905

Dual terminal bulb holder

A great replacement dual terminal bulb holder and very close to the original in design. Accepts two 6.35 mm female spade terminals, just like the original. Excellent fitment within the tube that is secured to the dash. Accepts standard sized OEM bulbs. ~12 mm OD. Sold each.

Accepts this style of wedge bulb.
Accepts this style of wedge bulb.

Photo courtesy of McMaster-Carr.

Dual terminal bulb holder.
17760650: Dual terminal bulb holder.
17760650: Dual terminal bulb holder.

Direct link to image

USD $5.00

How to order

Testimonials and reviews

MG# 93450322 MG# 93450122

Light bulb for gauge and indicator lights

3.36 watt lamp, bayonet base, 500 hour average life, approximately 10 mm (0.41 inch) in diameter. Sold each.

Note: The MG# 93450322 bulbs are longer in overall length, but brighter than MG# 10744910. In general, I recommend MG# 93450322 because they are brighter and easier to see. If you know that your dash requires a shorter bulb, please order MG# 10744910.

This bulb may also be used as a city light or pilot light.

Light bulb for gauge and indicator lights.
93450322: Light bulb for gauge and indicator lights.
93450322: Light bulb for gauge and indicator lights.

Direct link to image

USD $0.75

How to order

Testimonials and reviews

MG# 10744910

Light bulb for gauge and indicator lights

1.728 watt lamp, bayonet base, 1000 hour average life, approximately 10 mm (0.41 inch) in diameter. Sold each.

Note: The MG# 93450322 bulbs are longer in overall length, but brighter than MG# 10744910. In general, I recommend MG# 93450322 because they are brighter and easier to see. If you know that your dash requires a shorter bulb, please order MG# 10744910.

Light bulb for gauge and indicator lights.
10744910: Light bulb for gauge and indicator lights.
10744910: Light bulb for gauge and indicator lights.

Direct link to image

USD $0.75

How to order

Testimonials and reviews

MG# 14744910

Light bulb for indicator lights

2 watt lamp, bayonet base, 1000 hour average life, approximately 7 mm (0.28 inch) in diameter. Sold each.

Light bulb for indicator lights.
14744910: Light bulb for indicator lights.
14744910: Light bulb for indicator lights.

Direct link to image

USD $1.50

How to order

Testimonials and reviews

MG# 93450224

Light bulb for tail light

Long life bulb to help prevent failure due to vibration (1157LL), dual element, 26.88 / 8.26 watt lamp, bayonet base, 2400 / 10000 hour average life. Sold each.

Light bulb for tail light.
93450224: Light bulb for tail light.
93450224: Light bulb for tail light.

Direct link to image

USD $1.50

How to order

Testimonials and reviews

MG# 93450129

Light bulb for turn signals and parking lights

Long life bulb to help prevent failure due to vibration (1156LL), single element, 26.88 watt lamp, bayonet base, 2400 hour average life. Sold each.

Light bulb for turn signals and parking lights.
93450129: Light bulb for turn signals and parking lights.
93450129: Light bulb for turn signals and parking lights.

Direct link to image

USD $1.50

How to order

Testimonials and reviews

MG# 17762150

Light bulb for gauge and indicator lights

3.78 watt lamp, wedge base, 2500 hour average life, approximately 10 mm (0.41 inch) in diameter. Sold each.

Light bulb for gauge and indicator lights.
17762150: Light bulb for gauge and indicator lights.
17762150: Light bulb for gauge and indicator lights.

Direct link to image

USD $0.75

How to order

Testimonials and reviews

MG# 93450140

Light bulb for indicator lights

1.40 watt lamp, wedge base, 500 hour average life, approximately 5 mm (0.23 inch) in diameter. Sold each.

Light bulb for indicator lights.
93450140: Light bulb for indicator lights.
93450140: Light bulb for indicator lights.

Direct link to image

USD $0.75

How to order

Testimonials and reviews

MG# 12734900

Starter button bracket

Bracket to fit the original starter button (22 mm diameter mounting hole). Stainless steel. Very nice. Starter button sold separately. Sold each.

Starter button bracket.
12734900: Starter button bracket.
12734900: Starter button bracket.

Direct link to image

USD $15.50

How to order

Testimonials and reviews

MG# 26735001

Starter button

Momentary push button switch to actuate the starter. Fits the original bracket perfectly (22 mm diameter mounting hole) and comes complete with set screw terminals just like the original. Sturdy metal housing and nice quality black plastic securing nut. Sold each.

Starter button.
26735001: Starter button.
26735001: Starter button.

Direct link to image

USD $20.00

How to order

Testimonials and reviews

MG# 26735001-BLACK

Starter button

Momentary push button switch to actuate the starter. Fits the original bracket perfectly (22 mm diameter mounting hole) and comes complete with set screw terminals just like the original. Nice quality black plastic housing and securing nut. Sold each.

Starter button.
26735001: Starter button.
26735001: Starter button.

Direct link to image

USD $14.00

How to order

Testimonials and reviews

MG# 17743000

Original fuse block

New production, very good quality fuse box. Accepts six fuses (MG# 17742550 or MG# 12742500). Comes with clear cover and two jumpers. Additional jumpers available. Sold each.

Fuse box
Fuse box
Fuse box

Direct link to image

Fuse box
Fuse box
Fuse box

Direct link to image

Fuse box
17743000: Fuse box
17743000: Fuse box

Direct link to image

USD $42.00

How to order

Testimonials and reviews

MG# 17743000-JUMPER

Jumper for original fuse block

Jumper connection used to join multiple fuse circuits. Fits the original fuse box. Sold each.

Jumper for original fuse block
17743000: Jumper for original fuse block
17743000: Jumper for original fuse block

Direct link to image

USD $1.50

How to order

Testimonials and reviews

MG# 12742500

25 amp fuse

Original style fuse to fit the original fuse block. Sold each.

25 amp fuse.
12742500: 25 amp fuse.
12742500: 25 amp fuse.

Direct link to image

USD $0.50

How to order

Testimonials and reviews

MG# 17742550

16 amp fuse

Original style fuse to fit the original fuse block. Sold each.

16 amp fuse.
17742550: 16 amp fuse.
17742550: 16 amp fuse.

Direct link to image

USD $0.50

How to order

Testimonials and reviews

MG# 28743060

Fuse holder

Single fuse holder that may be connected to other single fuse holders to form a row. Sold each. Fuses sold separately.

Fuse holder.
28743060: Fuse holder.
28743060: Fuse holder.

Direct link to image

USD $2.50

How to order

Testimonials and reviews

MG# 28742560

15 amp ATO / ATC fuse

As used on many modern Guzzis accepting blade style fuses. Sold each.

15 amp ATO / ATC fuse.
28742560: 15 amp ATO / ATC fuse.
28742560: 15 amp ATO / ATC fuse.

Direct link to image

USD $0.25

How to order

Testimonials and reviews

POST-TO-SPADE-ADAPTER

5 mm post to 6.3 mm male spade adapter

~5 mm diameter hole permits fitment to the neutral switch and dash grounding points (as original). One required per neutral switch. Dash usage varies by model. Sold each.

5 mm post to 6.3 mm male spade adapter.
5 mm post to 6.3 mm male spade adapter.
5 mm post to 6.3 mm male spade adapter.

Direct link to image

USD $0.50

How to order

Testimonials and reviews

MG# 13741640-LED

Bracket for mounting LED turn signal flashers

Designed specifically for LED flashers that are rubber mounted. Mounting hole is 7 mm in diameter. Sold each.

Bracket for mounting LED turn signal flashers. Flasher not included.
Bracket for mounting LED turn signal flashers. Flasher not included.
Bracket for mounting LED turn signal flashers. Flasher not included.

Direct link to image

Bracket for mounting LED turn signal flashers.
13741640: Bracket for mounting LED turn signal flashers.
13741640: Bracket for mounting LED turn signal flashers.

Direct link to image

USD $3.00

How to order

Testimonials and reviews

MG# 13741640

Bracket for mounting turn signal flashers

Fits standard sized round thermal and electronic flashers. Mounting hole is 6 mm in diameter. Sold each.

Bracket for mounting turn signal flashers.
13741640: Bracket for mounting turn signal flashers.
13741640: Bracket for mounting turn signal flashers.

Direct link to image

USD $3.00

How to order

Testimonials and reviews

MG# 12745760

Push-pull switch

Good quality switch with screw-type terminals. 25 amp capacity. 8 mm × 1 mm threads. Knob unscrews for fitment. Sold each.

Push-pull switch.
12745760: Push-pull switch.
12745760: Push-pull switch.

Direct link to image

USD $5.00

How to order

Testimonials and reviews

MG# 12734900ALT

Bracket for push-pull switch

This bracket is identical to the starter button bracket, except the hole is ~8 mm in diameter. The intent is to mount this bracket on the left clutch perch, mirroring the starter button bracket. Then, a push-pull switch may be fit to the bracket and used to conveniently actuate spot lights or other electrical components. Stainless steel. Very nice. Push-pull switch sold separately. Sold each.

Bracket for push pull switch.
12734900: Bracket for push pull switch.
12734900: Bracket for push pull switch.

Direct link to image

USD $15.50

How to order

Testimonials and reviews

MG# 13745740 MG# 17745760 MG# 18745701

Toggle switch

Good quality sealed switch with six quick connect terminals (as original). 15 amp capacity, on-on double pole double throw, comes complete with mounting hardware (as shown). Sold each.

Toggle switch.
13745740: Toggle switch.
13745740: Toggle switch.

Direct link to image

USD $12.50

How to order

Testimonials and reviews

TOGGLE-BOOT

Half height toggle switch boot

Half-height boot for the toggle switch. Uses standard 1532-32 inch threads. Be sure to rotate the toggle with the boot when fitting the boot to the switch. Sold each.

Half height toggle switch boot.
Half height toggle switch boot.
Half height toggle switch boot.

Direct link to image

USD $4.50

How to order

Testimonials and reviews

TOGGLE-BOOT-FULL

Full height toggle switch boot

Full-height boot for the toggle switch. Uses standard 1532-32 inch threads. Be sure to rotate the toggle with the boot when fitting the boot to the switch. Sold each.

Full height toggle switch boot.
Full height toggle switch boot.
Full height toggle switch boot.

Direct link to image

USD $4.00

How to order

Testimonials and reviews

MG# 12732500

5 pin mini relay (SPDT) with mounting bracket.

40 amp rating.

Sealed construction. Resistor is used across the coil terminals for long life and reliable service. 40 amp maximum continuous current rating on the normally open circuit. 30 amp maximum continuous current rating on the normally closed circuit.

Great replacement for the starter relay or for use with custom functions. Mounting bracket has a 5.5 mm diameter hole. Sold each.

40 amp, 5 pin mini relay (SPDT) with mounting bracket.
12732500: 40 amp, 5 pin mini relay (SPDT) with mounting bracket.
12732500: 40 amp, 5 pin mini relay (SPDT) with mounting bracket.

Direct link to image

USD $5.00

How to order

Testimonials and reviews

MG# 28732560

5 pin mini relay (SPDT) without mounting bracket.

40 amp rating.

Great replacement for the starter relay or for use with custom functions. Sold each.

40 amp, 5 pin mini relay (SPDT) without mounting bracket.
28732560: 40 amp, 5 pin mini relay (SPDT) without mounting bracket.
28732560: 40 amp, 5 pin mini relay (SPDT) without mounting bracket.

Direct link to image

USD $5.00

How to order

Testimonials and reviews

MG# 30732510

5 pin mini relay (SPST) without mounting bracket.

Sealed construction. 40 amp maximum continuous current rating.

So far, the only Guzzi I know of that requires this relay is the 1000 S series 2 with the later Digiplex ignition module. As far as I know, all other applications should use MG# 28732560. Sold each.

40 amp, 5 pin mini relay (SPST) without mounting bracket.
30732510: 40 amp, 5 pin mini relay (SPST) without mounting bracket.
30732510: 40 amp, 5 pin mini relay (SPST) without mounting bracket.

Direct link to image

USD $7.50

How to order

Testimonials and reviews

MG# 30732560

5 pin micro relay (SPDT) without mounting bracket.

30 amp rating.

Sealed construction. Resistor is used across the coil terminals for long life and reliable service. 30 amp maximum continuous current rating on the normally open circuit. 20 amp maximum continuous current rating on the normally closed circuit.

Used on many later Guzzis. Fits my custom relay solution. Great for use with custom functions. Sold each.

35 amp / 25 amp, 5 pin micro relay (SPDT) without mounting bracket.
30732560: 35 amp / 25 amp, 5 pin micro relay (SPDT) without mounting bracket.
30732560: 35 amp / 25 amp, 5 pin micro relay (SPDT) without mounting bracket.

Direct link to image

USD $5.00

How to order

Testimonials and reviews
