Fuse box

Part number: 30743000

Price: $33.75

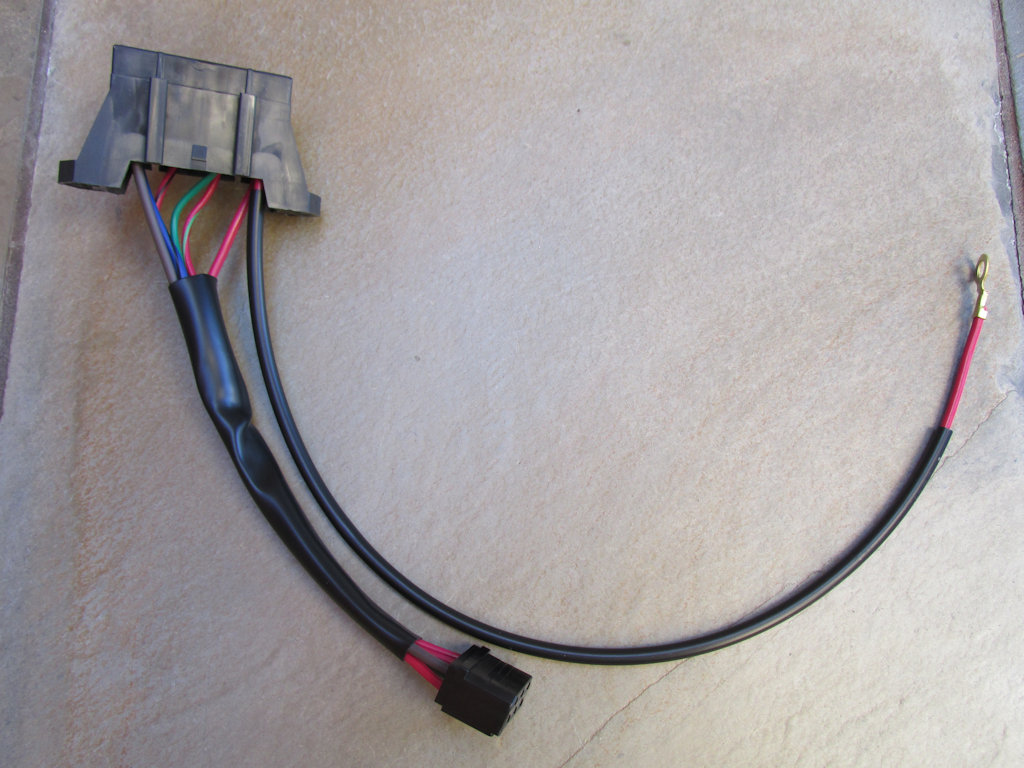

Fuse box

Replacement fuse block with connections to main harness. Fuse block is of good quality. But, it is not original and the mounting holes do not align. It will fit nicely in the available space and you should be able to secure it in place using one of the two original mounting holes.

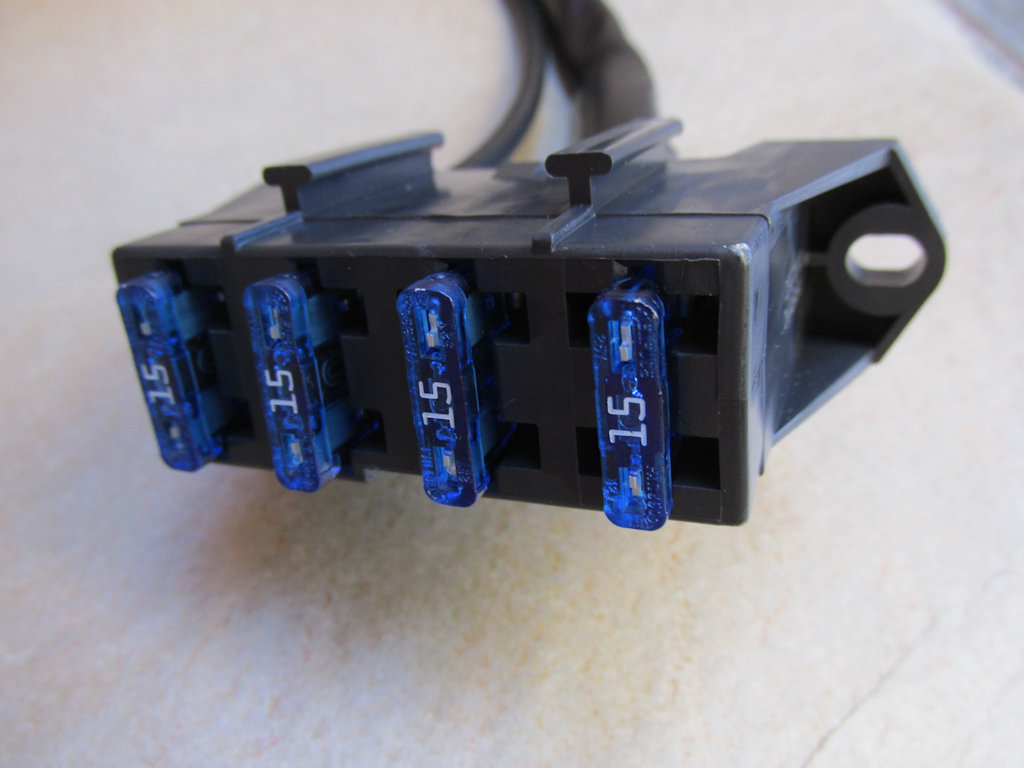

Accepts standard ATO/ATC fuses (not included).
Accepts standard ATO/ATC fuses (not included).
Direct link to image

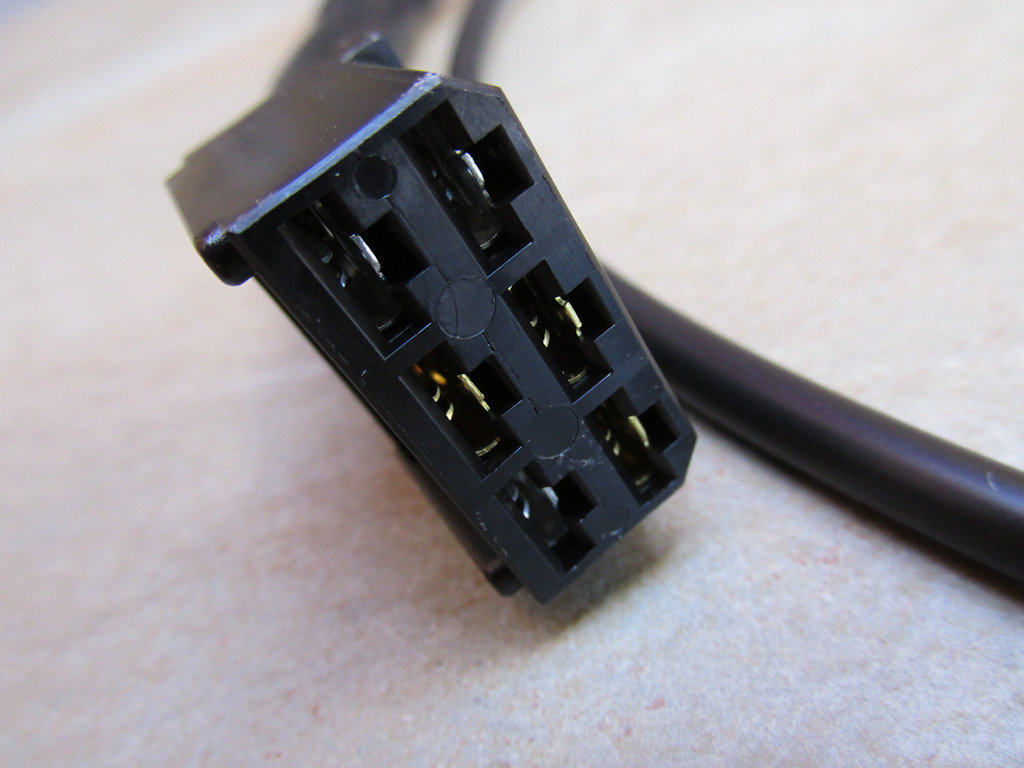

6 terminal connection to the main harness
6 terminal connection to the main harness
Direct link to image

Harvey Johnson used the original lower mounting hole on his Mille GT. Then, he used a short piece of aluminum flat stock to mount the fuse block diagonally to the original upper mounting hole as shown in the photos below.

Arrow points to the original hole that was used.
Photo courtesy of Harvey Johnson.
Arrow points to the original hole that was used.
Photo courtesy of Harvey Johnson.
Direct link to image

Fuse block in place using a piece of flat aluminum to secure it in place diagonally.
Photo courtesy of Harvey Johnson.
Fuse block in place using a piece of flat aluminum to secure it in place diagonally.
Photo courtesy of Harvey Johnson.
