Digiplex ignition - late style with 11-pin flat connector, relay socket, and AMP Superseal connectors

Part number: 29722170-LATE-1000-SP-III

USD $85.00

Digiplex ignition - late style with 11-pin flat connector, relay socket, and AMP Superseal connectors

Wiring to support the Digiplex ignition system. Please note, the 11-pin flat connector is no longer available. You will need to reuse your existing connector. If you ship me your original harness, I will be happy to remove the old terminals and fit the new terminals.

Relay socket to power the coils.
Direct link to image

3-pin AMP Superseal connector.
Direct link to image

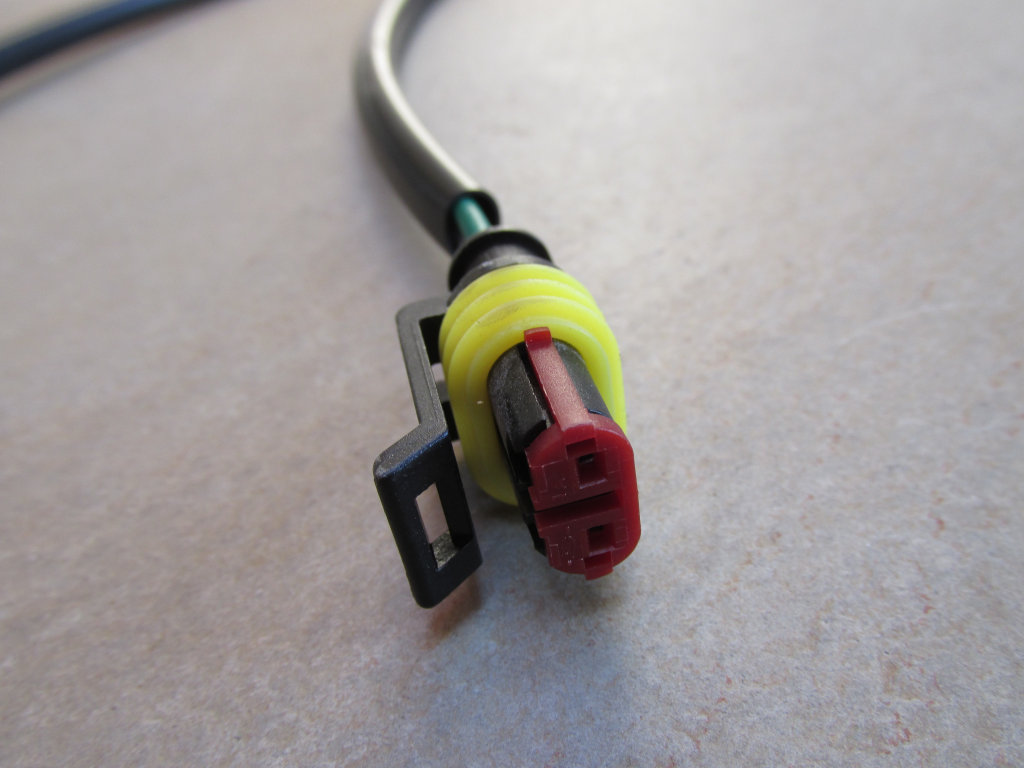

2-pin AMP Superseal connector to the left S coil (green wire).
Direct link to image

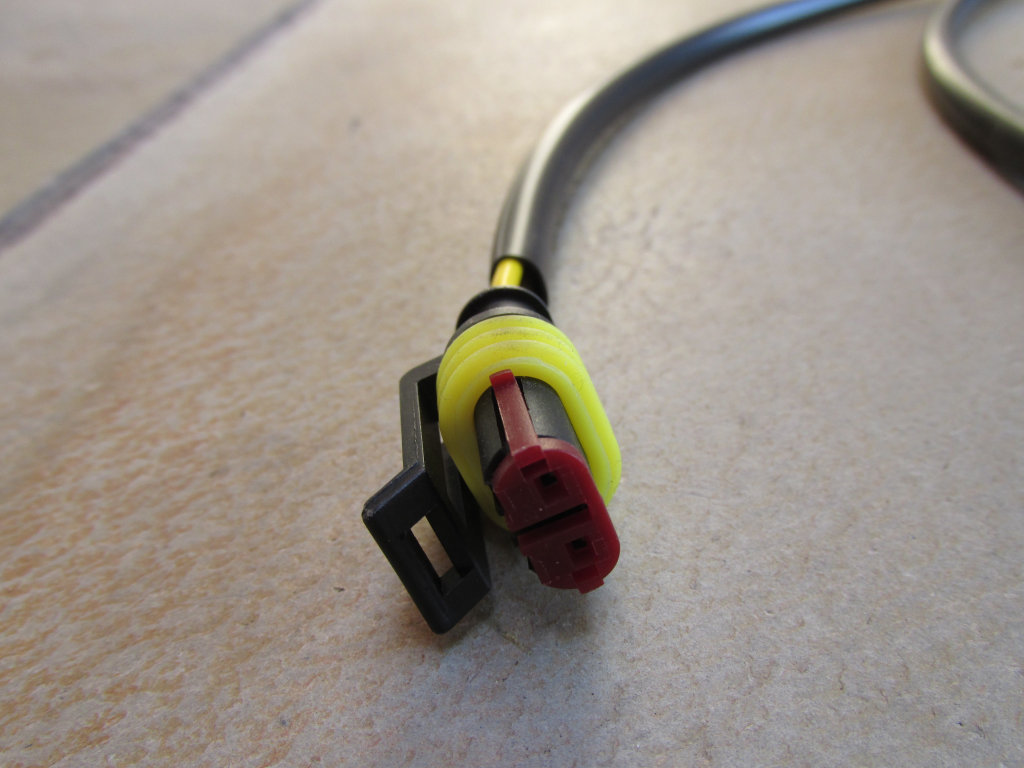

2-pin AMP Superseal connector to the right D coil (yellow/black wire).
Direct link to image

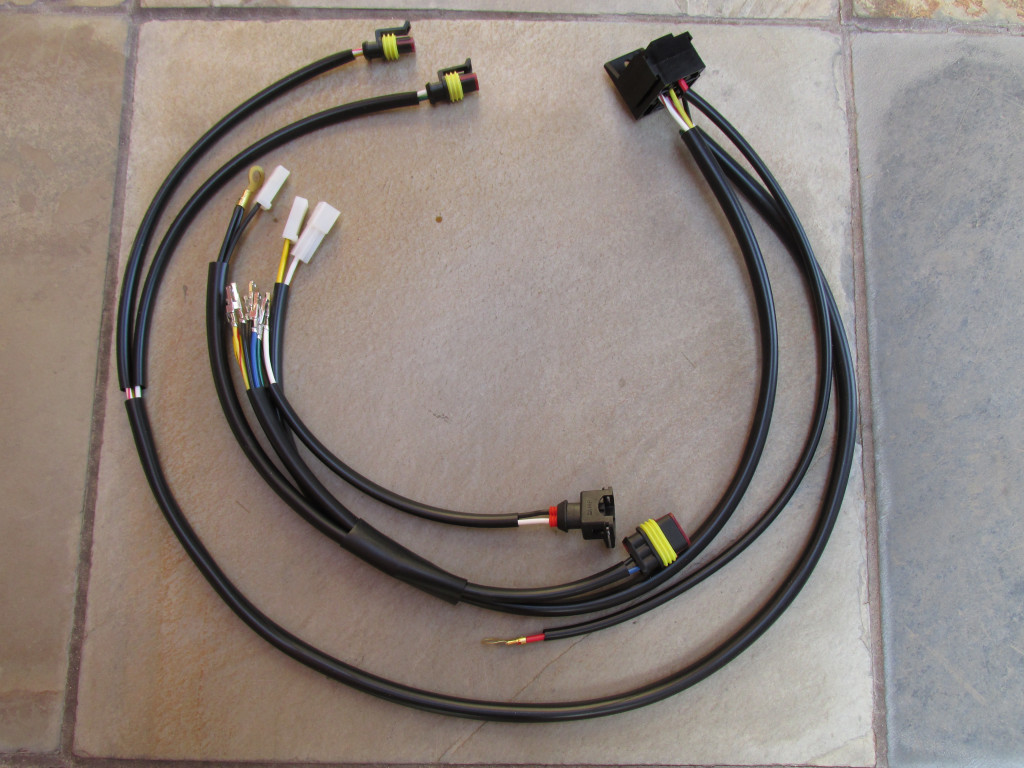

29722170: Digiplex ignition - late style with 11-pin flat connector, relay socket, and AMP Superseal connectors
Direct link to image
