Dash (Series 2)

Part number: 28747278

USD $85.00

How to order
Testimonials and reviews

Dash (Series 2)

Series 2 machines were produced from about 1988 through about 1994.

Connects the main harness to the dash. I have been unable to source a replacement for the plug that connects to the 4-way flasher button. You will need to re-use your existing plug.

15 terminal connection to the main harness. — 15 terminal connection to the main harness.
Direct link to image

The series 2 dash uses this 4-way flasher button (MG# 28745761). Carefully note the connections on the bottom. (switch not included) — The series 2 dash uses this 4-way flasher button (MG# 28745761). Carefully note the connections on the bottom. (switch not included)
Photo courtesy of HMB-Moto.
Direct link to image

The series 2 dash uses this 4-way flasher button (MG# 28745761). Carefully note the connections on the bottom. (switch not included) — The series 2 dash uses this 4-way flasher button (MG# 28745761). Carefully note the connections on the bottom. (switch not included)
Photo courtesy of HMB-Moto.
Direct link to image

Applicable to this dash console (not included). — Applicable to this dash console (not included).
Photo courtesy of Charlie Mullendore of Antietam Classic Cycle.
Direct link to image

Applicable to this dash console (not included). — Applicable to this dash console (not included).
Photo courtesy of Charlie Mullendore of Antietam Classic Cycle.
Direct link to image

Applicable to this dash console (not included). — Applicable to this dash console (not included).
Direct link to image

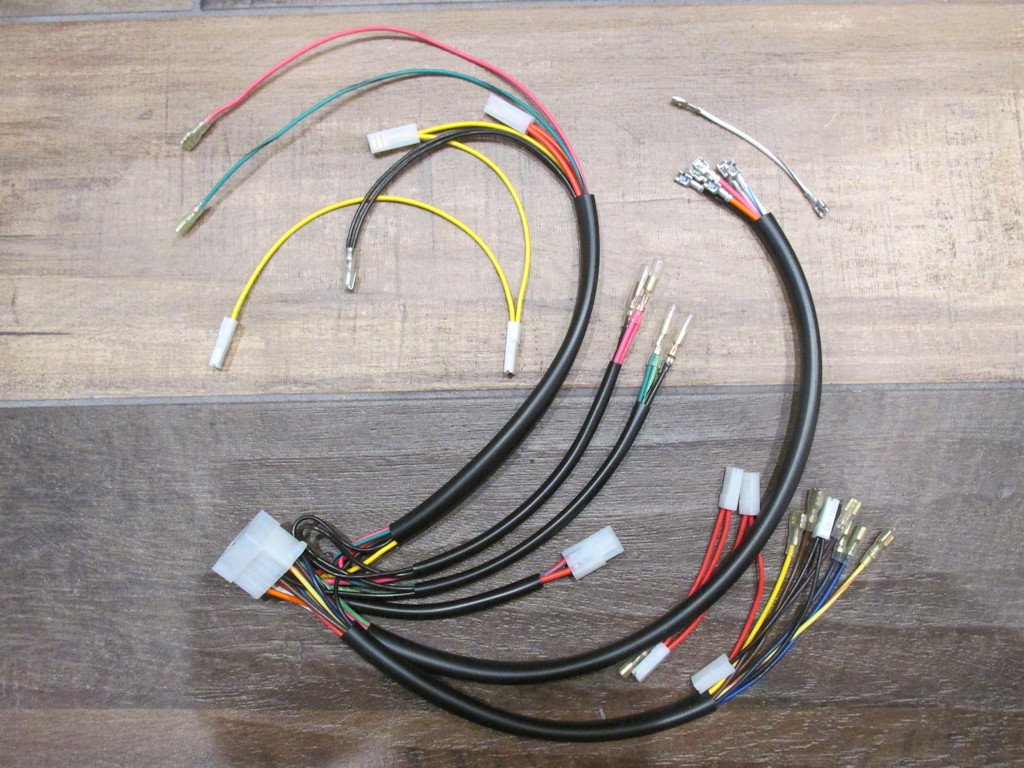

Dash. — 28747278: Dash.
