Replacement wiring for the right handlebar switch (PRINTED CIRCUIT INSTRUMENT PANEL)

Part number: 14603455

Price: $11.00

How to order

Testimonials and reviews

Replacement wiring for the right handlebar switch (PRINTED CIRCUIT INSTRUMENT PANEL).
14603455: Replacement wiring for the right handlebar switch (PRINTED CIRCUIT INSTRUMENT PANEL).
14603455: Replacement wiring for the right handlebar switch (PRINTED CIRCUIT INSTRUMENT PANEL).

Direct link to image

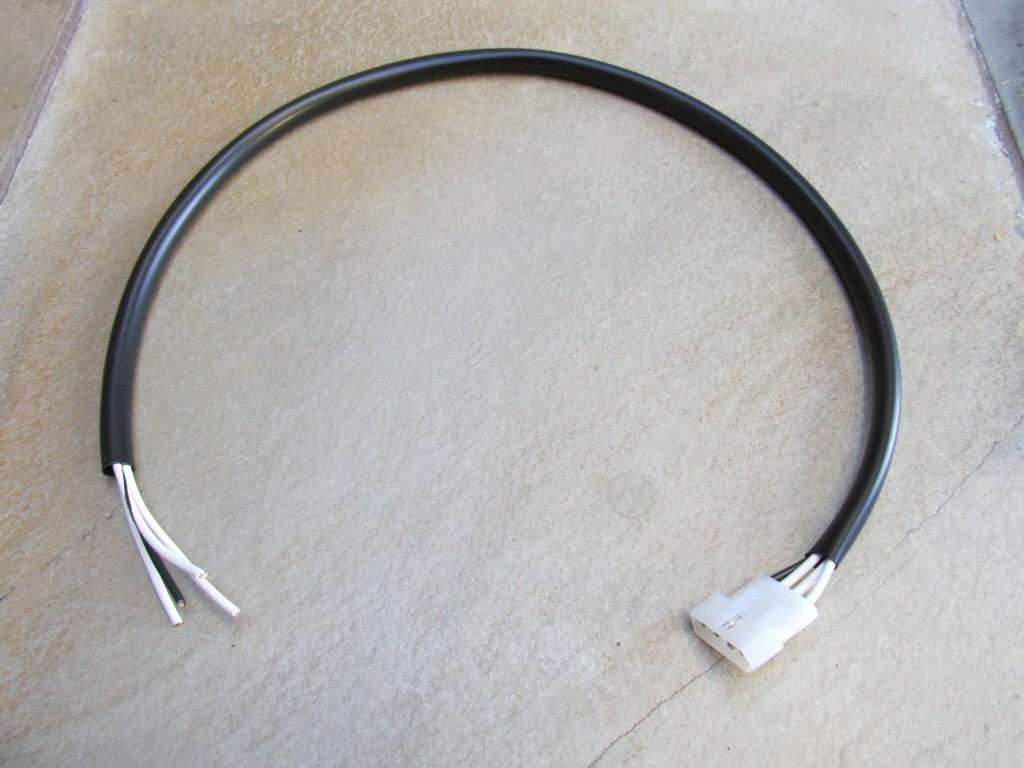

Replacement wiring for the right handlebar switch (PRINTED CIRCUIT INSTRUMENT PANEL)

Ready for your switch.

Wires are 800 mm in length. Upon request, the wires may be left separate from the 4 terminal plug - so that the wires may be more easily routed inside to the handlebar.

  • IMPORTANT NOTE: As with all switches actuating higher amperage components, I consider a relay for the coils a good idea and a relay for the starter a necessity.

Plug information:

  • Position 1: white/black (starter button / ground out to starter relay)
  • Position 2: white (kill switch / power out to coils)
  • Position 3: white (kill switch / power in for coils)
  • Position 4: black (starter button / ground in for starter relay)

Direct link to image

Instead of routing a pair of wires to each bulb, the printed circuit instrument panel uses this printed circuit board to distribute power to the dash indicator bulbs (MG# 14765355). Printed circuit board not included.
Instead of routing a pair of wires to each bulb, the printed circuit instrument panel uses this printed circuit board to distribute power to the dash indicator bulbs (MG# 14765355). Printed circuit board not included.

Photo courtesy of Stein-Dinse.

Instead of routing a pair of wires to each bulb, the printed circuit instrument panel uses this printed circuit board to distribute power to the dash indicator bulbs (MG# 14765355). Printed circuit board not included.

Photo courtesy of Stein-Dinse.
