VIN tag rivet (MG# 45918570)

Moto Guzzi V700, V7 Special, Ambassador, 850 GT, 850 GT California, Eldorado, and 850 California Police models

Created: 2012 February 22

Updated: 2013 April 17

// //

The rivet (MG# 45918570) that secures the VIN tag to the frame is called a drive nail, drive pin, or drive rivet. The dimensions are as follows:

Shaft diameter: 1.8 mm
Length: 5 mm
Head diameter: 3 mm

McMaster-Carr part number 90081A054 or McMaster-Carr part number 91654A054 are potential replacements.

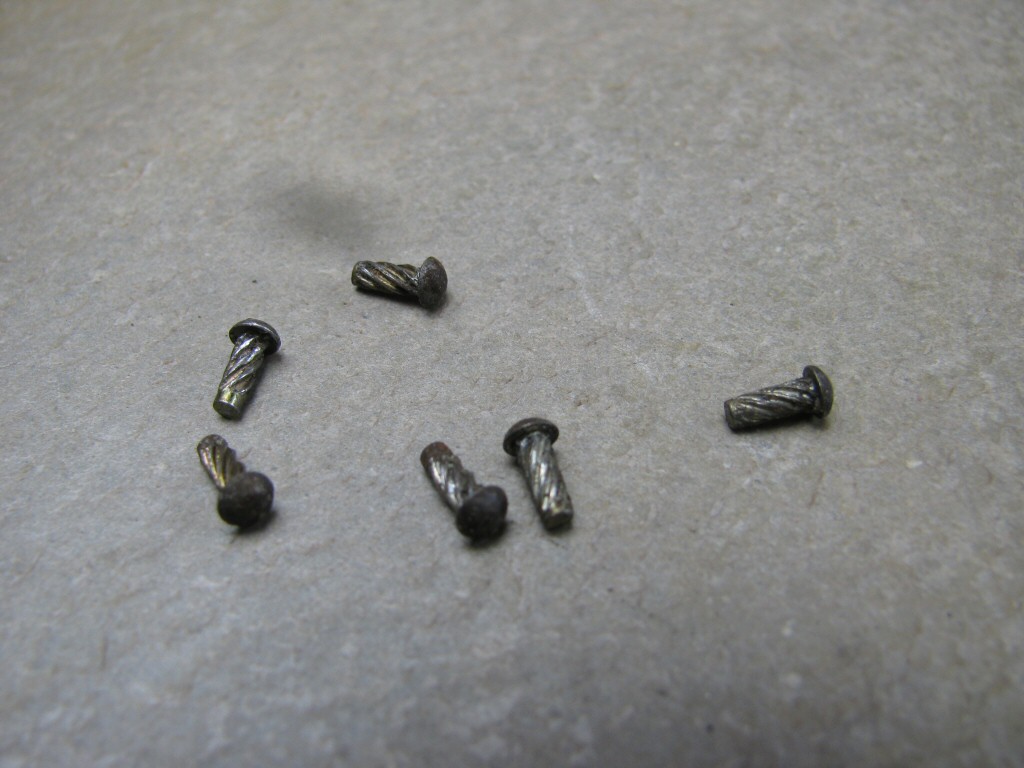

The rivet used to secure the VIN tag to the frame on Moto Guzzi V700, V7 Special, Ambassador, 850 GT, 850 GT California, Eldorado, and 850 California Police models. Also called a drive nail, drive pin, or drive rivet. — The rivet used to secure the VIN tag to the frame on Moto Guzzi V700, V7 Special, Ambassador, 850 GT, 850 GT California, Eldorado, and 850 California Police models. Also called a drive nail, drive pin, or drive rivet.
Photo courtesy of Gregory Bender.
