Brake actuation rod (for the rear brake)

Moto Guzzi V700, V7 Special, Ambassador, 850 GT, 850 GT California, Eldorado, and 850 California Police models

Updated:

// //

In early February of 2009, Joe Cox contacted me asking about the brake actuation rod. I sent him some measurements and photos of my original, and then he crafted one.

Gregory Bender's notes

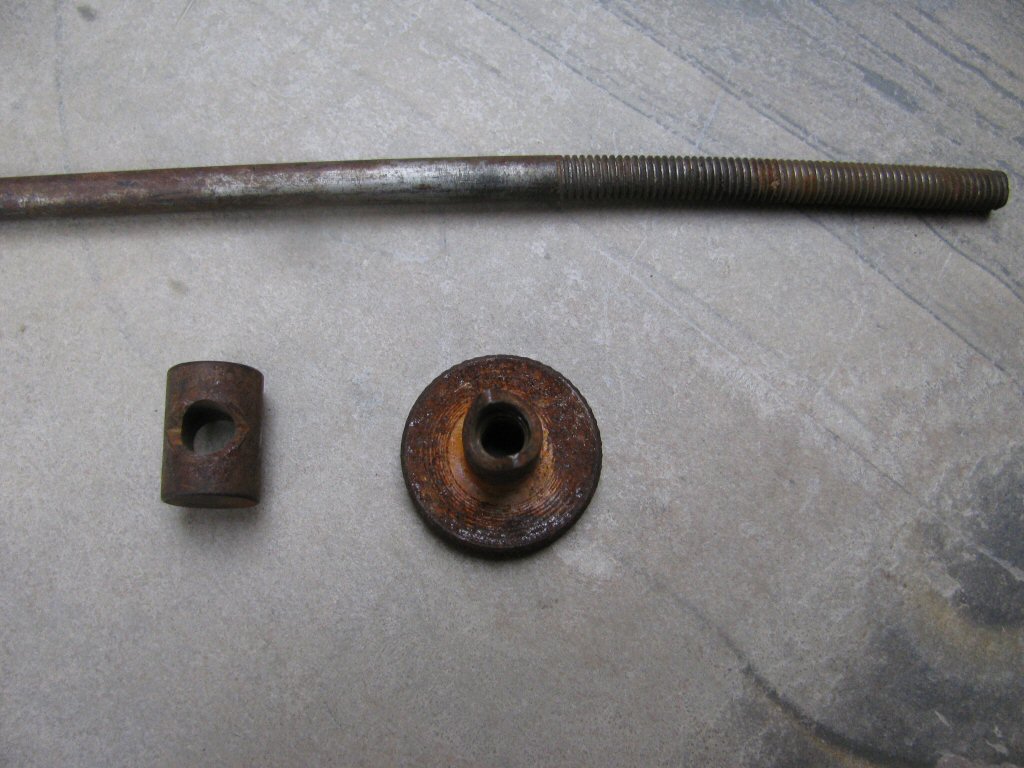

The brake actuation rod connects the brake pivot to the brake actuation arm on the brake plate. It is made of 6 mm rod, bent at 90° at one end (to fit through the brake pivot) and threaded at the other end (6 mm × 1 mm) to accept the adjustment nut.

I'd use 6 mm Stainless Steel rod. A bit more difficult to bend and thread, but it can be polished and will never rust. McMaster-Carr part number 1274T15.

If you don't have the nut, this one would work: McMaster-Carr part number 90368A300. Just bevel the bottom and have it push up against a short length of cross drilled rod of larger diameter.

Key measurements:

  • Length from inside corner of the bend to the end of the threads: 455 mm (for V700 rear brakes the length is 400 mm)
  • Length of bent end from the inside corner of the bend: 10 mm
  • Approximate Length of threads: 50 mm - 60 mm (for V700 rear brakes I measured the length at 62 mm)

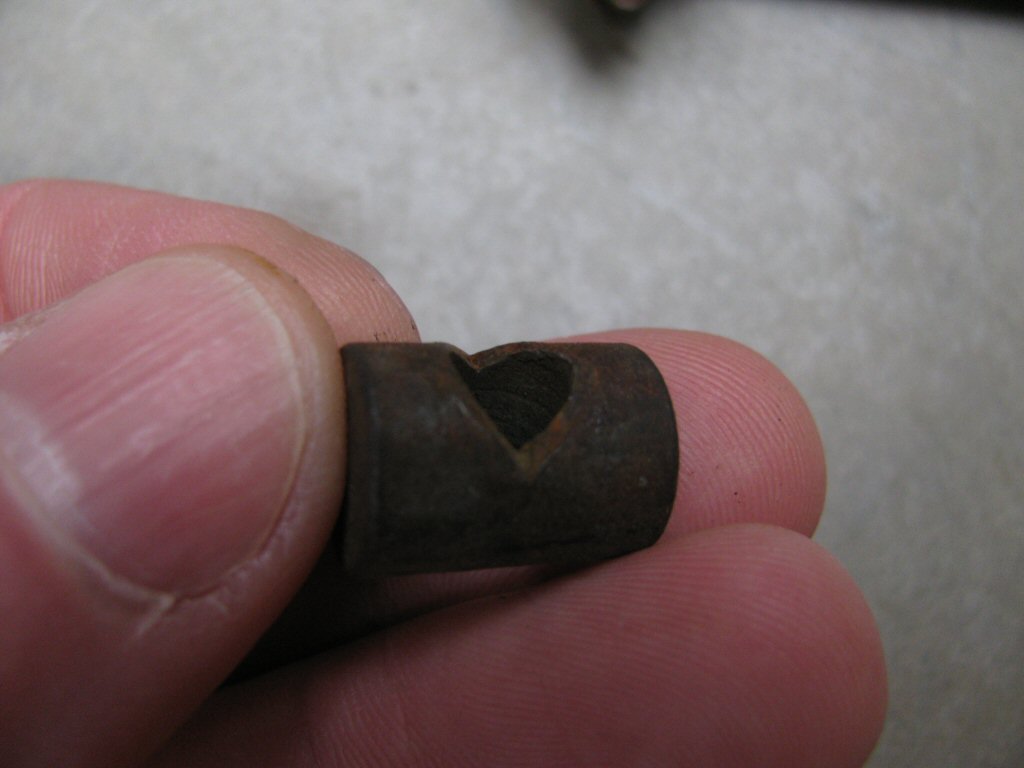

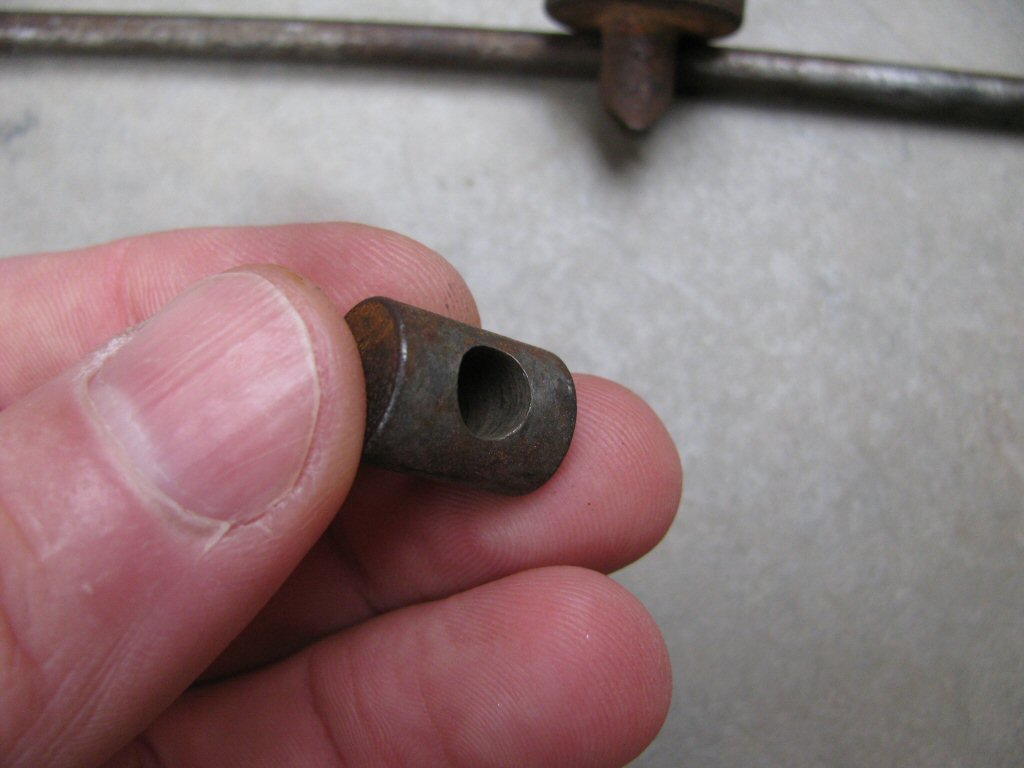

  • The short little cross-rod that the knurled nut runs up against is made of 12 mm diameter rod. Instead of buying a entire length of rod, I'd just buy a 12 mm bolt that wasn't fully threaded and make it out of that. The hole through the cross-rod is 6.6 mm in diameter.

I'd drill a hole for the cotter pin, stick 10 mm in the vice and bend it 90°. Measure 455 mm to the end and cut it off. Thread the end to 50 mm (or so) and call it good.

A couple of notes:

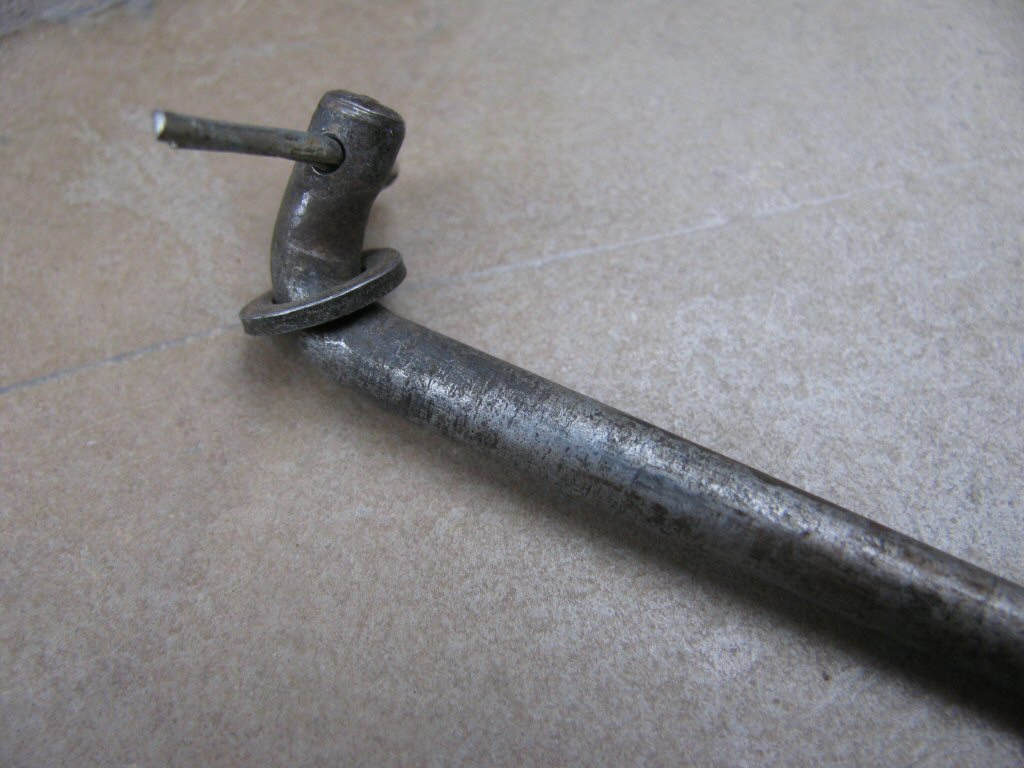

  1. Use a washer between the cotter pin and the pivot arm to prevent wear and breakage of the cotter pin.

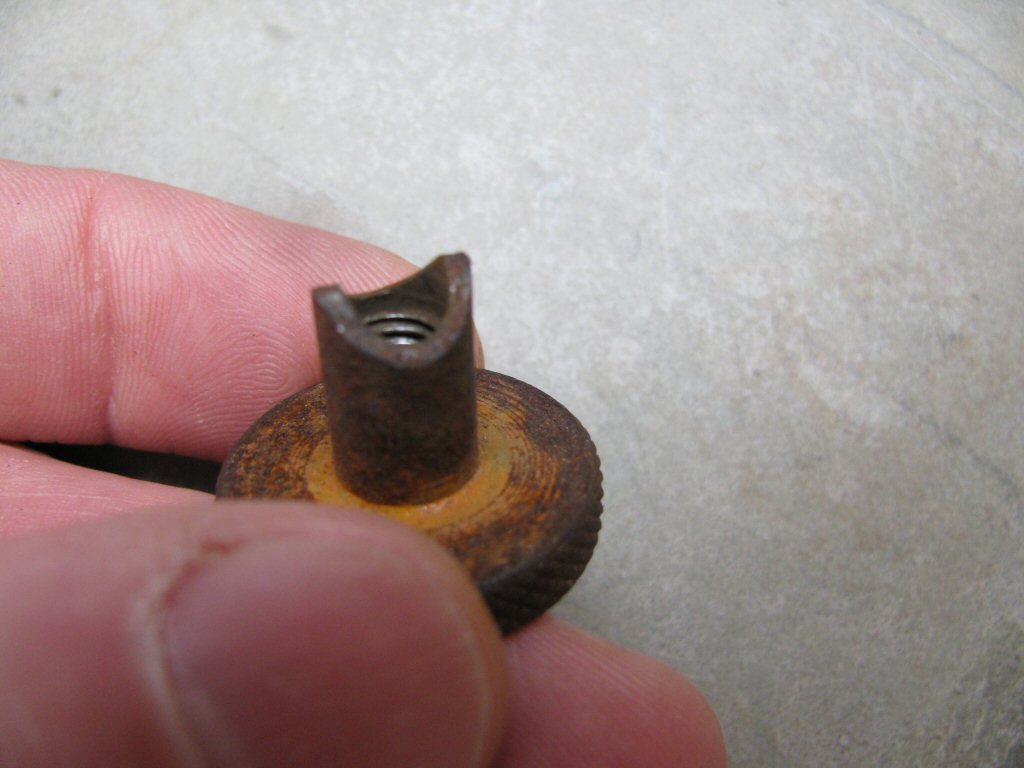

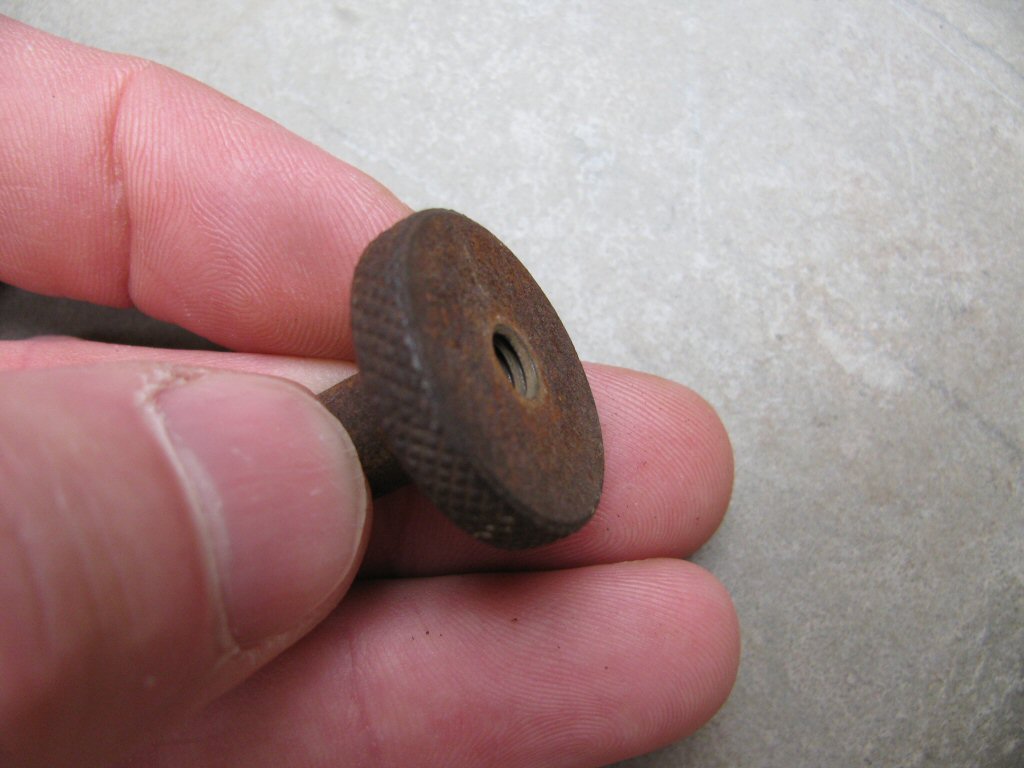

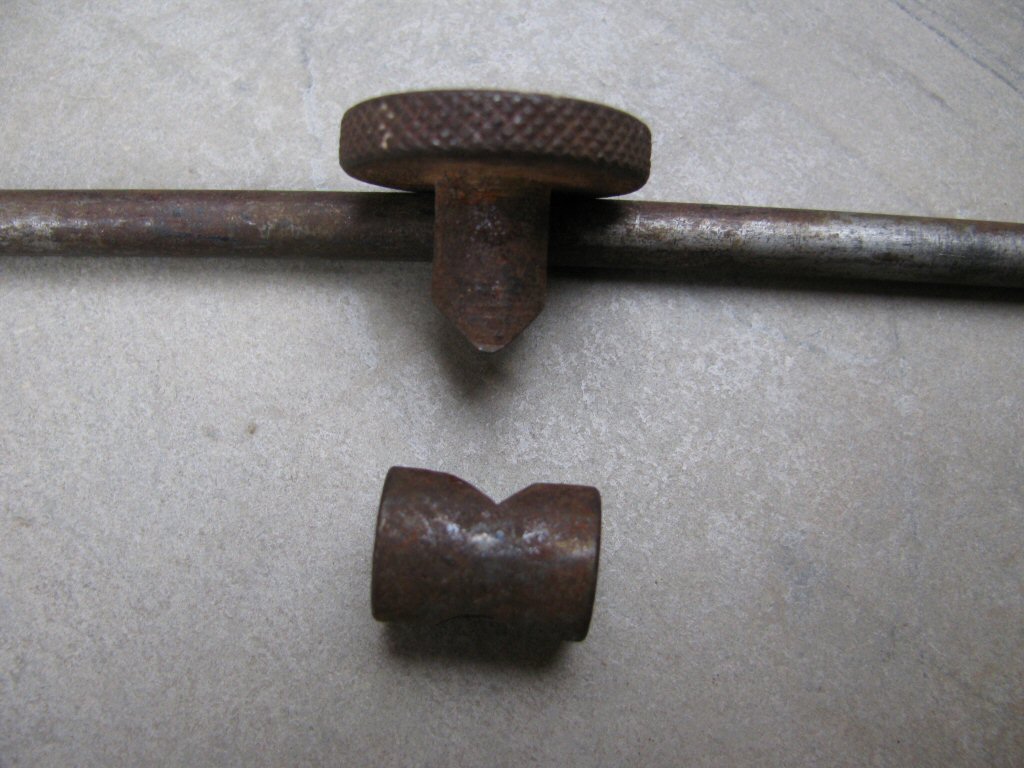

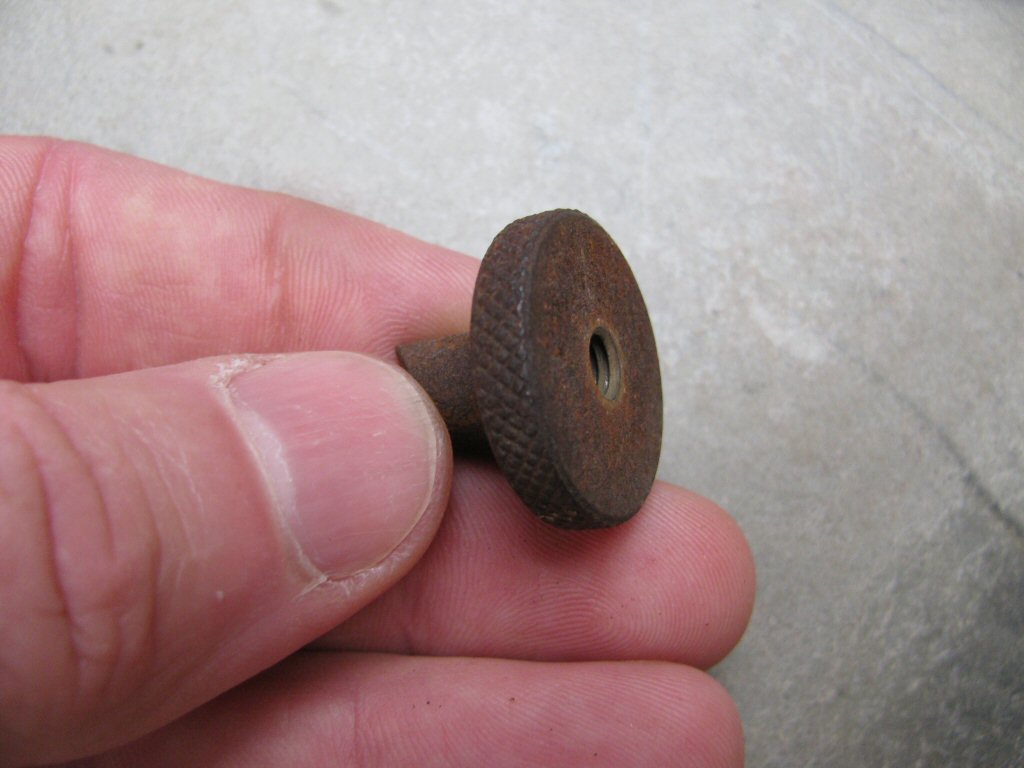

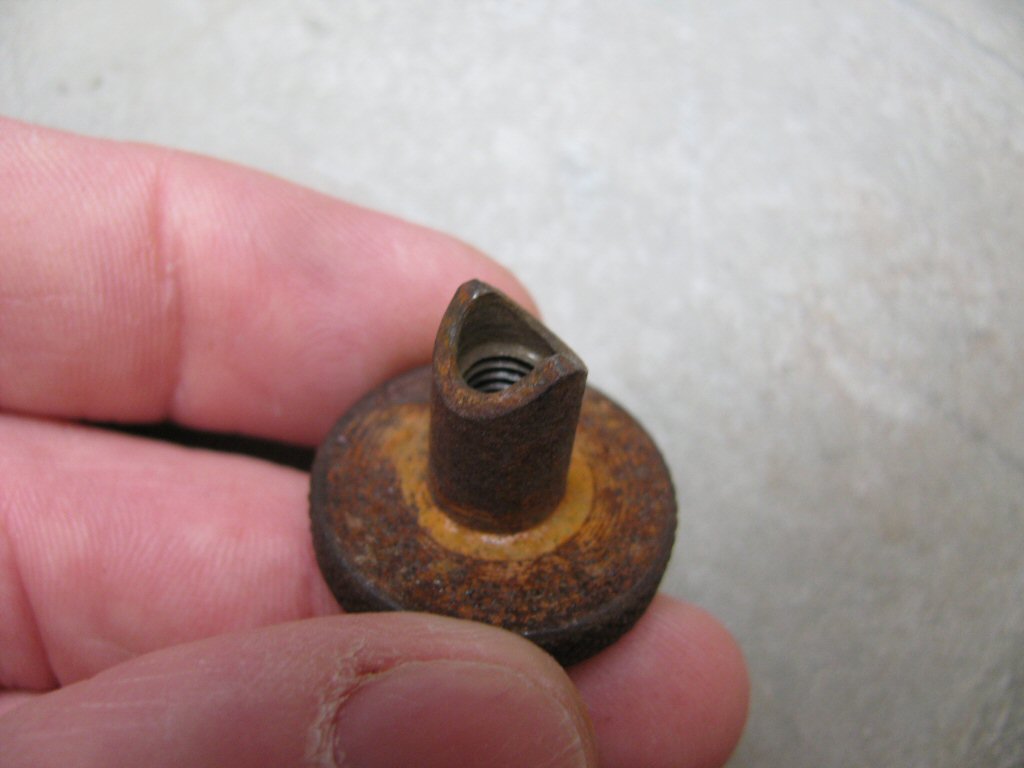

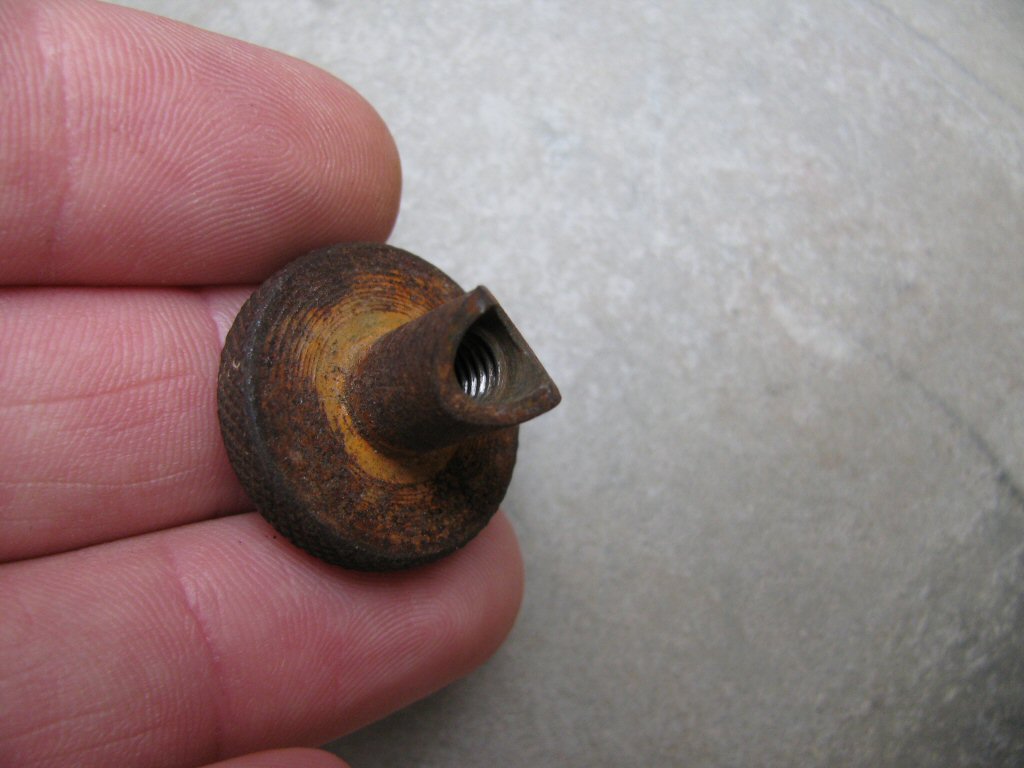

  2. If you look at the photos carefully, you'll notice the original design had corresponding V notches cut/filed into the knurled adjustment nut and the corresponding very short cross rod. This V notch is nothing more than a locking mechanism to prevent the nut from coming loose, etc. Be sure to add one of your own.

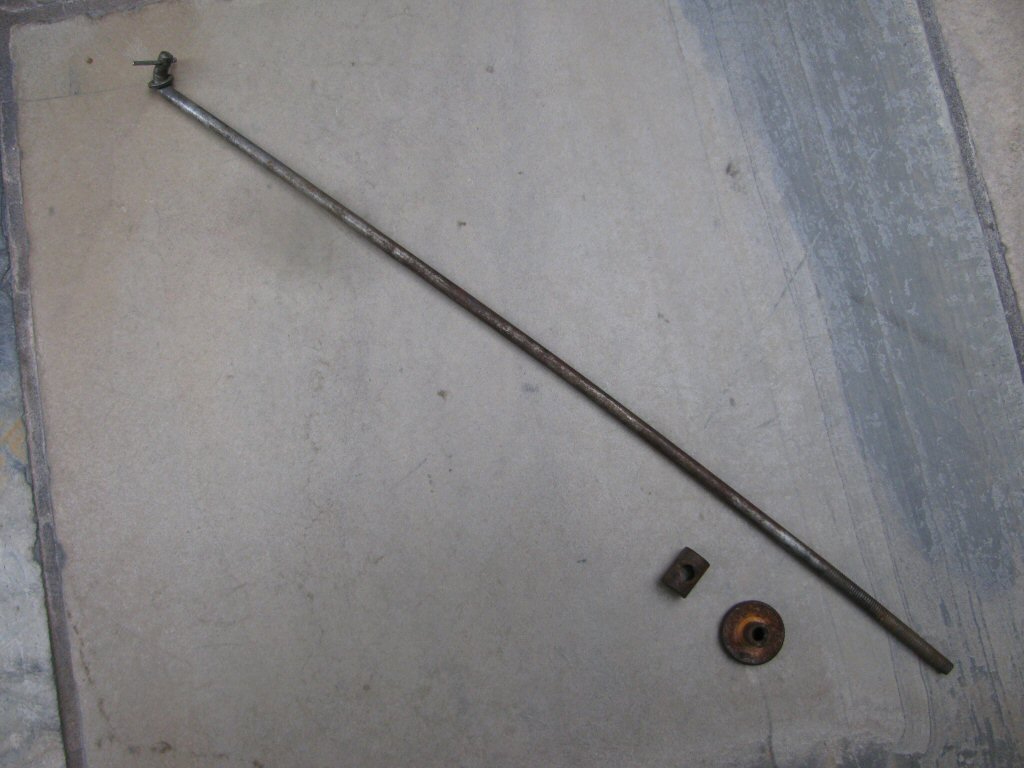

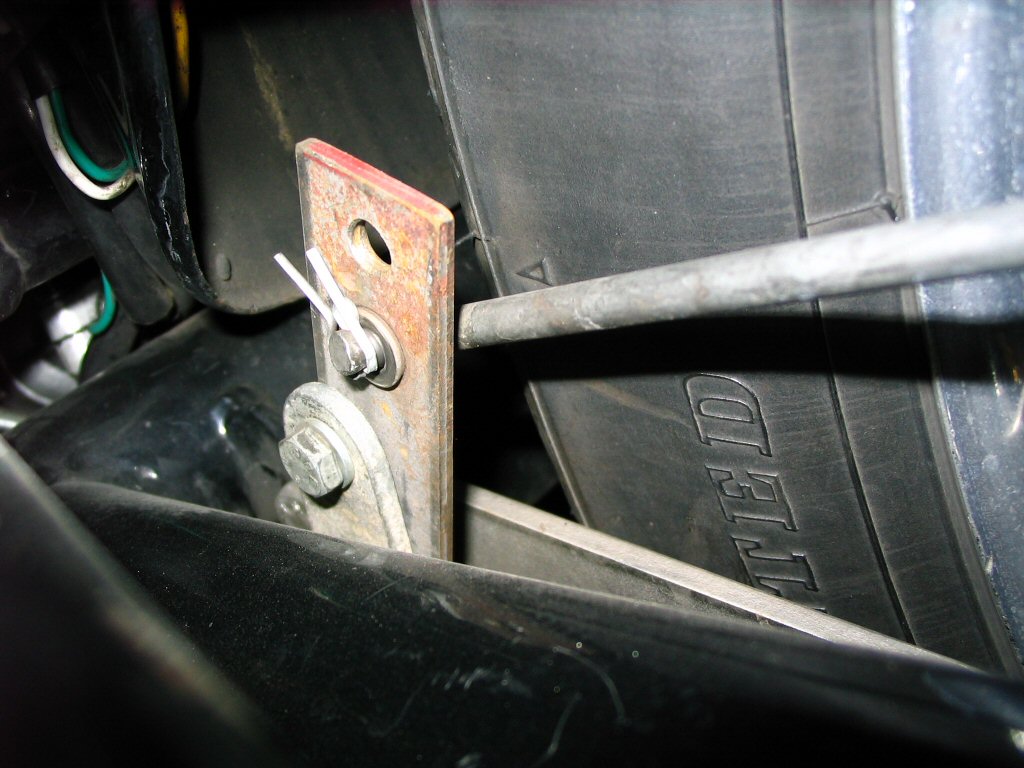

Brake actuation rod for the Moto Guzzi V700, V7 Special, Ambassador, 850 GT, 850 GT California, Eldorado, and 850 California Police motorcycles.90° bend at the forward end of the rod (I'm in the middle of experimenting to get more feel with my Moto Guzzi 850 T brake drum).

Brake actuation rod for the Moto Guzzi V700, V7 Special, Ambassador, 850 GT, 850 GT California, Eldorado, and 850 California Police motorcycles.

90° bend at the forward end of the rod (I'm in the middle of experimenting to get more feel with my Moto Guzzi 850 T brake drum).

Photo courtesy of Gregory Bender.

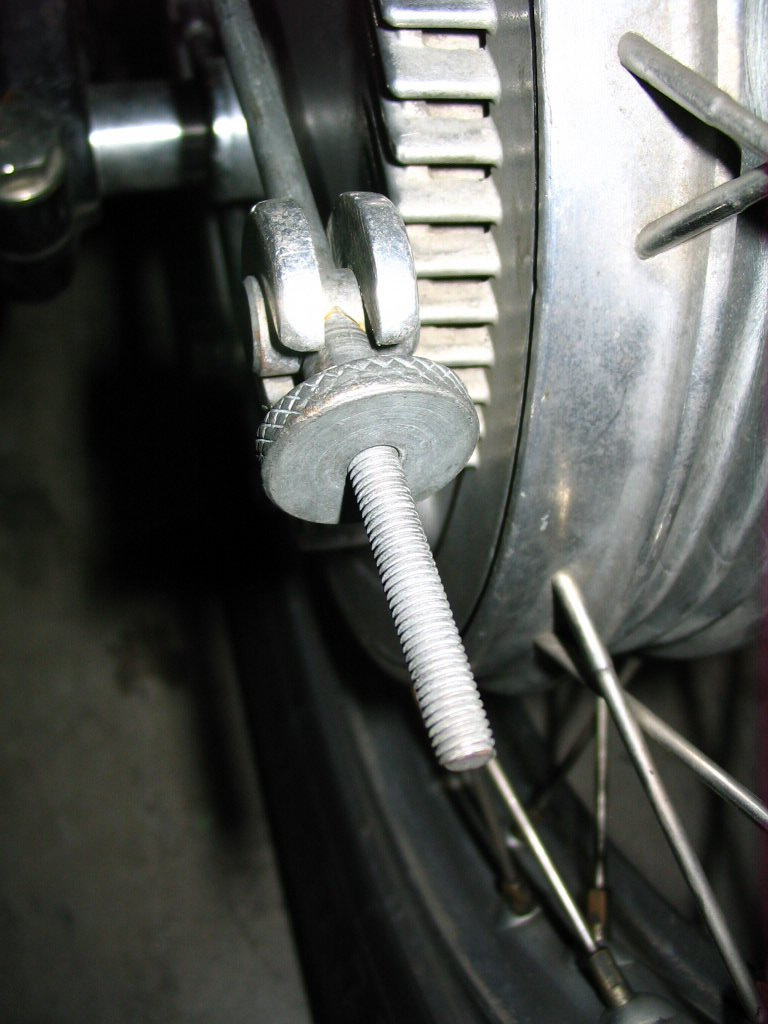

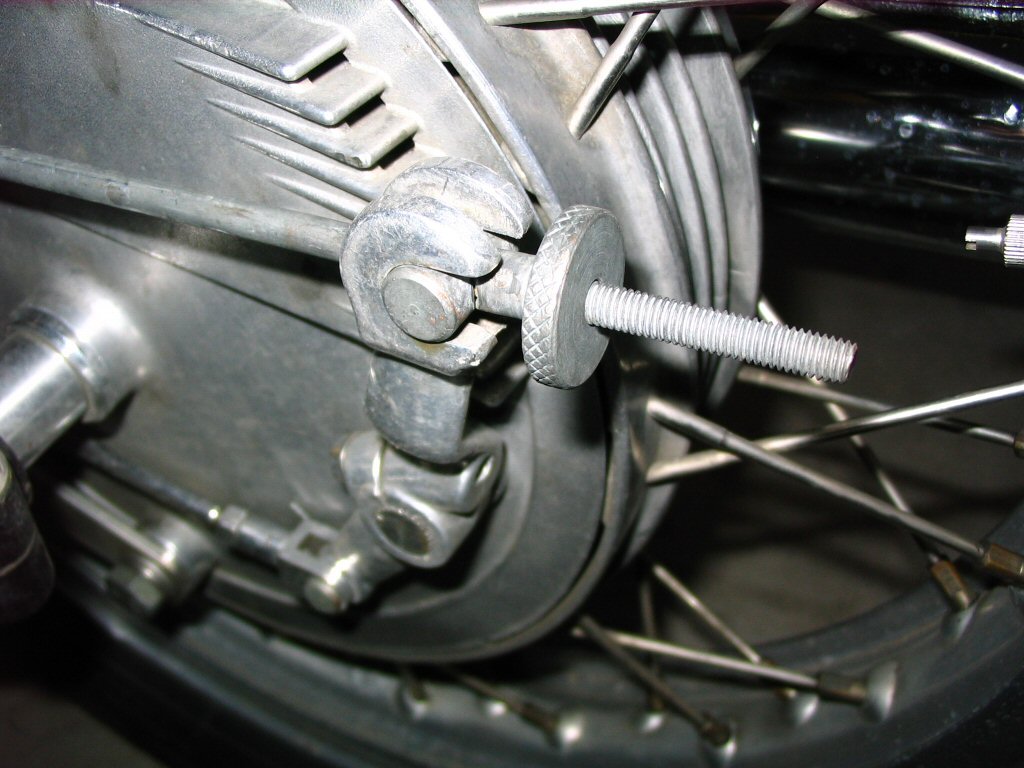

Brake actuation rod for the Moto Guzzi V700, V7 Special, Ambassador, 850 GT, 850 GT California, Eldorado, and 850 California Police motorcycles.Cross rod and adjustment nut (Moto Guzzi 850 T brake drum shown).

Brake actuation rod for the Moto Guzzi V700, V7 Special, Ambassador, 850 GT, 850 GT California, Eldorado, and 850 California Police motorcycles.

Cross rod and adjustment nut (Moto Guzzi 850 T brake drum shown).

Photo courtesy of Gregory Bender.

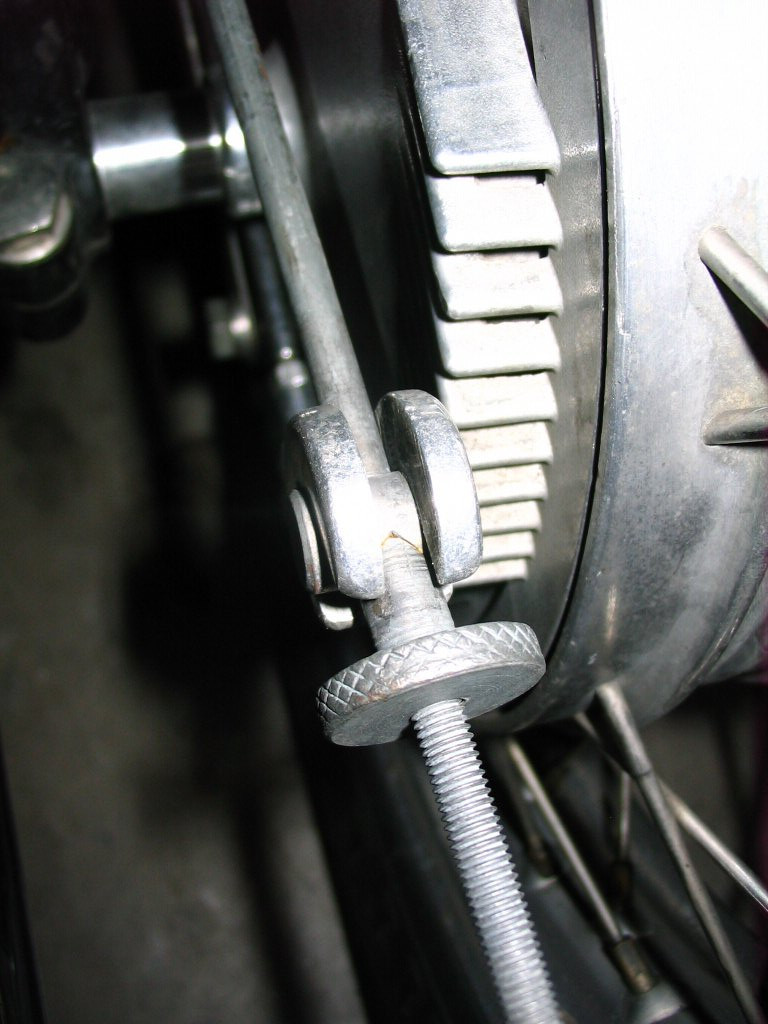

Brake actuation rod for the Moto Guzzi V700, V7 Special, Ambassador, 850 GT, 850 GT California, Eldorado, and 850 California Police motorcycles.Cross rod and adjustment nut (Moto Guzzi 850 T brake drum shown).

Brake actuation rod for the Moto Guzzi V700, V7 Special, Ambassador, 850 GT, 850 GT California, Eldorado, and 850 California Police motorcycles.

Cross rod and adjustment nut (Moto Guzzi 850 T brake drum shown).

Photo courtesy of Gregory Bender.

Brake actuation rod for the Moto Guzzi V700, V7 Special, Ambassador, 850 GT, 850 GT California, Eldorado, and 850 California Police motorcycles.Cross rod and adjustment nut (Moto Guzzi 850 T brake drum shown).

Brake actuation rod for the Moto Guzzi V700, V7 Special, Ambassador, 850 GT, 850 GT California, Eldorado, and 850 California Police motorcycles.

Cross rod and adjustment nut (Moto Guzzi 850 T brake drum shown).

Photo courtesy of Gregory Bender.

Brake actuation rod for the Moto Guzzi V700, V7 Special, Ambassador, 850 GT, 850 GT California, Eldorado, and 850 California Police motorcycles.
Brake actuation rod for the Moto Guzzi V700, V7 Special, Ambassador, 850 GT, 850 GT California, Eldorado, and 850 California Police motorcycles.

Photo courtesy of Gregory Bender.

Brake actuation rod for the Moto Guzzi V700, V7 Special, Ambassador, 850 GT, 850 GT California, Eldorado, and 850 California Police motorcycles.
Brake actuation rod for the Moto Guzzi V700, V7 Special, Ambassador, 850 GT, 850 GT California, Eldorado, and 850 California Police motorcycles.

Photo courtesy of Gregory Bender.

Brake actuation rod for the Moto Guzzi V700, V7 Special, Ambassador, 850 GT, 850 GT California, Eldorado, and 850 California Police motorcycles.
Brake actuation rod for the Moto Guzzi V700, V7 Special, Ambassador, 850 GT, 850 GT California, Eldorado, and 850 California Police motorcycles.

Photo courtesy of Gregory Bender.

Brake actuation rod for the Moto Guzzi V700, V7 Special, Ambassador, 850 GT, 850 GT California, Eldorado, and 850 California Police motorcycles.
Brake actuation rod for the Moto Guzzi V700, V7 Special, Ambassador, 850 GT, 850 GT California, Eldorado, and 850 California Police motorcycles.

Photo courtesy of Gregory Bender.

Brake actuation rod for the Moto Guzzi V700, V7 Special, Ambassador, 850 GT, 850 GT California, Eldorado, and 850 California Police motorcycles.
Brake actuation rod for the Moto Guzzi V700, V7 Special, Ambassador, 850 GT, 850 GT California, Eldorado, and 850 California Police motorcycles.

Photo courtesy of Gregory Bender.

Brake actuation rod for the Moto Guzzi V700, V7 Special, Ambassador, 850 GT, 850 GT California, Eldorado, and 850 California Police motorcycles.
Brake actuation rod for the Moto Guzzi V700, V7 Special, Ambassador, 850 GT, 850 GT California, Eldorado, and 850 California Police motorcycles.

Photo courtesy of Gregory Bender.

Brake actuation rod for the Moto Guzzi V700, V7 Special, Ambassador, 850 GT, 850 GT California, Eldorado, and 850 California Police motorcycles.
Brake actuation rod for the Moto Guzzi V700, V7 Special, Ambassador, 850 GT, 850 GT California, Eldorado, and 850 California Police motorcycles.

Photo courtesy of Gregory Bender.

Brake actuation rod for the Moto Guzzi V700, V7 Special, Ambassador, 850 GT, 850 GT California, Eldorado, and 850 California Police motorcycles.
Brake actuation rod for the Moto Guzzi V700, V7 Special, Ambassador, 850 GT, 850 GT California, Eldorado, and 850 California Police motorcycles.

Photo courtesy of Gregory Bender.

Brake actuation rod for the Moto Guzzi V700, V7 Special, Ambassador, 850 GT, 850 GT California, Eldorado, and 850 California Police motorcycles.
Brake actuation rod for the Moto Guzzi V700, V7 Special, Ambassador, 850 GT, 850 GT California, Eldorado, and 850 California Police motorcycles.

Photo courtesy of Gregory Bender.

Brake actuation rod for the Moto Guzzi V700, V7 Special, Ambassador, 850 GT, 850 GT California, Eldorado, and 850 California Police motorcycles.
Brake actuation rod for the Moto Guzzi V700, V7 Special, Ambassador, 850 GT, 850 GT California, Eldorado, and 850 California Police motorcycles.

Photo courtesy of Gregory Bender.

Brake actuation rod for the Moto Guzzi V700, V7 Special, Ambassador, 850 GT, 850 GT California, Eldorado, and 850 California Police motorcycles.
Brake actuation rod for the Moto Guzzi V700, V7 Special, Ambassador, 850 GT, 850 GT California, Eldorado, and 850 California Police motorcycles.

Photo courtesy of Gregory Bender.

Joe Cox's notes

Overall the fabrication of the brake rod was easy. There are a few things that should be noted:

  1. All of the parts ordered from McMaster-Carr were perfect and they arrived within 24 hours - I was impressed!
  2. I recommend that you cut the rod you get from McMaster-Carr into two equal sections before you start the project
    1. It's a long rod and a shorter rod is easier to work with.
    2. Plus it's nice to have a second blank just in case you screw the first one up (like I did)
  3. Before you start to thread the rod, bend the end that goes through the brake lever first
    1. To bend the stainless steel rod - you must apply heat to the area that you plan to bend. I used a little propane torch to do this.
  4. I recommend that you taper the tip of the rod a little, before you apply the threading tool (dye)
    1. I used my bench grinder to taper the end a little.
  5. I also recommend that you apply a little bit of grease to part of the rod you plan to thread. This will ensure good deep threads are created.
  6. Rather than use a bolt for the cross rod - I found a short Clevis Pin at Ace Hardware that worked great.

It's a very nice setup and should work fine for years!
