Brake lever length (on rear brake plate)
Moto Guzzi V700, V7 Special, Ambassador, 850 GT, 850 GT California, Eldorado, and 850 California Police models

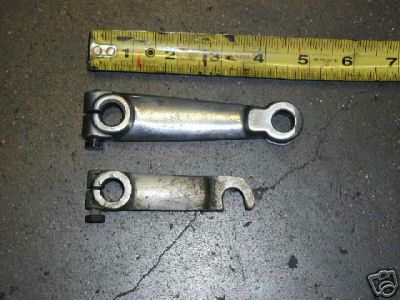

There are two different splined brake levers that are secured directly to the rear brake plate.
- One style is open on the non-splined end and measures approximately 70 mm from the center of the splines to the center of the pin. This is the most common lever.
- Another style is closed on both ends and measures approximately 100 mm from the center of the splines to the center of the pin. This is less common and was fitted to many police models. Thanks to Cam Conklin for posting the length of his lever on the old Yahoo! Loopframe_Guzzi news group (which has now moved to Groups.io).
