Breather box - clamp for securing the atmosphere hose

Moto Guzzi V700, V7 Special, Ambassador, 850 GT, 850 GT California, Eldorado, and 850 California Police models

Updated:

// //

There were two routes for the hose to atmosphere. I have no strong preference for either configuration.

  1. Early on, Guzzi routed it straight down, between the transmission and the starter. It was secured to one of bottom bellhousing bolts with a P clamp.

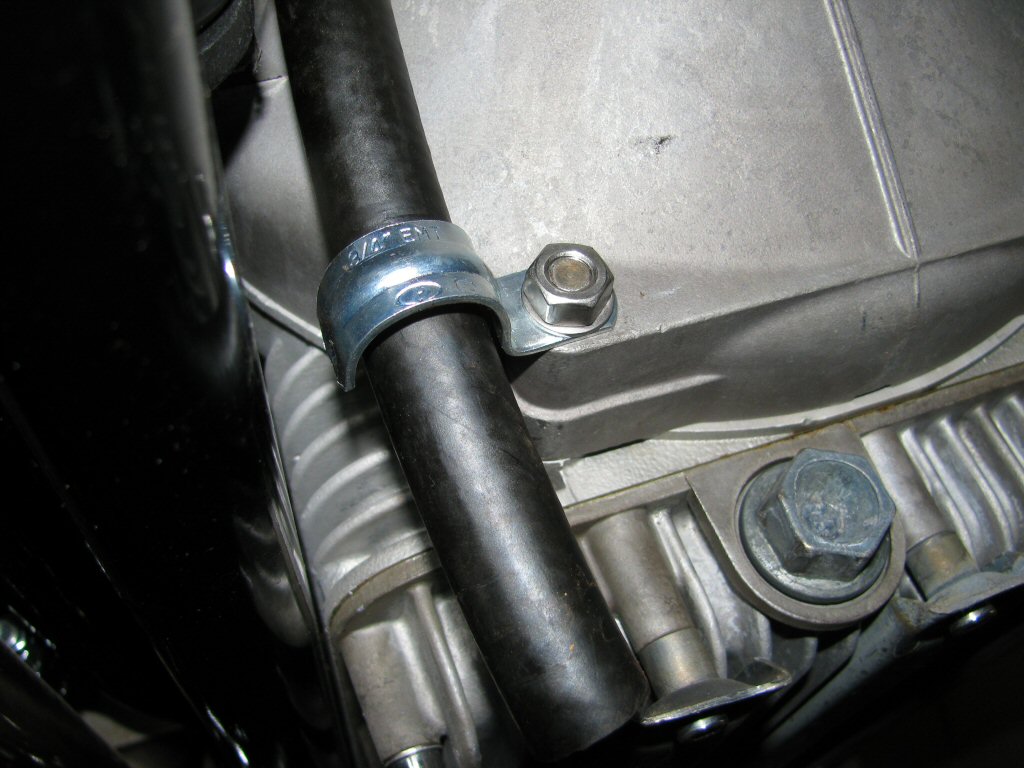

    3⁄4 inch conduct clamp used as a generic substitute for the original P clamp.
    3⁄4 inch conduct clamp used as a generic substitute for the original P clamp.

    Photo courtesy of Gregory Bender.

  2. Later, Guzzi routed it straight down and across to the right side of the frame, exiting under the driver's footpeg. Guzzi used a special bracket that was bolted on with the driver's right footpeg.

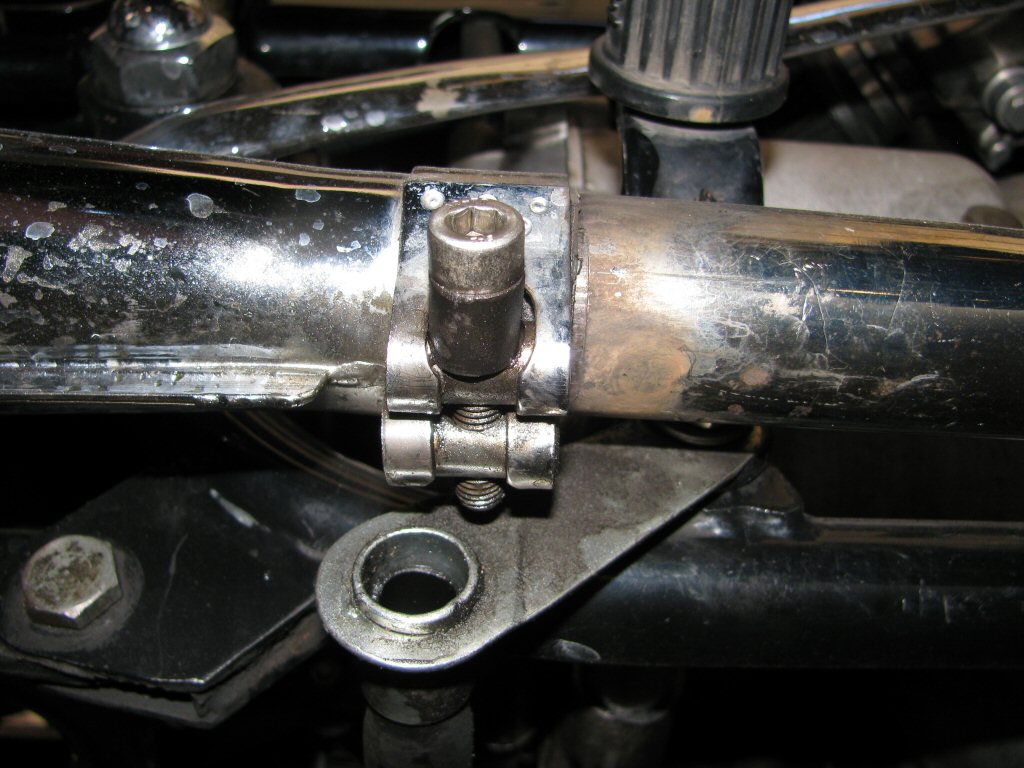

    Original cross-frame clamp in place.
    Original cross-frame clamp in place.

    Photo courtesy of Gregory Bender.

    Original cross-frame clamp in place.
    Original cross-frame clamp in place.

    Photo courtesy of Gregory Bender.

    Original cross-frame clamp in place.
    Original cross-frame clamp in place.

    Photo courtesy of Gregory Bender.
