Clutch adjustment - clutch pushrod lever adjustment screw

Moto Guzzi V700, V7 Special, Ambassador, 850 GT, 850 GT California, Eldorado, and 850 California Police models

Created:

Updated:

// //

Thanks to Dan Eberhardt for sending me this information via email. In Dan's own words and photos:

I thought I'd share some information on how I made an adjustment screw for the clutch pushrod lever. I've always had a tough time making clutch adjustments at the rear of the transmission given the tappet adjustment like end on the adjustment screw, so to make this process a little easier I fabricated an adjustment screw with a 4 mm hex end on it. I used McMaster-Carr part number 99642A145 and cut it to 17.5 mm long and applied a slight bevel to the end like the original screw has and then cut an 8 mm long piece off a 4 mm Allen wrench (5 mm goes into the screw and 3 mm protrudes) and JB welded into the end of the screw. Now I'll be able to use a 4 mm open or closed end wrench to make the necessary adjustments.

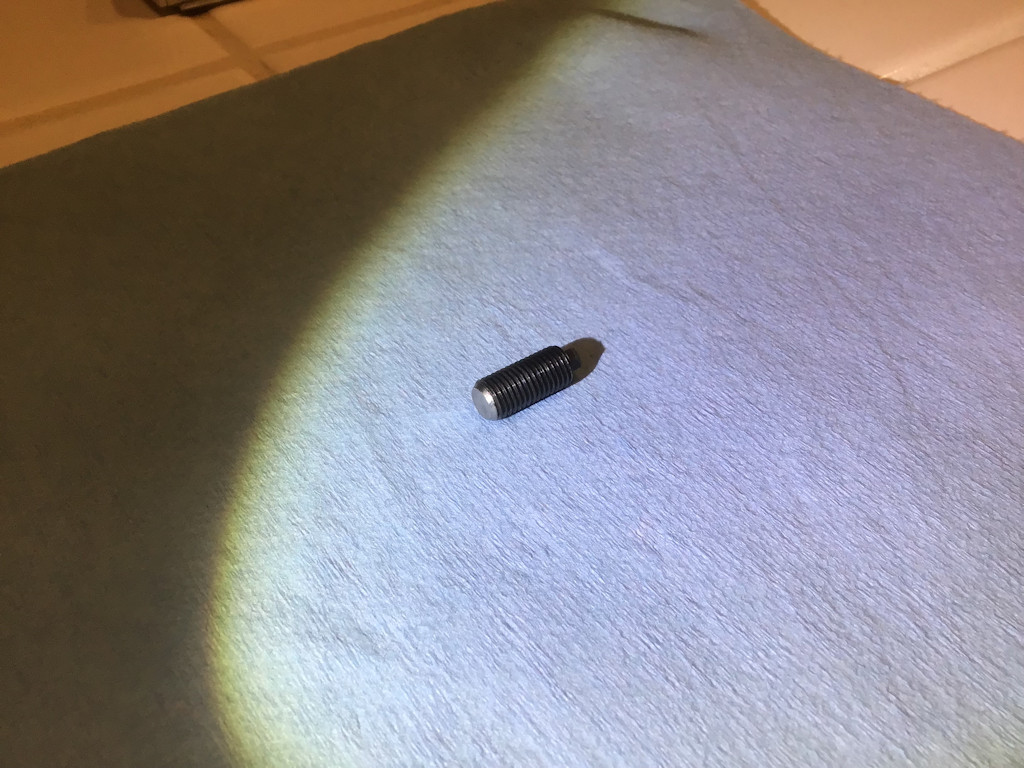

Fabricating a better clutch pushrod lever adjustment screw. Applicable to Moto Guzzi V700, V7 Special, Ambassador, 850 GT, 850 GT California, Eldorado, and 850 California Police models.
Fabricating a better clutch pushrod lever adjustment screw. Applicable to Moto Guzzi V700, V7 Special, Ambassador, 850 GT, 850 GT California, Eldorado, and 850 California Police models.

Photo courtesy of Dan Eberhardt.

Fabricating a better clutch pushrod lever adjustment screw. Applicable to Moto Guzzi V700, V7 Special, Ambassador, 850 GT, 850 GT California, Eldorado, and 850 California Police models.
Fabricating a better clutch pushrod lever adjustment screw. Applicable to Moto Guzzi V700, V7 Special, Ambassador, 850 GT, 850 GT California, Eldorado, and 850 California Police models.

Photo courtesy of Dan Eberhardt.

Fabricating a better clutch pushrod lever adjustment screw. Applicable to Moto Guzzi V700, V7 Special, Ambassador, 850 GT, 850 GT California, Eldorado, and 850 California Police models.
Fabricating a better clutch pushrod lever adjustment screw. Applicable to Moto Guzzi V700, V7 Special, Ambassador, 850 GT, 850 GT California, Eldorado, and 850 California Police models.

Photo courtesy of Dan Eberhardt.

Fabricating a better clutch pushrod lever adjustment screw. Applicable to Moto Guzzi V700, V7 Special, Ambassador, 850 GT, 850 GT California, Eldorado, and 850 California Police models.
Fabricating a better clutch pushrod lever adjustment screw. Applicable to Moto Guzzi V700, V7 Special, Ambassador, 850 GT, 850 GT California, Eldorado, and 850 California Police models.

Photo courtesy of Dan Eberhardt.
