Clutch plate spline alignment, centering, and pressure plate compression tool - Using a clutch hub, spacer, and an engine mounting bolt (MG# 30906500)
Moto Guzzi V700, V7 Special, Ambassador, 850 GT, 850 GT California, Eldorado, and 850 California Police models
Created:
Updated:
// //
Valerio Remiddi's tool
Thanks to Valerio Remiddi for sending me the information on the tool he made. In Valerio's own words:

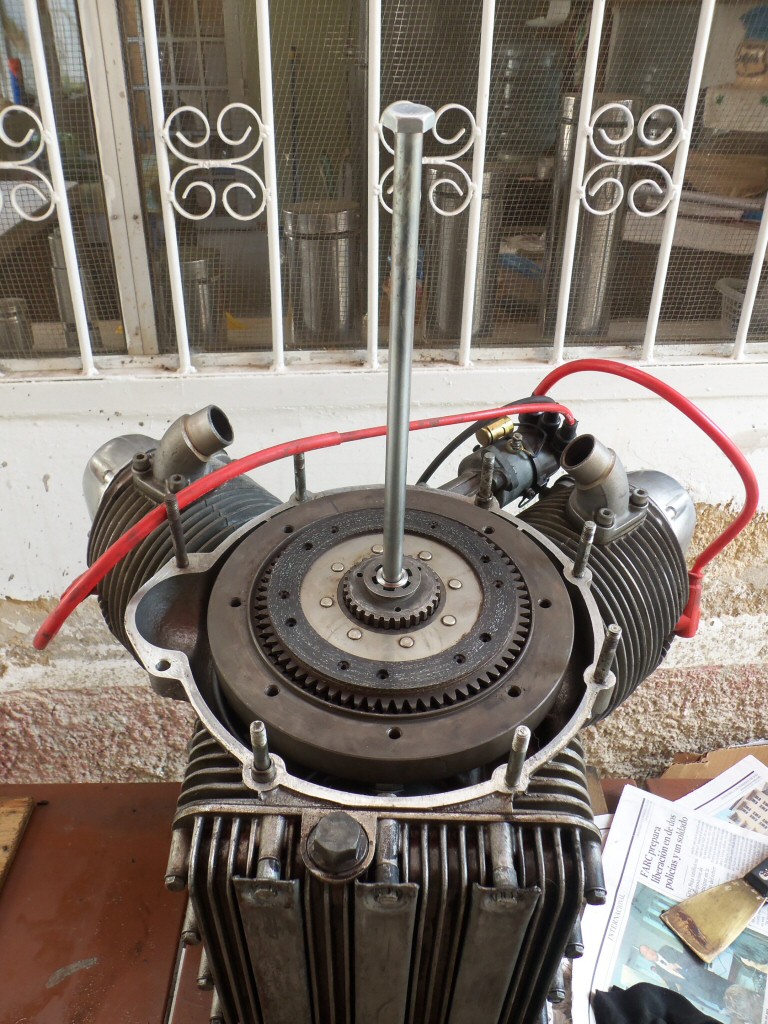

I'm sending a picture that may illustrate the clutch plate / intermediate plate alignment procedure, feel free to use it. I made a 20 mm OD, 12 mm ID bushing and used one of the 12 mm bolts from the engine / frame installation.

Photo courtesy of Valerio Remiddi.
Andrew Morse's tool

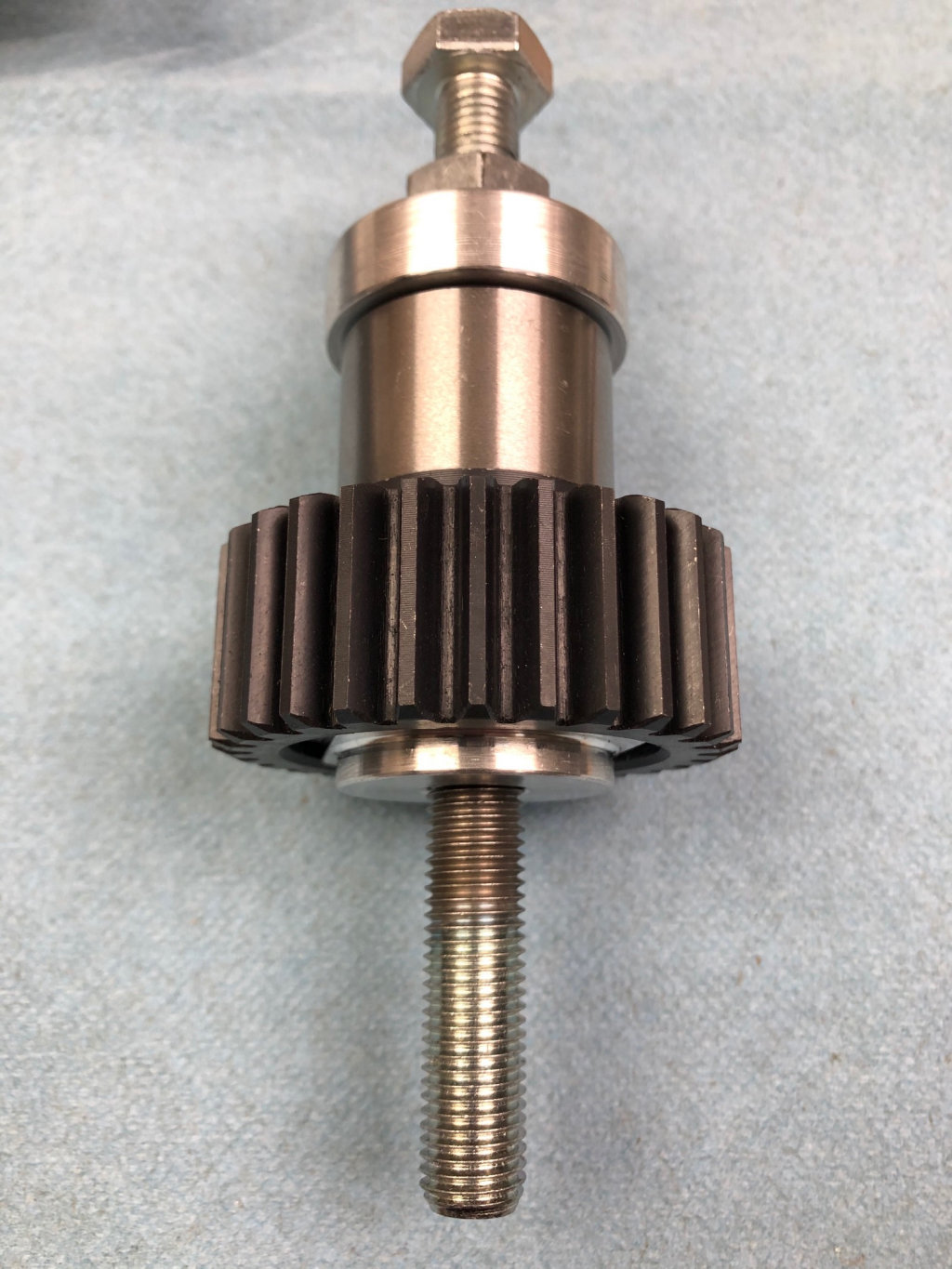

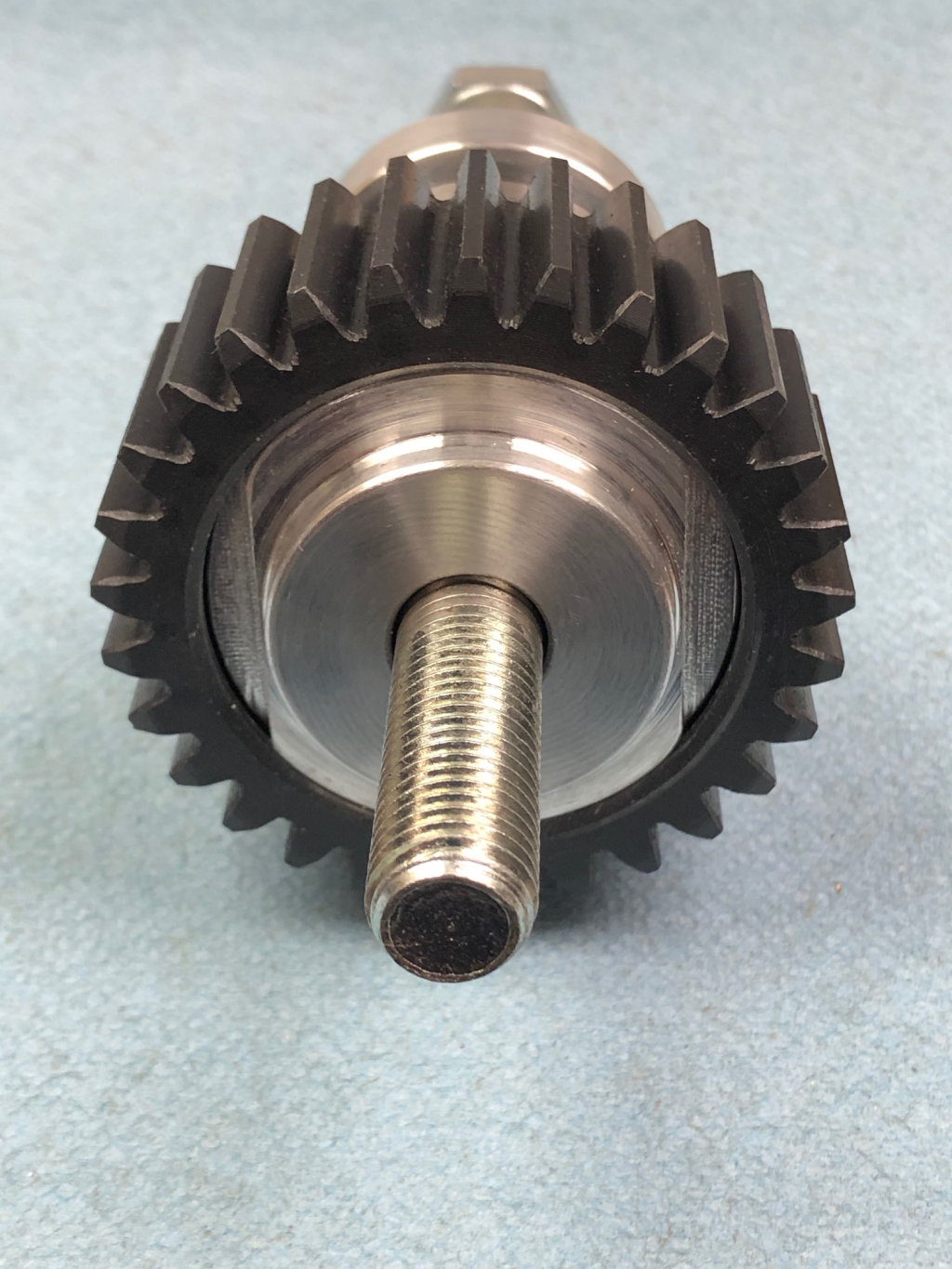

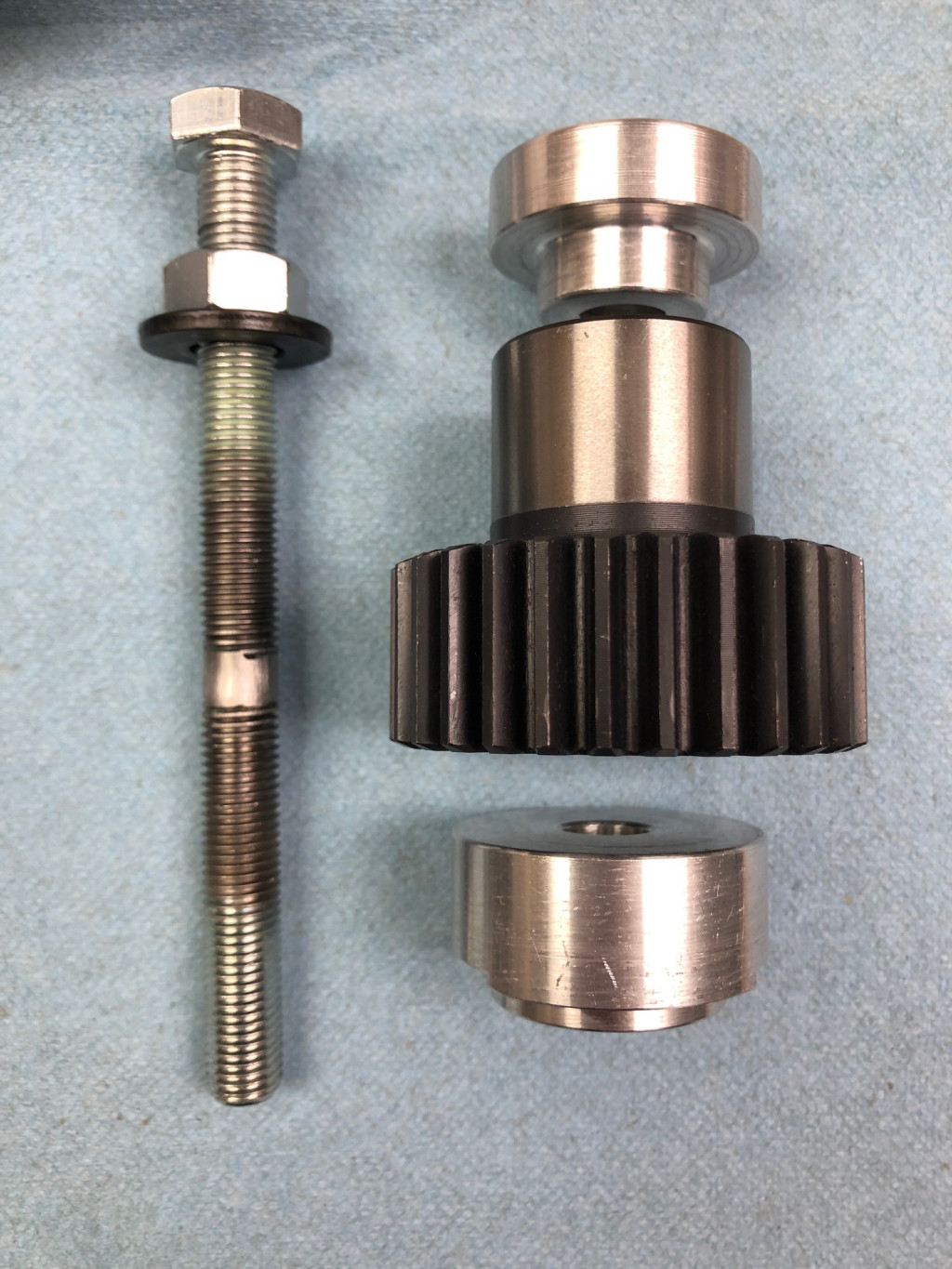

Thanks to Andrew Morse for sending me the photos of the tool he made.

Photo courtesy of Andrew Morse.

Photo courtesy of Andrew Morse.

Photo courtesy of Andrew Morse.

Photo courtesy of Andrew Morse.
