Cush drive upgrade, 850 T rear wheel upgrade
Moto Guzzi V700, V7 Special, Ambassador, 850 GT, 850 GT California, Eldorado, and 850 California Police models
A popular upgrade to V7 / V700, Ambassador, and Eldorado models is to replace the rear wheel and drum brake with one from an 850 T. There are several benefits to doing so:
- The primary benefit is to gain the rubber
cushdrive that is integrated into the 850 T rear wheel. The purpose of the cush drive is to cushion, or soften, the forces on the drive line. The net benefit is greatly reduced spline wear...especially on the crown wheel carrier and the rear wheel splines.
- A secondary benefit is increased braking power. Although the overall braking surface area is reduced, the 850 T employs a two leading shoe rear brake whereas the stock rear brake has one leading shoe and one trailing shoe. Additionally, there is a leverage advantage due to the longer actuation arm on the 850 T brake plate. Note: the absence of a trailing shoe brake can be problematic when trying to prevent the motorcycle from rolling backward on steeper hills. Although this is not a concern for disc brake models, drum brake owners should weigh the pros and cons.
- A tertiary benefit - if you have a four leading shoe front brake - is that the overall design of the rear brake plate will match the front brake plates. Note: The 850 T rear brake plate will not sit parallel to the swing arm and will appear cockeyed.
If you don't have an 850 T rear wheel (and they are getting scarce), you can still get the increased braking power by adapting a 2-leading shoe front brake plate.
Installation is straight forward. Just replace the stock rear wheel, brake plate, and axle with the rear wheel, brake plate, and axle from an 850 T. I'm not even sure you need to swap axles, but I did and forgot to visually compare the axles. I do recommend the following activities prior to install:
- Inspect the bearings, pack with grease if they are acceptable. If not, replace with sealed bearings.
- Replace the seals unless you have switched to sealed bearings.
- Clean and lubricate the brake plate pivot points.
- Inspect and replace the brake shoes as necessary. Unless the shoes show a lot of wear, I'd hold off with replacing them until after you try them out.
- You may want to replace the cush drive rubbers...but I'm doubtful that you'll see much benefit by doing so. I'd leave them alone unless they were obviously deteriorating.

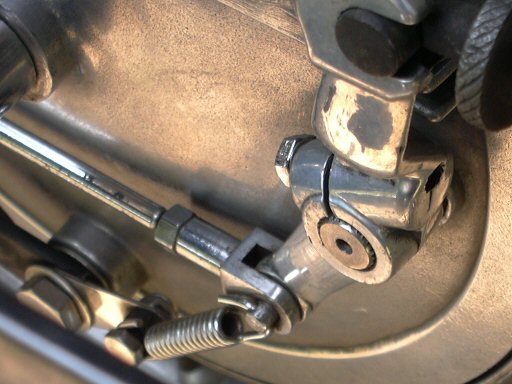

- It is a good idea to replace the two springs that pull the shoes together. However, these springs are not easy to find. So certainly do not throw away your originals - ever. Thanks to Ron Komoroski for sharing his own solution for helping out his aged springs (see photo below).
- Clean and polish the rim and brake plate as desired.
- Swap tires.
Replacing the brake stay arm
I've never liked that the cush drive does not sit parallel with the the rear swing arm. It always looks a bit off to me. So, I decided to fabricate my own brake stay rod to correct this annoyance.
- I chose 3⁄16 inch thick, 1 inch wide 304 stainless steel bar. This is plenty stout for the task at hand and the stainless requires no additional finish.
- The overall length of the bar is 380 mm.
- The center-to-center distance between the holes is 357 mm.
- The holes are drilled to fit 10 mm fasteners.
- I rounded off the corners with my bench grinder/hand file/sand paper.
- I cleaned/polished the surface with the wire wheel on my bench grinder.
- The original fasteners may be reused.
- The original brake actuation rod may be reused.
