Gregory Bender


Intake manifolds - two-into-one for use with a single carburetor

Moto Guzzi V700, V7 Special, Ambassador, 850 GT, 850 GT California, Eldorado, and 850 California Police models

Created:

Updated:

// //

Calculating the needed size of a single carburetor

Thanks to Mike Tiberio for posting this information on the old Yahoo! MGconvert news group (which has now moved to Groups.io).

To figure out how big a carb you want, calculate the cross sectional area of a 32 mm carb (Pi × R2), multiply by 2, and calculate from that the diameter of a single carb that could give you the same area...

A 44 mm carb has the same cross sectional area as two 32 mm carbs.

Sonny Angel setup

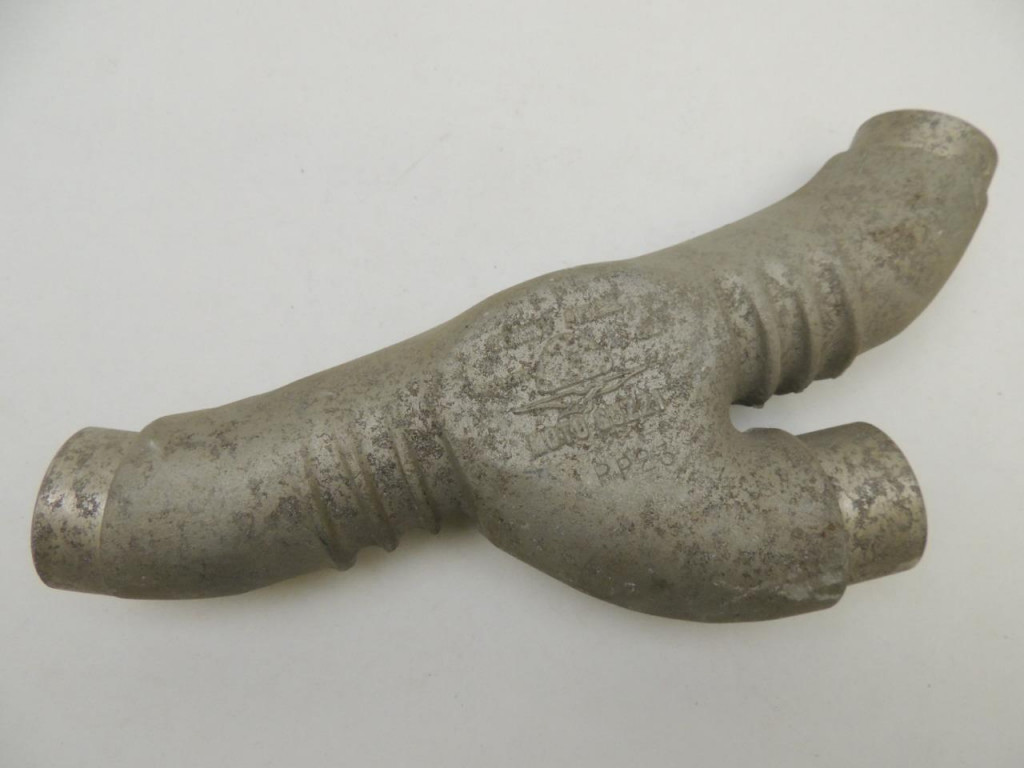

Single two-into-1 (2 into 1) carburetor manifold for a round fin Moto Guzzi.
Single two-into-1 (2 into 1) carburetor manifold for a round fin Moto Guzzi.

Photo courtesy of John Boettcher.

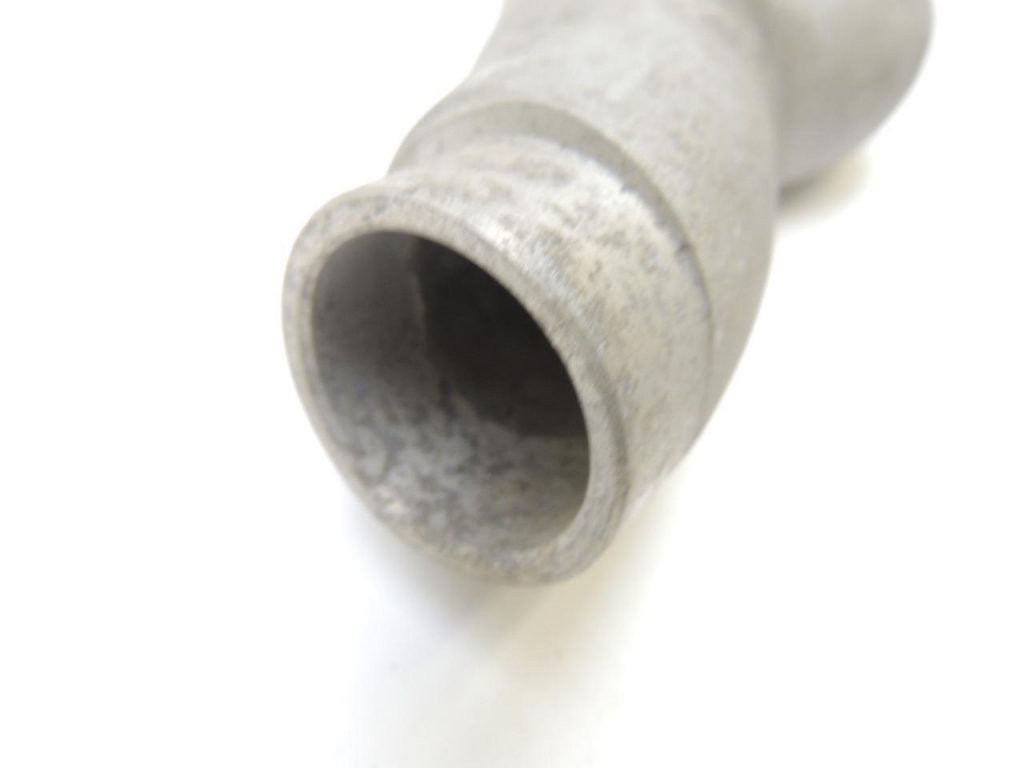

Single two-into-1 (2 into 1) carburetor manifold for a round fin Moto Guzzi.
Single two-into-1 (2 into 1) carburetor manifold for a round fin Moto Guzzi.

Photo courtesy of eBay auction.

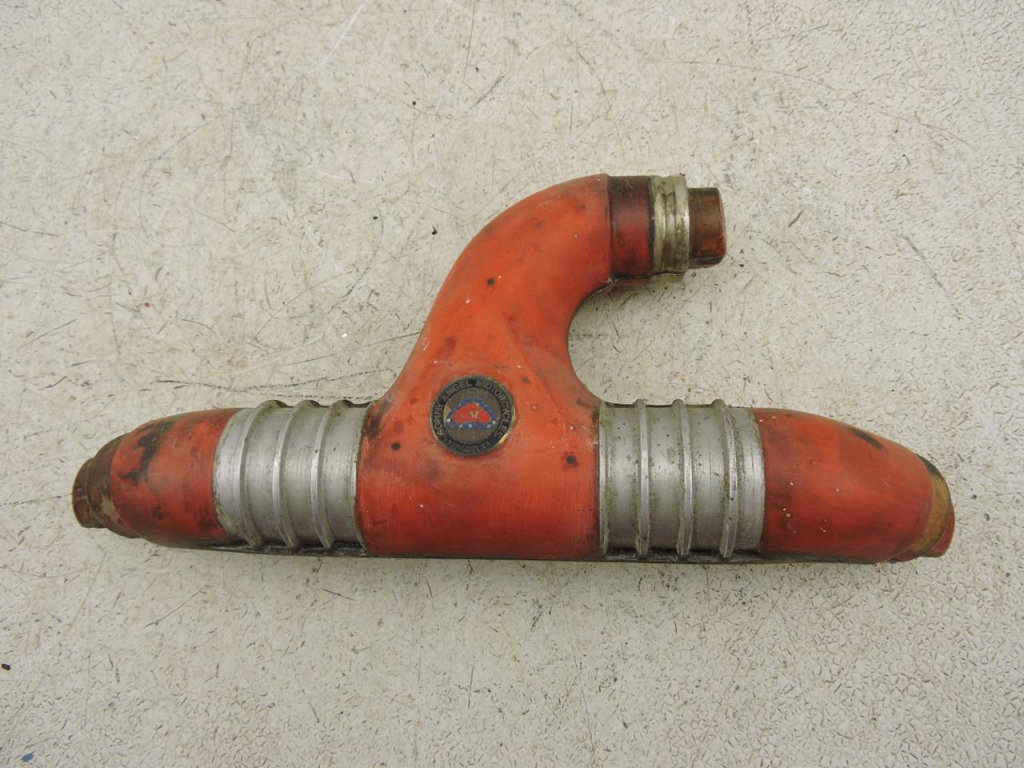

Single two-into-1 (2 into 1) carburetor manifold for a round fin Moto Guzzi.
Single two-into-1 (2 into 1) carburetor manifold for a round fin Moto Guzzi.

Photo courtesy of eBay auction.

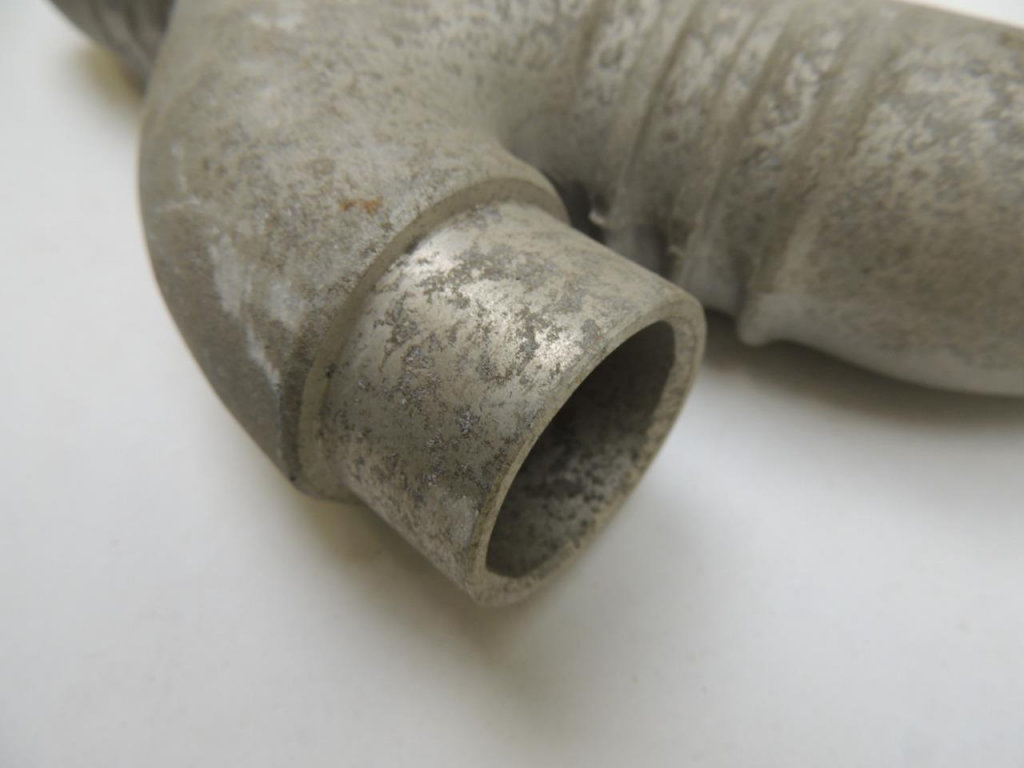

Single two-into-1 (2 into 1) carburetor manifold for a round fin Moto Guzzi.
Single two-into-1 (2 into 1) carburetor manifold for a round fin Moto Guzzi.

Photo courtesy of eBay auction.

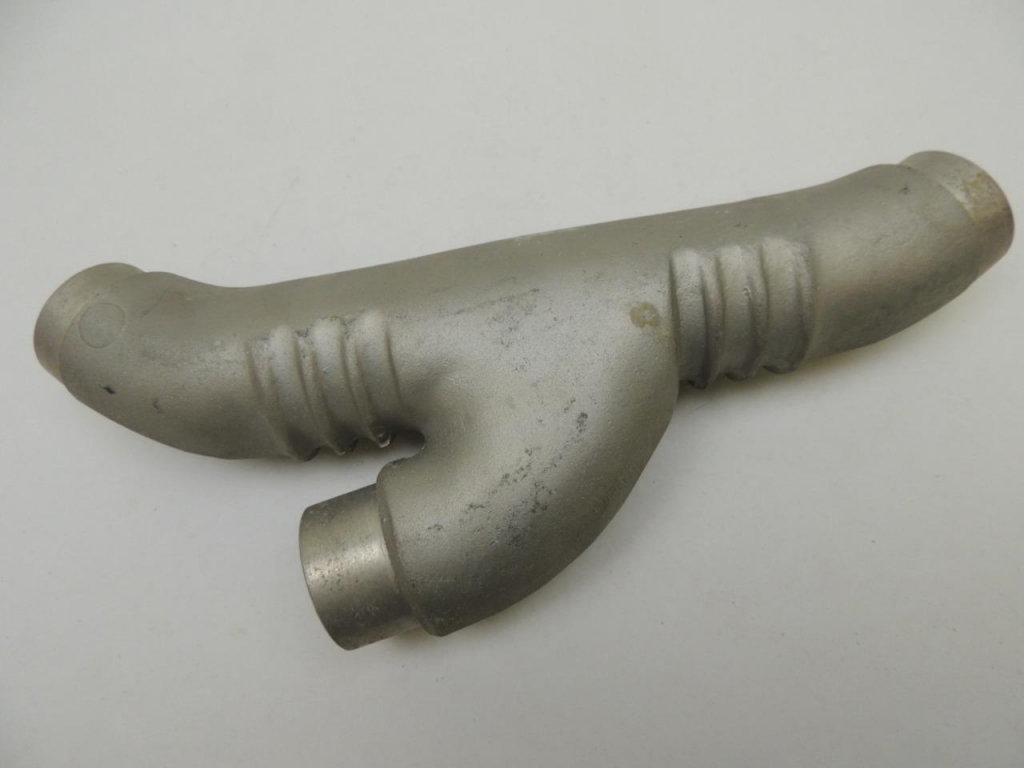

Single two-into-1 (2 into 1) carburetor manifold for a round fin Moto Guzzi.
Single two-into-1 (2 into 1) carburetor manifold for a round fin Moto Guzzi.

Photo courtesy of eBay auction.

Single two-into-1 (2 into 1) carburetor manifold for a round fin Moto Guzzi.
Single two-into-1 (2 into 1) carburetor manifold for a round fin Moto Guzzi.

Photo courtesy of eBay auction.

Single two-into-1 (2 into 1) carburetor manifold for a round fin Moto Guzzi.
Single two-into-1 (2 into 1) carburetor manifold for a round fin Moto Guzzi.

Photo courtesy of eBay auction.

Single two-into-1 (2 into 1) carburetor manifold for a round fin Moto Guzzi.
Single two-into-1 (2 into 1) carburetor manifold for a round fin Moto Guzzi.

Photo courtesy of eBay auction.

Single two-into-1 (2 into 1) carburetor manifold for a round fin Moto Guzzi.
Single two-into-1 (2 into 1) carburetor manifold for a round fin Moto Guzzi.

Photo courtesy of eBay auction.

Single two-into-1 (2 into 1) carburetor manifold for a round fin Moto Guzzi.
Single two-into-1 (2 into 1) carburetor manifold for a round fin Moto Guzzi.

Photo courtesy of eBay auction.

Single two-into-1 (2 into 1) carburetor manifold for a round fin Moto Guzzi.
Single two-into-1 (2 into 1) carburetor manifold for a round fin Moto Guzzi.

Photo courtesy of eBay auction.

Single two-into-1 (2 into 1) carburetor manifold for a round fin Moto Guzzi.
Single two-into-1 (2 into 1) carburetor manifold for a round fin Moto Guzzi.

Photo courtesy of eBay auction.

Single two-into-1 (2 into 1) carburetor manifold for a round fin Moto Guzzi.
Single two-into-1 (2 into 1) carburetor manifold for a round fin Moto Guzzi.

Photo courtesy of eBay auction.

Single two-into-1 (2 into 1) carburetor manifold for a round fin Moto Guzzi.
Single two-into-1 (2 into 1) carburetor manifold for a round fin Moto Guzzi.

Photo courtesy of eBay auction.

Max setup

Thanks to John Engle for sending me these photos and information in a private e-mail.

Single carburetor setup on a Moto Guzzi Ambassador. Work done by Max, a machinist from Clever, MO. Ace Mallot knows Max and reports that the single carburetor setup works well. A standard Dellorto VHB 29 carburetor is used.
Single carburetor setup on a Moto Guzzi Ambassador. Work done by Max, a machinist from Clever, MO. Ace Mallot knows Max and reports that the single carburetor setup works well. A standard Dellorto VHB 29 carburetor is used.

Photo courtesy of John Engle.

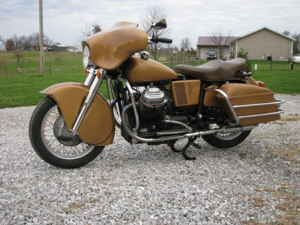

Max's Moto Guzzi (also with a single carburetor).
Max's Moto Guzzi (also with a single carburetor).

Photo courtesy of John Engle.

Unknown setup

Thanks to Tom Short for provided these pictures.

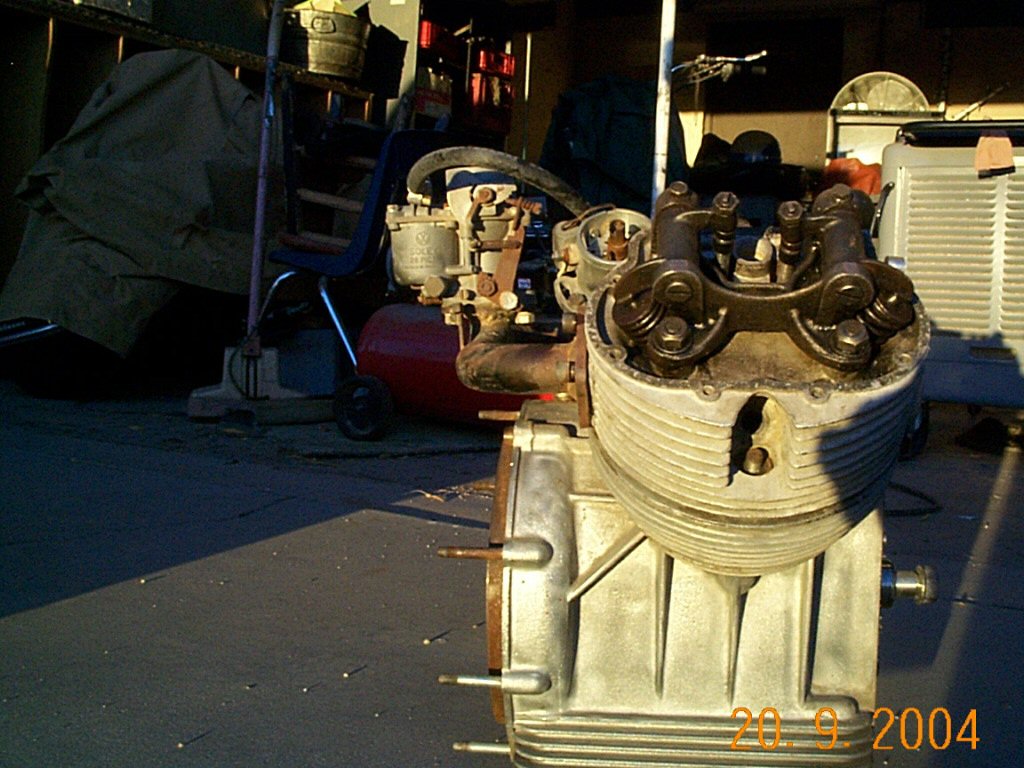

Single carburetor setup on a Moto Guzzi Ambassador.
Single carburetor setup on a Moto Guzzi Ambassador.

Photo courtesy of Tom Short.

Single carburetor setup on a Moto Guzzi Ambassador.
Single carburetor setup on a Moto Guzzi Ambassador.

Photo courtesy of Tom Short.

Single carburetor setup on a Moto Guzzi Ambassador.
Single carburetor setup on a Moto Guzzi Ambassador.

Photo courtesy of Tom Short.

Single carburetor setup on a Moto Guzzi Ambassador.
Single carburetor setup on a Moto Guzzi Ambassador.

Photo courtesy of Tom Short.

Single carburetor setup on a Moto Guzzi Ambassador.
Single carburetor setup on a Moto Guzzi Ambassador.

Photo courtesy of Tom Short.
