Siren rubber pad
Moto Guzzi V700, V7 Special, Ambassador, 850 GT, 850 GT California, Eldorado, and 850 California Police models
Created:
Updated:
Before selling a siren rubber pad (MG# 43263325) for my Dad, I took some measurements and photos of it.

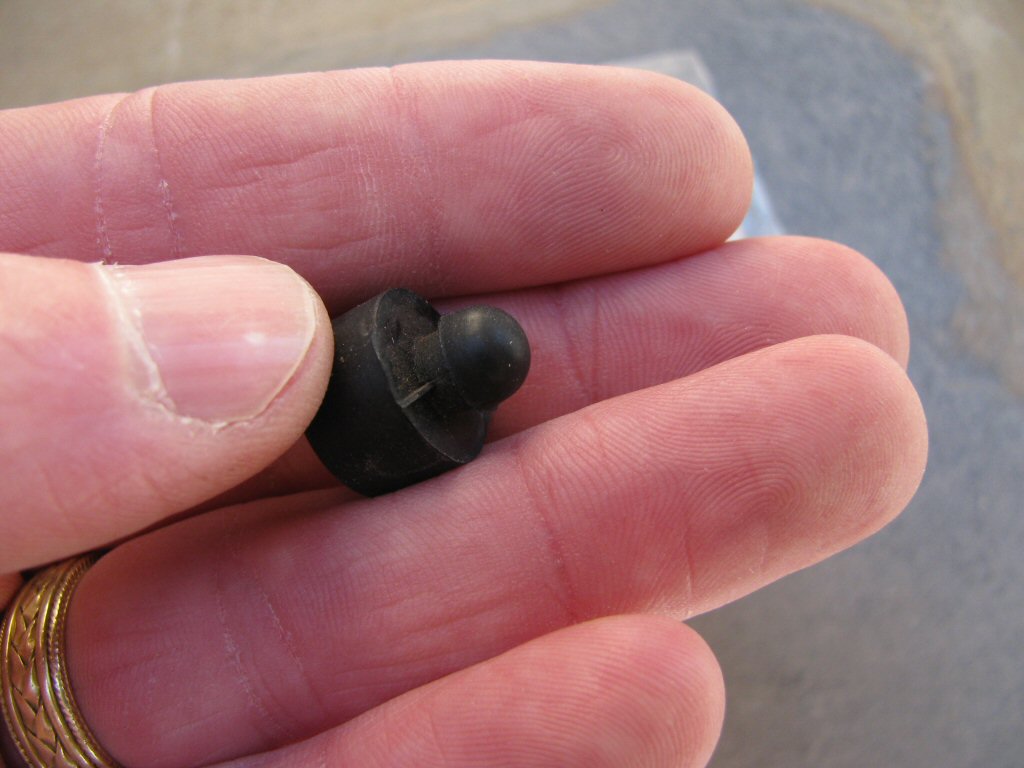

Photo courtesy of Gregory Bender.

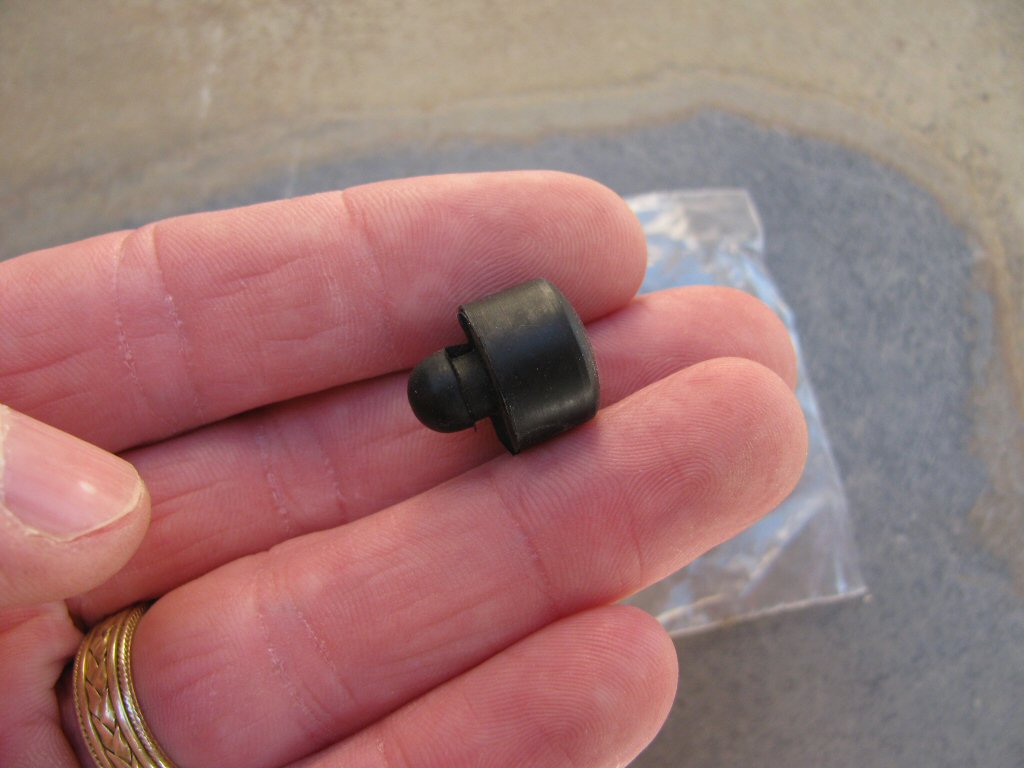

Photo courtesy of Gregory Bender.

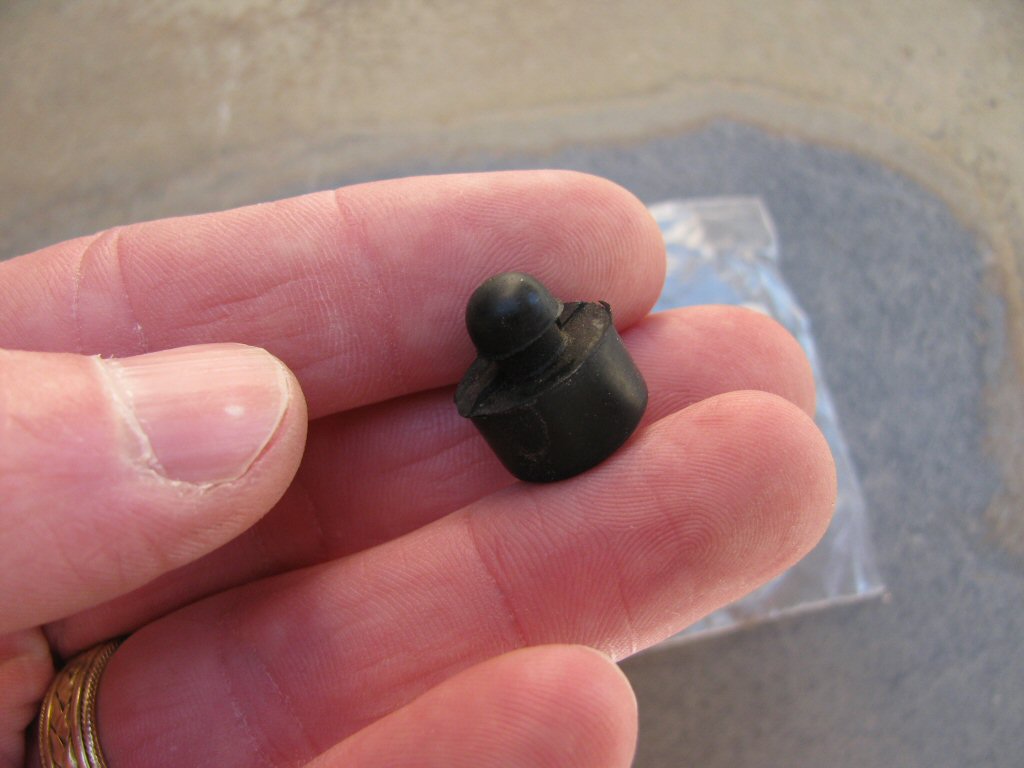

Photo courtesy of Gregory Bender.

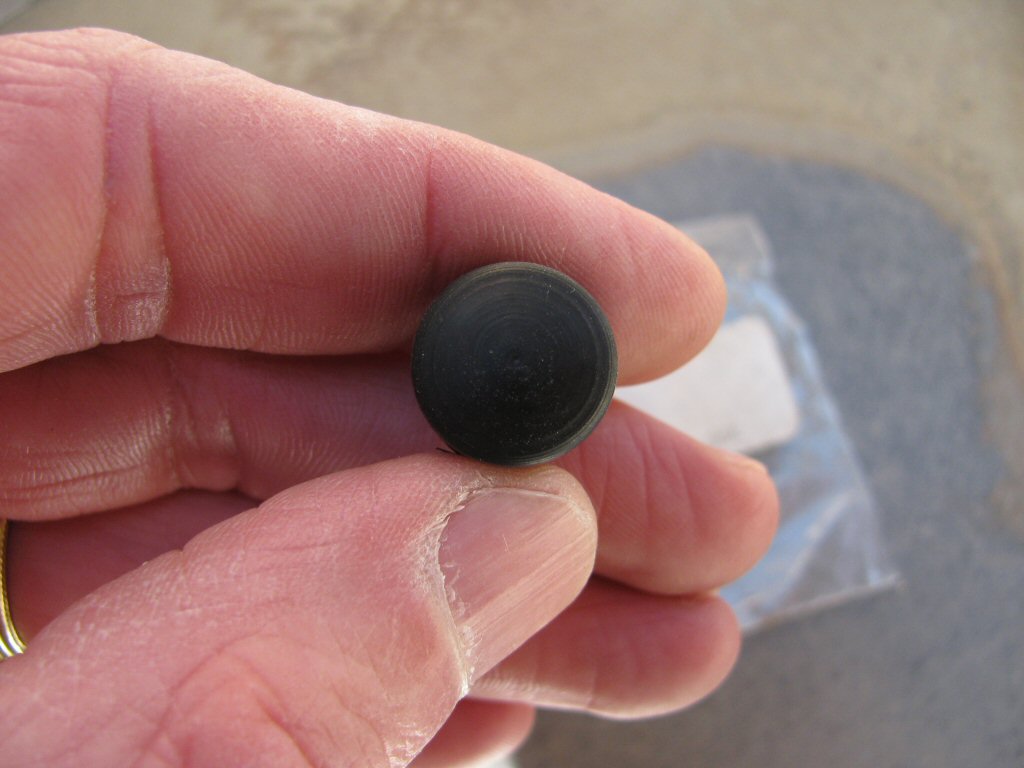

Photo courtesy of Gregory Bender.

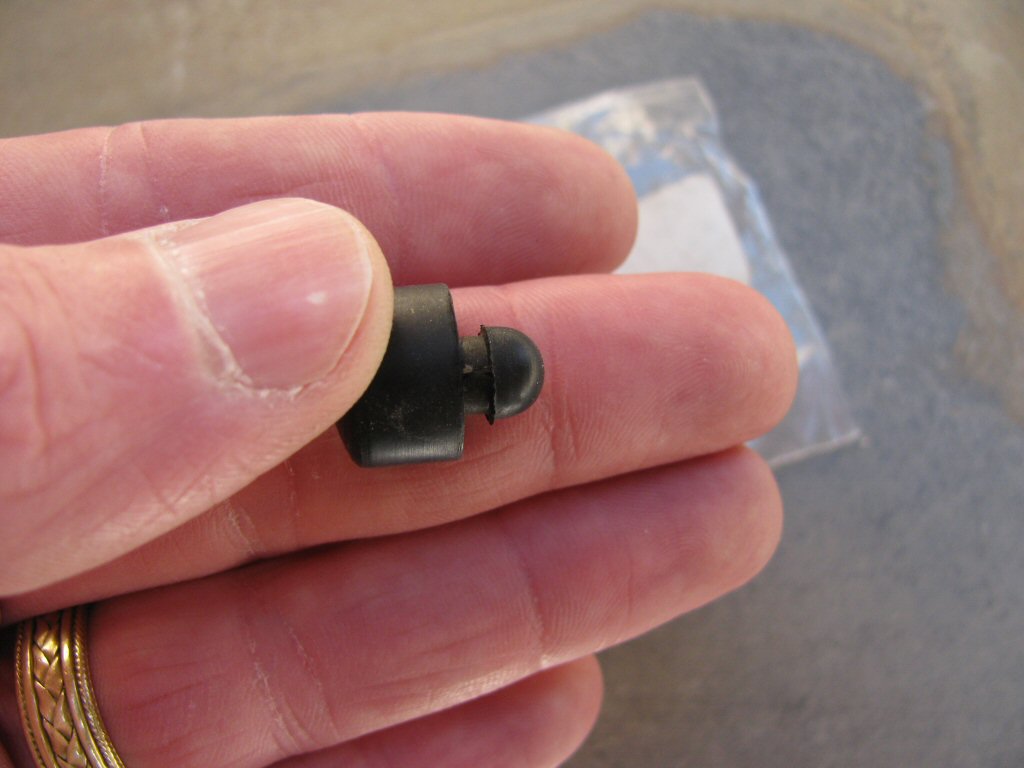

Photo courtesy of Gregory Bender.

Photo courtesy of Gregory Bender.
- The overall length is 18.2 mm
- The diameter of the top bumping portion is 15 mm
- The height of the top bumping portion is 10 mm
- The diameter of the groove is 6.6 mm
- The height of the groove is 3 mm
- The diameter of the retaining portion is 7.8 mm
- The height of the retaining portion is 5.2 mm
