U-joint installation tool

Moto Guzzi V700, V7 Special, Ambassador, 850 GT, 850 GT California, Eldorado, and 850 California Police models

Created:
Updated:

The purpose of this tool is to prevent the U-joint from becoming cocked or crooked when pressing the U-joint into the carrier bearing. With this tool in place, you may then use a hydraulic press to gently and smoothly push the U-joint into the carrier bearing. Do no press on the PVC. Instead, press on the central splined portion that interfaces with the transmission.

Thanks to Joe Tokarz for sending me this information via email. In Joe's own words and photos:

We talked about this tool a while back. I used it on the Eldo PD and the V-700. I think it works pretty good.

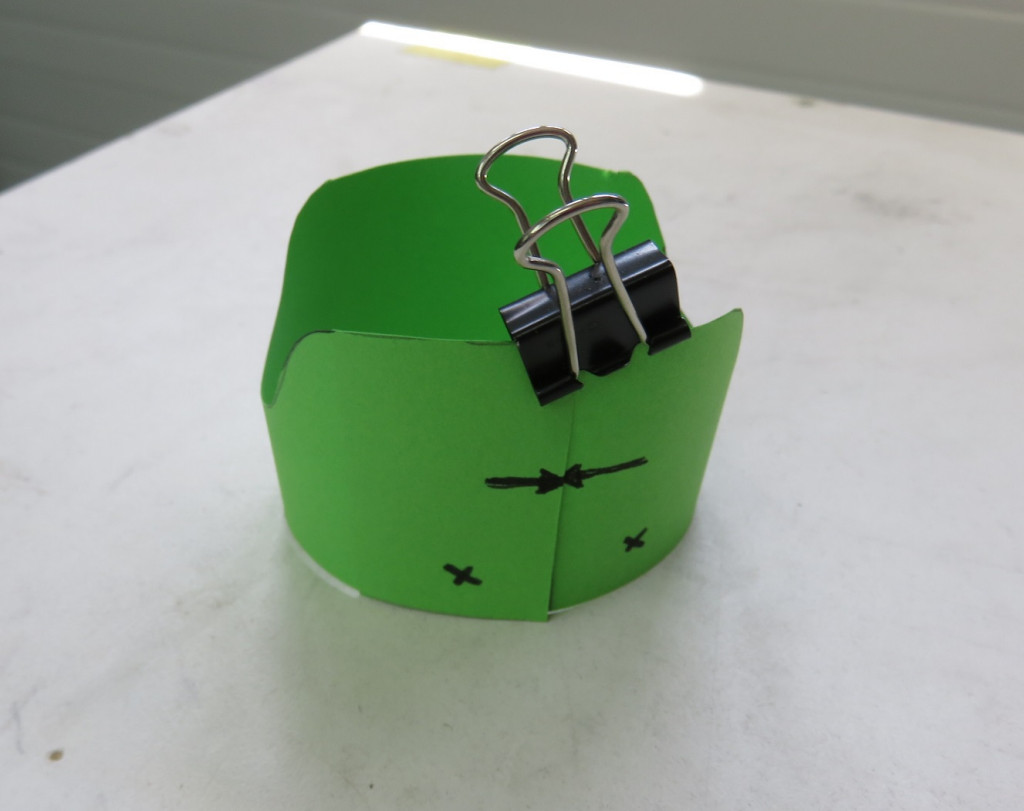

Template
Template

Photo courtesy of Joe Tokarz.

Template

Photo courtesy of Joe Tokarz.

Direct link to image

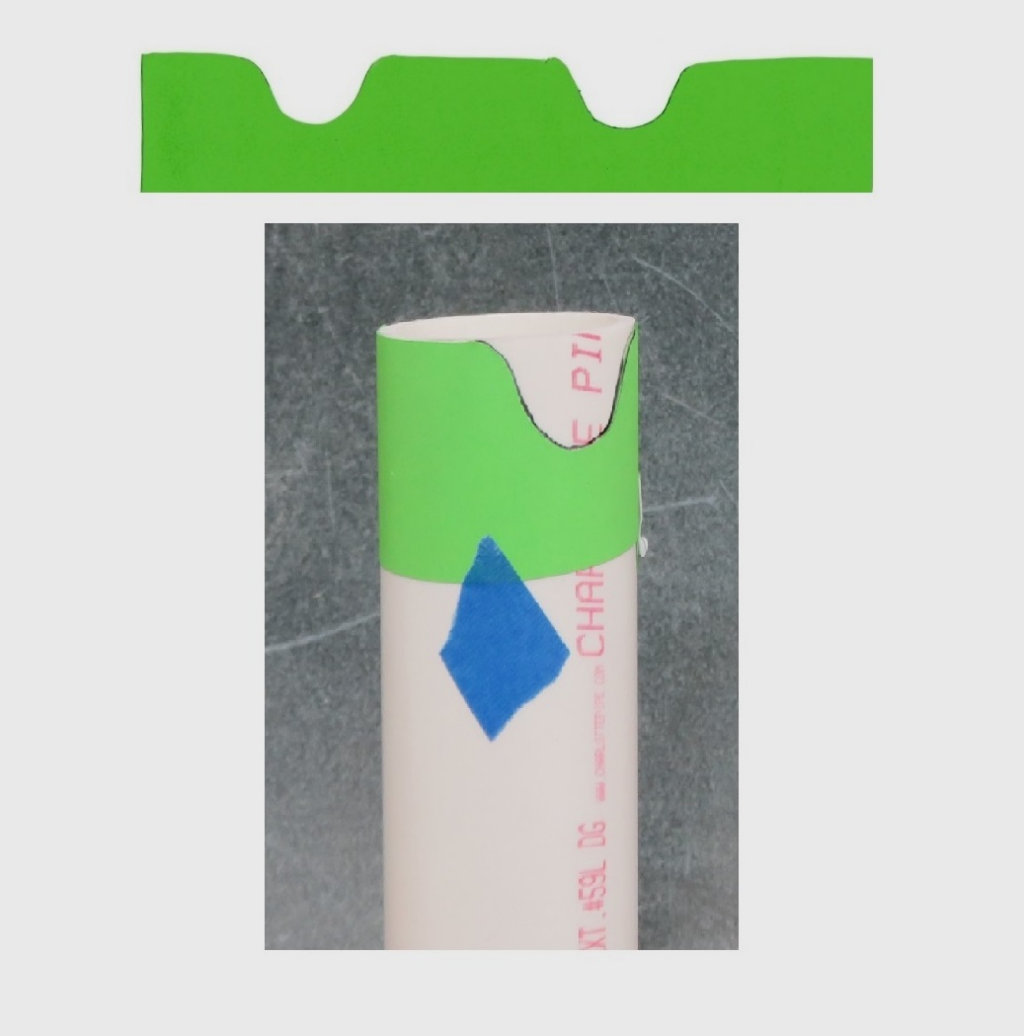

Template on PVC
Template on PVC

Photo courtesy of Joe Tokarz.

Template on PVC

Photo courtesy of Joe Tokarz.

Direct link to image

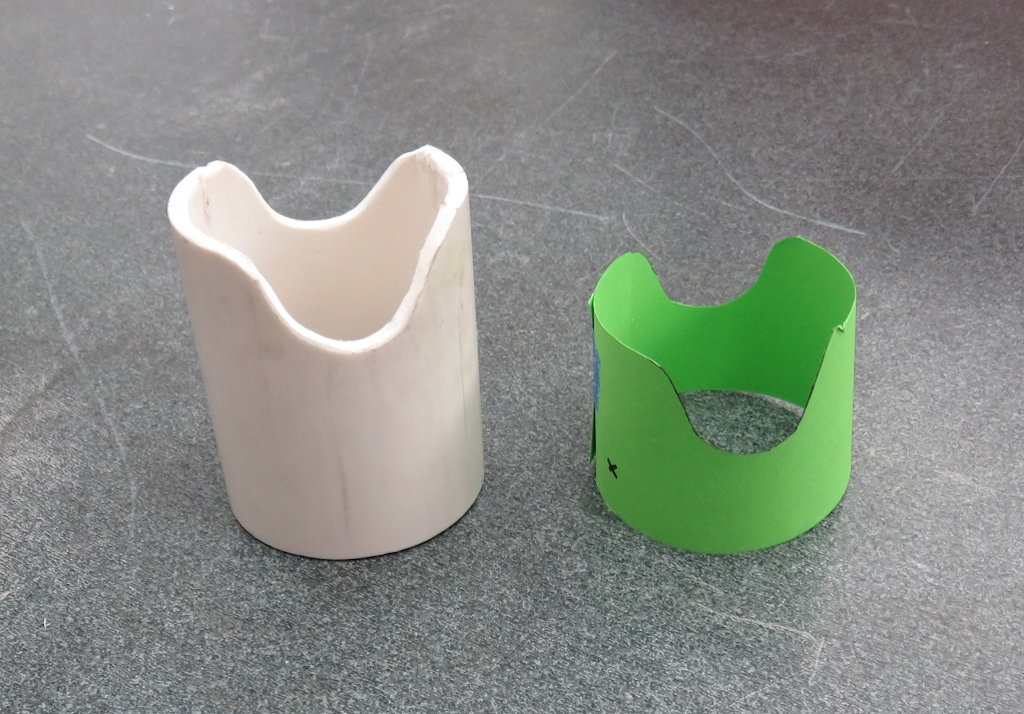

Scallops cut
Scallops cut

Photo courtesy of Joe Tokarz.

Scallops cut

Photo courtesy of Joe Tokarz.

Direct link to image

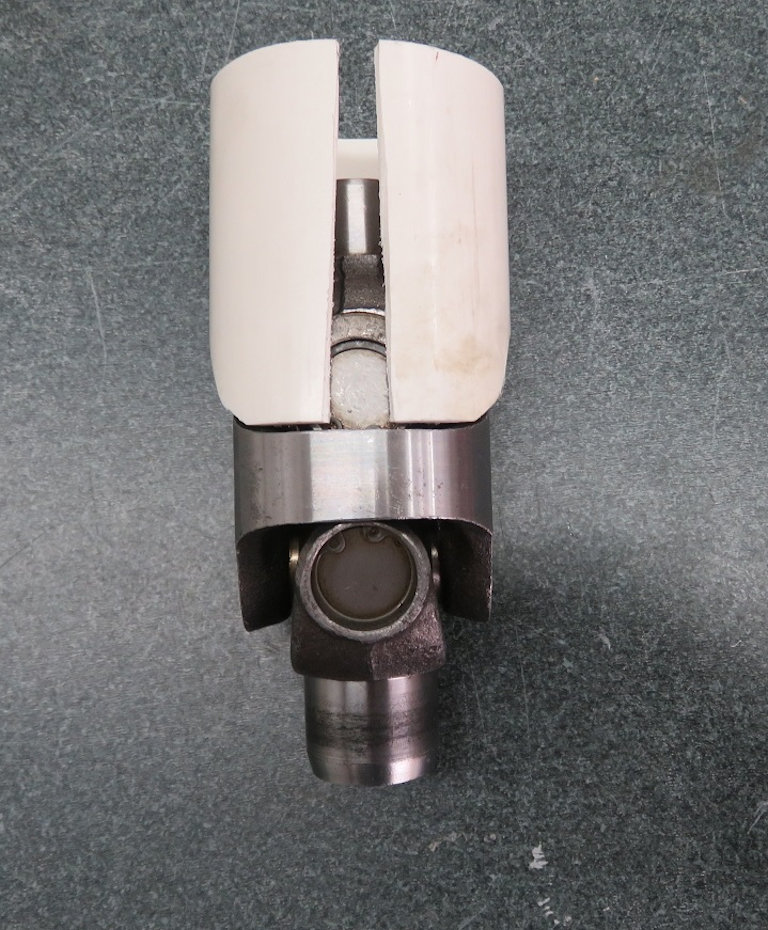

Tool with slit
Tool with slit

Photo courtesy of Joe Tokarz.

Tool with slit

Photo courtesy of Joe Tokarz.

Direct link to image

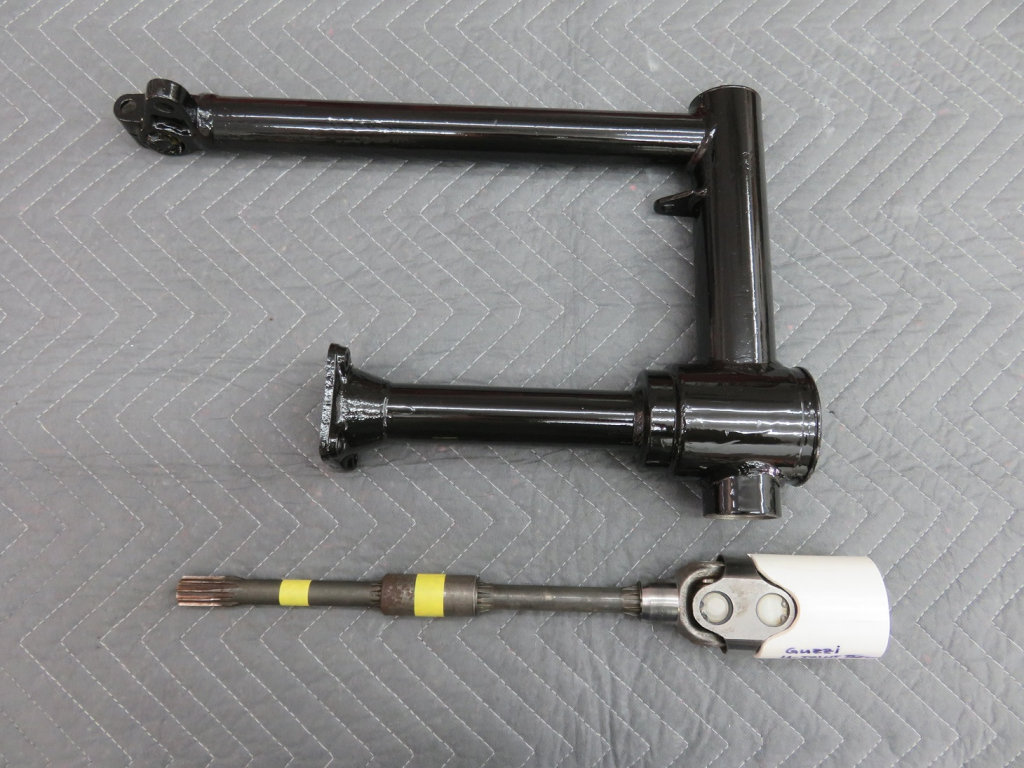

Ready for install
Ready for install

Photo courtesy of Joe Tokarz.

Ready for install

Photo courtesy of Joe Tokarz.

Direct link to image

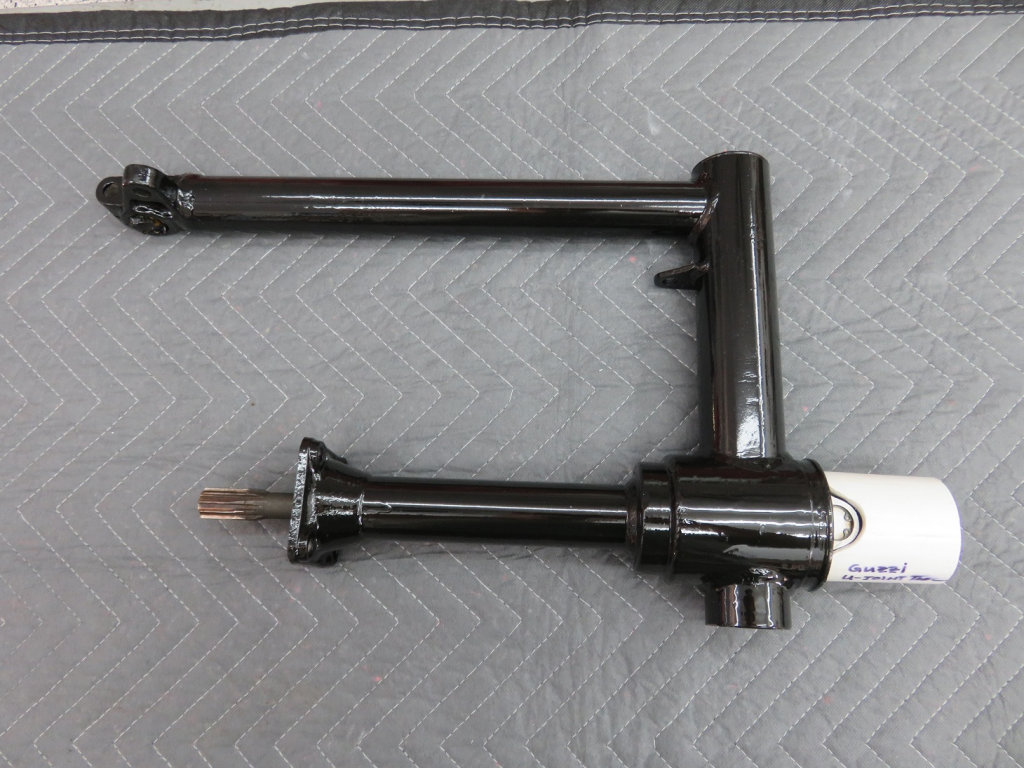

Installed
Installed

Photo courtesy of Joe Tokarz.

Installed

Photo courtesy of Joe Tokarz.

Direct link to image

U-joint installation tool template (actual size)
Credit: Joe Tokarz
