My friend John Ulrich contacted me regarding the wiring harness on the Moto Guzzi Astore he is restoring. I documented his original harness and then constructed a replacement main harness for him. Here are the photos John and I took to document the Moto Guzzi Astore wiring harness.

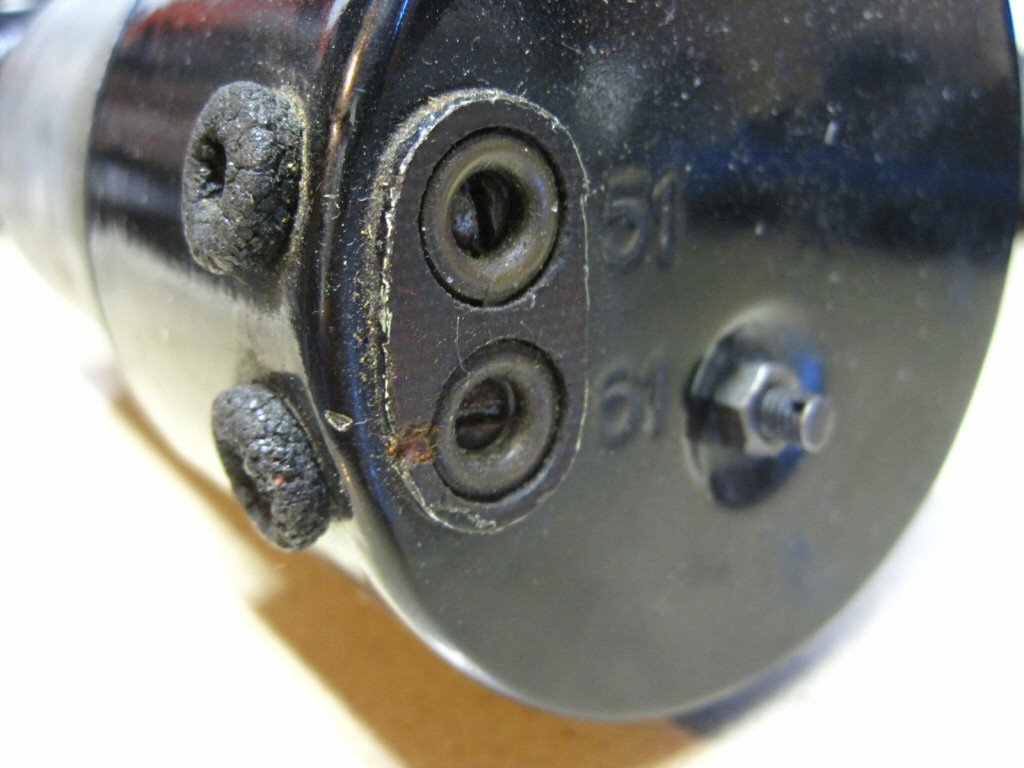

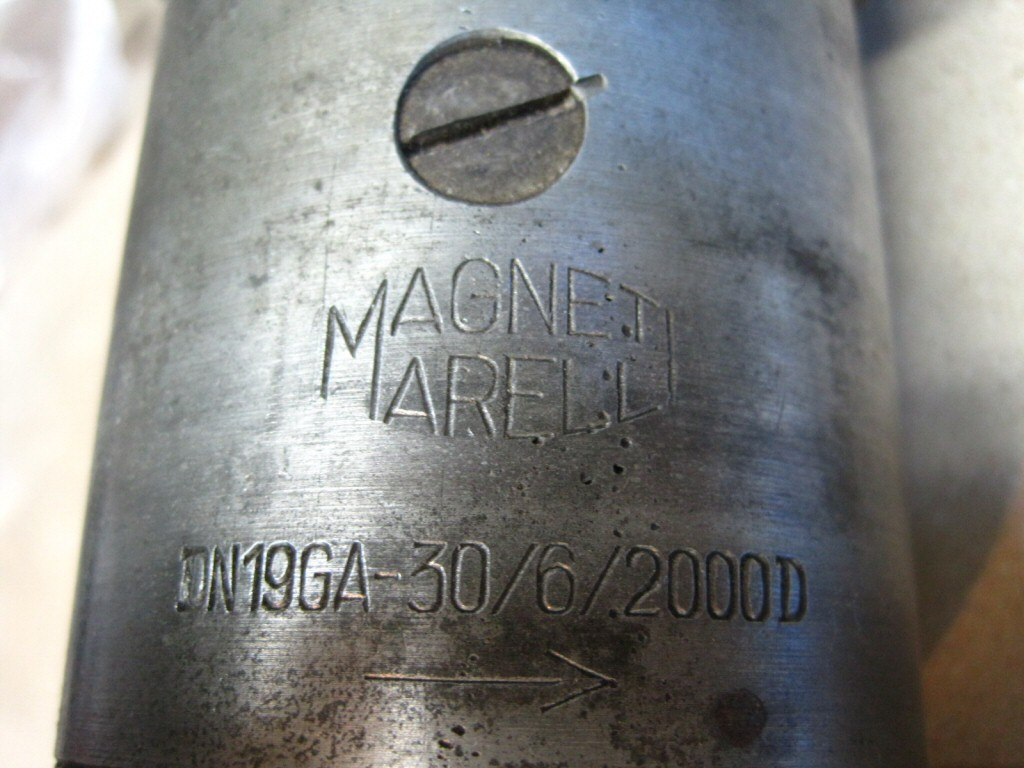

Generator as fit to a Moto Guzzi Astore.
Generator as fit to a Moto Guzzi Astore.

Photo courtesy of John Ulrich.

Direct link to image

Generator as fit to a Moto Guzzi Astore.
Generator as fit to a Moto Guzzi Astore.

Photo courtesy of John Ulrich.

Direct link to image

Horn as fit to a Moto Guzzi Astore.
Horn as fit to a Moto Guzzi Astore.

Photo courtesy of John Ulrich.

Direct link to image

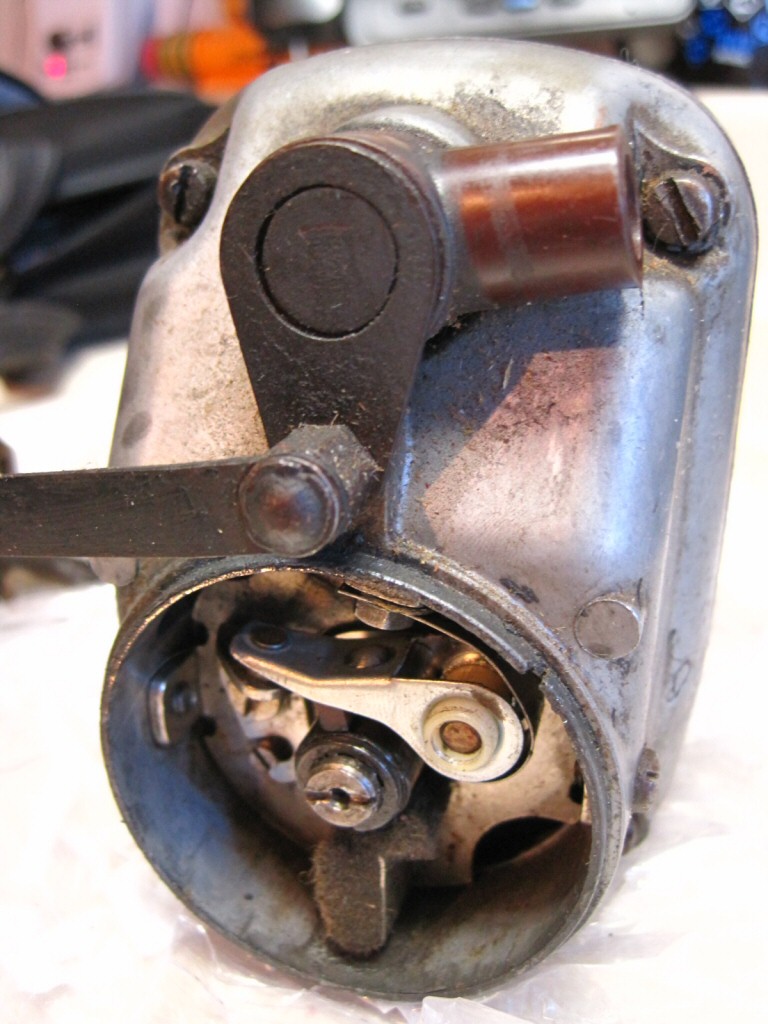

Magneto as fit to a Moto Guzzi Astore.
Magneto as fit to a Moto Guzzi Astore.

Photo courtesy of John Ulrich.

Direct link to image

Magneto as fit to a Moto Guzzi Astore.
Magneto as fit to a Moto Guzzi Astore.

Photo courtesy of John Ulrich.

Direct link to image

Brake light switch as fit to a Moto Guzzi Astore.
Brake light switch as fit to a Moto Guzzi Astore.

Photo courtesy of John Ulrich.

Direct link to image

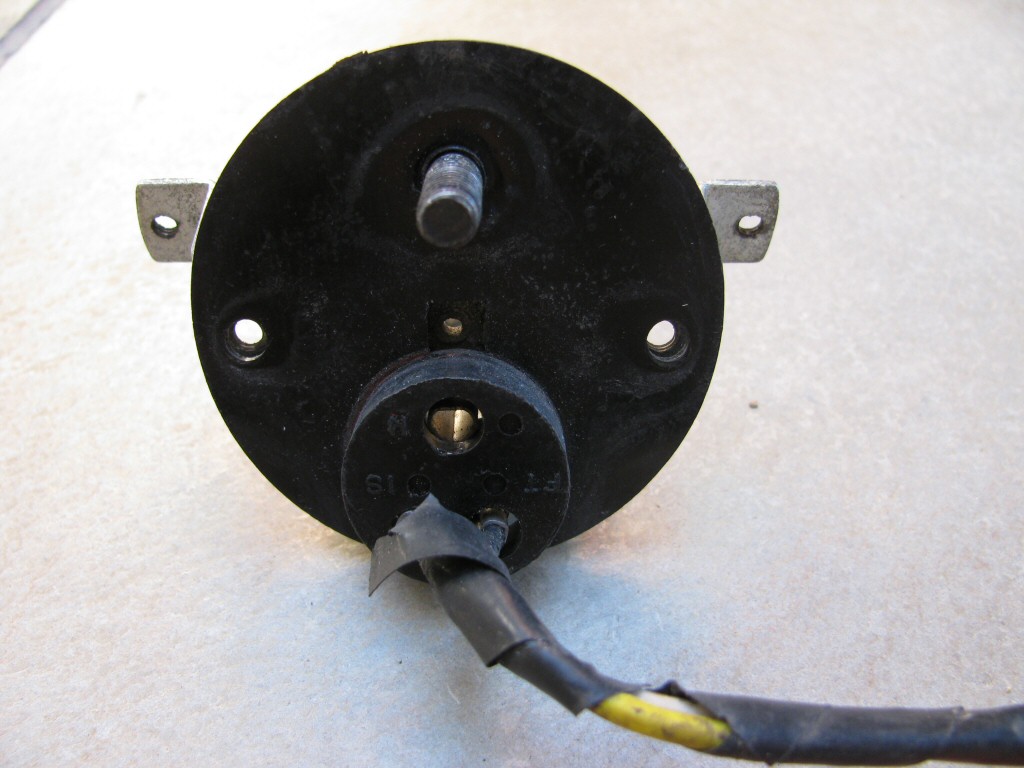

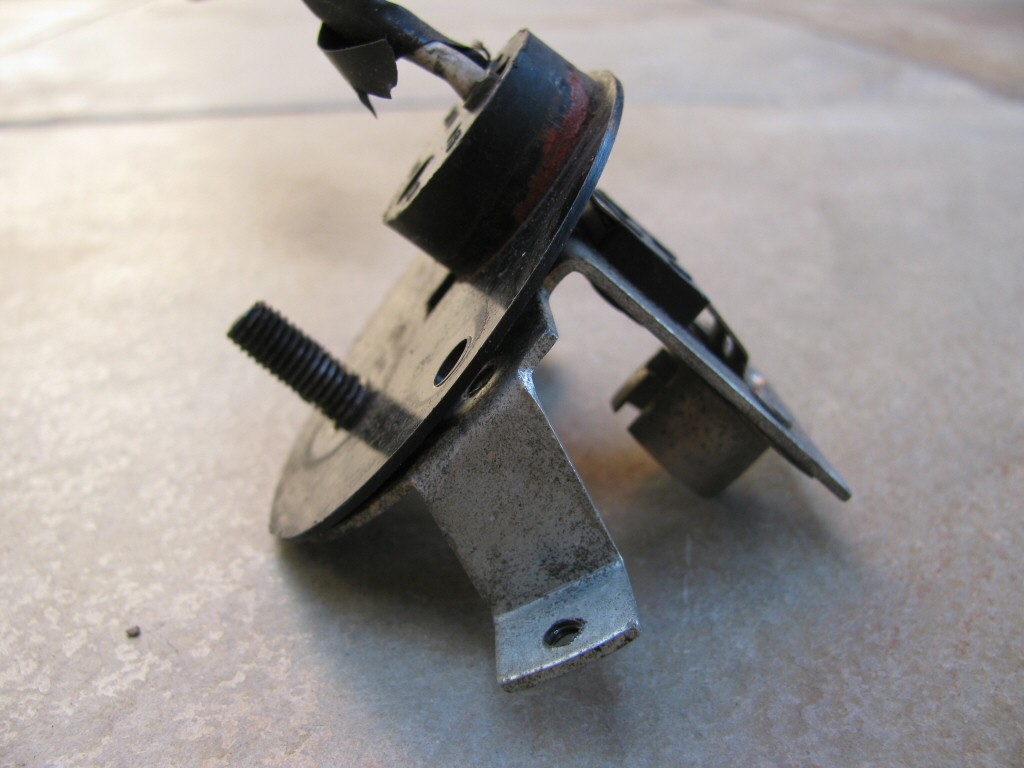

Tail light as fit to a Moto Guzzi Astore.
Tail light as fit to a Moto Guzzi Astore.

Photo courtesy of Gregory Bender.

Direct link to image

Tail light as fit to a Moto Guzzi Astore.
Tail light as fit to a Moto Guzzi Astore.

Photo courtesy of Gregory Bender.

Direct link to image

Tail light as fit to a Moto Guzzi Astore.
Tail light as fit to a Moto Guzzi Astore.

Photo courtesy of Gregory Bender.

Direct link to image

Tail light as fit to a Moto Guzzi Astore.
Tail light as fit to a Moto Guzzi Astore.

Photo courtesy of Gregory Bender.

Direct link to image

Tail light as fit to a Moto Guzzi Astore.
Tail light as fit to a Moto Guzzi Astore.

Photo courtesy of Gregory Bender.

Direct link to image

Tail light as fit to a Moto Guzzi Astore.
Tail light as fit to a Moto Guzzi Astore.

Photo courtesy of Gregory Bender.

Direct link to image

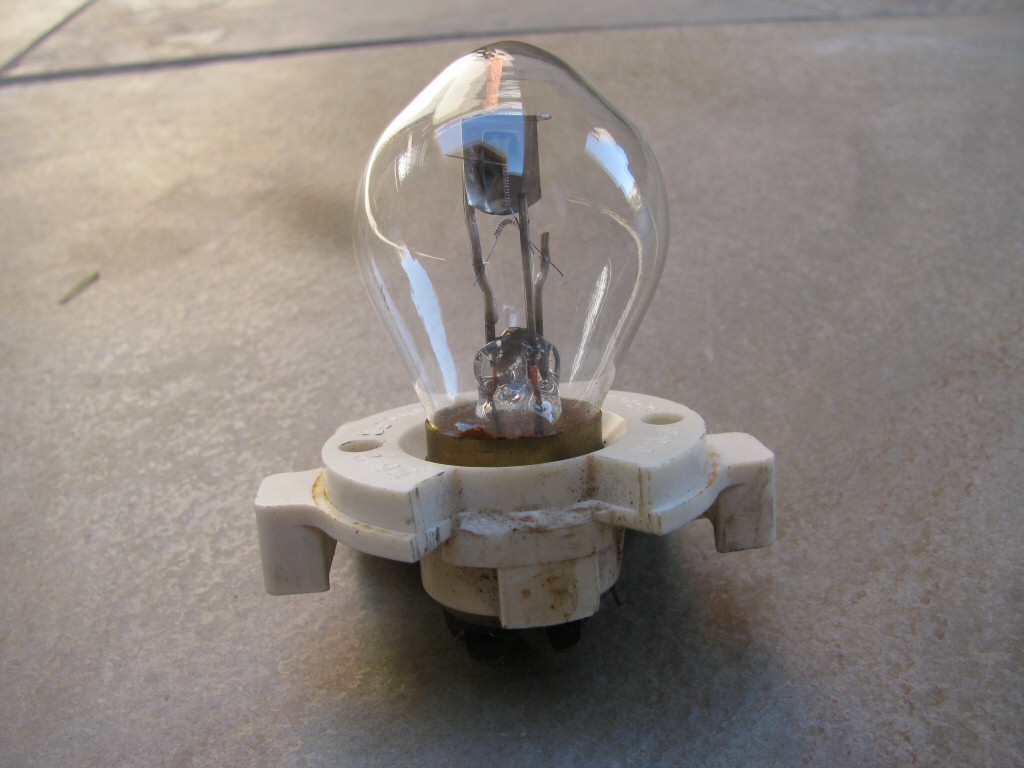

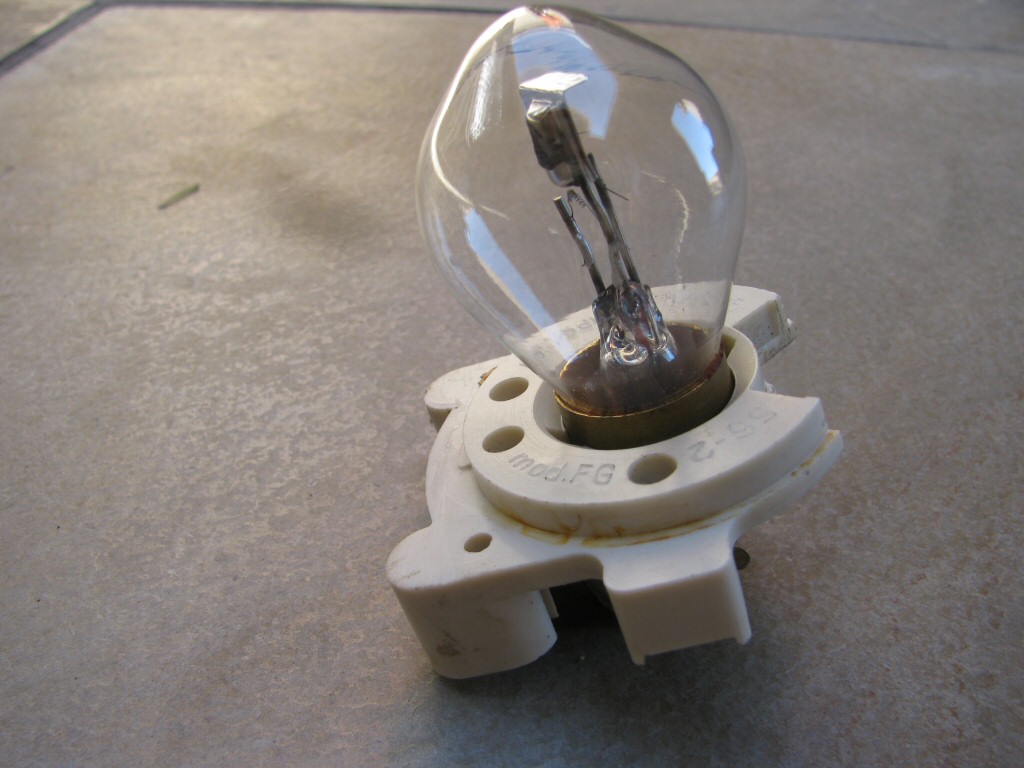

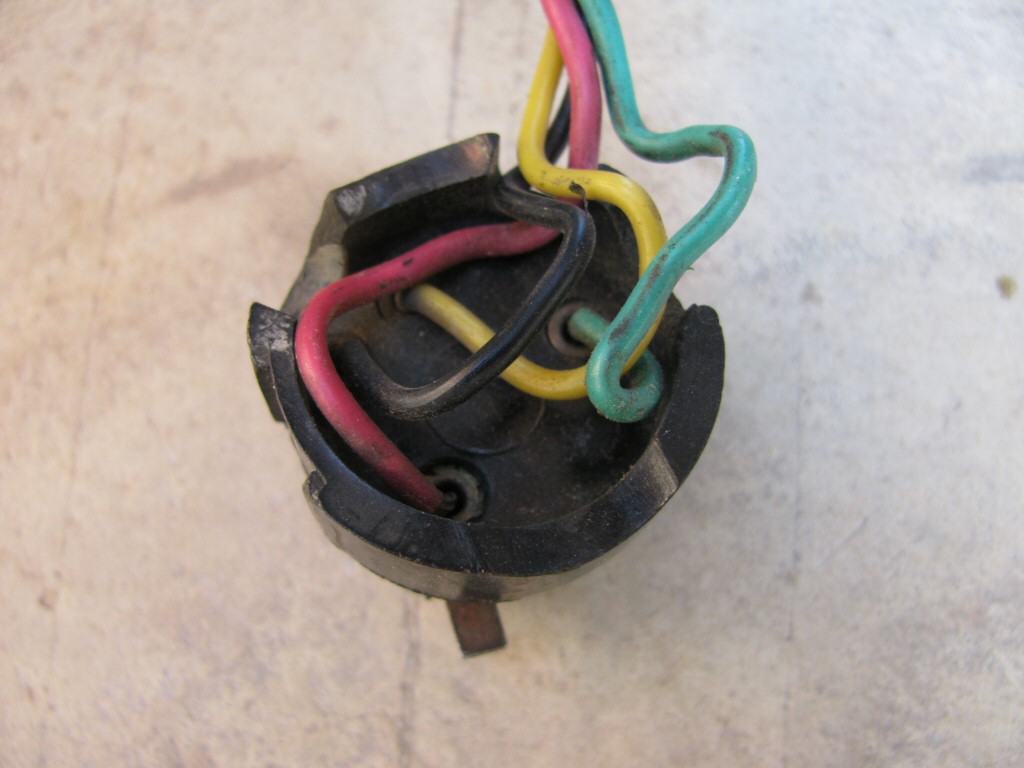

Headlight socket and bulb as fit to a Moto Guzzi Astore.
Headlight socket and bulb as fit to a Moto Guzzi Astore.

Photo courtesy of Gregory Bender.

Direct link to image

Headlight socket and bulb as fit to a Moto Guzzi Astore.
Headlight socket and bulb as fit to a Moto Guzzi Astore.

Photo courtesy of Gregory Bender.

Direct link to image

Headlight socket and bulb as fit to a Moto Guzzi Astore.
Headlight socket and bulb as fit to a Moto Guzzi Astore.

Photo courtesy of Gregory Bender.

Direct link to image

Headlight socket and bulb as fit to a Moto Guzzi Astore.
Headlight socket and bulb as fit to a Moto Guzzi Astore.

Photo courtesy of Gregory Bender.

Direct link to image

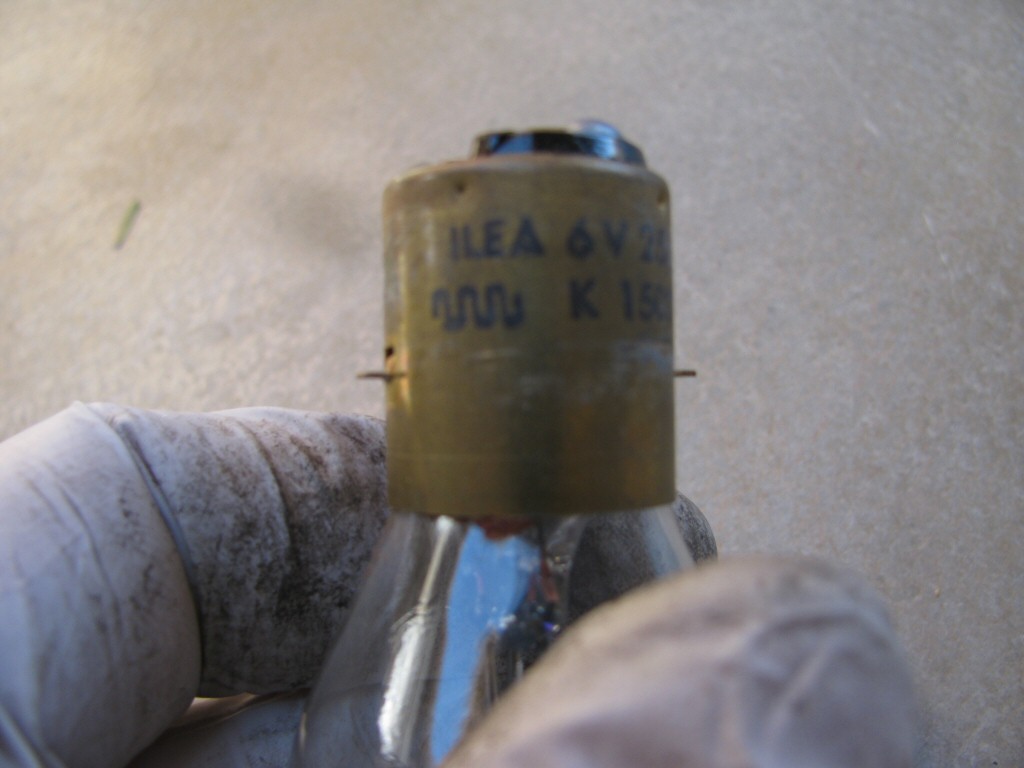

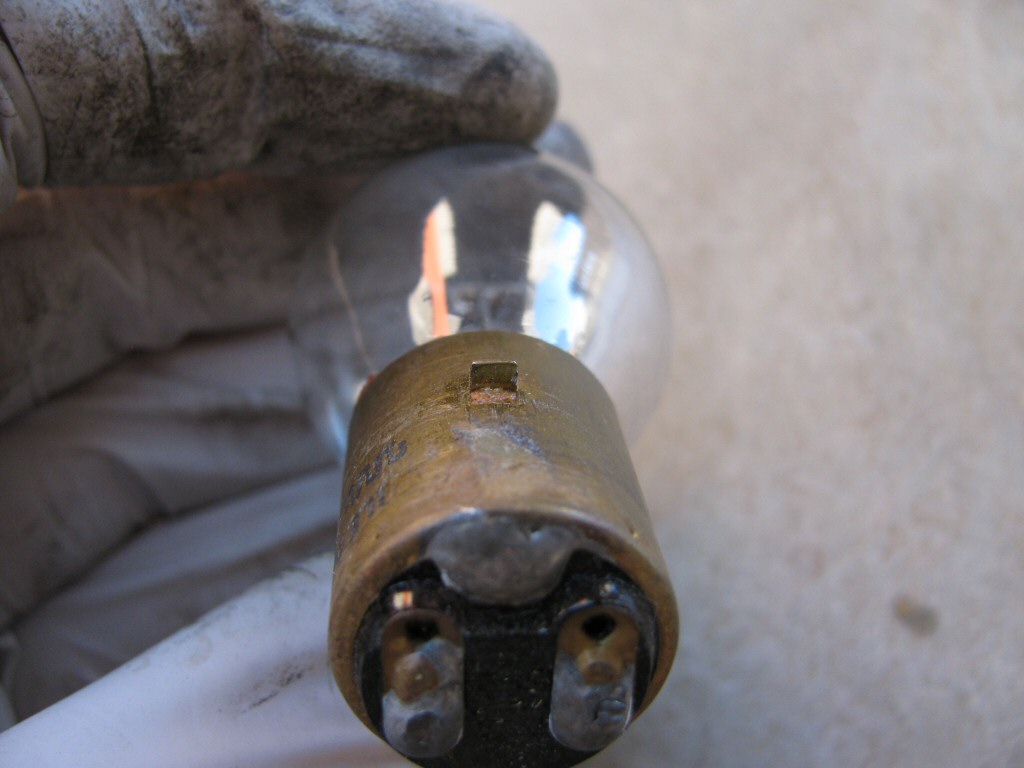

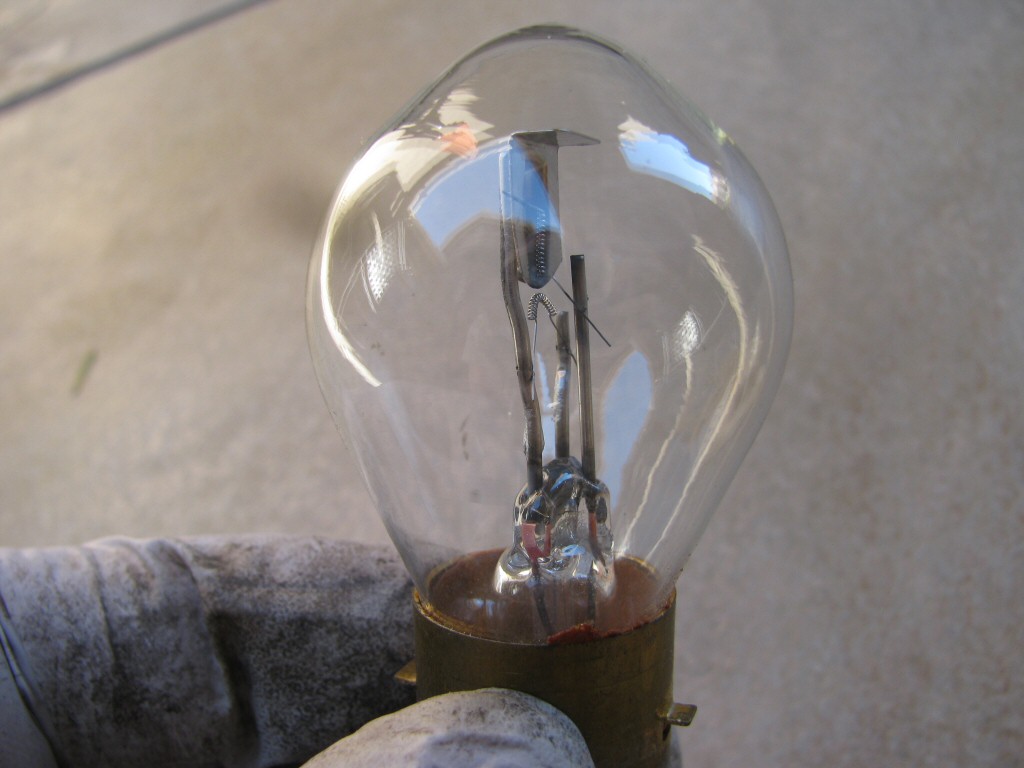

Headlight bulb as fit to a Moto Guzzi Astore.
Headlight bulb as fit to a Moto Guzzi Astore.

Photo courtesy of Gregory Bender.

Direct link to image

Headlight bulb as fit to a Moto Guzzi Astore.
Headlight bulb as fit to a Moto Guzzi Astore.

Photo courtesy of Gregory Bender.

Direct link to image

Headlight bulb as fit to a Moto Guzzi Astore.
Headlight bulb as fit to a Moto Guzzi Astore.

Photo courtesy of Gregory Bender.

Direct link to image

Headlight bulb as fit to a Moto Guzzi Astore.
Headlight bulb as fit to a Moto Guzzi Astore.

Photo courtesy of Gregory Bender.

Direct link to image

Headlight bulb as fit to a Moto Guzzi Astore.
Headlight bulb as fit to a Moto Guzzi Astore.

Photo courtesy of Gregory Bender.

Direct link to image

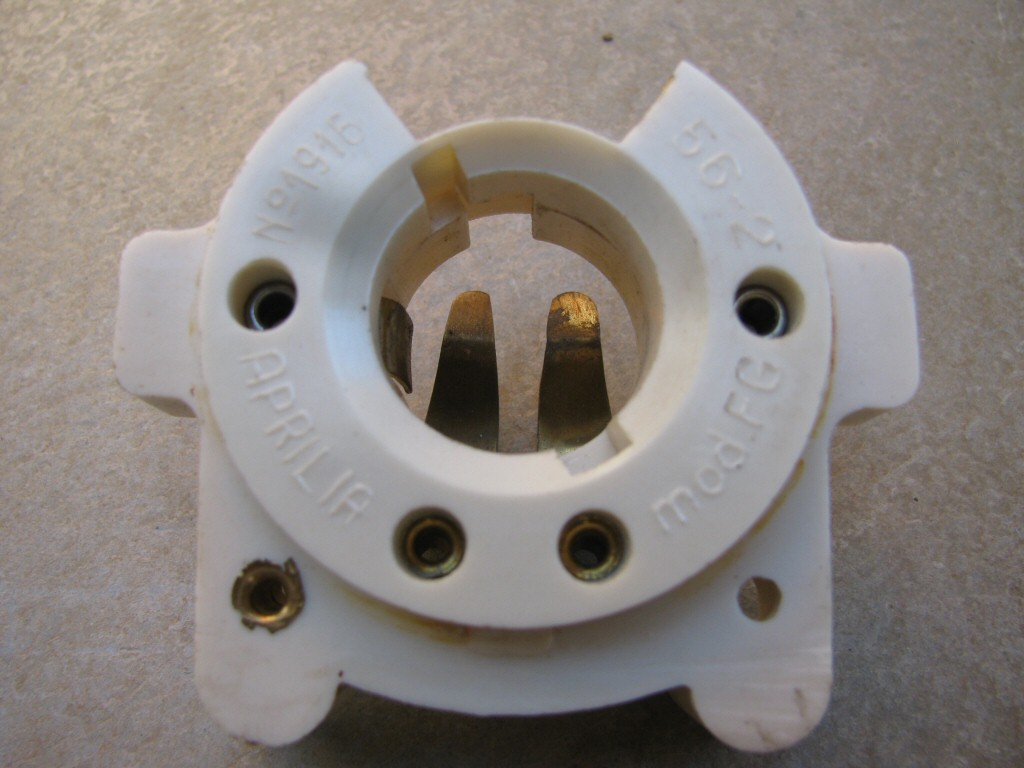

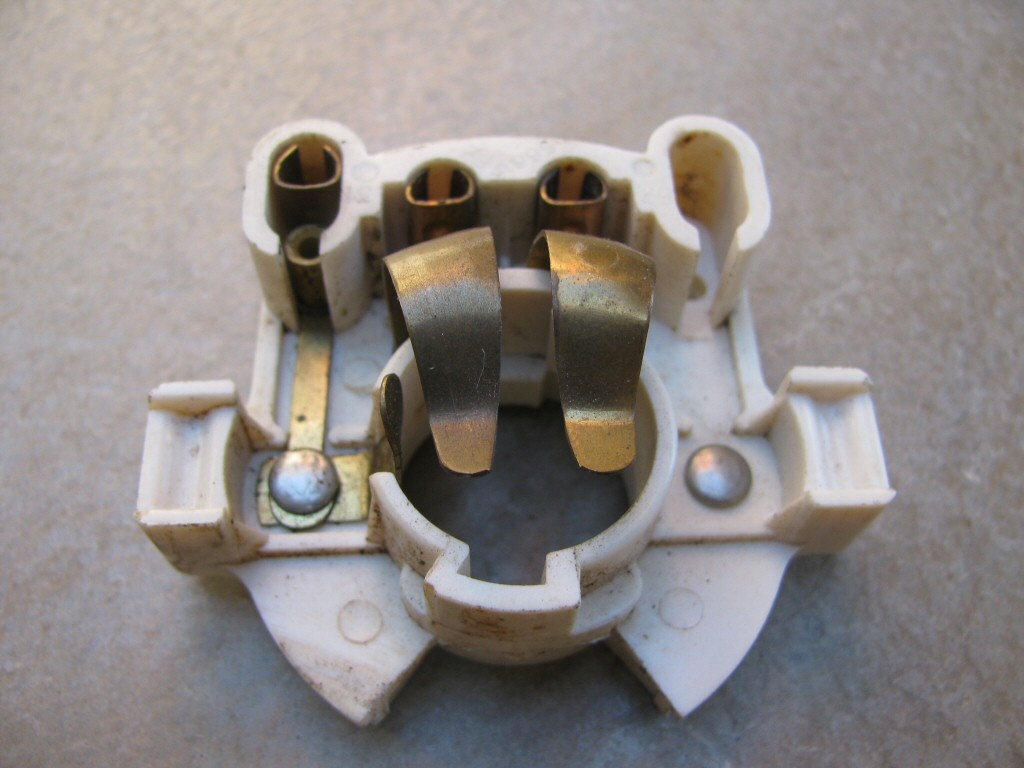

Headlight socket as fit to a Moto Guzzi Astore.
Headlight socket as fit to a Moto Guzzi Astore.

Photo courtesy of Gregory Bender.

Direct link to image

Headlight socket as fit to a Moto Guzzi Astore.
Headlight socket as fit to a Moto Guzzi Astore.

Photo courtesy of Gregory Bender.

Direct link to image

Headlight socket as fit to a Moto Guzzi Astore.
Headlight socket as fit to a Moto Guzzi Astore.

Photo courtesy of Gregory Bender.

Direct link to image

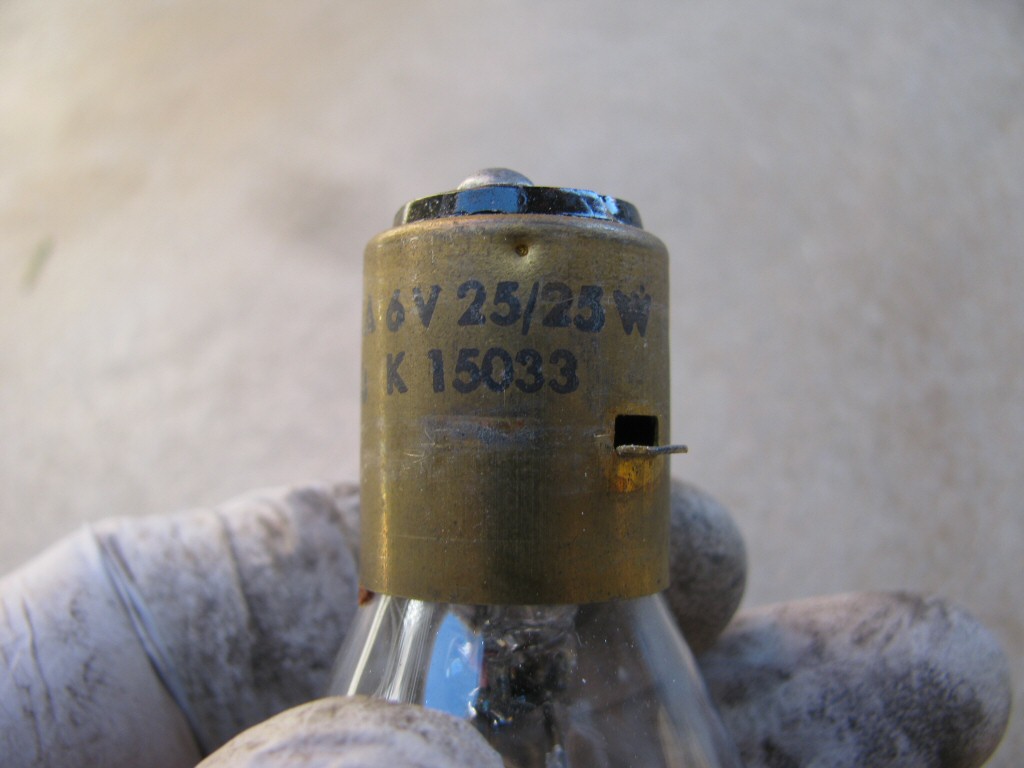

Narrow tang on the headlight bulb as fit to a Moto Guzzi Astore.
Narrow tang on the headlight bulb as fit to a Moto Guzzi Astore.

Photo courtesy of Gregory Bender.

Direct link to image

Wide tang on the headlight bulb as fit to a Moto Guzzi Astore.
Wide tang on the headlight bulb as fit to a Moto Guzzi Astore.

Photo courtesy of Gregory Bender.

Direct link to image

City light as fit to a Moto Guzzi Astore (wires are not original).
City light as fit to a Moto Guzzi Astore (wires are not original).

Photo courtesy of Gregory Bender.

Direct link to image

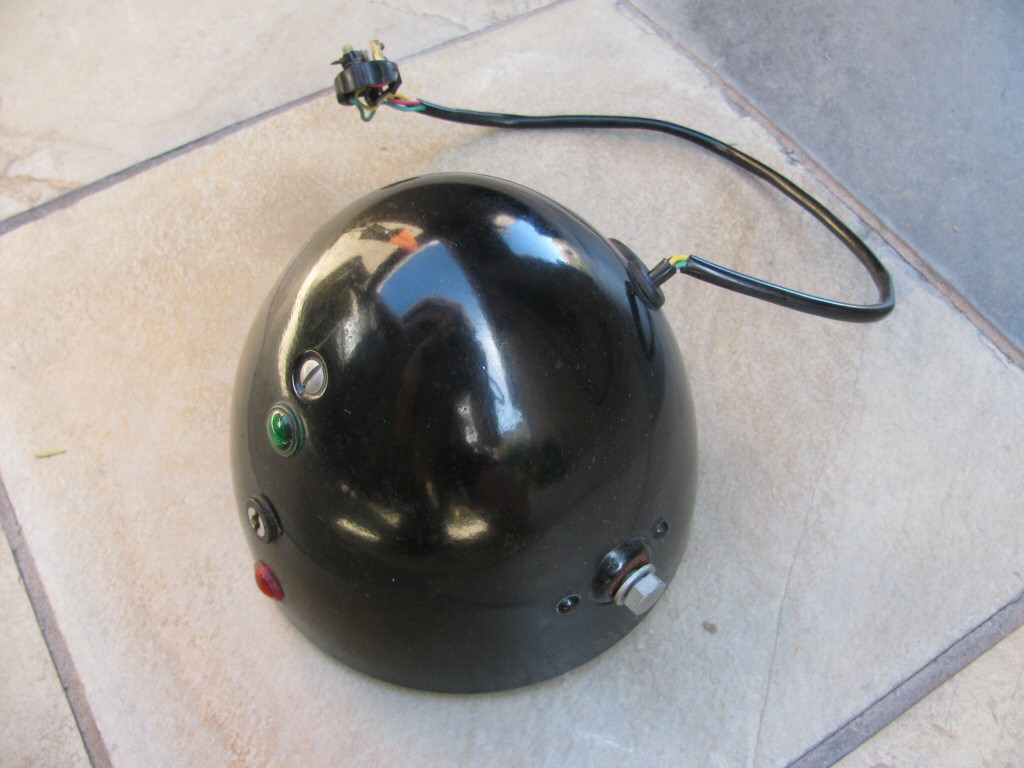

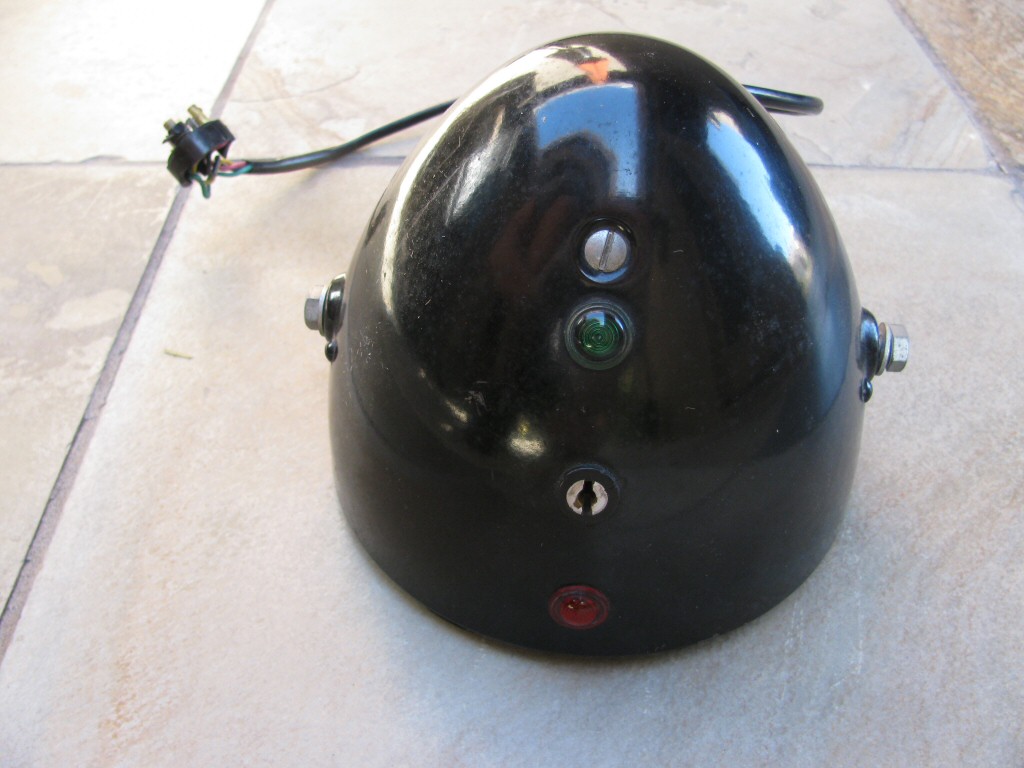

Headlight bucket as fit to a Moto Guzzi Astore.
Headlight bucket as fit to a Moto Guzzi Astore.

Photo courtesy of Gregory Bender.

Direct link to image

Headlight bucket as fit to a Moto Guzzi Astore.
Headlight bucket as fit to a Moto Guzzi Astore.

Photo courtesy of Gregory Bender.

Direct link to image

Headlight bucket as fit to a Moto Guzzi Astore.
Headlight bucket as fit to a Moto Guzzi Astore.

Photo courtesy of Gregory Bender.

Direct link to image

Headlight bucket as fit to a Moto Guzzi Astore.
Headlight bucket as fit to a Moto Guzzi Astore.

Photo courtesy of Gregory Bender.

Direct link to image

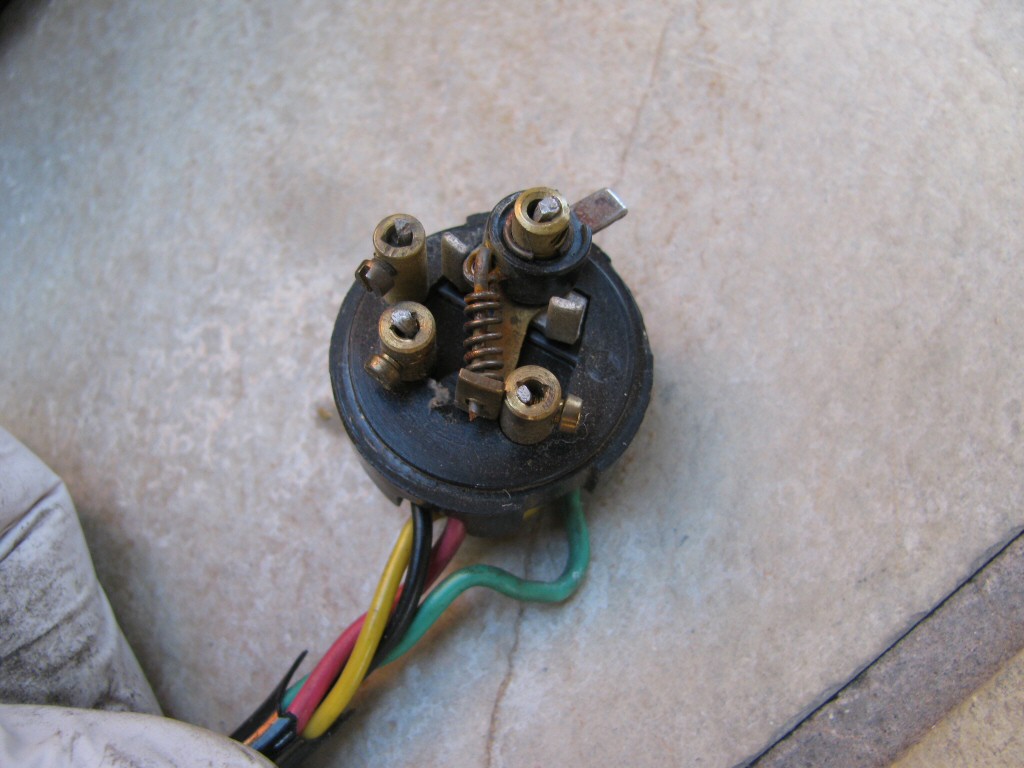

Handlebar switch as fit to a Moto Guzzi Astore.
Handlebar switch as fit to a Moto Guzzi Astore.

Photo courtesy of Gregory Bender.

Direct link to image

Handlebar switch as fit to a Moto Guzzi Astore.
Handlebar switch as fit to a Moto Guzzi Astore.

Photo courtesy of Gregory Bender.

Direct link to image

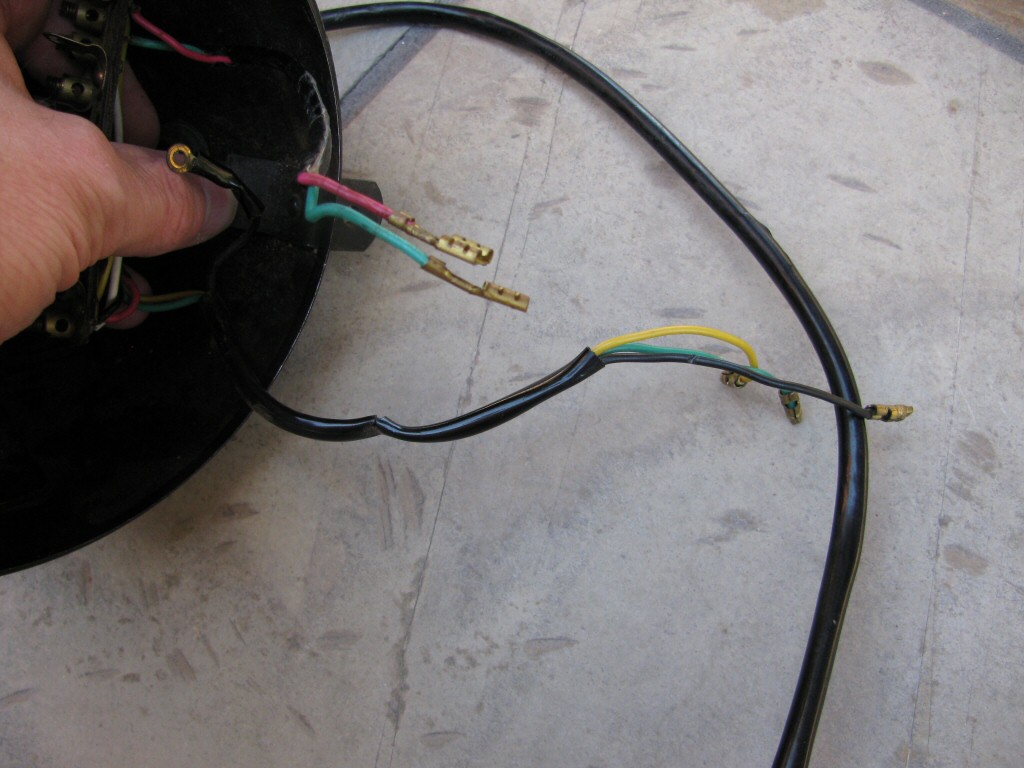

Wires that connect to the headlight socket as fit to a Moto Guzzi Astore.
Wires that connect to the headlight socket as fit to a Moto Guzzi Astore.

Photo courtesy of Gregory Bender.

Direct link to image

Key switch and indicator lights at the top of the headlight bucket as fit to a Moto Guzzi Astore.
Key switch and indicator lights at the top of the headlight bucket as fit to a Moto Guzzi Astore.

Photo courtesy of Gregory Bender.

Direct link to image

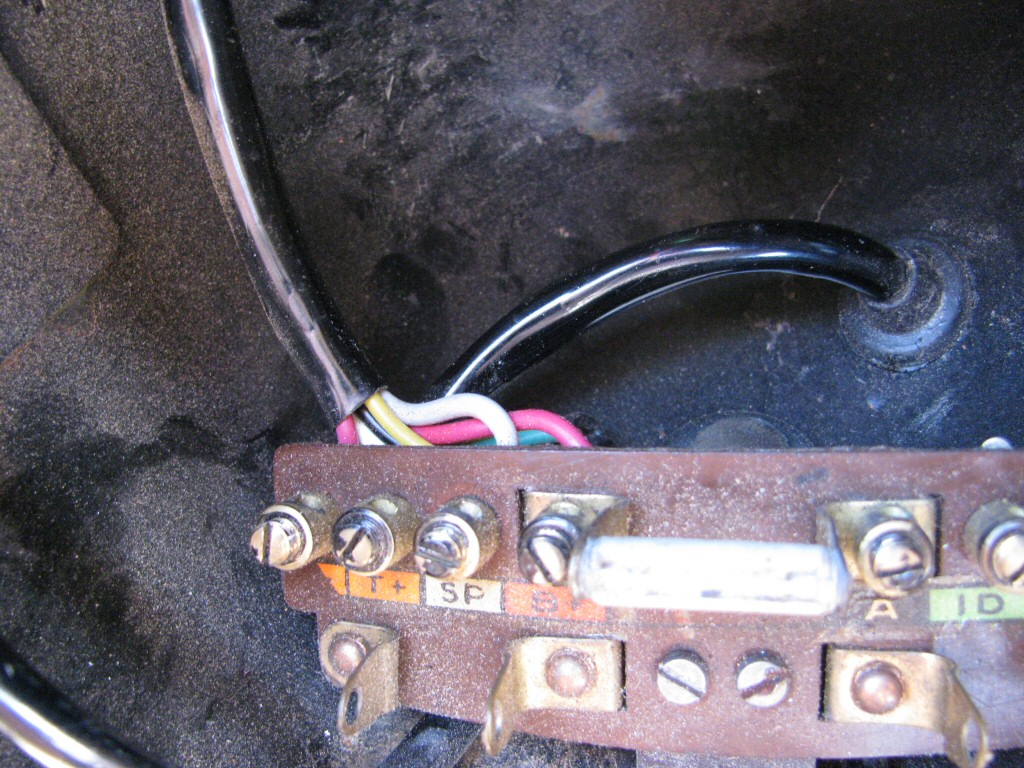

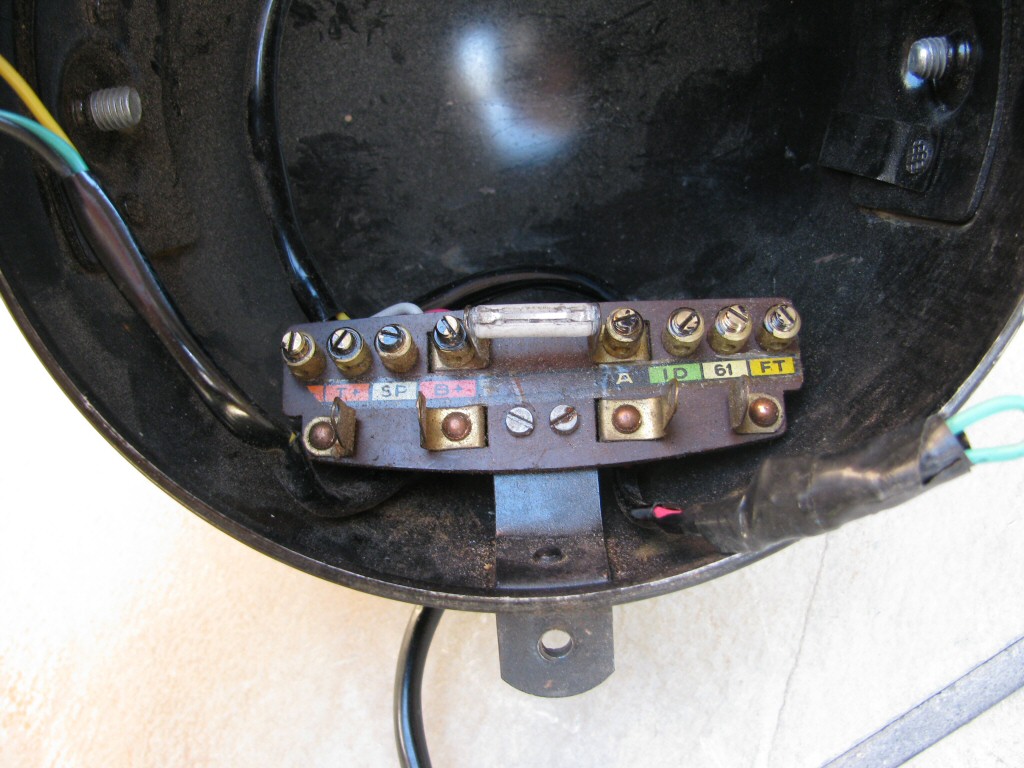

Distribution panel as fit to a Moto Guzzi Astore.
Distribution panel as fit to a Moto Guzzi Astore.

Photo courtesy of Gregory Bender.

Direct link to image

Close up of distribution panel as fit to a Moto Guzzi Astore.
Close up of distribution panel as fit to a Moto Guzzi Astore.

Photo courtesy of Gregory Bender.

Direct link to image

Wiring from the handlebar switch enters the headlight bucket and is soldered to the distribution panel or the key switch panel as fit to a Moto Guzzi Astore.
Wiring from the handlebar switch enters the headlight bucket and is soldered to the distribution panel or the key switch panel as fit to a Moto Guzzi Astore.

Photo courtesy of Gregory Bender.

Direct link to image

Red and Green wires connect to the city light, as fit to a Moto Guzzi Astore.
Red and Green wires connect to the city light, as fit to a Moto Guzzi Astore.

Photo courtesy of Gregory Bender.

Direct link to image

Black wire grounds the headlight socket to the headlight bucket, as fit to a Moto Guzzi Astore.
Black wire grounds the headlight socket to the headlight bucket, as fit to a Moto Guzzi Astore.

Photo courtesy of Gregory Bender.

Direct link to image

A 3 mm ring terminal is used, as fit to a Moto Guzzi Astore.
A 3 mm ring terminal is used, as fit to a Moto Guzzi Astore.

Photo courtesy of Gregory Bender.

Direct link to image

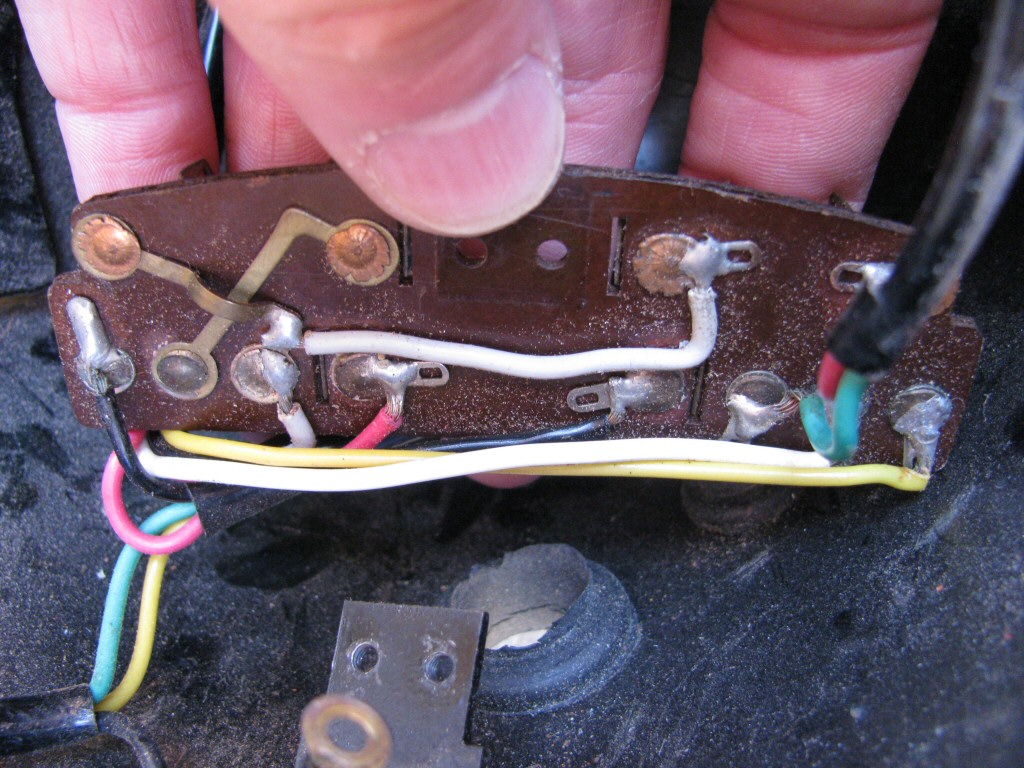

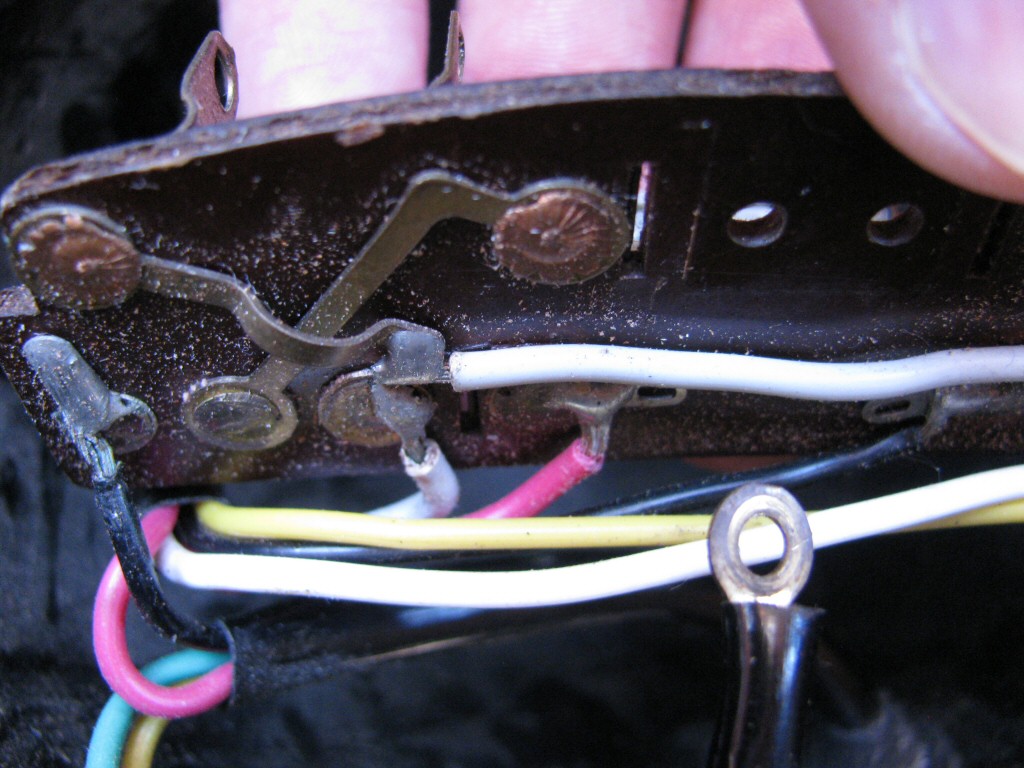

Soldered connections on the back side of the distribution panel, as fit to a Moto Guzzi Astore.
Soldered connections on the back side of the distribution panel, as fit to a Moto Guzzi Astore.

Photo courtesy of Gregory Bender.

Direct link to image

Soldered connections on the back side of the distribution panel, as fit to a Moto Guzzi Astore.
Soldered connections on the back side of the distribution panel, as fit to a Moto Guzzi Astore.

Photo courtesy of Gregory Bender.

Direct link to image

Soldered connections on the back side of the distribution panel, as fit to a Moto Guzzi Astore.
Soldered connections on the back side of the distribution panel, as fit to a Moto Guzzi Astore.

Photo courtesy of Gregory Bender.

Direct link to image

Soldered connections on the back side of the distribution panel, as fit to a Moto Guzzi Astore.
Soldered connections on the back side of the distribution panel, as fit to a Moto Guzzi Astore.

Photo courtesy of Gregory Bender.

Direct link to image

Soldered connections on the back side of the distribution panel, as fit to a Moto Guzzi Astore.
Soldered connections on the back side of the distribution panel, as fit to a Moto Guzzi Astore.

Photo courtesy of Gregory Bender.

Direct link to image

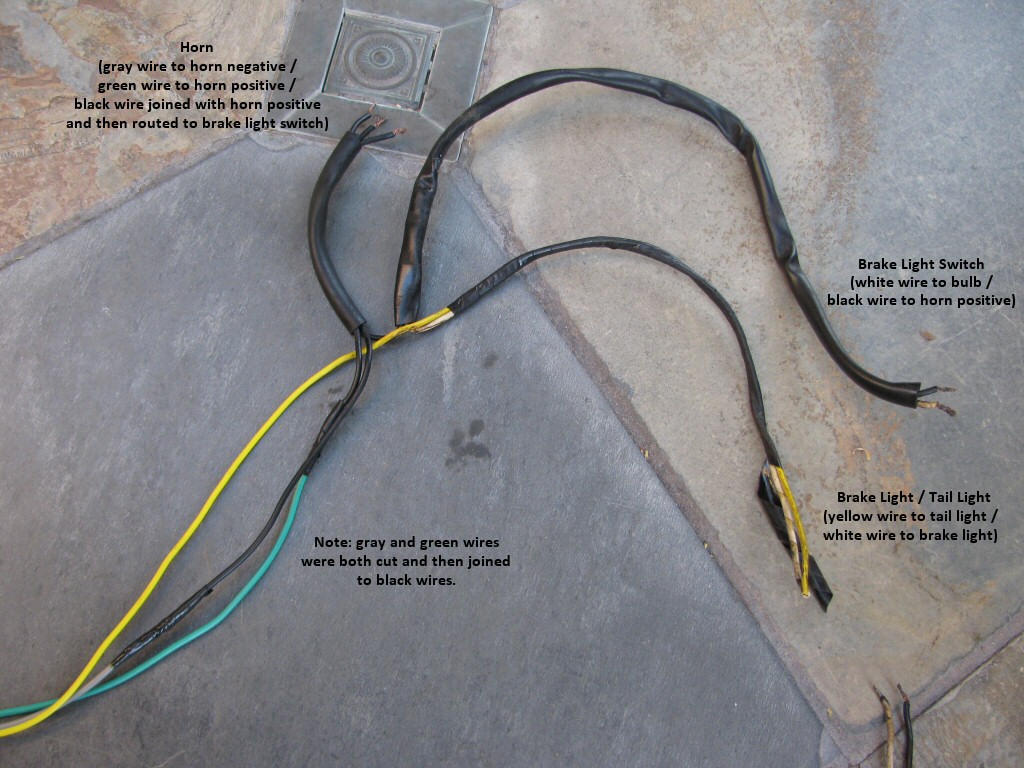

Wires to the horn, brake light switch, and tail light as fit to a Moto Guzzi Astore
Wires to the horn, brake light switch, and tail light as fit to a Moto Guzzi Astore

Photo courtesy of Gregory Bender.

Direct link to image

Wires to the generator as fit to a Moto Guzzi Astore.
Wires to the generator as fit to a Moto Guzzi Astore.

Photo courtesy of Gregory Bender.

Direct link to image

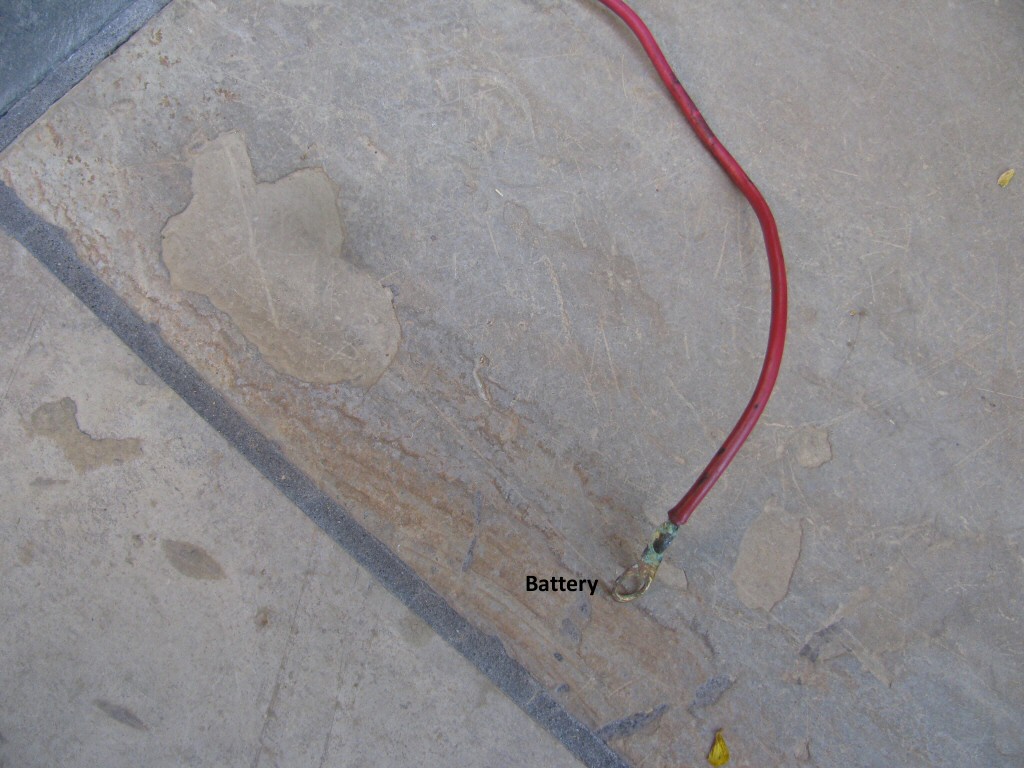

Wire to the battery as fit to a Moto Guzzi Astore.
Wire to the battery as fit to a Moto Guzzi Astore.

Photo courtesy of Gregory Bender.

Direct link to image

Wiring at the distribution panel as fit to a Moto Guzzi Astore.
Wiring at the distribution panel as fit to a Moto Guzzi Astore.

Photo courtesy of Gregory Bender.

Direct link to image

Full main harness as fit to a Moto Guzzi Astore.
Full main harness as fit to a Moto Guzzi Astore.
