Handlebar switch - Yamaha YHA 208A fitment to a Moto Guzzi V1000 G5

Moto Guzzi V7 Sport, 750 S, 750 S3, 850 T, 850 T3, 850 T3 California, V1000 I-Convert, V1000 G5, 1000 SP, Le Mans, Le Mans II, Le Mans CX 100, Le Mans III, Le Mans 1000, 1000 SP III, 1000 S, California II, California III, California 1100, California Jackal, California EV, California EV Touring, California Aluminium, California Titanium, California Special, California Special Sport, California Stone-Metal, California Stone-Touring, California Classic, California Touring, and California Vintage models

Created:

Updated:

// //

Thanks to Tim Smith for sending me this information via e-mail. The YHA 208A switch was fit to the 1975 Yahama XS 500, 1976 Yahama XS 650, and other Yamaha years and models, I'm sure. In Tim's own words:

I recently needed to replace my stock 79' G5 left side switch gear. I had an old Jap type switch many guys have used before. It's a Yamaha 500 switch with just a horn, L-R turn signals and Hi-Lo head light. No Flash feature.

My replacement switch is a Yamaha type metal housing with no ground wire attached. I'm assuming it grounds it's self to the handlebar. My old stock unmolested G5 switch gear harness plug had one empty hole where the pins are. Some I have seen have two. This is my splicing chart.

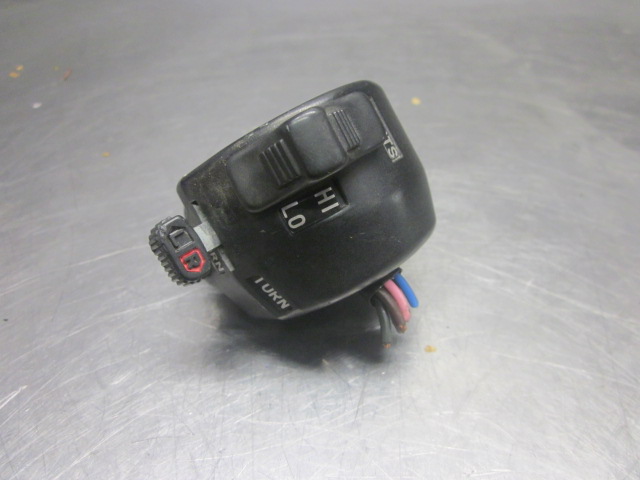

Yamaha handlebar switch YHA208A / YHA 208A / YHA-208A.
Yamaha handlebar switch YHA208A / YHA 208A / YHA-208A.

Photo courtesy of eBay auction.

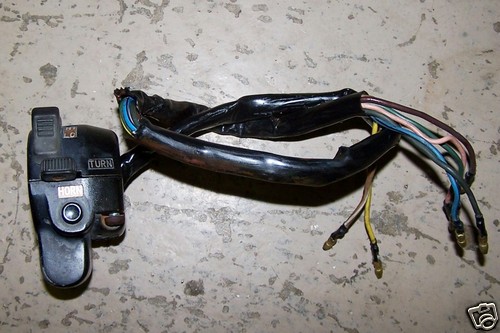

Yamaha handlebar switch YHA208A / YHA 208A / YHA-208A.
Yamaha handlebar switch YHA208A / YHA 208A / YHA-208A.

Photo courtesy of eBay auction.

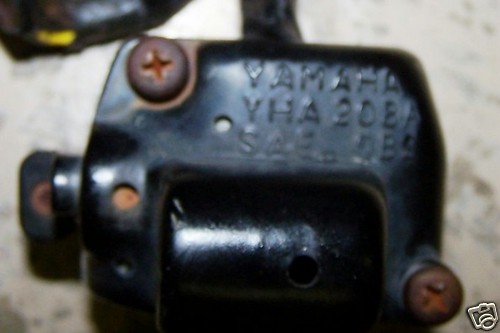

Yamaha handlebar switch YHA208A / YHA 208A / YHA-208A.
Yamaha handlebar switch YHA208A / YHA 208A / YHA-208A.

Photo courtesy of eBay auction.

Yamaha handlebar switch YHA208A / YHA 208A / YHA-208A.
Yamaha handlebar switch YHA208A / YHA 208A / YHA-208A.

Photo courtesy of eBay auction.

Function Yamaha YHA 208A 1979 Moto Guzzi V1000 G5
Horn (wire to distribution panel) Pink White with black tracer
Right turn signal / turn indicator Dark Green Pink
Turn signal / turn indicator (live wire from fuse panel; goes through flasher unit / blinker unit) Brown with white tracer Orange
Left turn signal / turn indicator Brown Green with black tracer
Headlight high beam Brown Yellow
Live wire from fuse panel Red Blue with black tracer
Headlight low beam Green Green

Note: You need a jumper wire from Lo Beam Green wire to power rear lights. Running & Lic. Plate.

Note: The Gray wire and Red with black stripe are spliced together. They were from the FLASH function. And hot wire to dash for fuel light & Generator light.
