I-Convert ATF oil cooler rubber mounts
Moto Guzzi V7 Sport, 750 S, 750 S3, 850 T, 850 T3, 850 T3 California, V1000 I-Convert, V1000 G5, 1000 SP, Le Mans, Le Mans II, Le Mans CX 100, Le Mans III, Le Mans 1000, 1000 SP III, 1000 S, California II, California III, California 1100, California Jackal, California EV, California EV Touring, California Aluminium, California Titanium, California Special, California Special Sport, California Stone-Metal, California Stone-Touring, California Classic, California Touring, and California Vintage models

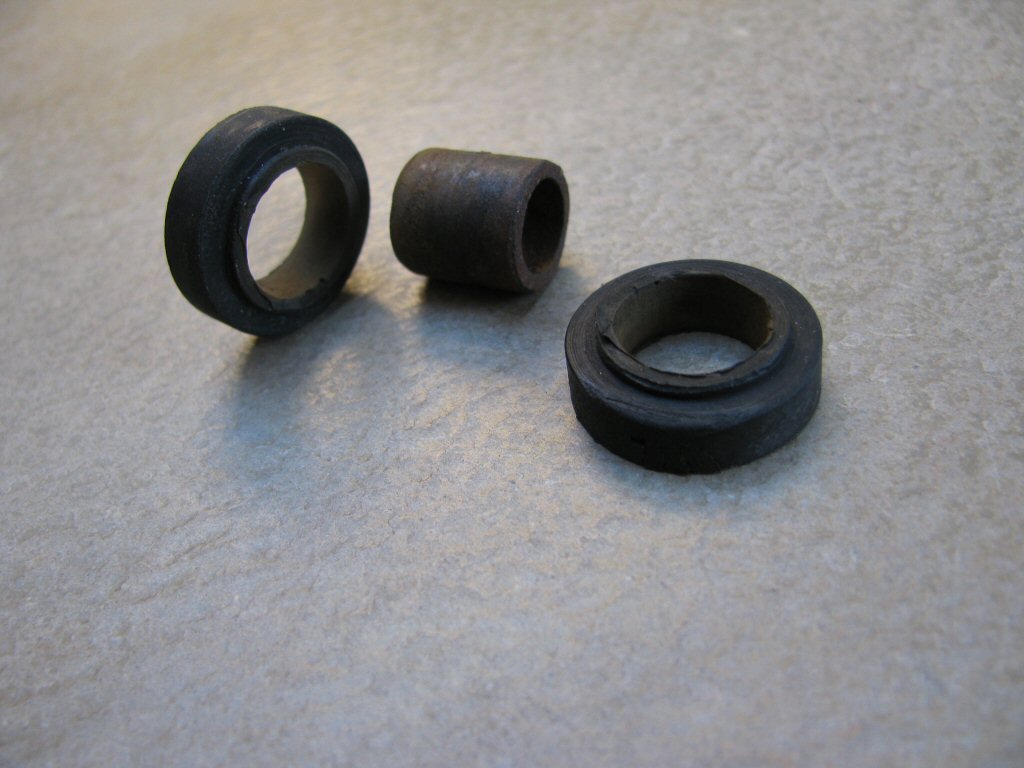

The ATF oil cooler is rubber mounted to its bracket in order to reduce damage due to vibration. The rubber mount is a three piece affair consisting of two rubber sides and a steel tubular spacer. The related components have the following dimensions:
- Hole size in the ATF oil cooler: 15 mm ID; material is 2.2 mm thick.
- Steel spacer: 8.8 mm ID × 12 mm OD × 12.7 mm long.
- Rubber sides: 12 mm ID × 20 mm OD; overall thickness is 6 mm with 1.2 mm of the 6 mm being of 15 mm OD.
