V7 Sport relay installation
Moto Guzzi V7 Sport, 750 S, 750 S3, 850 T, 850 T3, 850 T3 California, V1000 I-Convert, V1000 G5, 1000 SP, Le Mans, Le Mans II, Le Mans CX 100, Le Mans III, Le Mans 1000, 1000 SP III, 1000 S, California II, California III, California 1100, California Jackal, California EV, California EV Touring, California Aluminium, California Titanium, California Special, California Special Sport, California Stone-Metal, California Stone-Touring, California Classic, California Touring, and California Vintage models
Thanks to Tom Hetrick of 3R Restorations for sending me this information via email. In Tom's own words and photos:

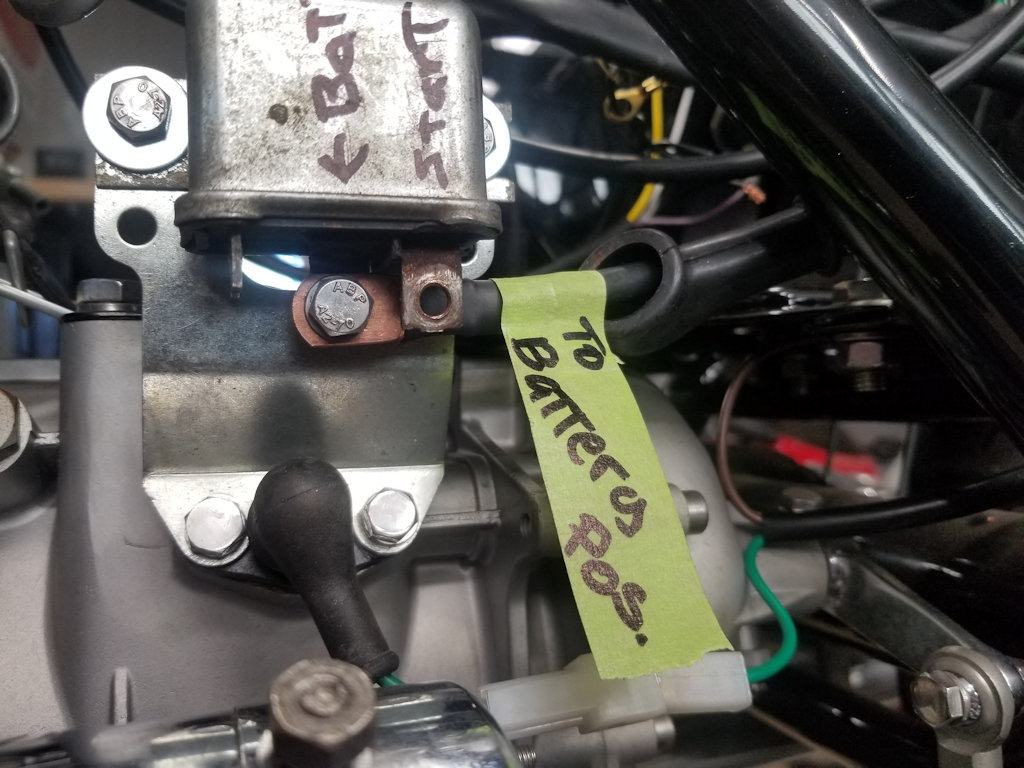

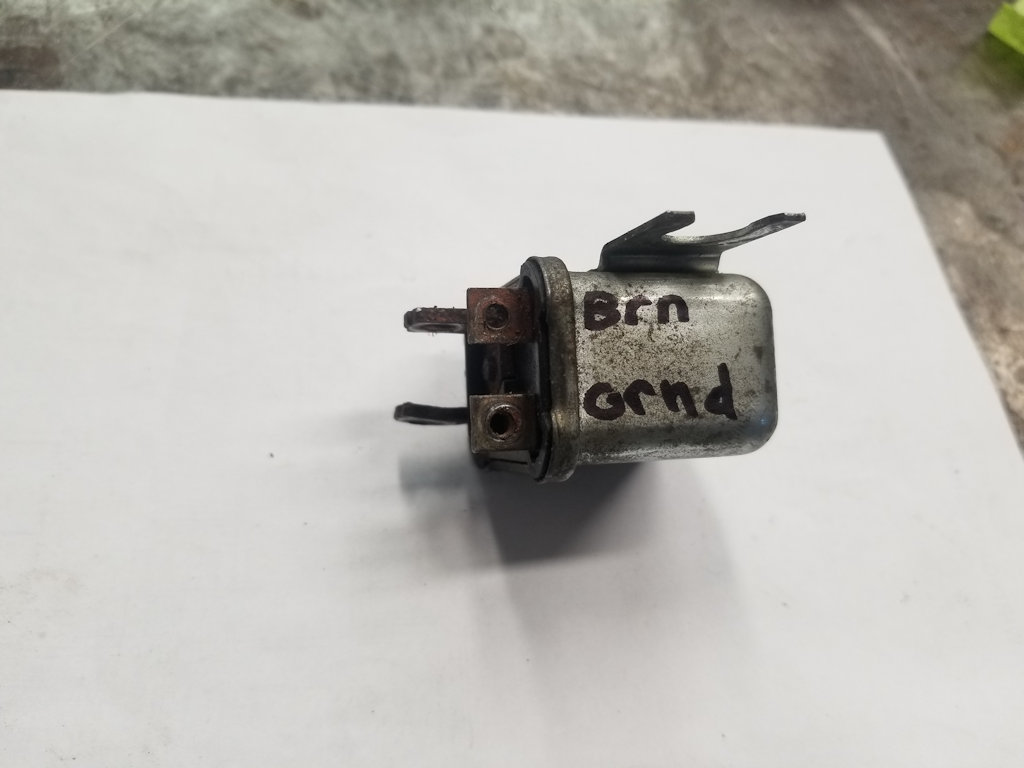

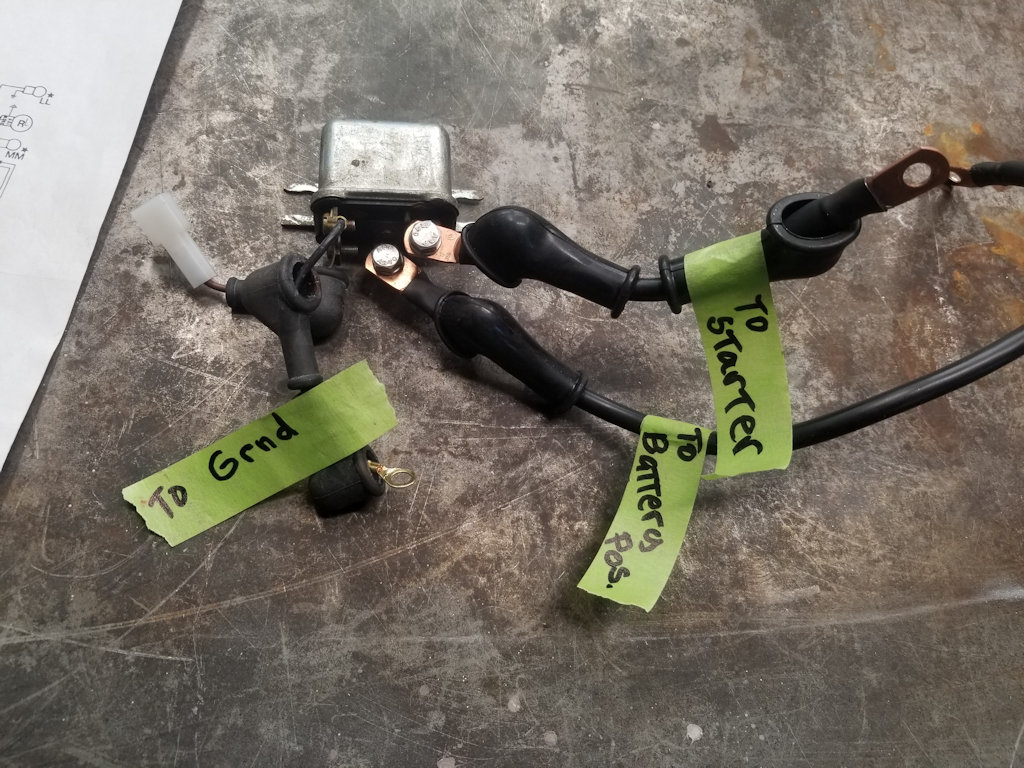

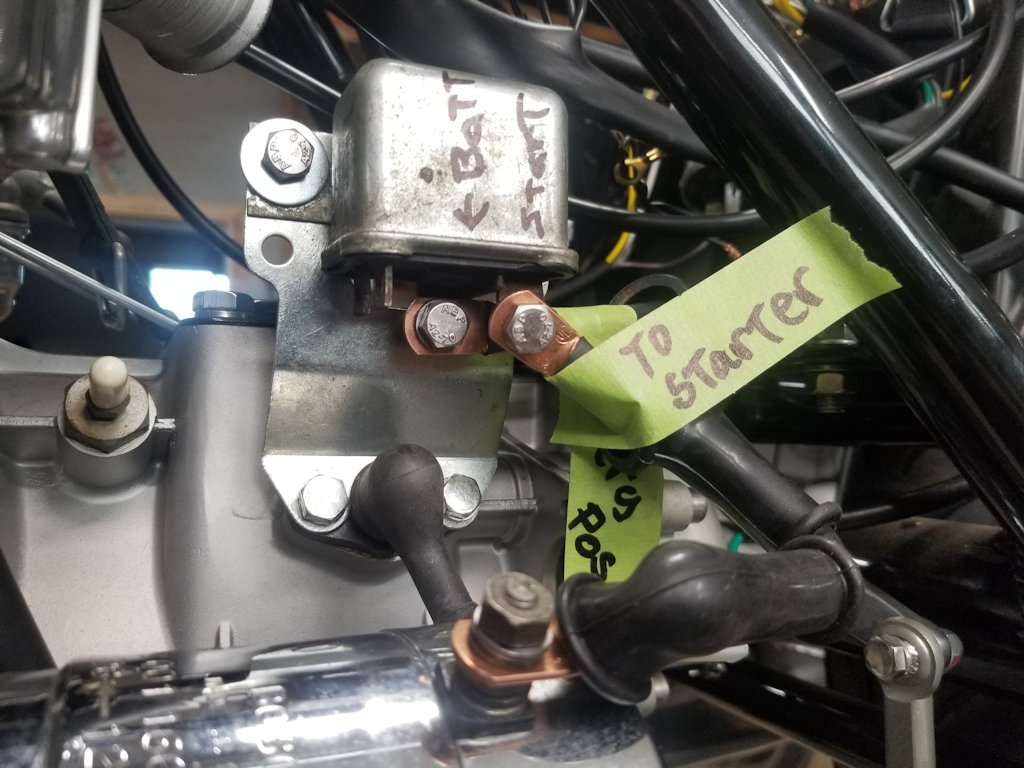

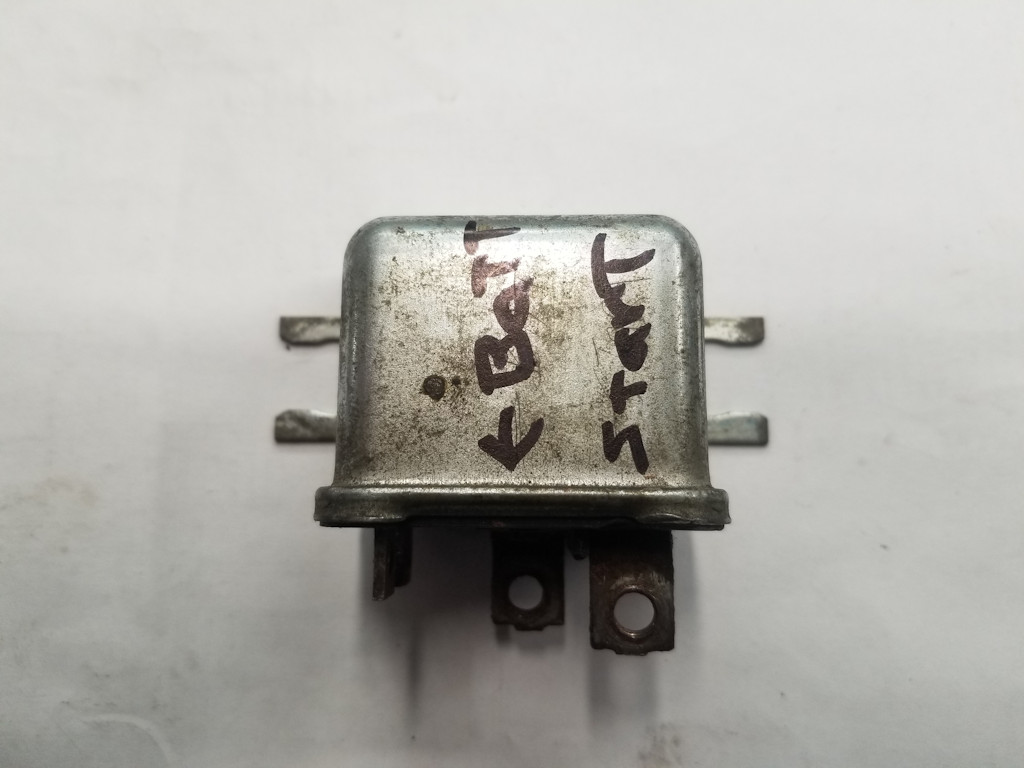

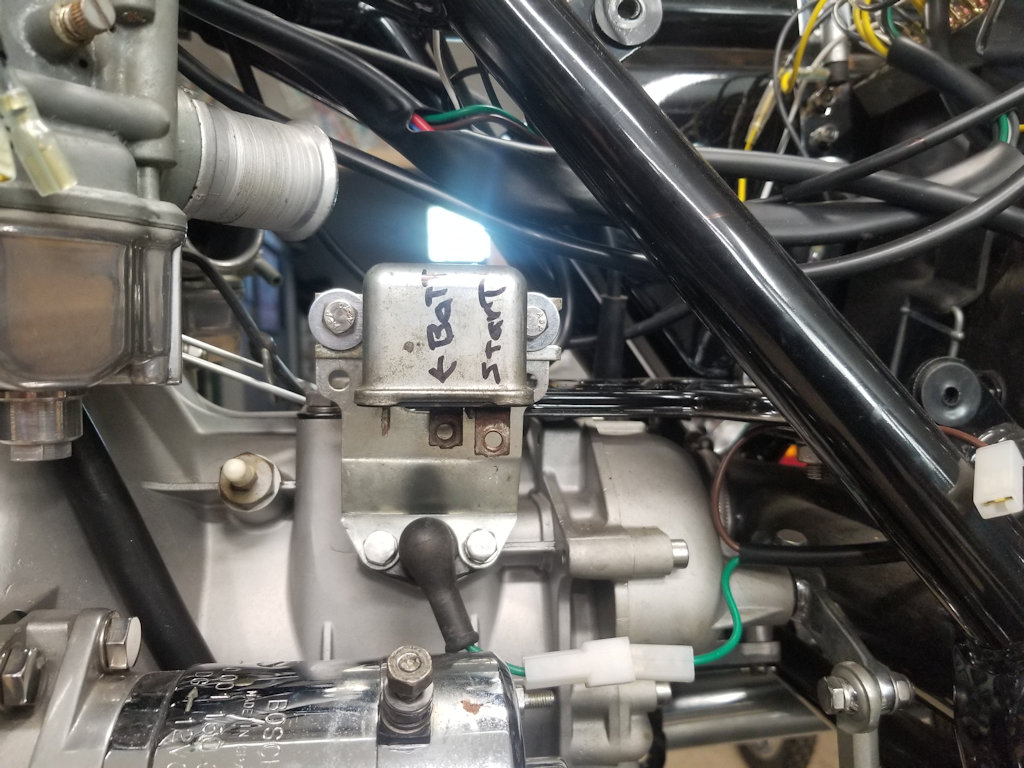

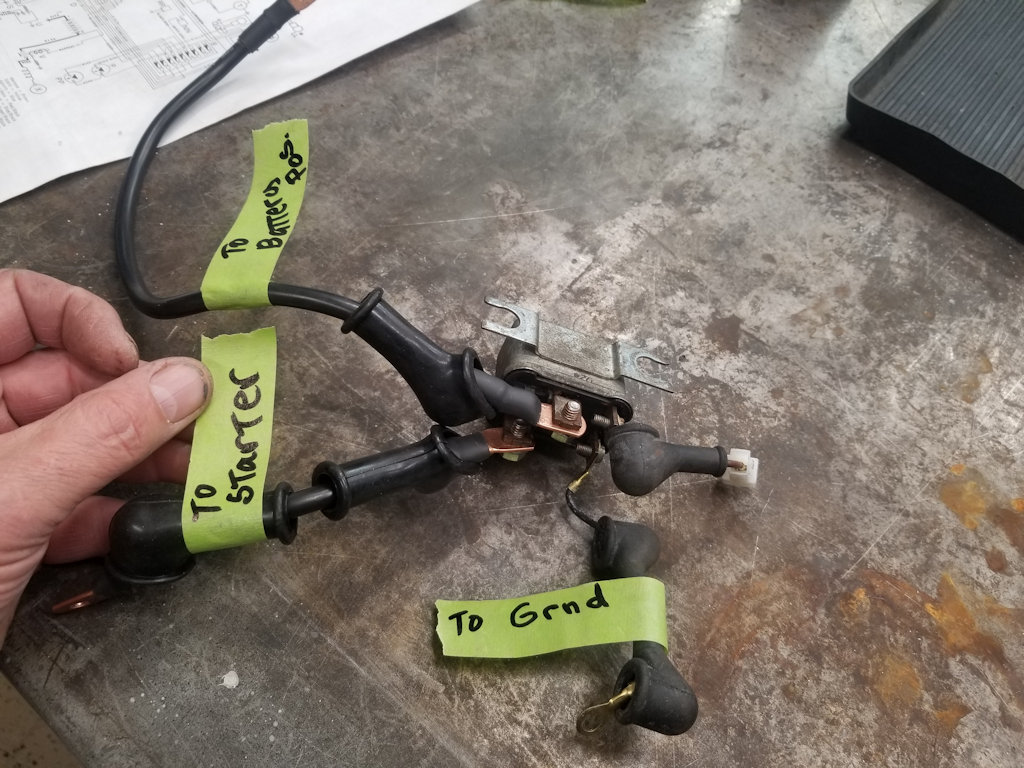

As we discussed last week, I had to dig an original starter relay and mounting bracket out of my stash to donate to a customers V7 Sport project. I was able to purchase the diode board, voltage regulator, and distribution block from the usual suppliers, but the original starter relay and mounting bracket seemed to be unobtainium. Also, while the placement and hookup of most of the components was explained by the available wiring diagram and by your sites installation instructions, the starter relay connections took some noodling. Hopefully, the attached photos will benefit someone attempting this install for the first time.
