Relay connections - flashing lights

Created:
Updated:

The flashing lights relay is located under the fuel tank.

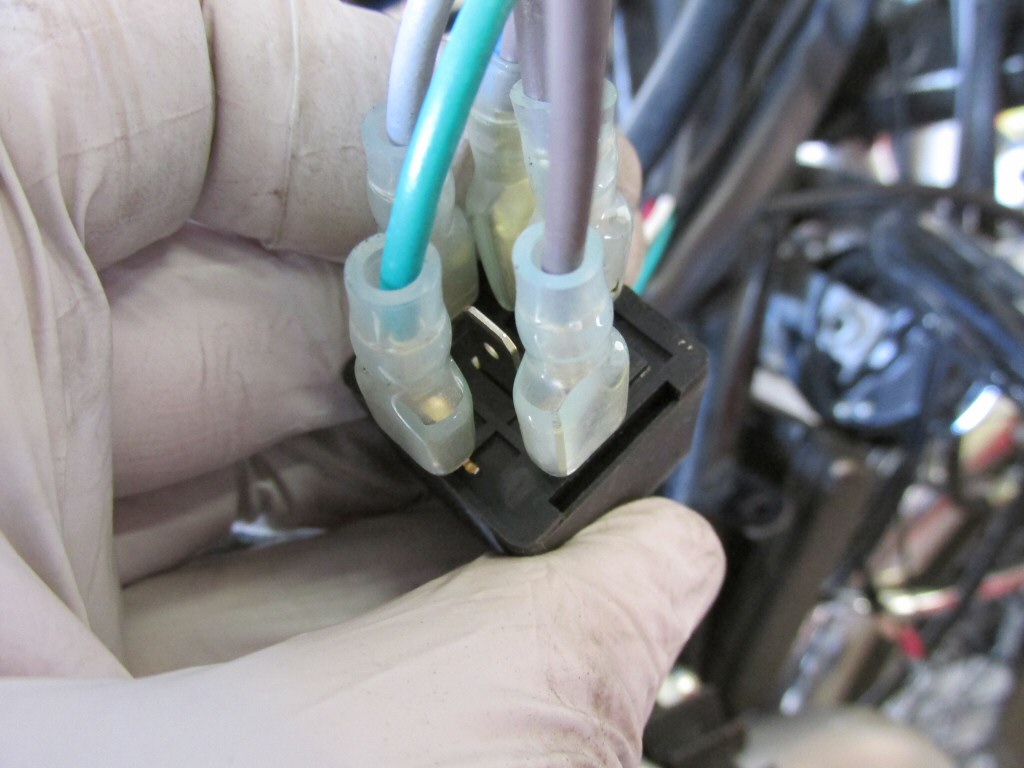

Wiring for the flashing lights relay on a Moto Guzzi V1000 I-Convert.
Wiring for the flashing lights relay on a Moto Guzzi V1000 I-Convert.

Photo courtesy of Gregory Bender.

Wiring for the flashing lights relay on a Moto Guzzi V1000 I-Convert.

Photo courtesy of Gregory Bender.

Direct link to image

Wiring for the flashing lights on a Moto Guzzi V1000 I-Convert.
Wiring for the flashing lights on a Moto Guzzi V1000 I-Convert.

Photo courtesy of Gregory Bender.

Wiring for the flashing lights on a Moto Guzzi V1000 I-Convert.

Photo courtesy of Gregory Bender.

Direct link to image

Wiring for the flashing lights on a Moto Guzzi V1000 I-Convert.
Wiring for the flashing lights on a Moto Guzzi V1000 I-Convert.

Photo courtesy of Gregory Bender.

Wiring for the flashing lights on a Moto Guzzi V1000 I-Convert.

Photo courtesy of Gregory Bender.

Direct link to image

Wiring for the flashing lights on a Moto Guzzi V1000 I-Convert.
Wiring for the flashing lights on a Moto Guzzi V1000 I-Convert.

Photo courtesy of Gregory Bender.

Wiring for the flashing lights on a Moto Guzzi V1000 I-Convert.

Photo courtesy of Gregory Bender.

Direct link to image

V7 Sport flashing lights relay electrical connections

The V7 Sport is not equipped with flashing lights functionality.

750 S flashing lights relay electrical connections

The 750 S is not equipped with flashing lights functionality.

850 T flashing lights relay electrical connections

  • Relay terminal 30 - Brown wire from fuse box

    Note: Another brown wire goes from terminal 30 to the horns. The relay does not actuate the horns. Power to the horns only shares a connection at terminal 30 on the relay.

    Note: Another blue wire goes from terminal 30 to the front brake light switch. The relay does not actuate the brake light. Power to the brake light only shares a connection at terminal 30 on the relay.

  • Relay terminal 85 - Gray wire from switch on left handelbar.
  • Relay terminal 86 - Brown wire from terminal 30

    Note: This terminal is not present on original, 3-terminal relays. Ignore this connection if you are using the original, 3-terminal relay.

  • Relay terminal 87 - Green wire to headlight

750 S3 flashing lights relay electrical connections

  • Relay terminal 30 - Brown wire from fuse box

    Note: Another brown wire goes from terminal 30 to the horns. The relay does not actuate the horns. Power to the horns only shares a connection at terminal 30 on the relay.

    Note: Another blue wire goes from terminal 30 to the front brake light switch. The relay does not actuate the brake light. Power to the brake light only shares a connection at terminal 30 on the relay.

  • Relay terminal 85 - Gray wire from switch on left handelbar.
  • Relay terminal 86 - Brown wire from terminal 30

    Note: This terminal is not present on original, 3-terminal relays. Ignore this connection if you are using the original, 3-terminal relay.

  • Relay terminal 87 - Green wire to headlight

850 T3 flashing lights relay electrical connections

  • Relay terminal 30 - Brown wire from fuse box

    Note: Another brown wire goes from terminal 30 to the horns. The relay does not actuate the horns. Power to the horns only shares a connection at terminal 30 on the relay.

    Note: Another blue wire goes from terminal 30 to the front brake light switch. The relay does not actuate the brake light. Power to the brake light only shares a connection at terminal 30 on the relay.

  • Relay terminal 85 - Gray wire from switch on left handelbar.
  • Relay terminal 86 - Brown wire from terminal 30

    Note: This terminal is not present on original, 3-terminal relays. Ignore this connection if you are using the original, 3-terminal relay.

  • Relay terminal 87 - Green wire to headlight

850 T3 California flashing lights relay electrical connections

  • Relay terminal 30 - Brown wire from fuse box

    Note: Another brown wire goes from terminal 30 to the horns. The relay does not actuate the horns. Power to the horns only shares a connection at terminal 30 on the relay.

    Note: Another blue wire goes from terminal 30 to the front brake light switch. The relay does not actuate the brake light. Power to the brake light only shares a connection at terminal 30 on the relay.

  • Relay terminal 85 - Gray wire from switch on left handelbar.
  • Relay terminal 86 - Brown wire from terminal 30

    Note: This terminal is not present on original, 3-terminal relays. Ignore this connection if you are using the original, 3-terminal relay.

  • Relay terminal 87 - Green wire to headlight

V1000 I-Convert flashing lights relay electrical connections

  • Relay terminal 30 - Brown wire from fuse box

    Note: Another brown wire goes from terminal 30 to the horns. The relay does not actuate the horns. Power to the horns only shares a connection at terminal 30 on the relay.

    Note: Another blue wire goes from terminal 30 to the front brake light switch. The relay does not actuate the brake light. Power to the brake light only shares a connection at terminal 30 on the relay.

  • Relay terminal 85 - Gray wire from switch on left handelbar.
  • Relay terminal 86 - Brown wire from terminal 30

    Note: This terminal is not present on original, 3-terminal relays. Ignore this connection if you are using the original, 3-terminal relay.

  • Relay terminal 87 - Green wire to headlight

V1000 G5 flashing lights relay electrical connections

  • Relay terminal 30 - Brown wire from fuse box

    Note: Another brown wire goes from terminal 30 to the horns. The relay does not actuate the horns. Power to the horns only shares a connection at terminal 30 on the relay.

    Note: Another blue wire goes from terminal 30 to the front brake light switch. The relay does not actuate the brake light. Power to the brake light only shares a connection at terminal 30 on the relay.

  • Relay terminal 85 - Gray wire from switch on left handelbar.
  • Relay terminal 86 - Brown wire from terminal 30

    Note: This terminal is not present on original, 3-terminal relays. Ignore this connection if you are using the original, 3-terminal relay.

  • Relay terminal 87 - Green wire to headlight

1000 SP flashing lights relay electrical connections

  • Relay terminal 30 - Brown wire from fuse box

    Note: Another brown wire goes from terminal 30 to the horns. The relay does not actuate the horns. Power to the horns only shares a connection at terminal 30 on the relay.

  • Relay terminal 85 - Gray wire from switch on left handlebar.
  • Relay terminal 86 - Brown wire from terminal 30
  • Relay terminal 87 - Green wire to headlight

1000 SP II flashing lights relay electrical connections

The 1000 SP II harness does not use a separate relay to actuate the flashing lights functionality.

850 Le Mans flashing lights relay electrical connections

  • Relay terminal 30 - Brown wire from fuse box

    Note: Another brown wire goes from terminal 30 to the horn. The relay does not actuate the horn. Power to the horn only shares a connection at terminal 30 on the relay.

    Note: Another blue wire goes from terminal 30 to the front brake light switch (through the 12-pin Molex connection). The relay does not actuate the brake light. Power to the brake light only shares a connection at terminal 30 on the relay.

  • Relay terminal 85 - Gray wire from switch on left handelbar (through the 15-pin Molex connection).
  • Relay terminal 86 - Brown wire from terminal 30

    Note: This terminal is not present on original, 3-terminal relays. Ignore this connection if you are using the original, 3-terminal relay.

  • Relay terminal 87 - Green wire to headlight (through the 12-pin Molex connection).

Le Mans II flashing lights relay electrical connections

  • Relay terminal 30 - Brown wire from fuse box

    Note: Another brown wire goes from terminal 30 to the horns. The relay does not actuate the horns. Power to the horns only shares a connection at terminal 30 on the relay.

  • Relay terminal 85 - Gray wire from switch on left handlebar.
  • Relay terminal 86 - Brown wire from terminal 30
  • Relay terminal 87 - Gray/Green wire to headlight

Le Mans CX 100 flashing lights relay electrical connections

  • Relay terminal 30 - Brown wire from fuse box

    Note: Another brown wire goes from terminal 30 to the horns. The relay does not actuate the horns. Power to the horns only shares a connection at terminal 30 on the relay.

  • Relay terminal 85 - Gray wire from switch on left handlebar.
  • Relay terminal 86 - Brown wire from terminal 30
  • Relay terminal 87 - Gray/Green wire to headlight

Le Mans III flashing lights relay electrical connections

  • Relay terminal 30 - Brown wire from fuse box

    Note: Another brown wire goes from terminal 30 to the horns. The relay does not actuate the horns. Power to the horns only shares a connection at terminal 30 on the relay.

  • Relay terminal 85 - Gray wire from switch on left handlebar.
  • Relay terminal 86 - Brown wire from terminal 30
  • Relay terminal 87 - Gray/Green wire to headlight

Le Mans 1000 flashing lights relay electrical connections

The Le Mans 1000 harness does not use a separate relay to actuate the flashing lights functionality.

California II flashing lights relay electrical connections

  • Relay terminal 30 - Brown wire from fuse box

    Note: Another brown wire goes from terminal 30 to the horns. The relay does not actuate the horns. Power to the horns only shares a connection at terminal 30 on the relay.

  • Relay terminal 85 - Gray wire from switch on left handlebar.
  • Relay terminal 86 - Brown wire from terminal 30
  • Relay terminal 87 - Gray/Green wire to headlight
