Wiring sub-harness: (police) turn signal dash indicator lights: MG# 13748140

Created:
Updated:

Buy a new duplicate of this original wiring harness

This sub-harness connects the 3 connection female spade connectors to each turn signal indicator light on the dash. It also provides functionality for the left push-pull switch on the dash (what Moto Guzzi calls the supplementary light, additional light for police duties, or courtesy light switch). This sub-harness is only used on police models.

Sub-harness connecting the 3 connection female spade connectors to each turn signal indicator light on the dash. It also provides functionality for the left push-pull switch on the dash (what Moto Guzzi calls the supplementary light, additional light for police duties, or courtesy light switch).
Sub-harness connecting the 3 connection female spade connectors to each turn signal indicator light on the dash. It also provides functionality for the left push-pull switch on the dash (what Moto Guzzi calls the supplementary light, additional light for police duties, or courtesy light switch).

Photo courtesy of Gregory Bender.

Direct link to image

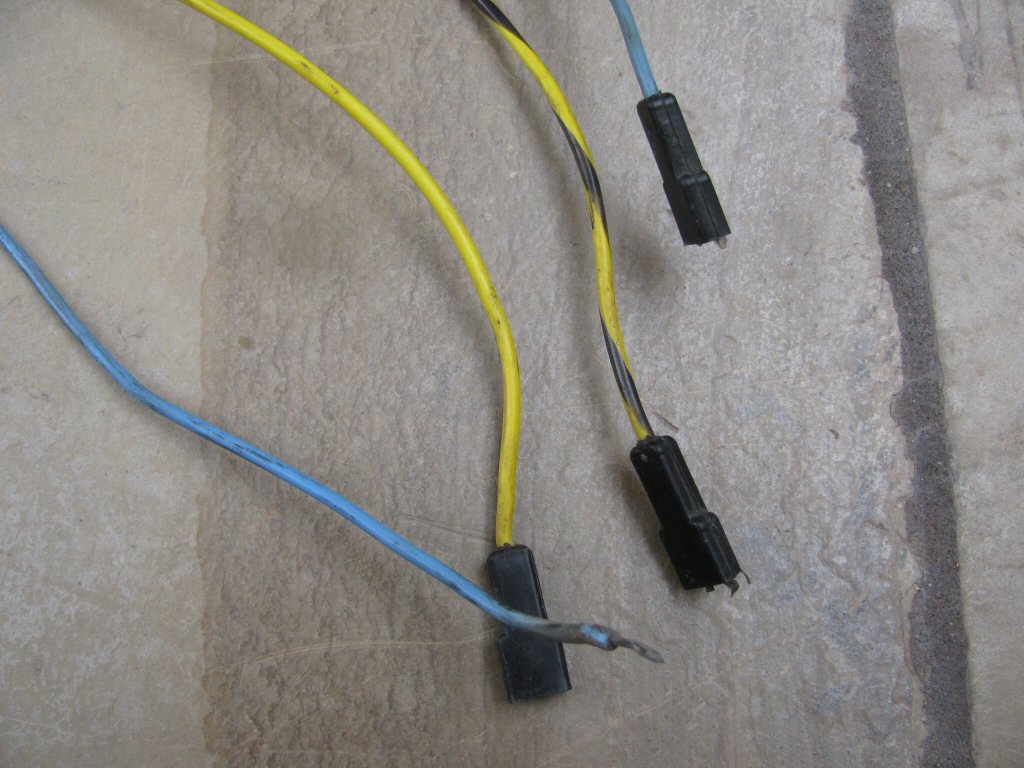

Sub-harness connecting the 3 connection female spade connectors to each turn signal indicator light on the dash. It also provides functionality for the left push-pull switch on the dash (what Moto Guzzi calls the supplementary light, additional light for police duties, or courtesy light switch).
Sub-harness connecting the 3 connection female spade connectors to each turn signal indicator light on the dash. It also provides functionality for the left push-pull switch on the dash (what Moto Guzzi calls the supplementary light, additional light for police duties, or courtesy light switch).

Photo courtesy of Gregory Bender.

Direct link to image
