Please note also that all of these schematics, whether I've
improved them or not, are the property of Moto Guzzi. They
should not be copied or reproduced in violation of applicable
copyright laws.

A little note on the current "updates". As I transition from an elderly version
of Canvas (3.56 on my old Mac G5) to Canvas 12 or 14 running under Windows 7
under VMWare on my iMac, I'm faced with correcting errors caused by the new version
file translator for older versions. Every arc is screwed, most circles aren't, font
kerning is messed up (mismatch between Windows and OSX font sets probably) and groups
of objects "blow up". They all have to be fixed. Manually. When I finish, I just go
ahead and save the new gif file at 300dpi for clarity. Storage space for files on
servers isn't as tight as when I started out so long ago with a mere 2Mb of space.

If you find and error, send an email to guzzi007 <-at-> npgcable.com, put
"schematic" somewhere in the subject line and in the body, mention specifically
the schematic you're referring to, or the URL. If the schematic is at
guzzitech, I'll have to forward the correction to Todd over there as I
have no access to that set of drawings.

Note that links to pdf versions are broken links until I'm finished. Caveat Emptor.

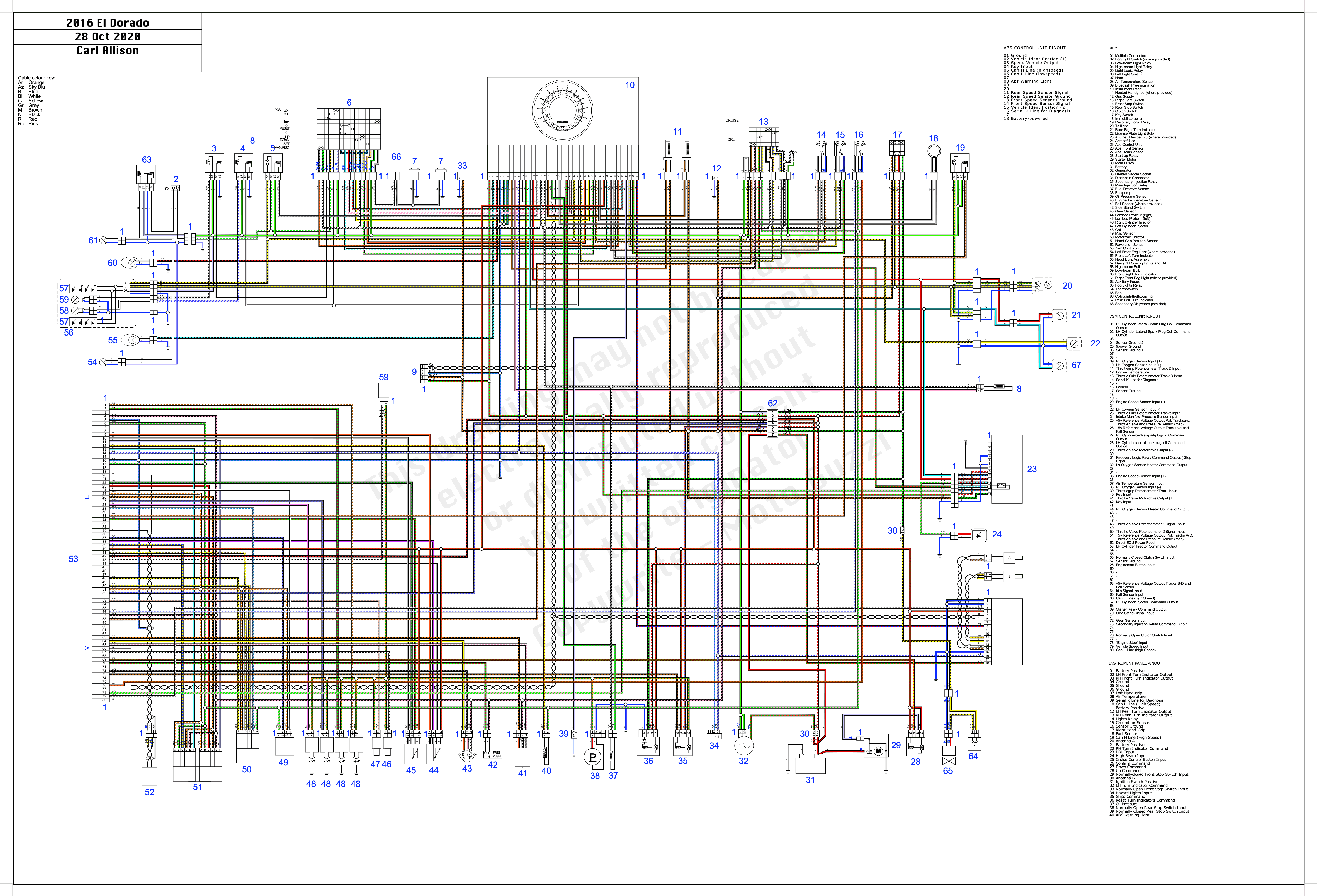

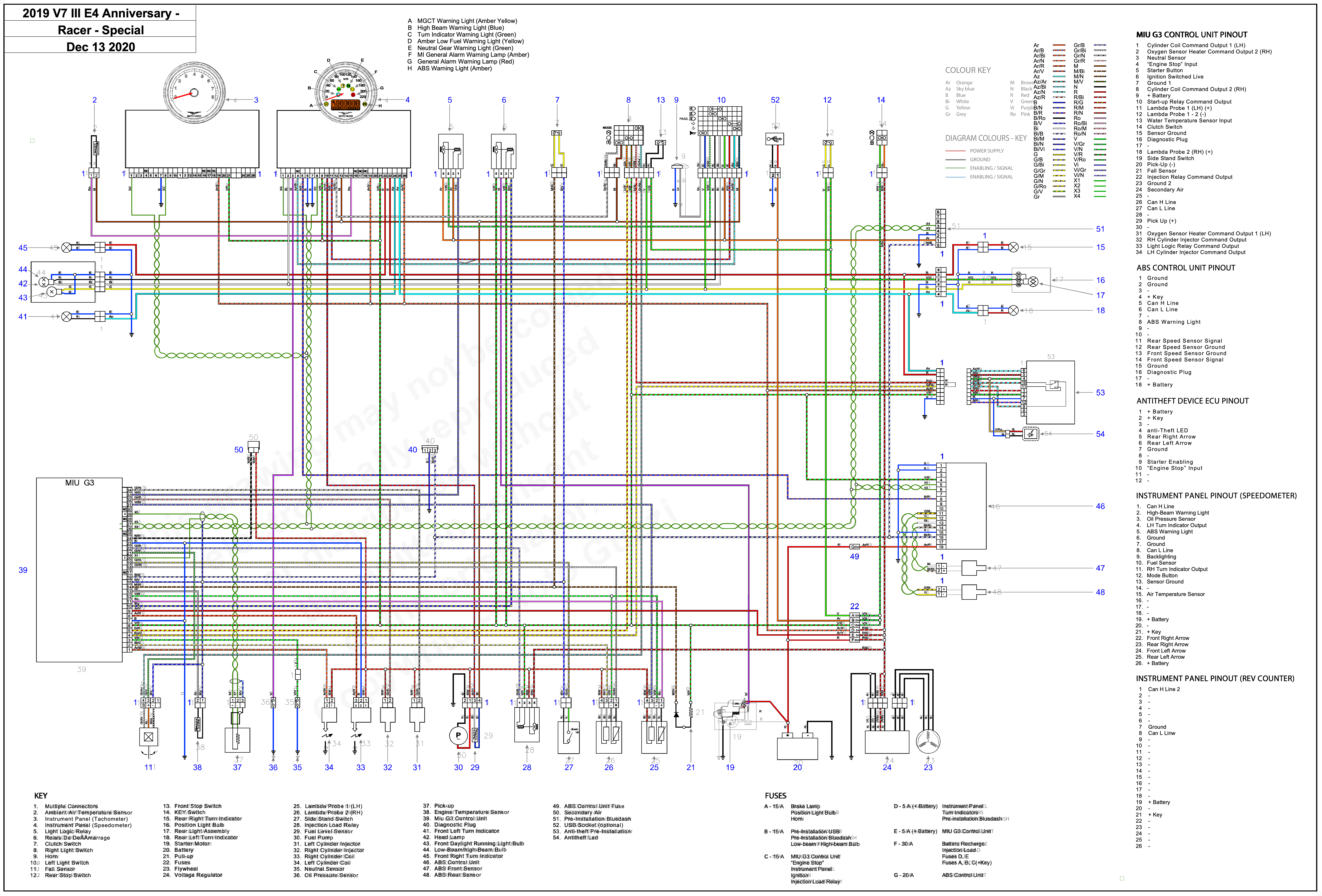

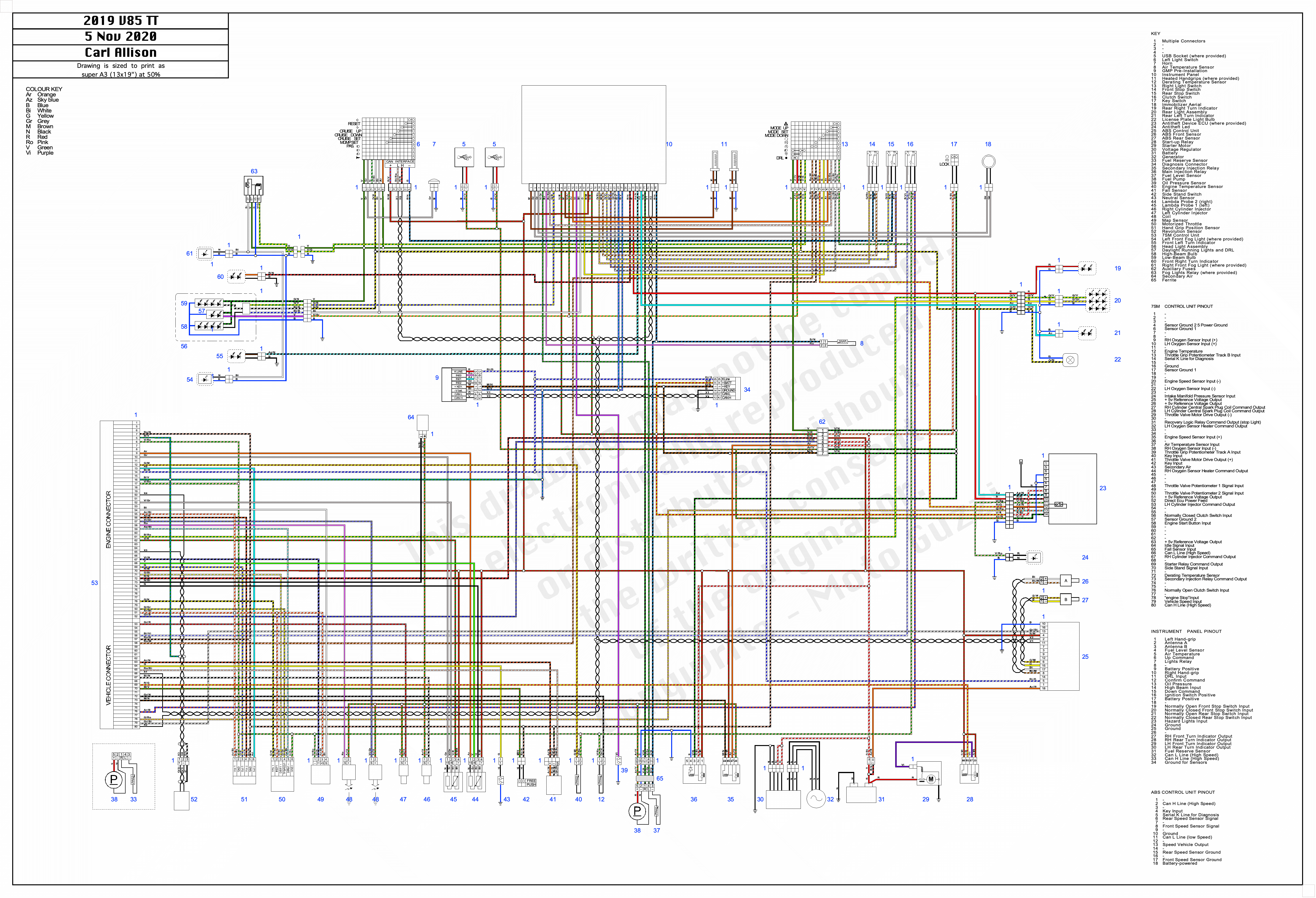

Moto Guzzi color wiring schematics

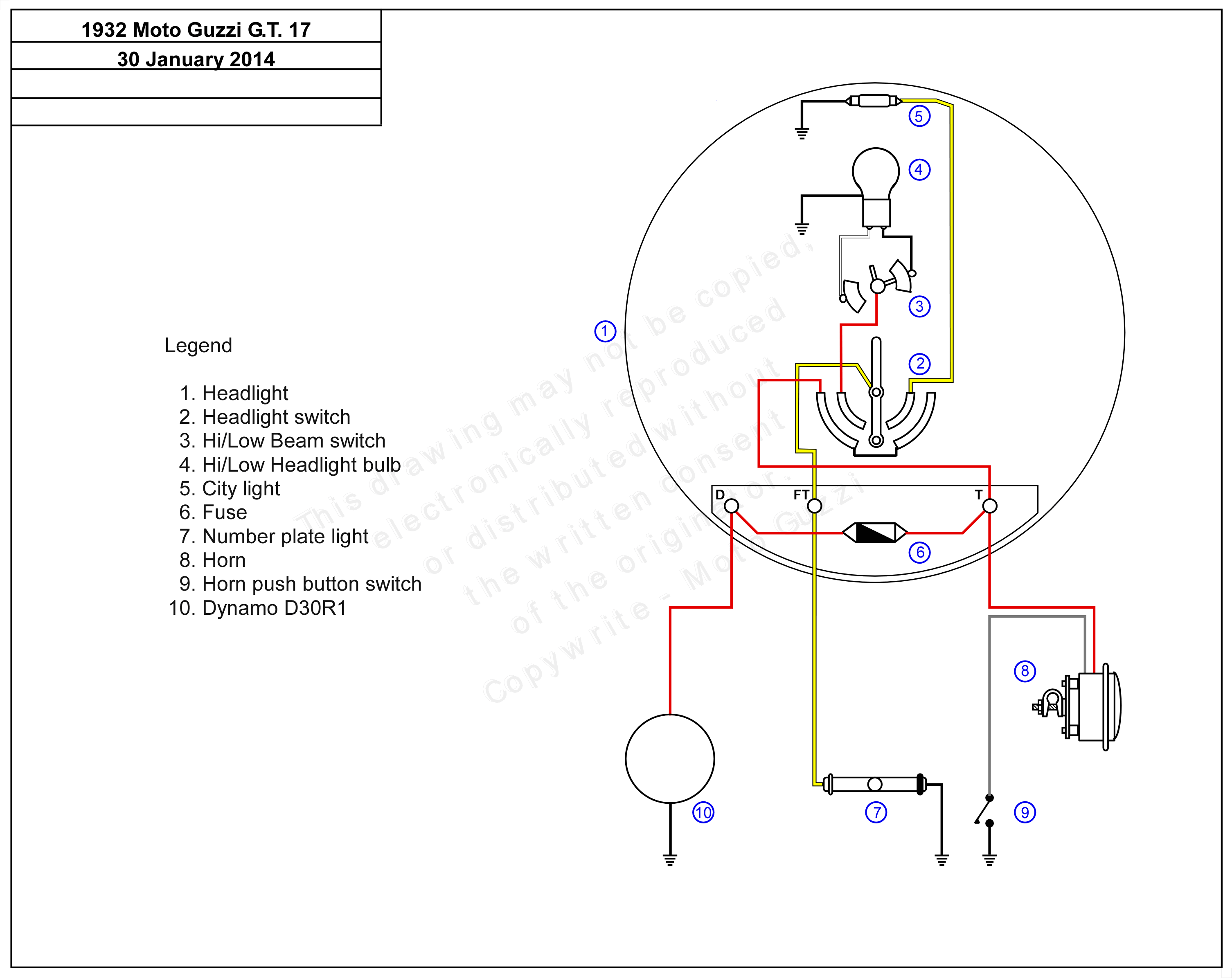

1932 G.T. 17 gif pdf (updated 01/30/2014) Vintage and Singles

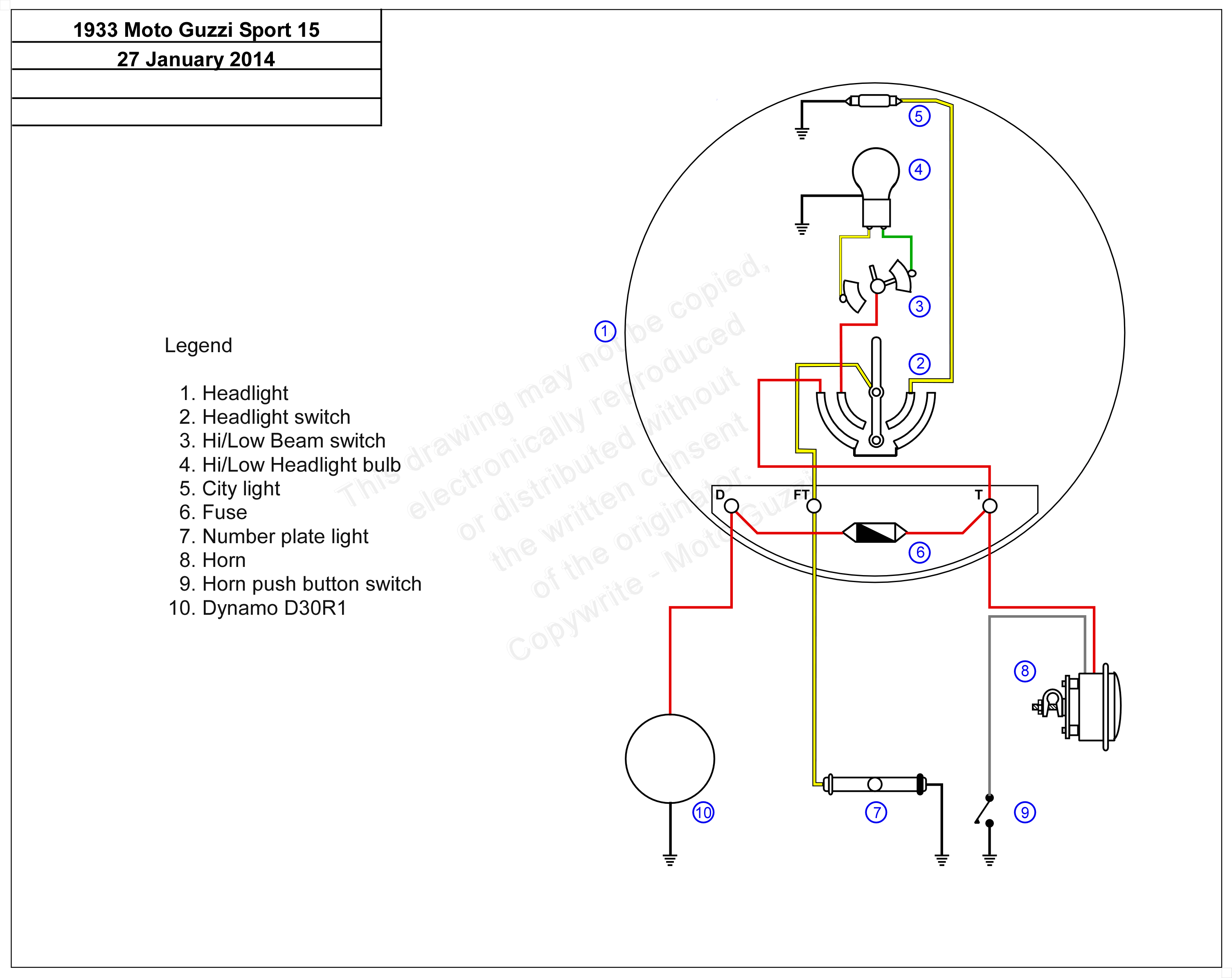

1933 Sport 15 gif pdf (updated 01/27/2014) Vintage and Singles

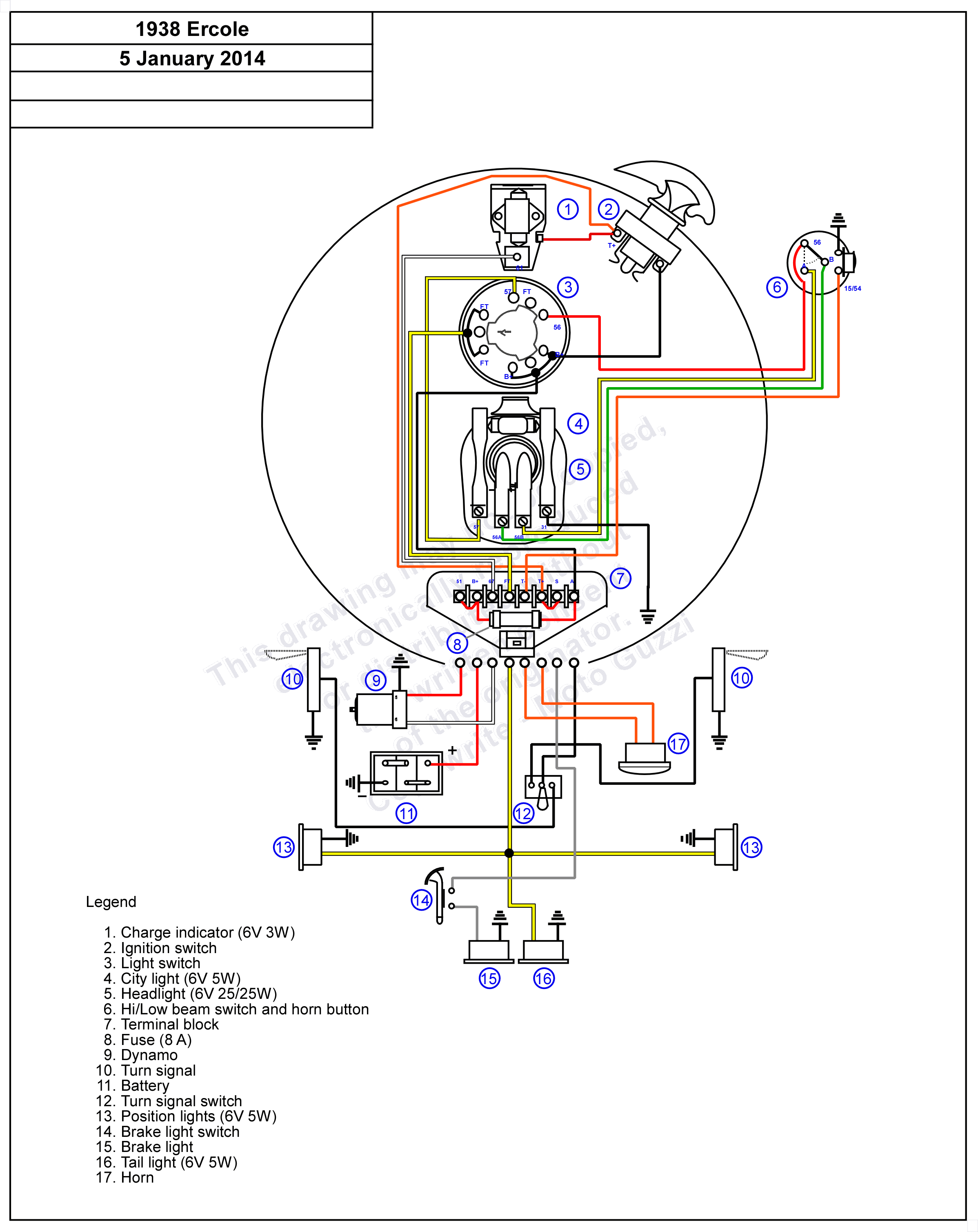

1938 Ercole gif pdf (updated 01/05/2014) Vintage and Singles
1939 Airone-250ST gif pdf (updated 01/05/2014) Vintage and Singles

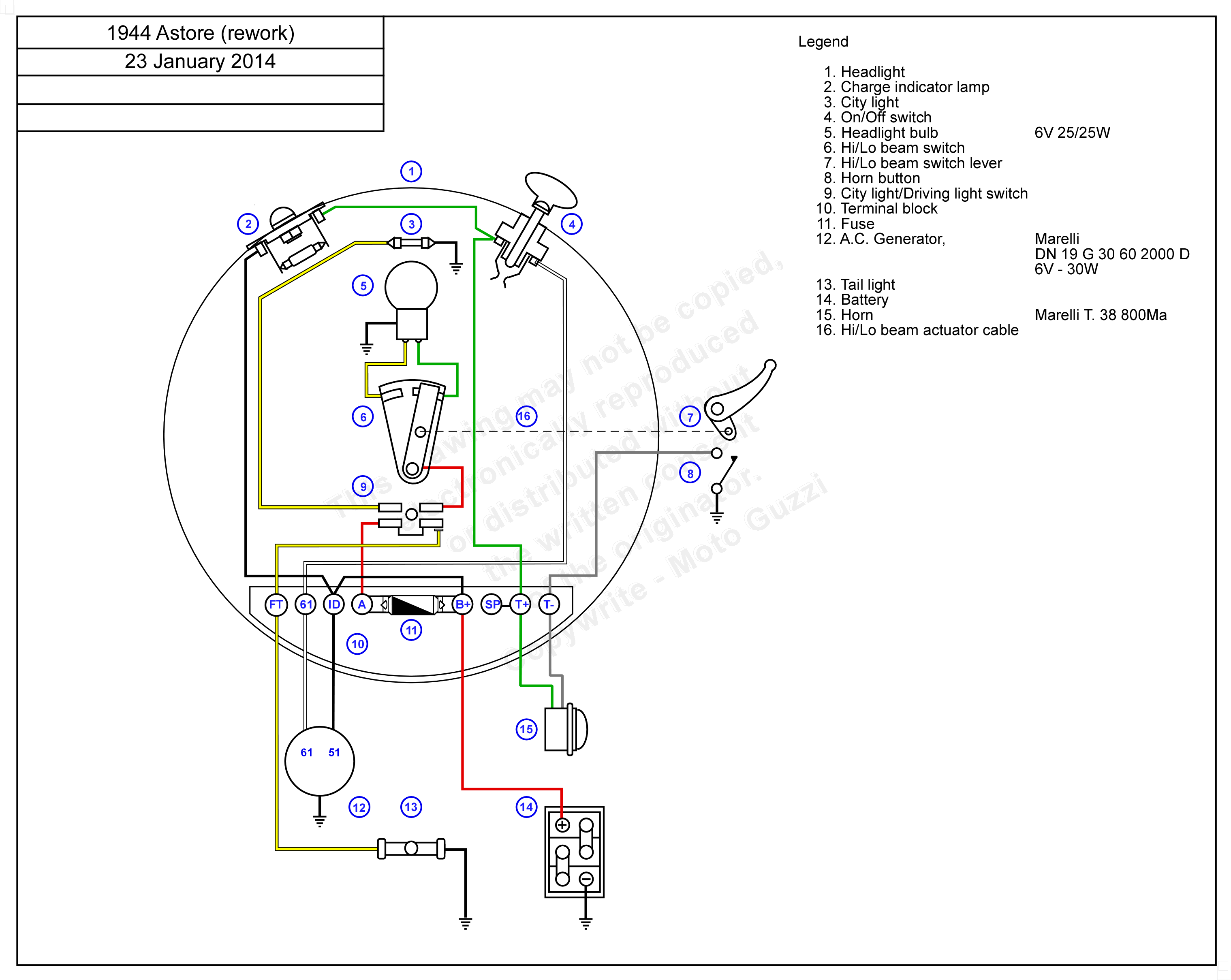

1944 Astore gif pdf (updated 01/23/2014) Vintage and Singles

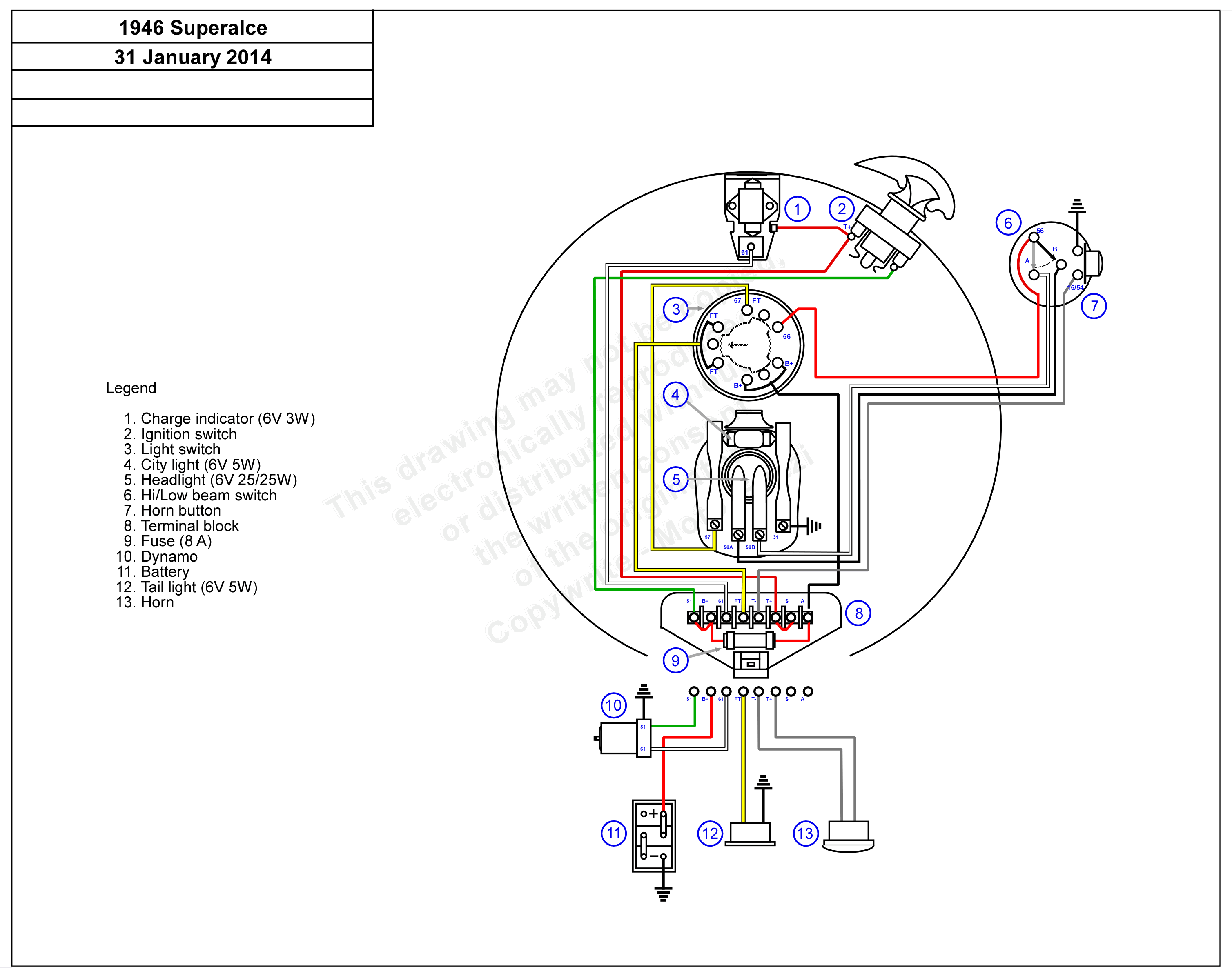

1946 Superalce gif pdf (updated 01/31/2014) Vintage and Singles
1951 Falcone gif pdf (updated 01/30/2014) Vintage and Singles

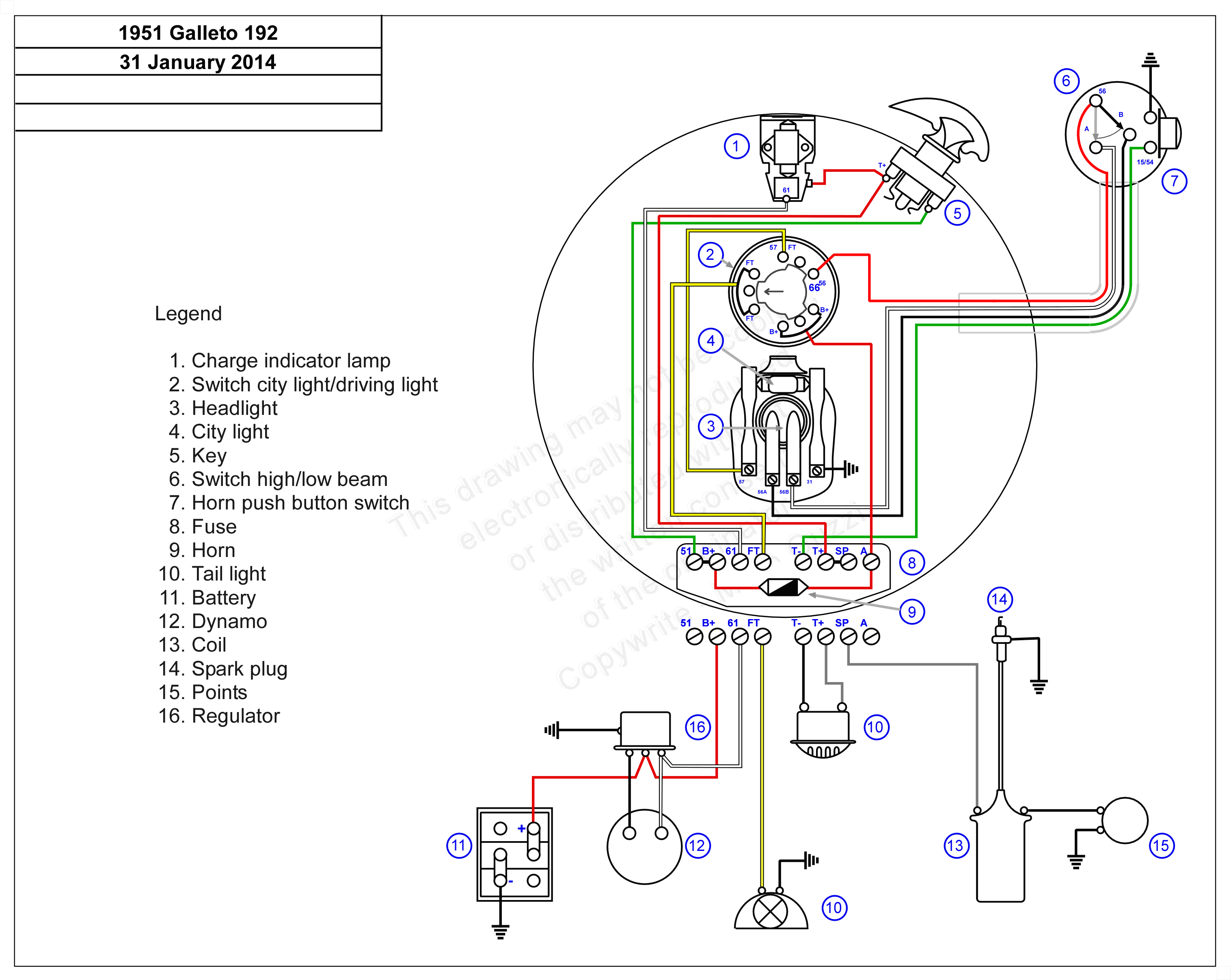

1951 Galleto gif pdf (updated 01/12/2014) Vintage and Singles
1953 Ziggolo gif pdf (updated 01/12/2014) Vintage and Singles
1954 Galletto 192 gif pdf (updated 01/12/2014) Vintage and Singles
1955 Ercole gif pdf (updated 02/16/2014) Vintage and Singles

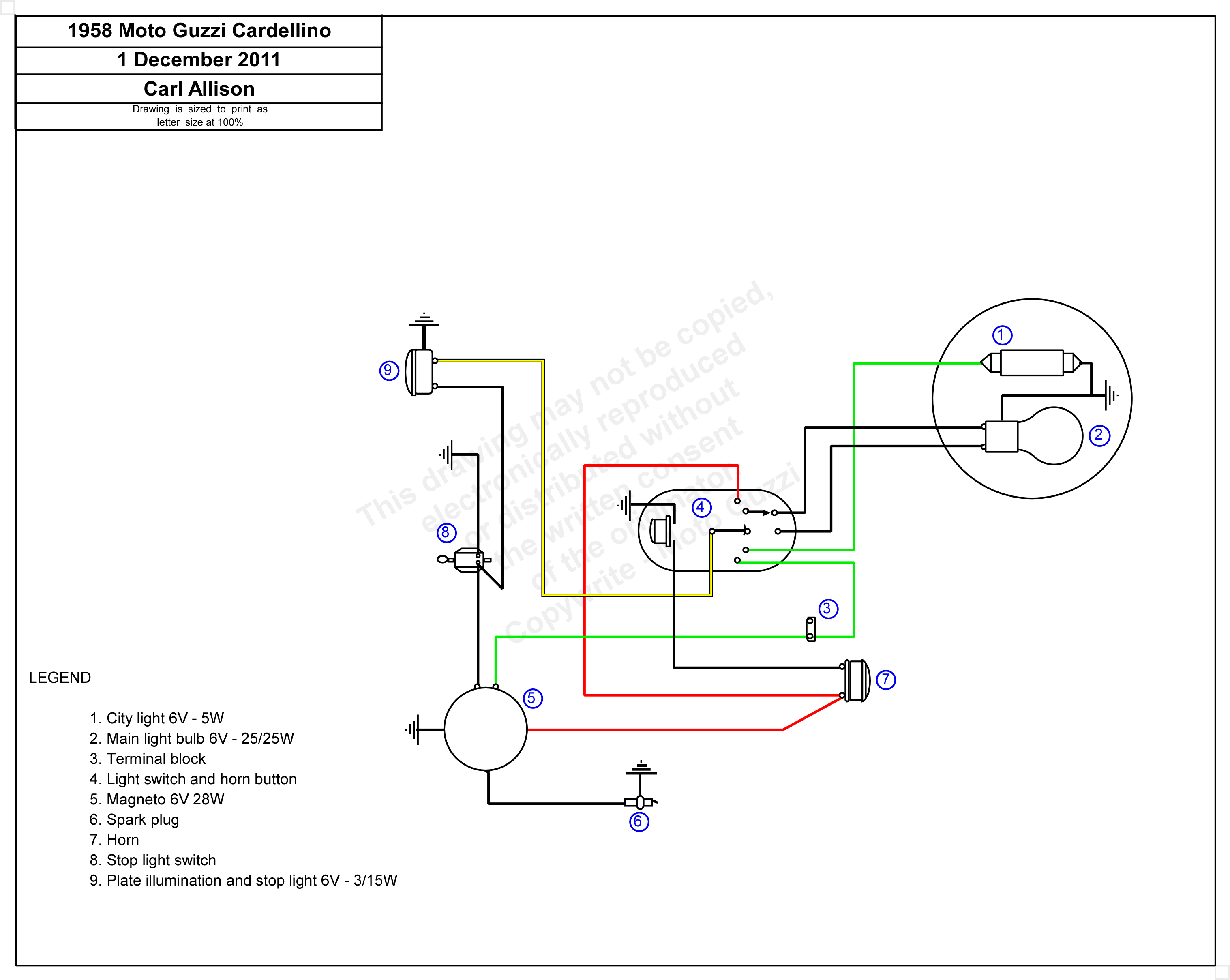

1958 Cardellino gif pdf (updated 01/30/2014) Vintage and Singles

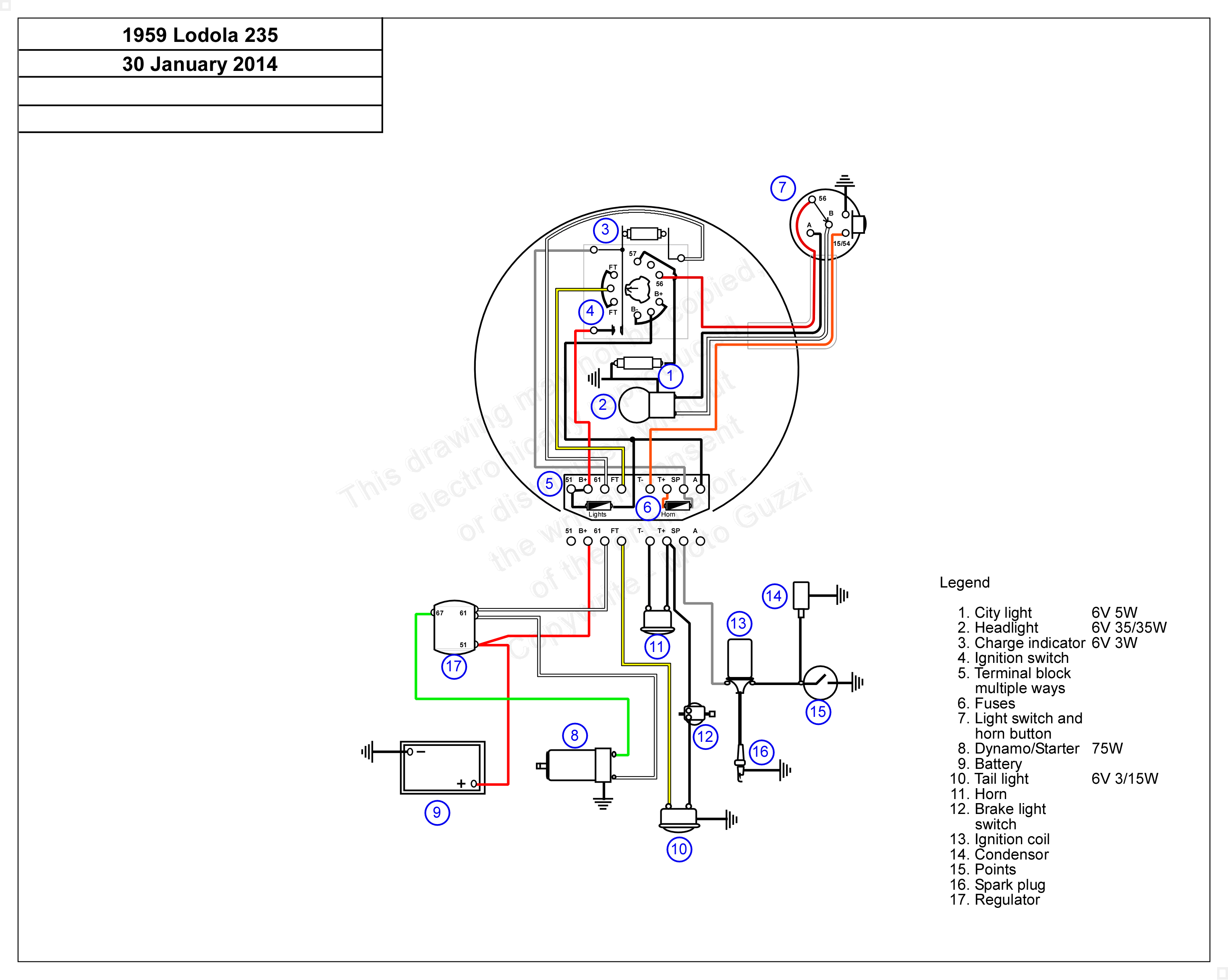

1959 Lodola 235 gif pdf (updated 01/30/2014) Vintage and Singles
1960 Stornello 125-160 gif pdf (updated 01/14/2014) Vintage and Singles
1962 Falcone gif pdf (updated 01/07/2014) Vintage and Singles
1967 Dingo gif pdf (updated 01/31/2014) Vintage and Singles

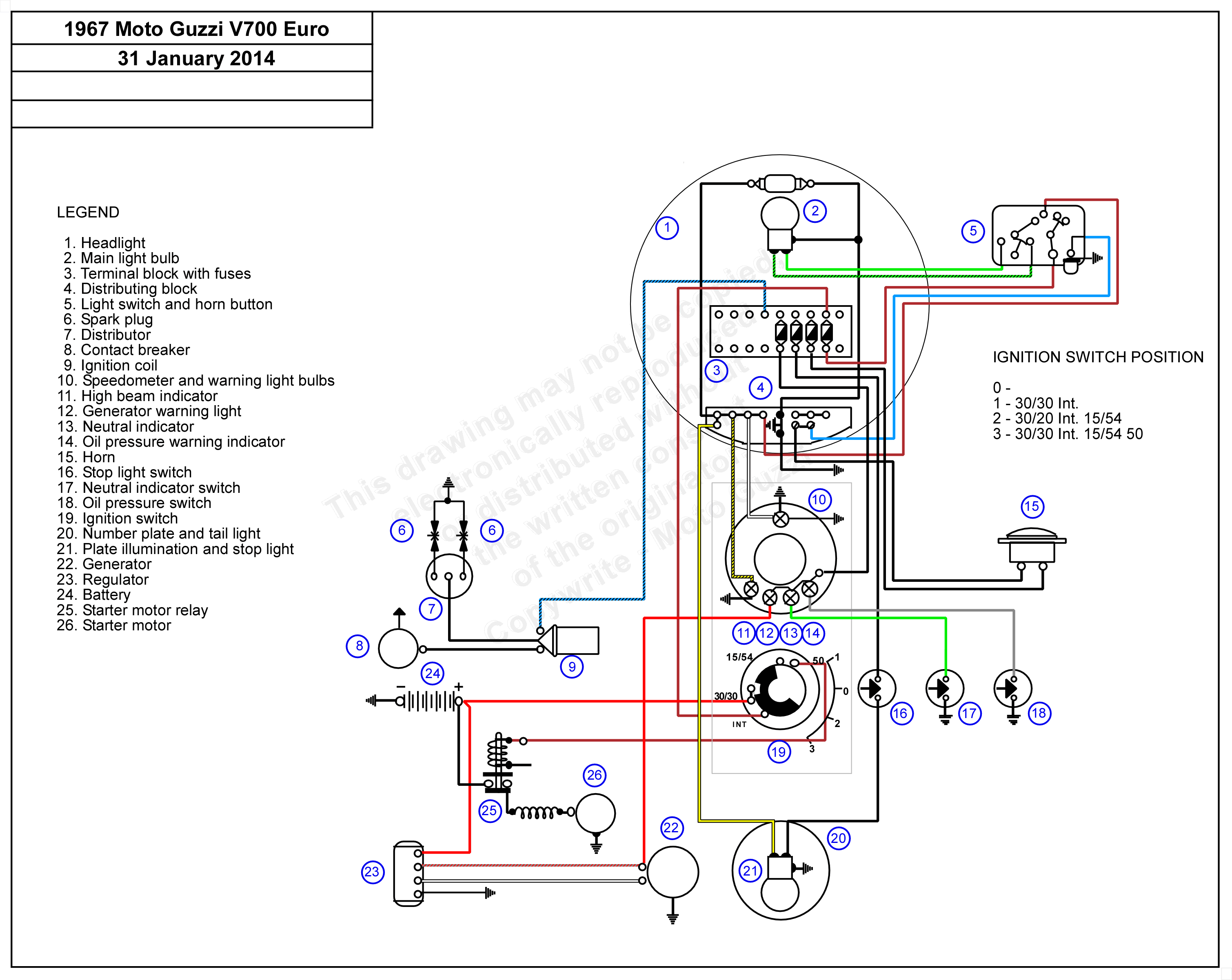

1967 V700 Euro gif pdf (updated 01/31/2014) Loop Frame

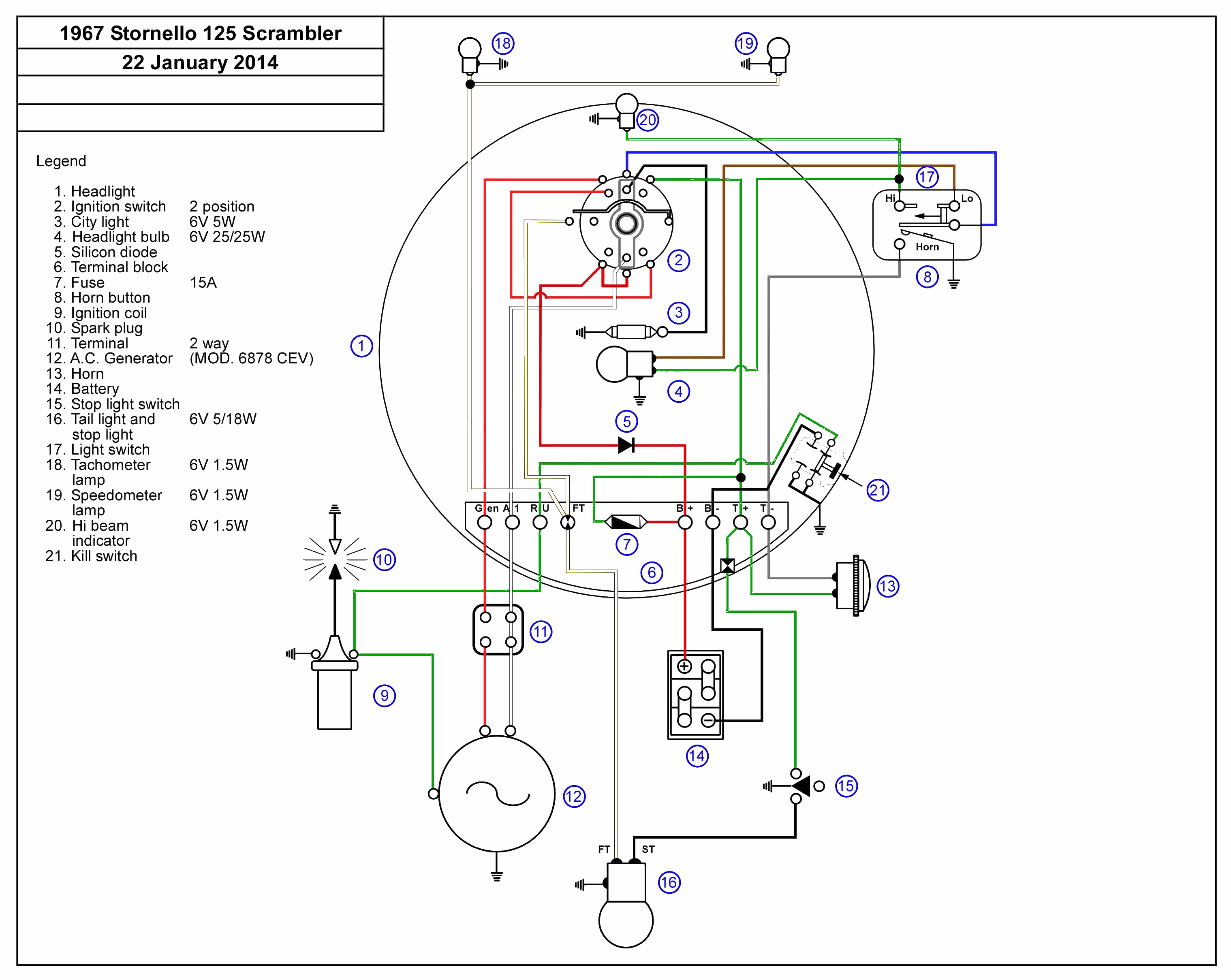

1967 Stornello Scrambler gif pdf (updated 01/22/2014) Vintage and Singles

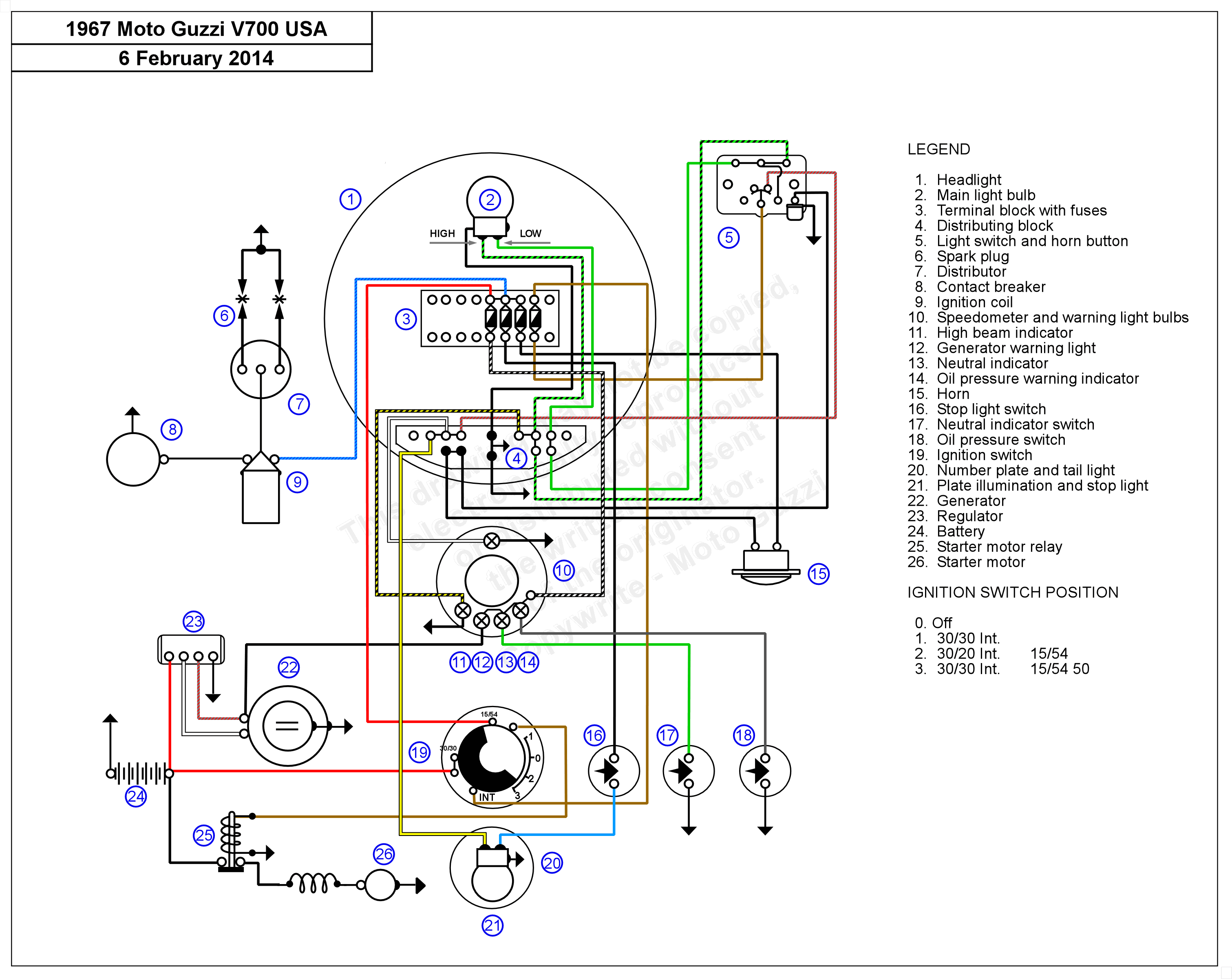

1967 V700 USA gif pdf (updated 02/06/2014) Loop Frame

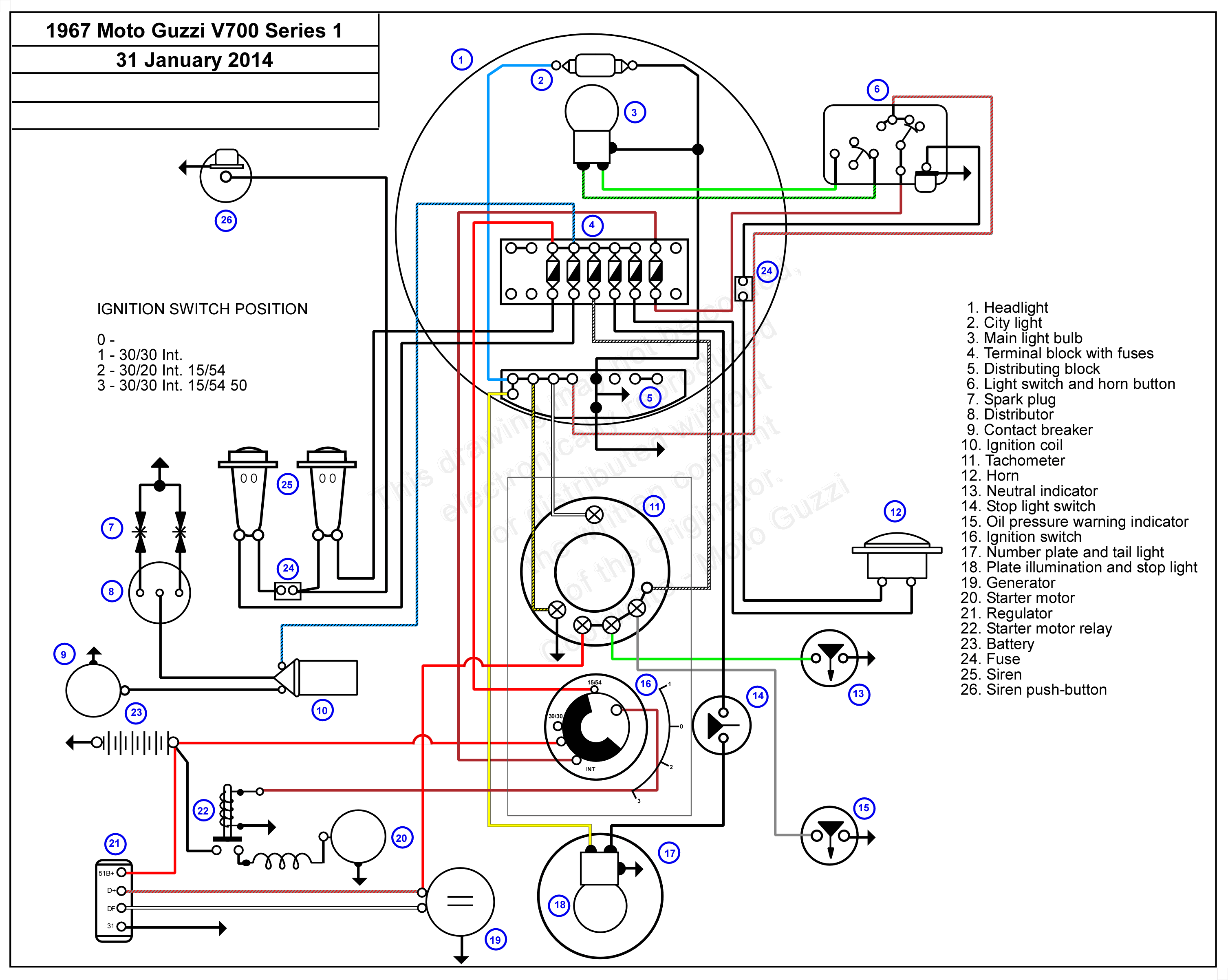

1967 V700 Police Series 1 gif pdf (updated 01/31/2014) Loop Frame

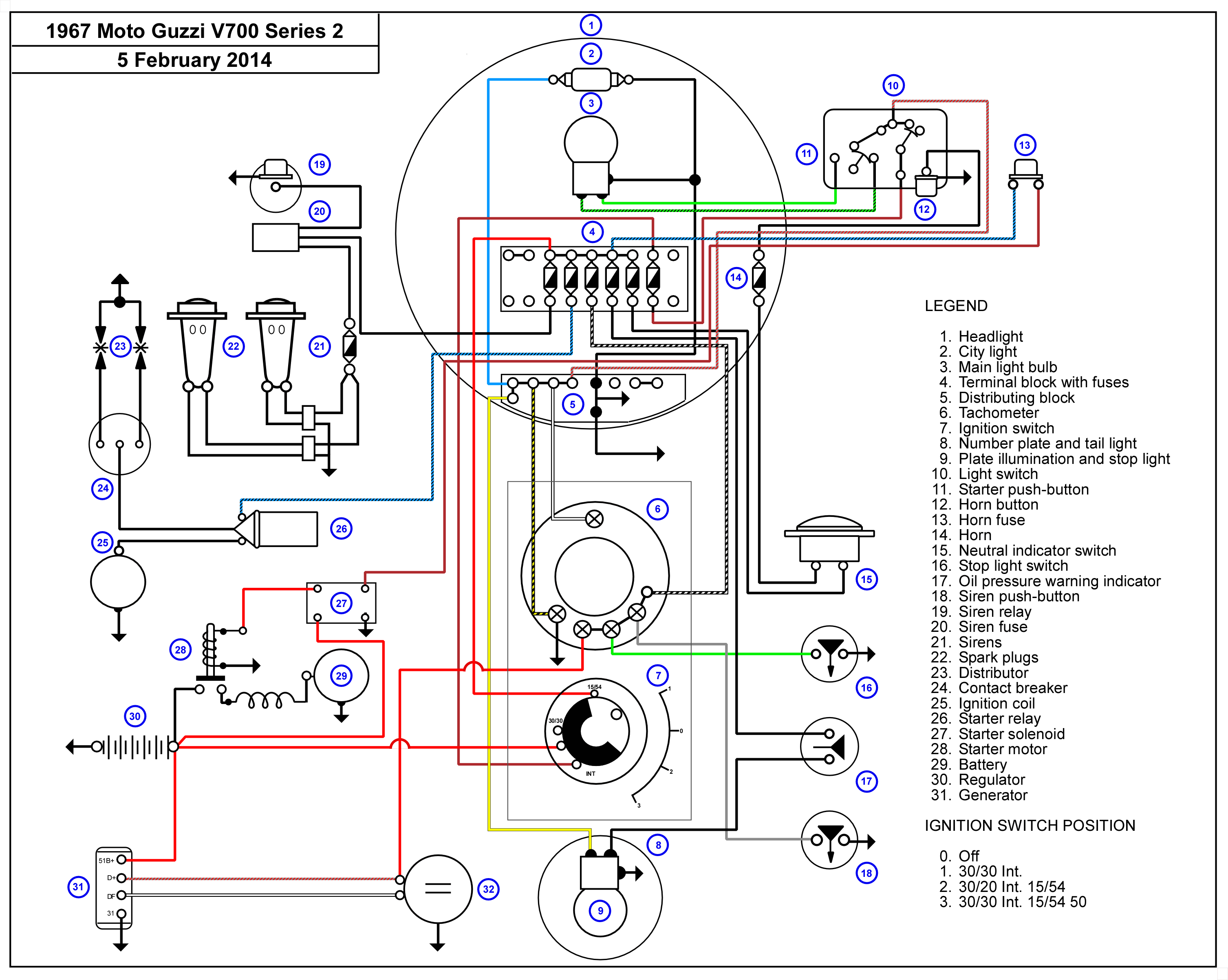

1967 V700 Police Series 2 gif pdf (updated 02/05/2014) Loop Frame
1968 Stornello 1 gif pdf (updated 08/30/2014) Vintage and Singles

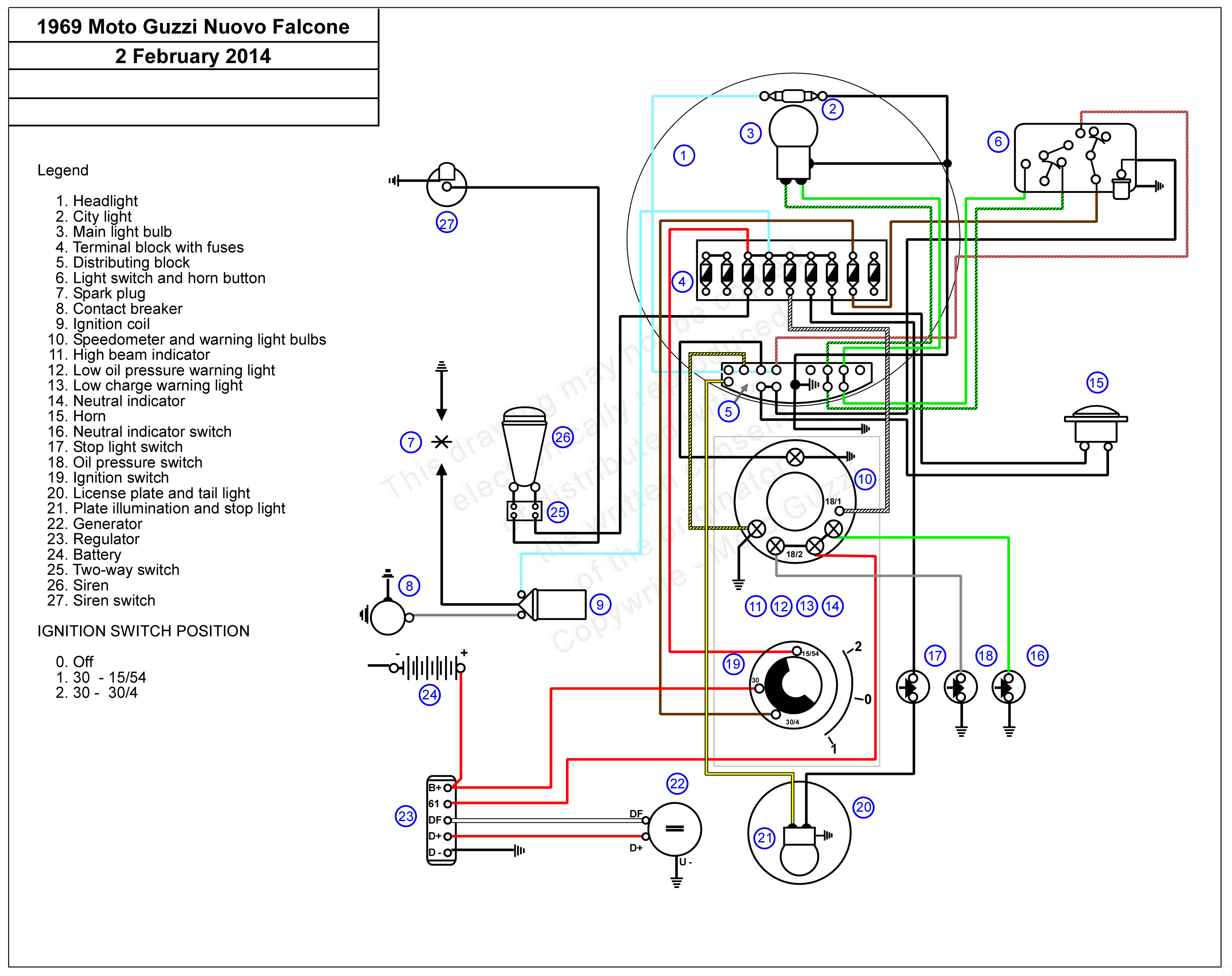

1969 Nuovo Falcone gif pdf (updated 02/02/2014) Vintage and Singles
1969 V750 Euro gif pdf (updated 01/02/2014) Tonti Frame
1969 V750 USA gif pdf (updated 02/02/2014) Tonti Frame

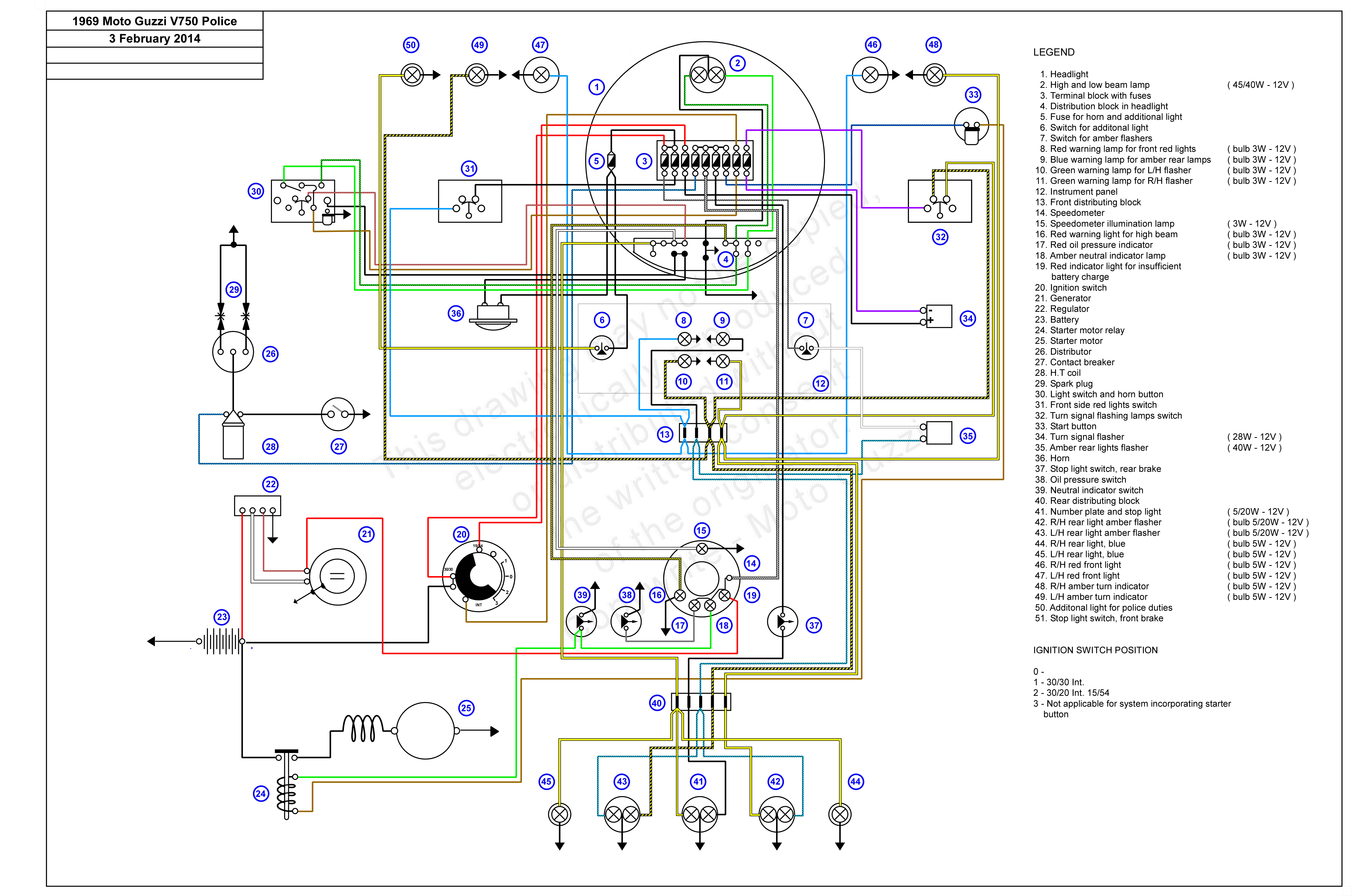

1969 V750 Police gif pdf (updated 02/03/2014) Loop Frame
1970 Stornello 5 gif pdf (updated 02/03/2014) Vintage and Singles
1971 V7 Sport gif pdf (updated 02/04/2014) Tonti Frame
1973 250 TS gif pdf (updated 01/10/2014) Vintage and Singles
1973 V850 Police gif pdf (updated 02/04/2014) Tonti Frame
1973 V850 USA gif pdf (updated 02/06/2014) Tonti Frame
1974 850T Euro gif pdf (updated 02/11/2014) Tonti Frame
1974 850T USA gif pdf (updated 02/11/2014) Tonti Frame

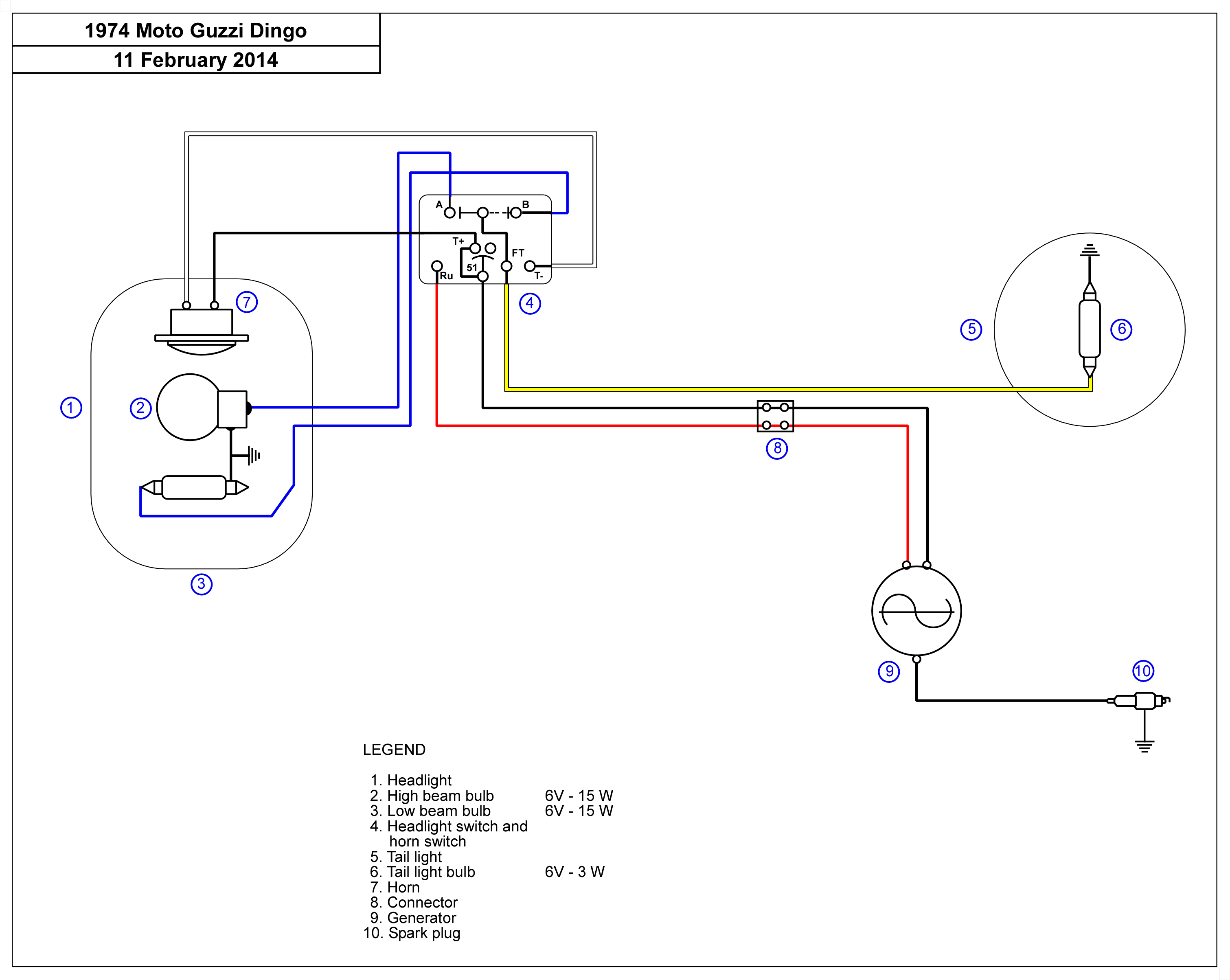

1974 Dingo gif pdf (updated 02/11/2014) Vintage and Singles

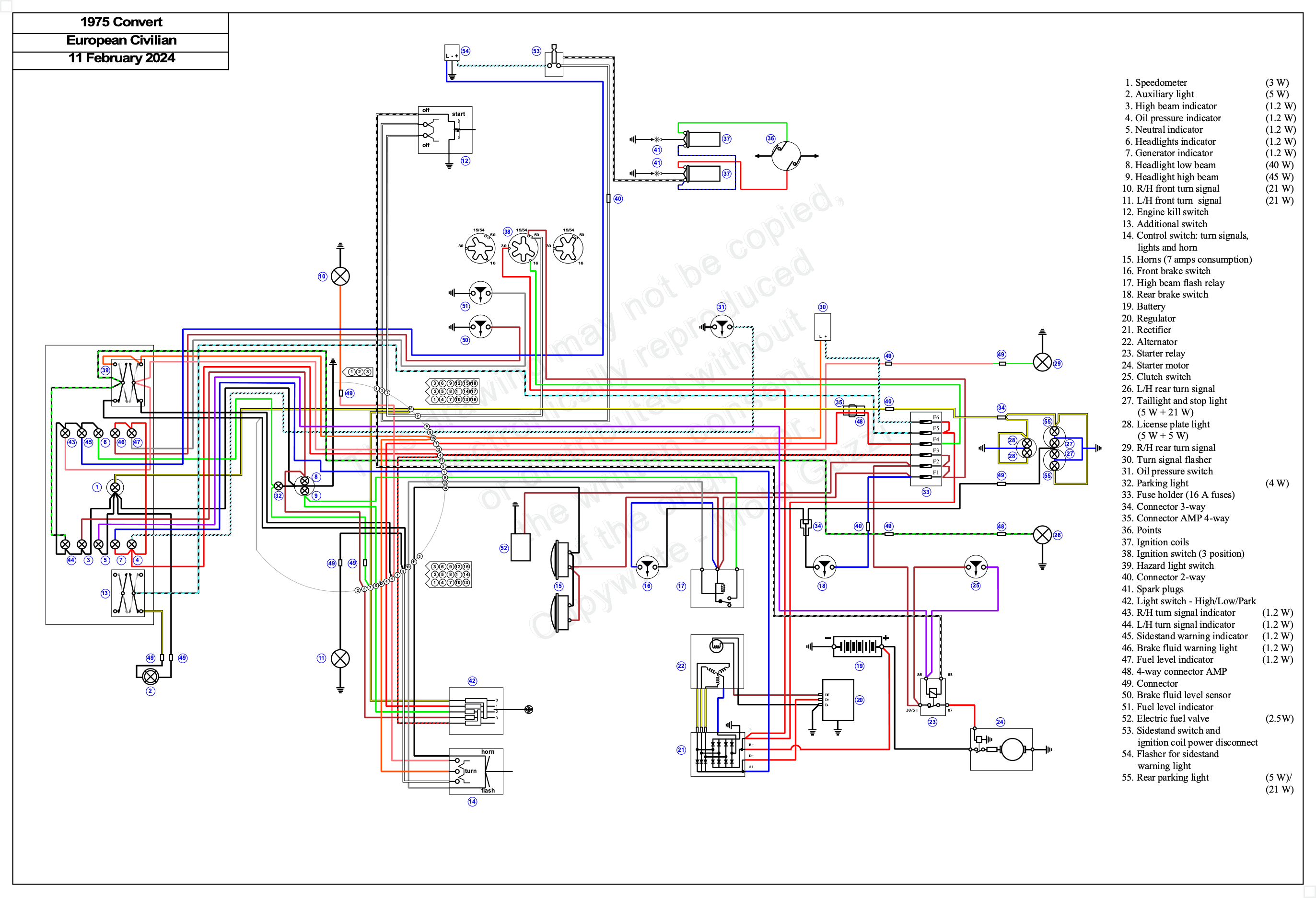

1975 Convert Europe gif pdf (updated 02/11/2014) Tonti Frame

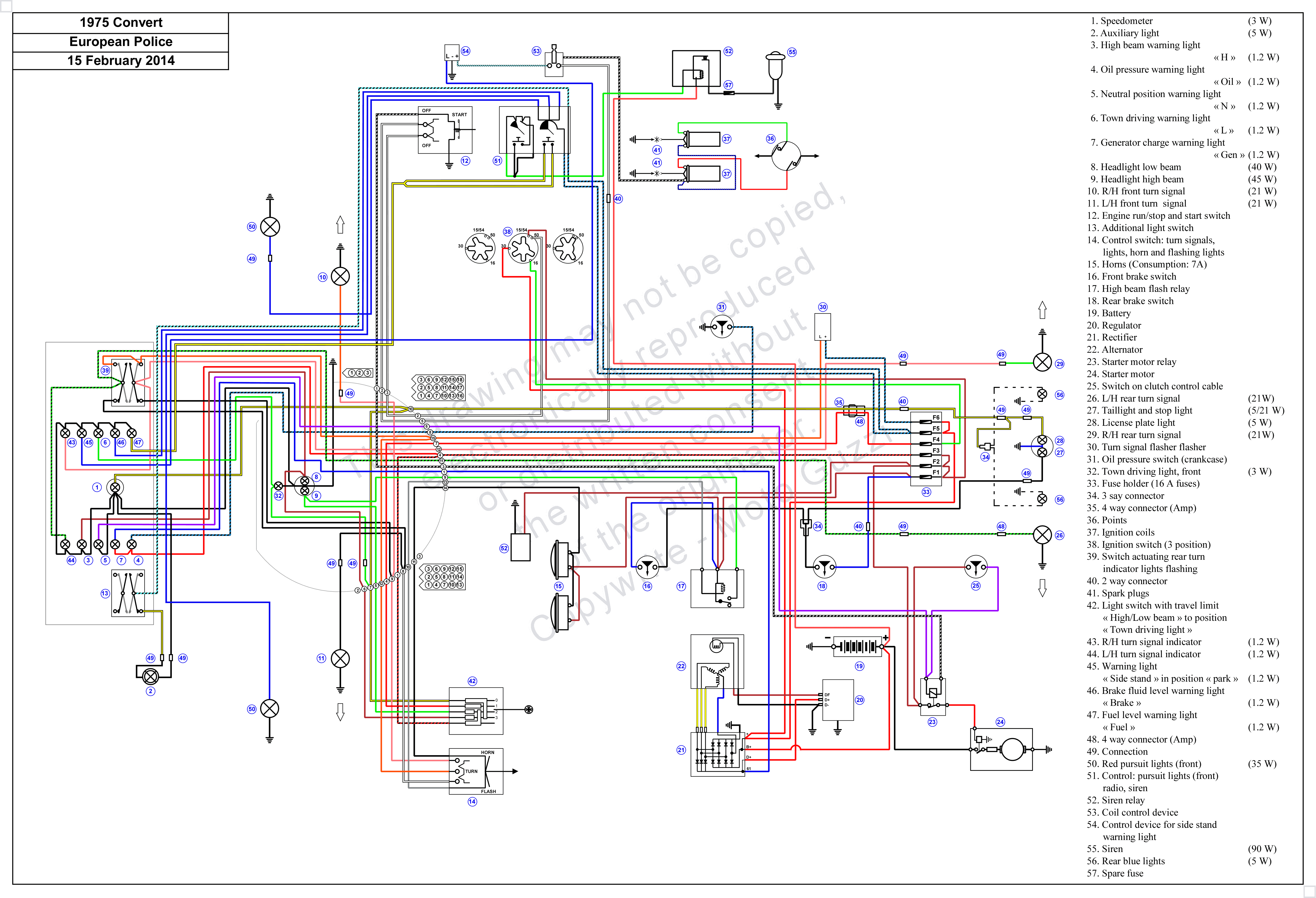

1975 Convert Europe Police gif pdf (updated 02/15/2014) Tonti Frame
1975 Convert USA gif pdf (updated 02/16/2014) Tonti Frame

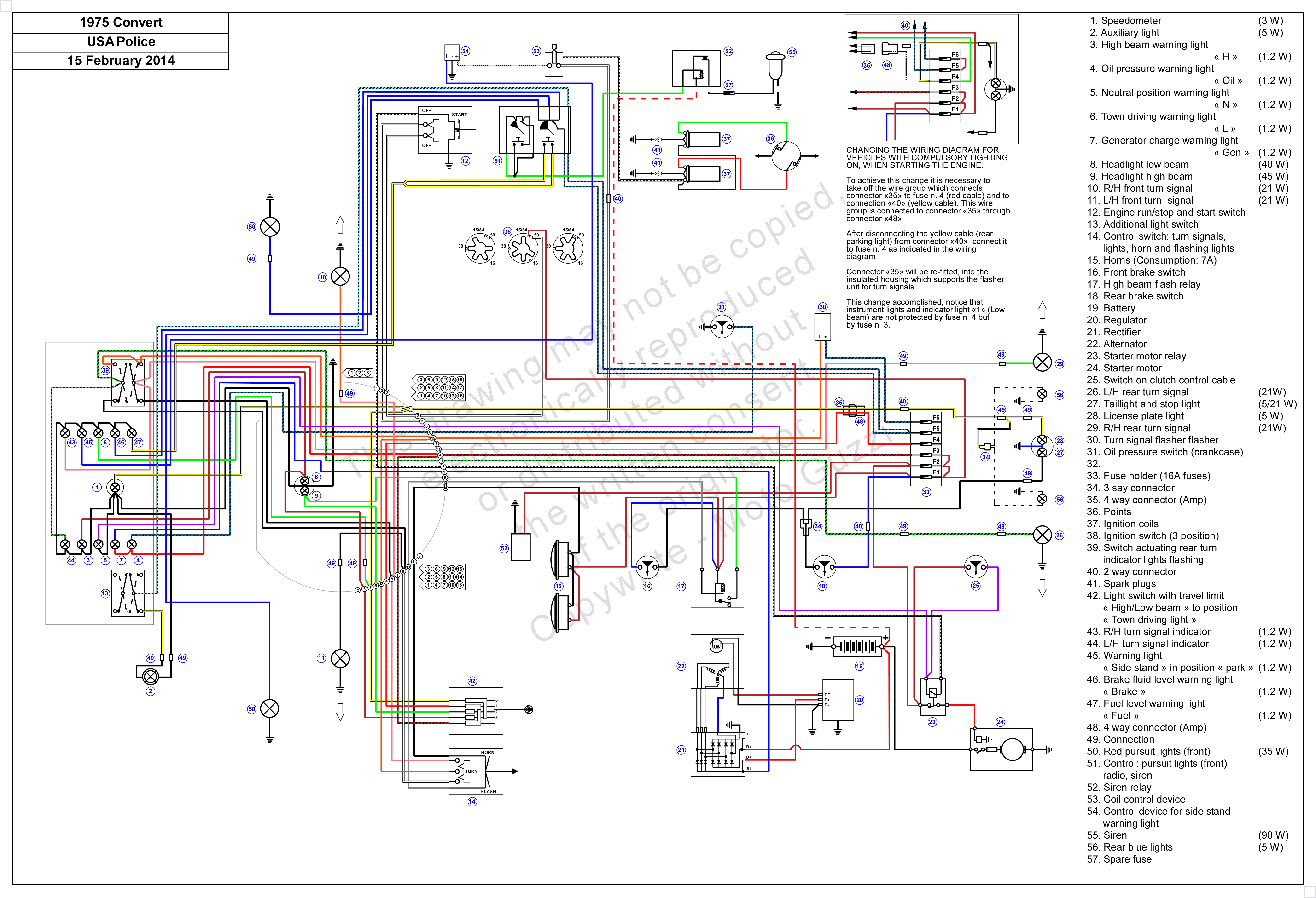

1975 Convert USA Police gif pdf (updated 02/15/2014) Tonti Frame

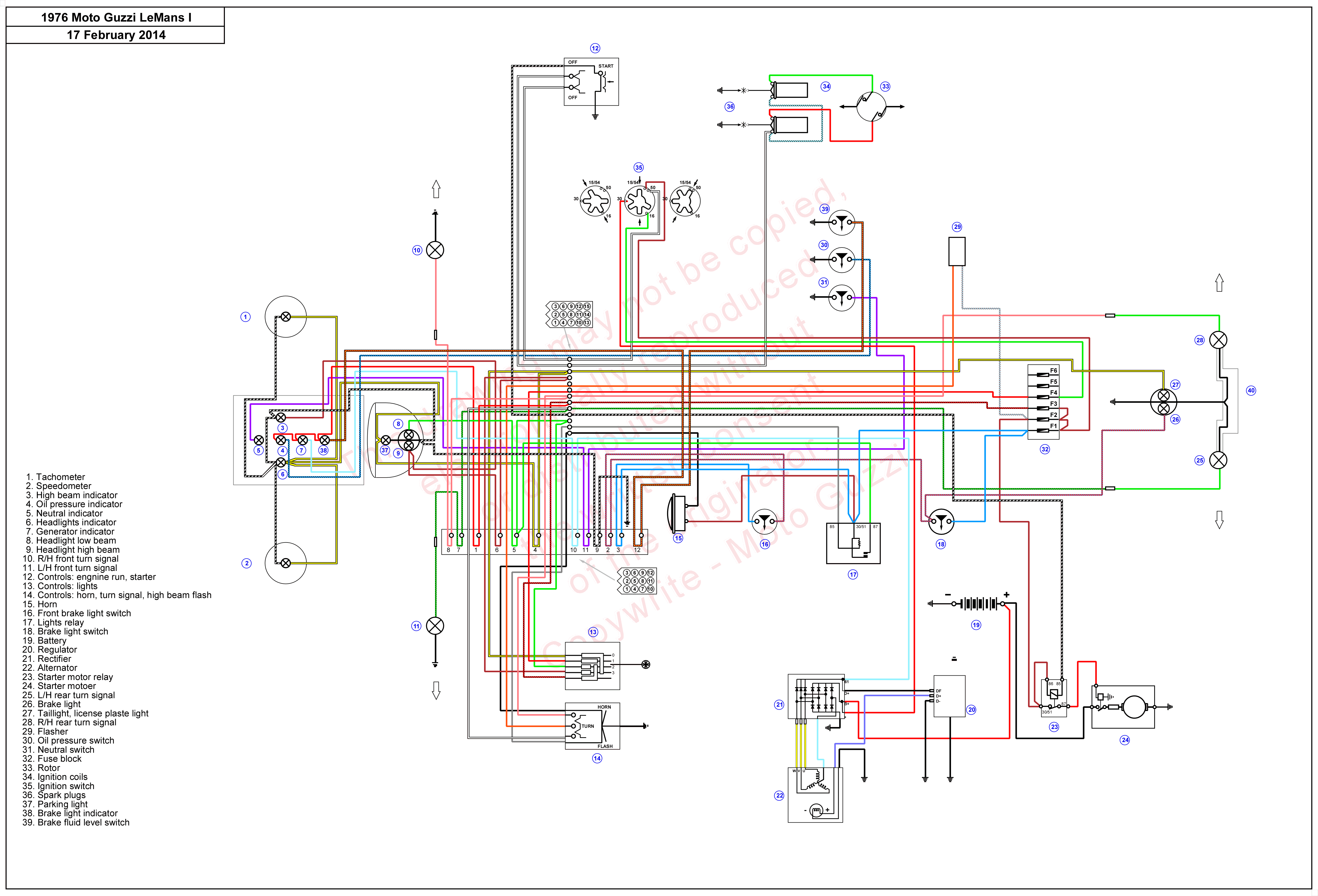

1976 LeMans I gif pdf (updated 02/17/2014) Tonti Frame
1976 V65 gif pdf   Small Block
1977 750 NTX Police Series 1 gif pdf   Small Block

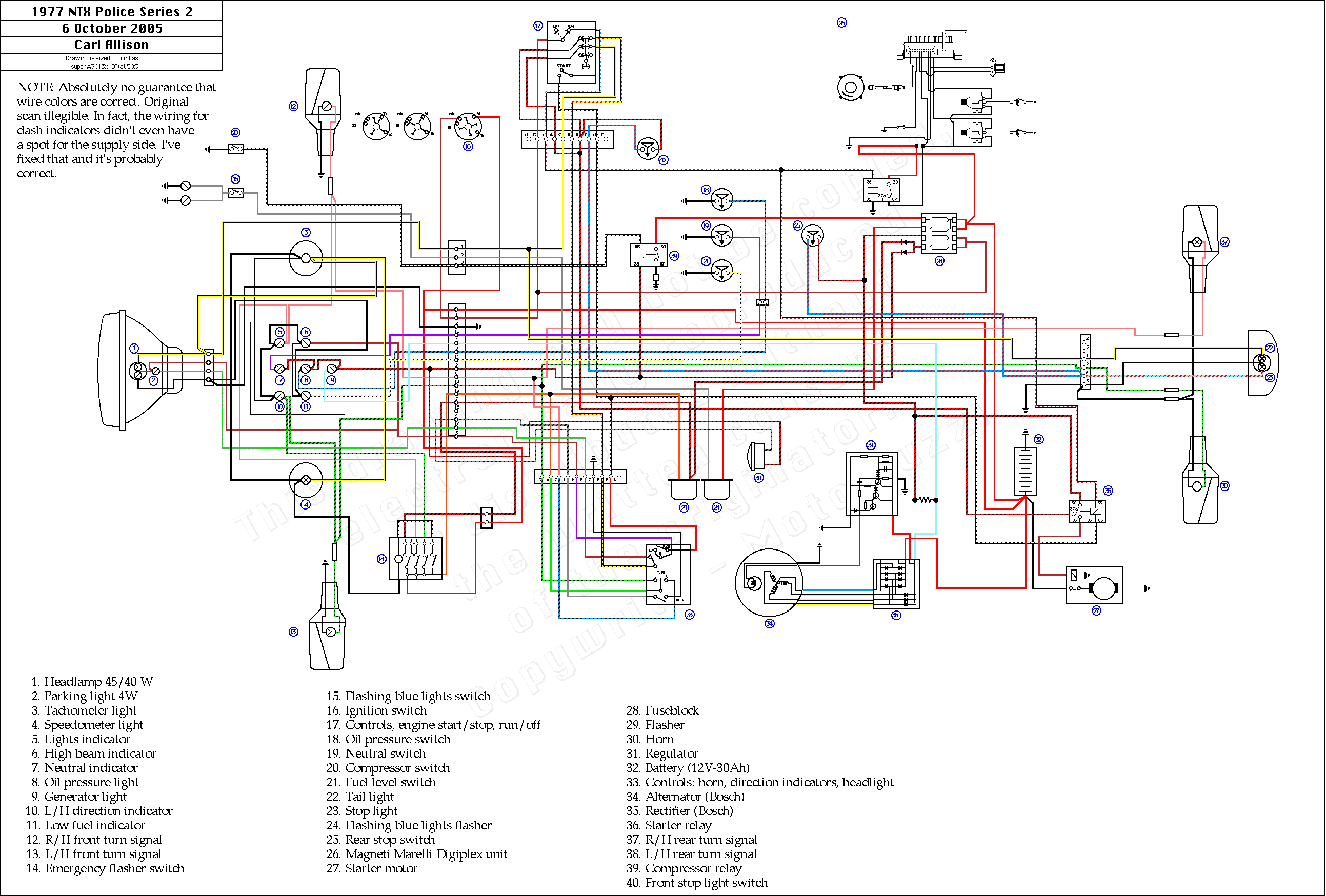

1977 750 NTX Police Series 2 gif pdf   Small Block

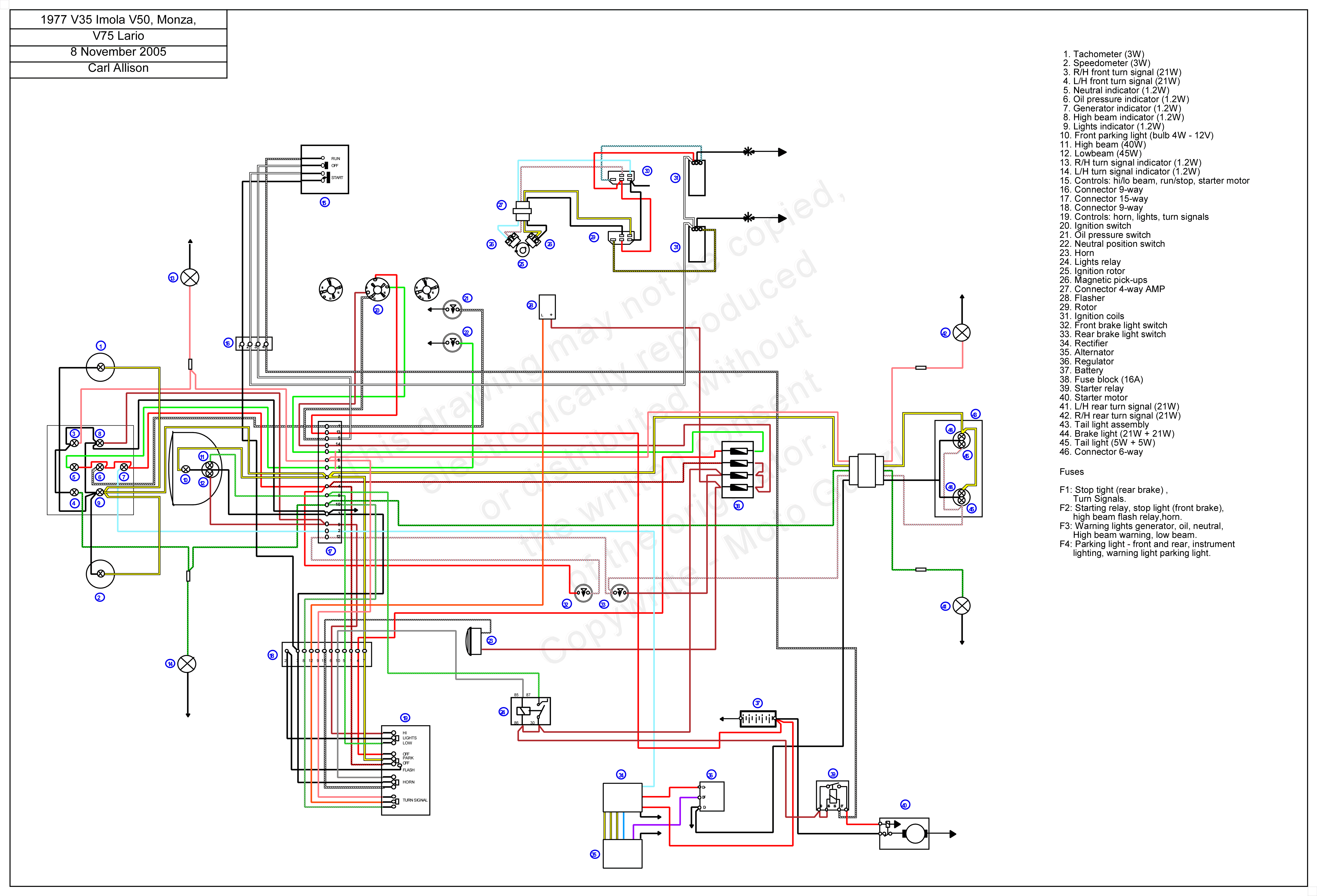

1977 Imola,Monza,Lario gif pdf   Small Block
1977 V35,V50,V65,V75 Police
Bosche Motoplat
gif pdf   Small Block
1977 V35,V50,V65,V75 Police Series 2
Bosch
gif pdf   Small Block
1977 V35-V50-V75 Police Series 2
Saprisa Digiplex
gif pdf   Small Block
1977 V35III V75 gif pdf   Small Block

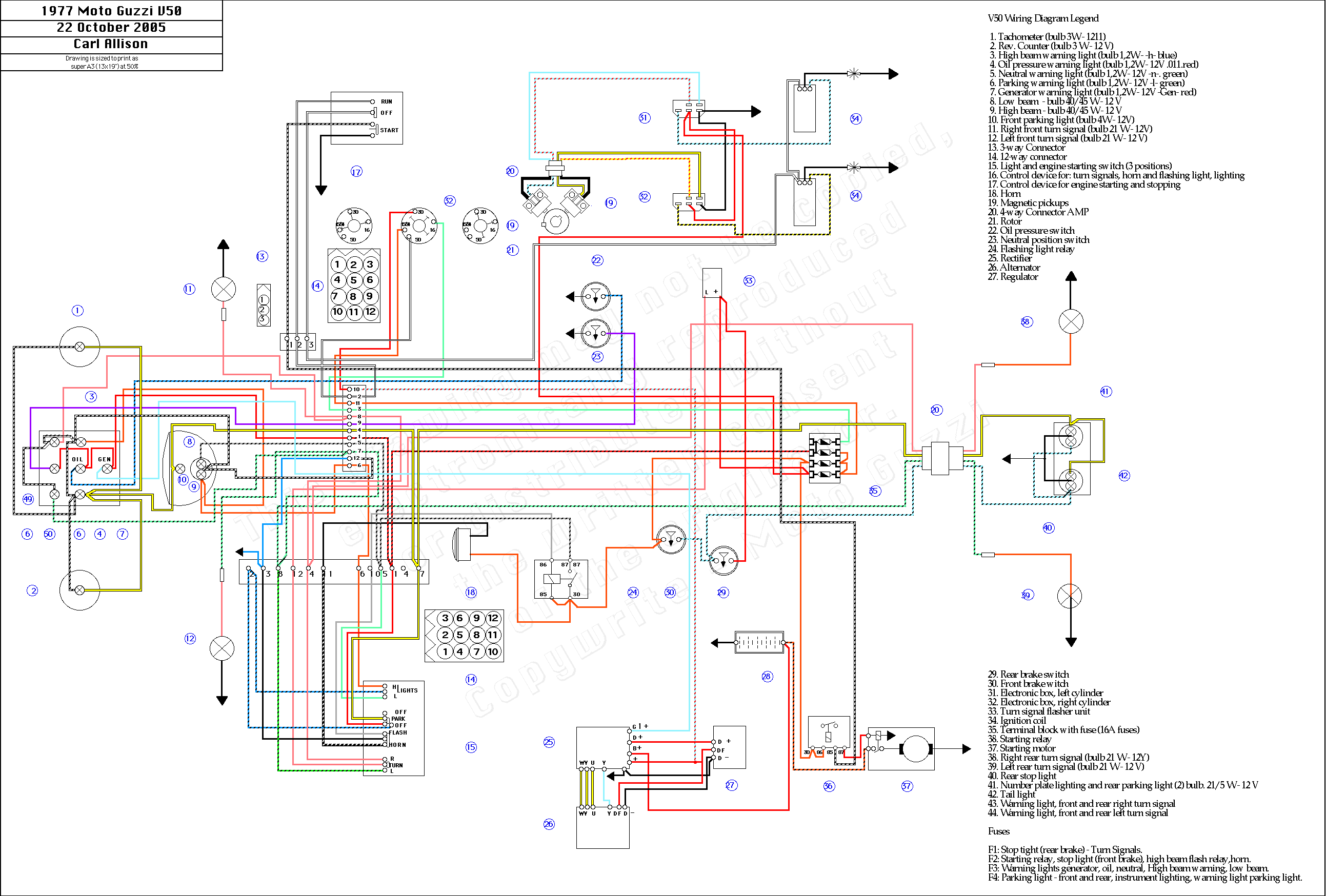

1977 V50 gif pdf   Small Block
1977 V65 Police Series 1 gif pdf   Small Block
1978 G5 gif pdf (updated 02/17/14) Tonti Frame
1978 LeMans II gif pdf (updated 03/05/14) Tonti Frame

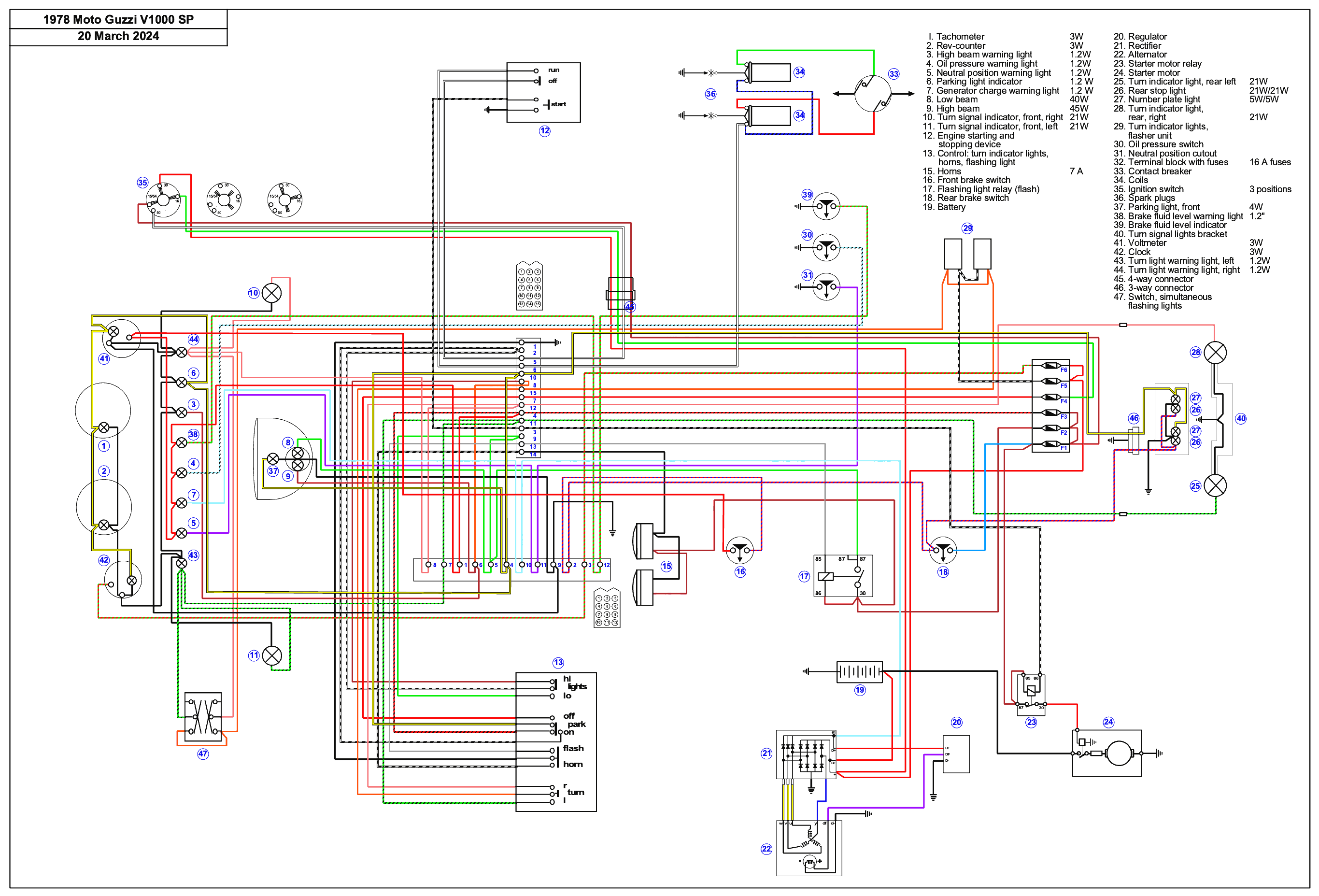

1978 V1000 SP gif pdf (updated 02/22/14) Tonti Frame

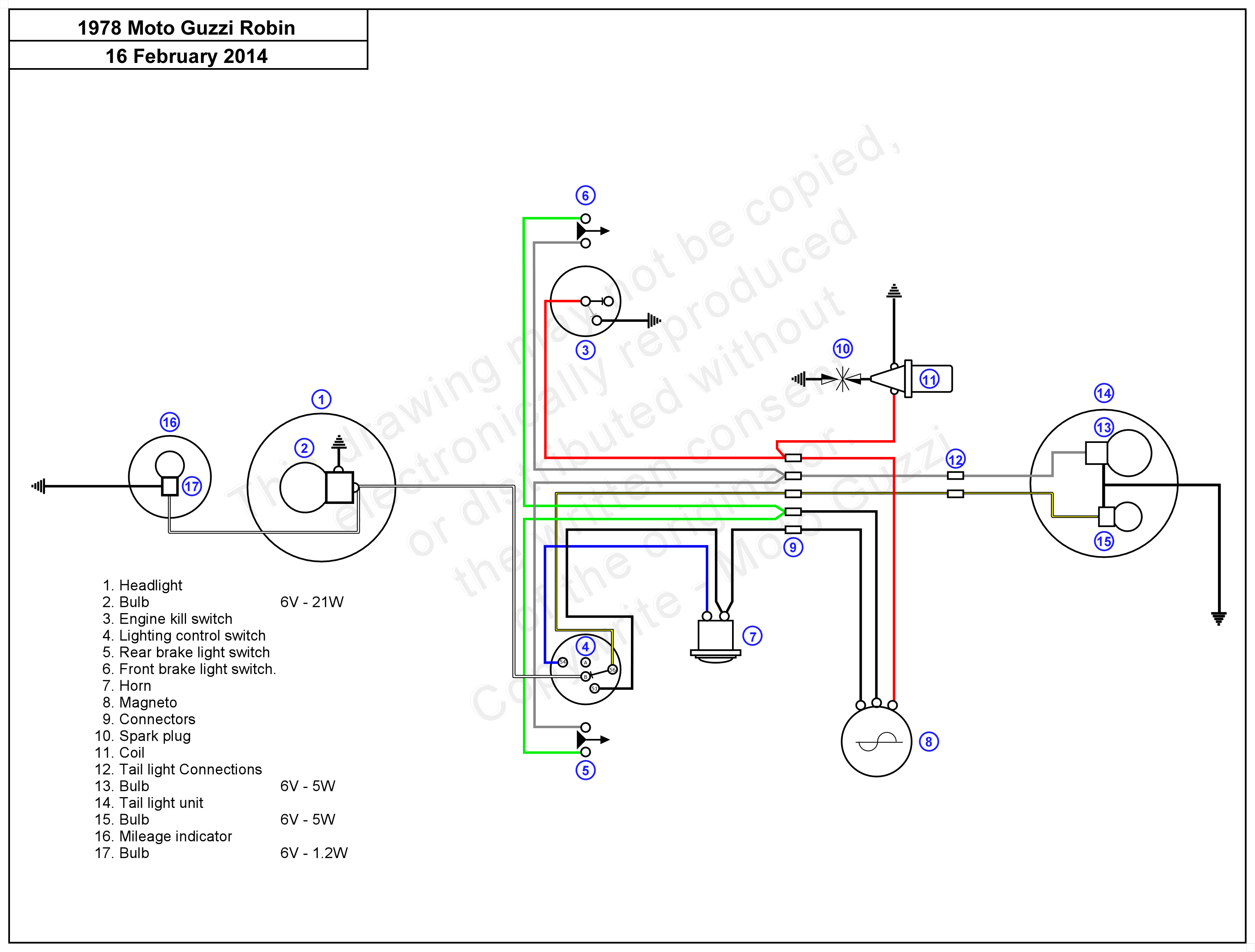

1978 Robin gif pdf (updated 02/16/14) Vintage and Singles
1980 1000 SP NT gif pdf (updated 03/05/14) Tonti Frame
1980 T3 Europe gif pdf (updated 02/27/14) Tonti Frame
1980 T4 gif pdf (updated 02/23/14) Tonti Frame
1981 California II gif pdf (updated 03/04/14) Tonti Frame
1981 LeMans III gif pdf (updated 03/05/14) Tonti Frame
1982 Tuttotereno gif pdf (updated 02/27/14) Vintage and Singles
1983 SP II gif pdf (updated 03/11/14) Tonti Frame
1983 T5 series 1 gif pdf (updated 03/13/14) Tonti Frame
1983 T5 series 2 gif pdf   Tonti Frame
1983 V65 Lario Series 1 gif pdf   Small Block
1985 Imola II-Monza-Lario gif pdf (updated 01/01/09) Small Block
1986 V65 Florida gif pdf (updated 08/23/10) Small Block
1987 California III gif pdf (updated 09/02/16) Tonti Frame
1987 NTX350-650 bosche gif pdf   Tonti Frame
1987 NTX350-650 saprisa gif pdf   Tonti Frame
1988 1000 SP gif pdf   Tonti Frame
1988 California 1000 Carb gif pdf   Tonti Frame

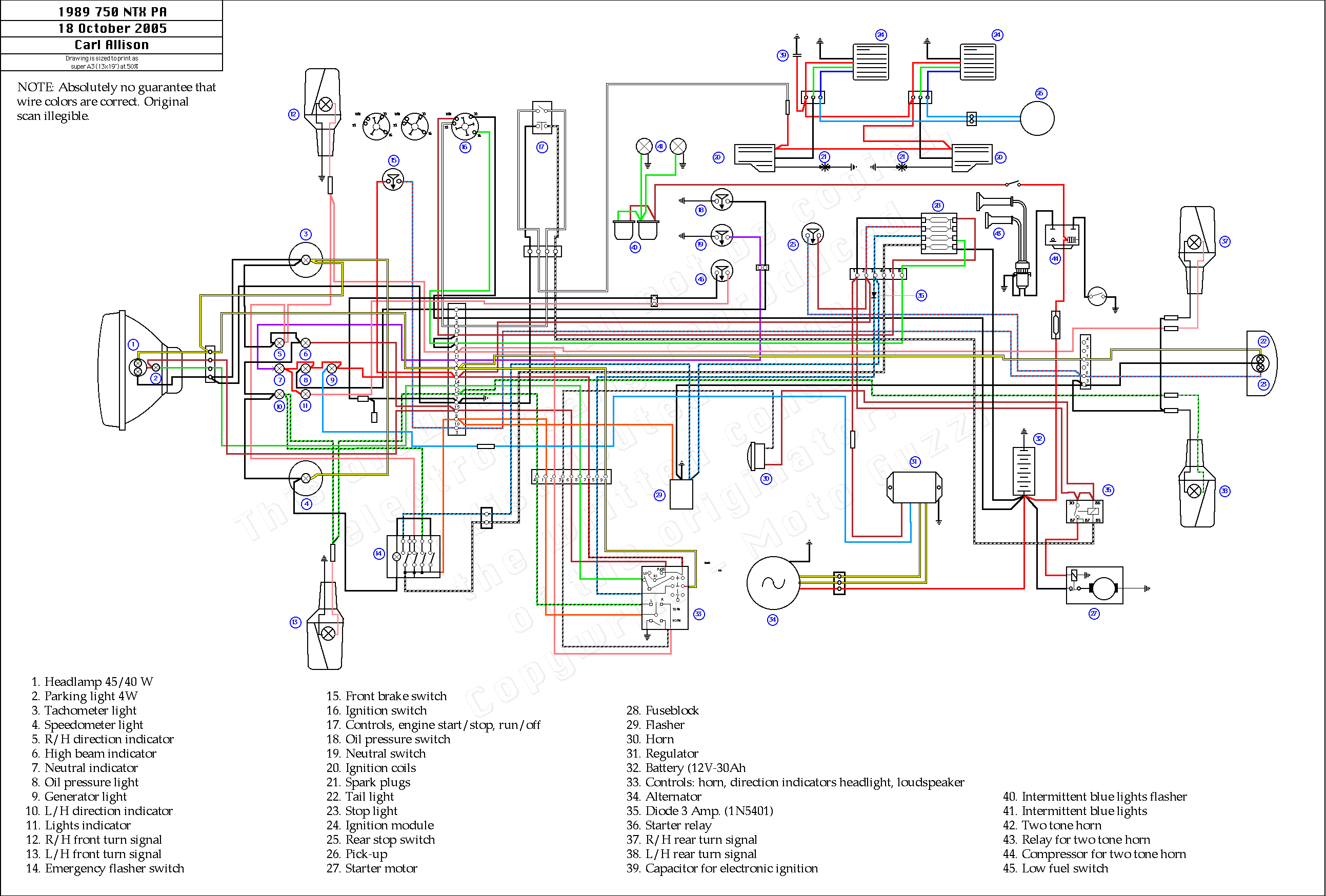

1989 750 NTX P gif pdf   Small Block

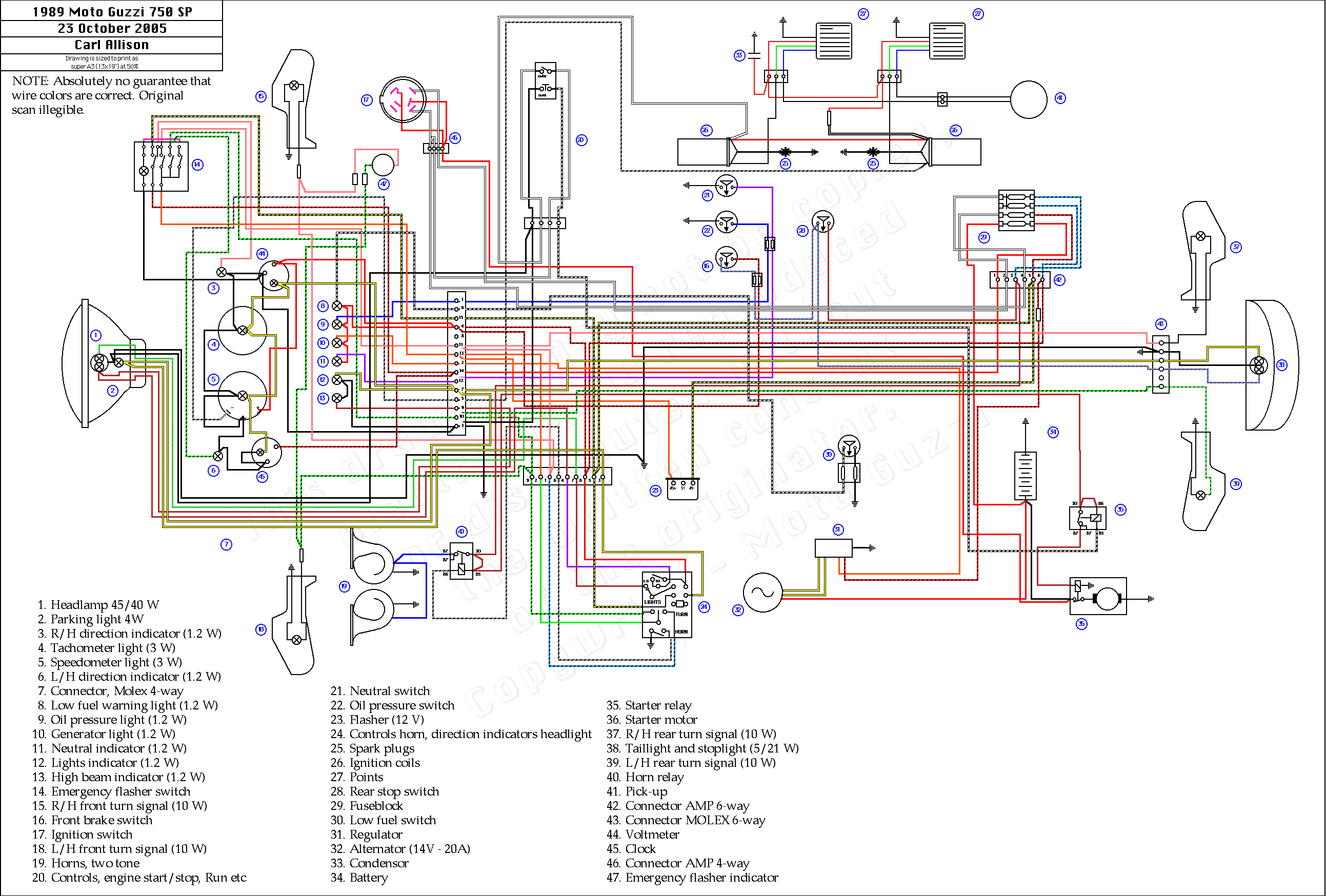

1989 750 SP gif pdf   Small Block
1990 750 Targa gif pdf   Small Block
1989 750 Strada gif pdf   Small Block
1990 LM V gif pdf   Tonti Frame
1991 Quota 1000 gif pdf (updated 08/01/10) Backbone Frame
1993 Daytona 1000 gif pdf   Spine Frame
1993 Sport 1100 gif pdf   Spine Frame
1994 California 1100 gif pdf   Tonti Frame
1994 Nevada 350-750 gif pdf   Small Block
1994 Strada 1000 Type 1 gif pdf   Tonti Frame
1994 Strada 1000 Type 2 gif pdf   Tonti Frame
1994 V35-75 Police gif pdf   Small Block
1996 California 1100i gif pdf   Tonti Frame
1996 Centauro gif pdf (updated 07/25/13) Spine Frame
1996 Sport 1100i gif pdf (updated 05/25/08) Spine Frame
1998 EV gif pdf (updated 10/24/14) Tonti Frame
1999 V11 sport gif pdf (updated 19/11/10) Spine Frame
2000 Bassa gif pdf (updated 12/19/13) Tonti Frame
2000 Jackal gif pdf (updated 12/19/13) Tonti Frame

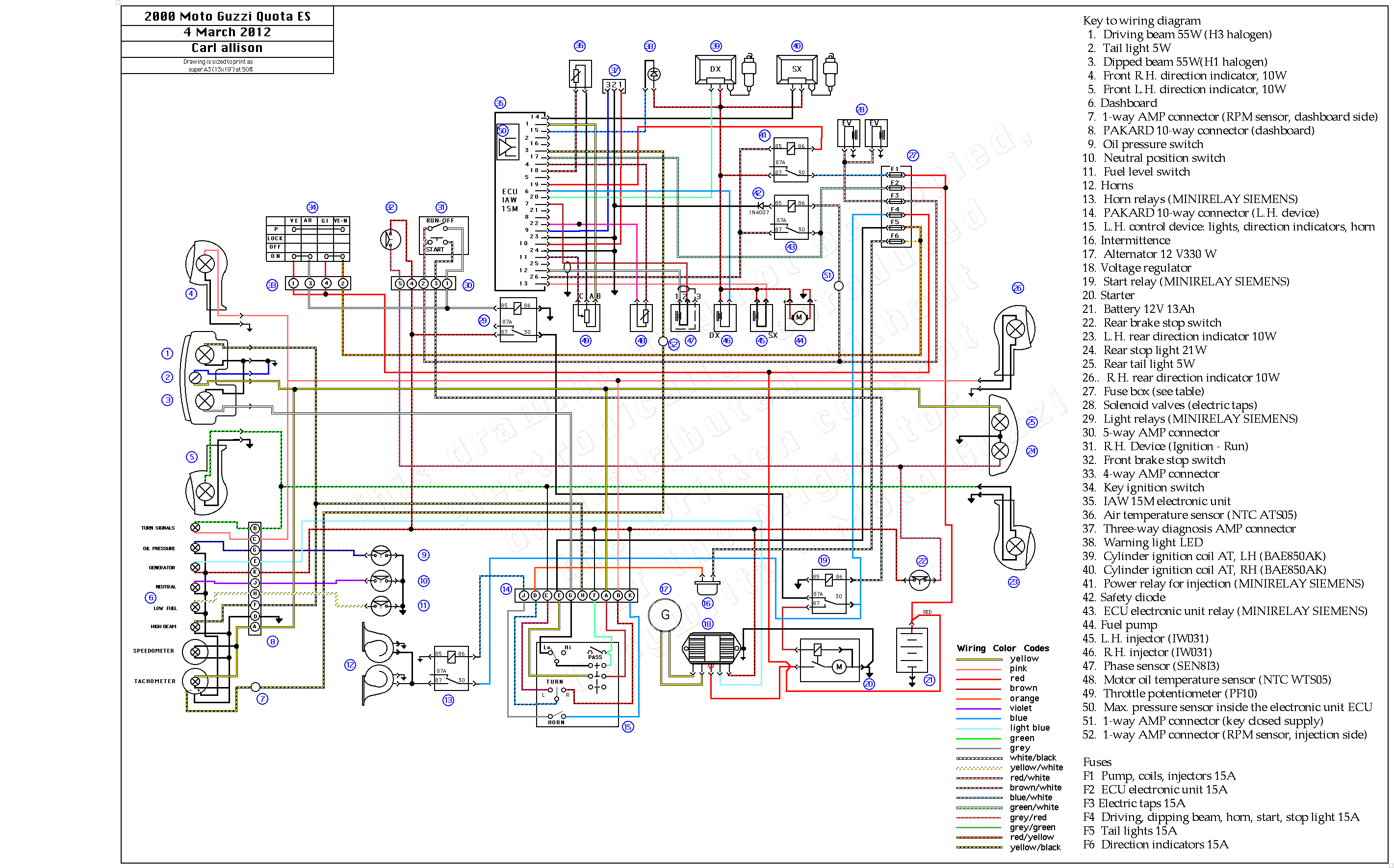

2000 Quota 1100 ES gif pdf   Backbone Frame

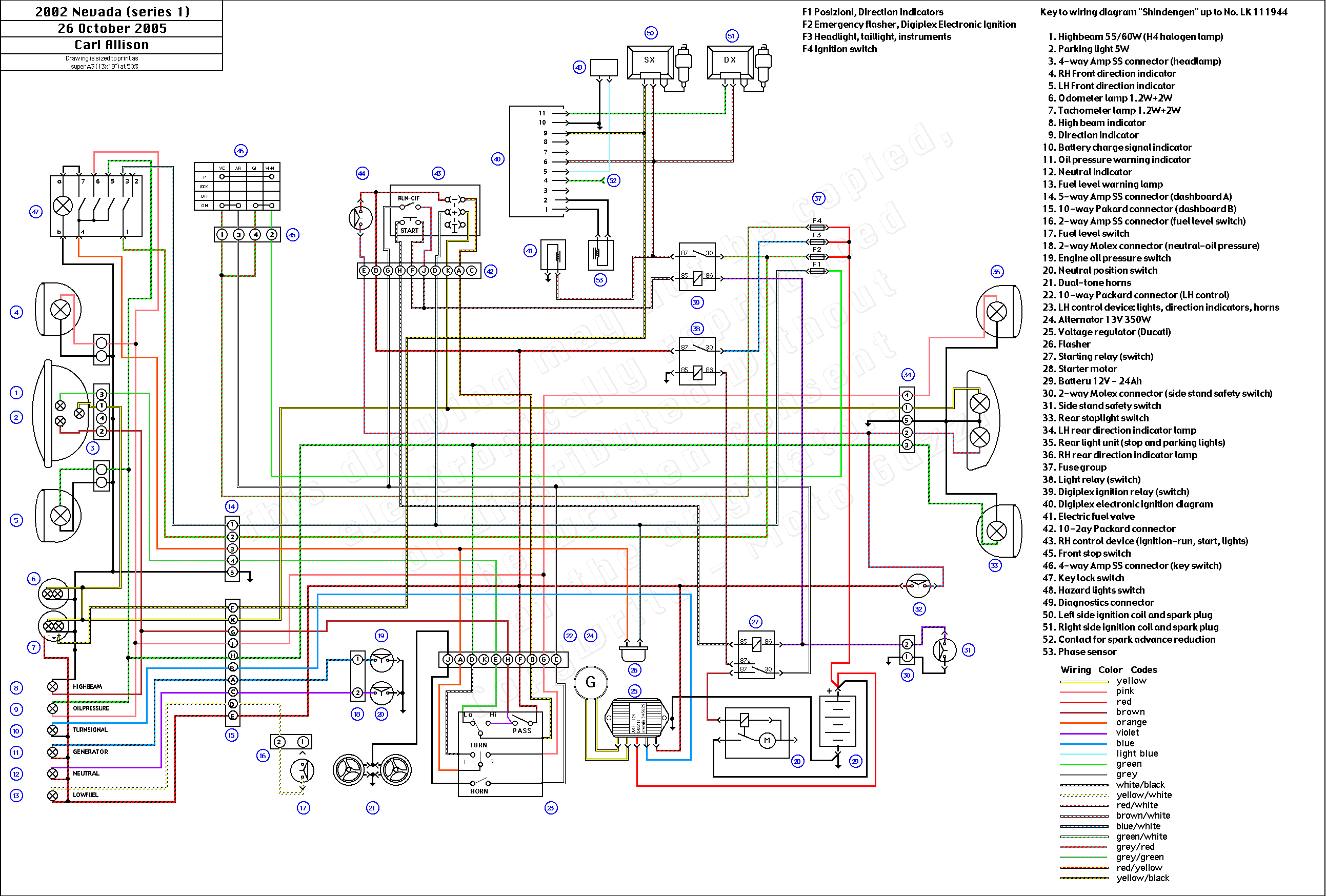

2002 Nevada series 1 gif pdf   Small Block
2002 Nevada series 2 gif pdf   Small Block
2002 Stone/2001 California Special gif pdf (updated 12/19/13) Tonti Frame
2004 750 Breva gif pdf   Small Block
2004 EV Catalytic gif pdf   Tonti Frame
2004 Nevada IE gif pdf   Small Block
2004 V11 Sport Catalytic gif pdf   Spine Frame
2005 Breva 1100 gif pdf   Tonti Frame
2005 MGS01 gif pdf   Race Frame
2006 Griso 1100 gif pdf   CARC
2007 Norge
(and 2007 Sport 1200)
gif pdf   CARC
2007 Norge ABS
(and 2007 Sport 1200 ABS)
gif pdf   CARC
2008 Bellagio 940 gif pdf   CARC
2008 California Vintage gif pdf   Tonti Frame
2008 Stelvio gif pdf   CARC
2008 V7 Classic gif pdf   Small Block

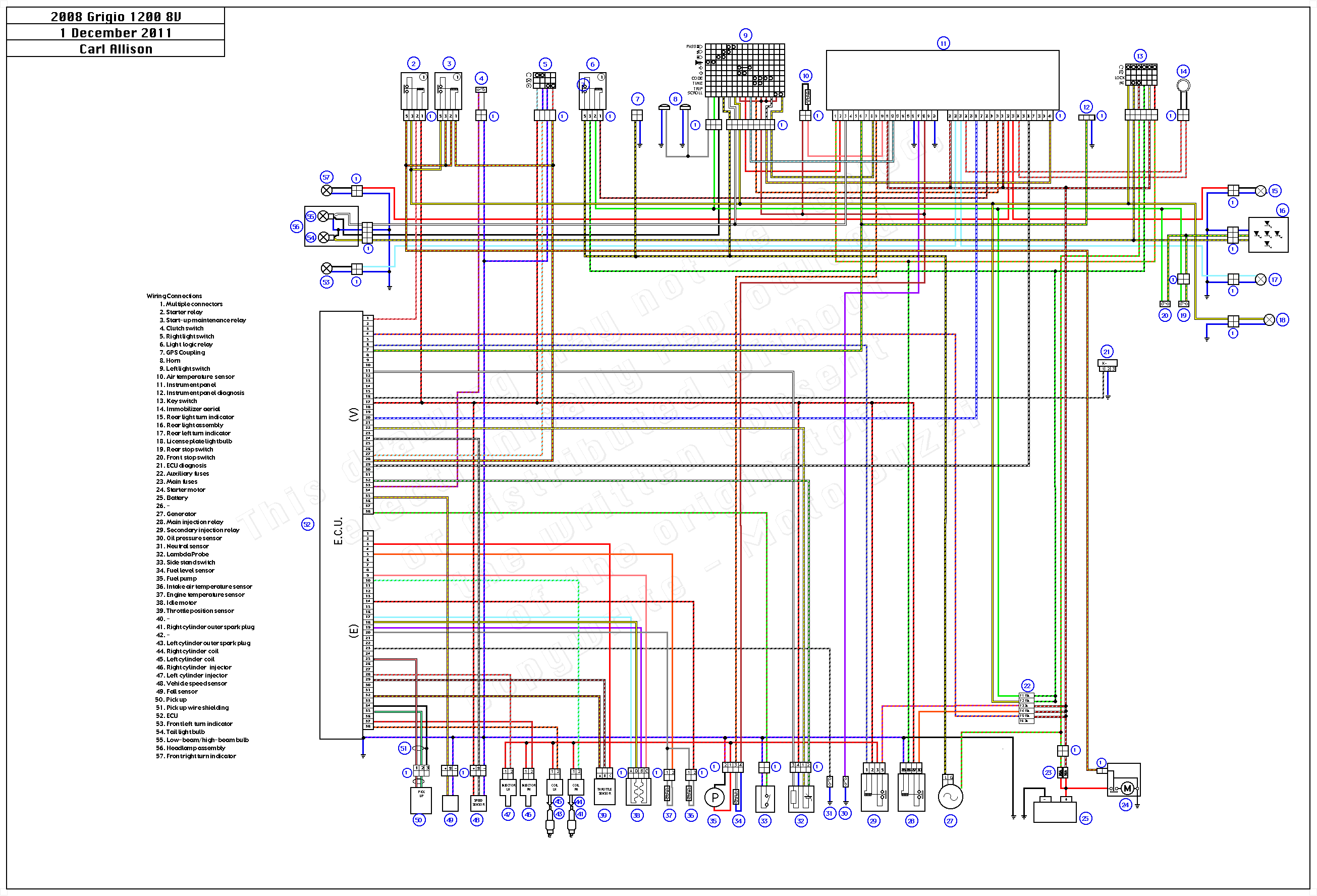

2008 Griso 8V gif pdf (updated 12/01/11) CARC
2013 V7 Series gif pdf (updated 07/14/13) Small BLock
2014 California 1400 (Entire) gif pdf (added 01/21/14) 1400 Series Frame
2014 California 1400 (Legend) gif pdf (added 01/21/14) 1400 Series Frame
2014 California 1400 (Power Supply) gif pdf (added 01/21/14) 1400 Series Frame
2014 California 1400 (Ground) gif pdf (added 01/21/14) 1400 Series Frame
2014 California 1400 (Enabling Signals 1) gif pdf (added 01/21/14) 1400 Series Frame
2014 California 1400 (Enabling Signals 2) gif pdf (added 01/21/14) 1400 Series Frame
2014 California 1400 Bluedash (Entire) gif pdf (added 08/10/14) 1400 Series Frame
2014 California 1400 Bluedash (Legend) gif pdf (added 08/10/14) 1400 Series Frame

?

Contact:

guzzi007
"at"
npgcable.com

See any errors? Again, contact me at the above email address.

I do not guarantee the accuracy of these re-drafts (or the originals either for that matter).
I do make every effort to catch mistakes and make them as correct as
possible while improving the legibility through the use of color etc.

I am not responsible for their mis-use, misinterpretation ad infinitum
and all of the usual legal garbage.
The schematics are here to aid the Moto Guzzi owner who needs to make
sense out of the wiring. To that end, I hope that anyone that uses
these diagrams and finds errors contacts me so that those errors
can be corrected to benefit us all.

Thanks
Carl Allison
