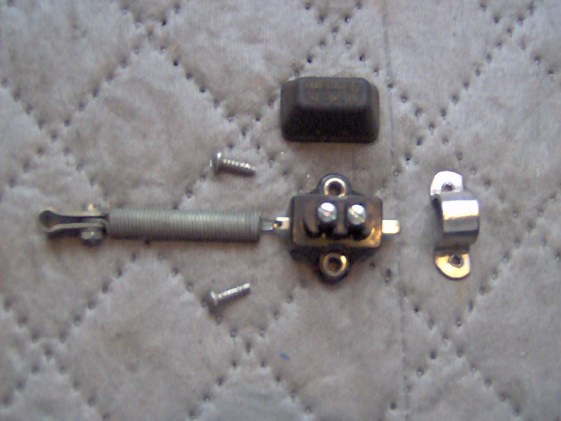

One more item on my to do list was a front brake light switch. I initially tried to achieve this with one of the Barnett cables I had made with a switch built in. But, somehow I managed to over lube the cable and shorted the switch, rendering it useless. So, I put a Barnett cable without switch back on and began thinking about another way of doing it. A while back I'd bought several Harley Sprint brake lever perches which incorporate a switch, the throttle and mirror mount. Nice, but the stock Guzzi lever wouldn't work and the Sprint lever would require cable alterations. The project was backburnered while I pondered it some more. Digging around in my drawer of switches the other day and found a Bosch brake light switch with spring and a little clamp for around a brake rod. A little light bulb lit above my head! Last year I had been checking out Rob Prins' Ambo and noticed the Honda brake light switch he had attached to the front fender stay. The switch I found would be perfect to do the same thing! Made a bracket out of some scrap stainless steel and a short harness to connect the switch to the wires already in place from the aborted cable activated one.

Photo courtesy of Charlie Mullendore of Antietam Classic Cycle.

Direct link to image

Works great, looks a bit Rube Goldberg, but if it keeps me from being rear ended it's worth it.

Photo courtesy of Charlie Mullendore of Antietam Classic Cycle.
